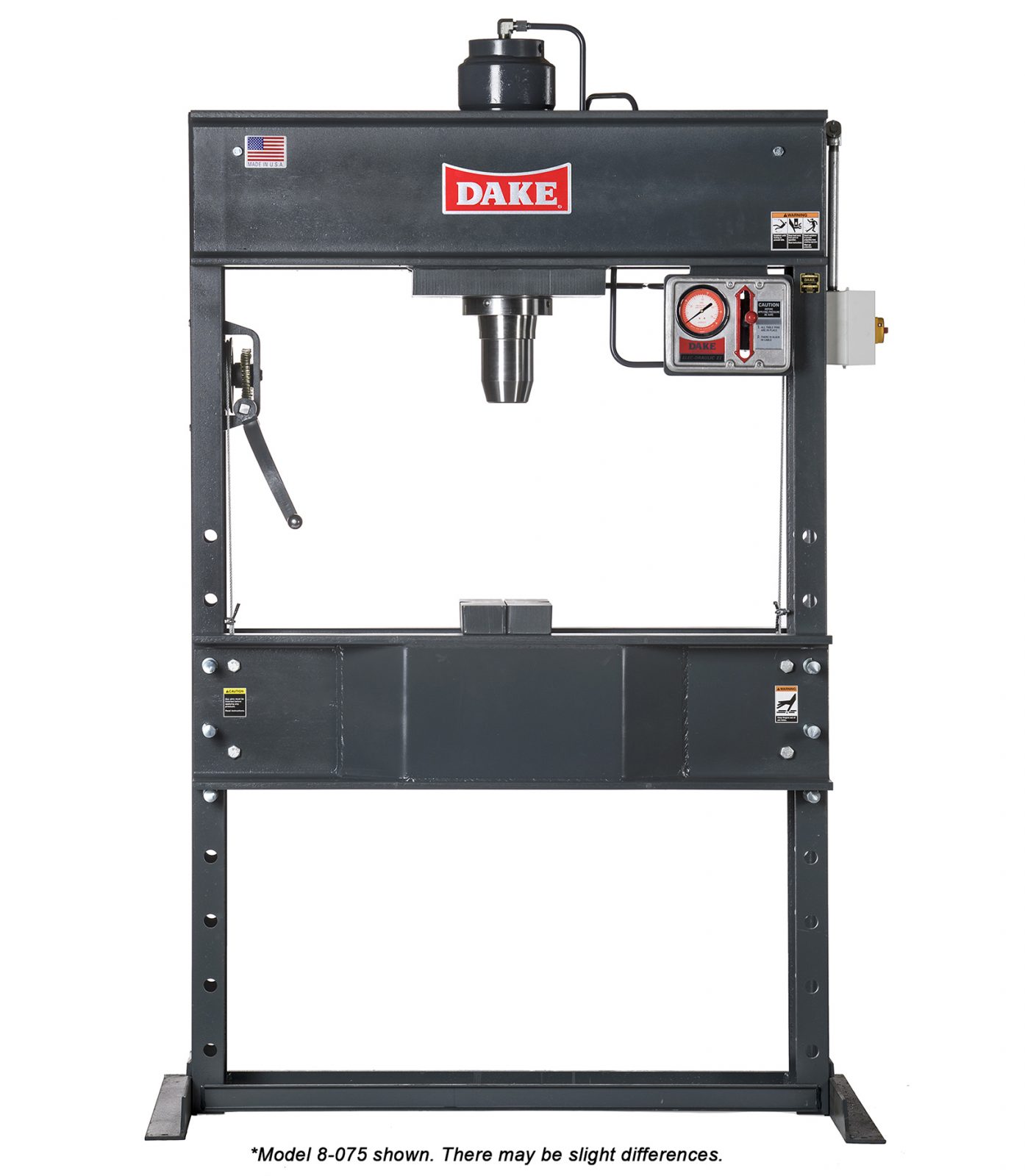

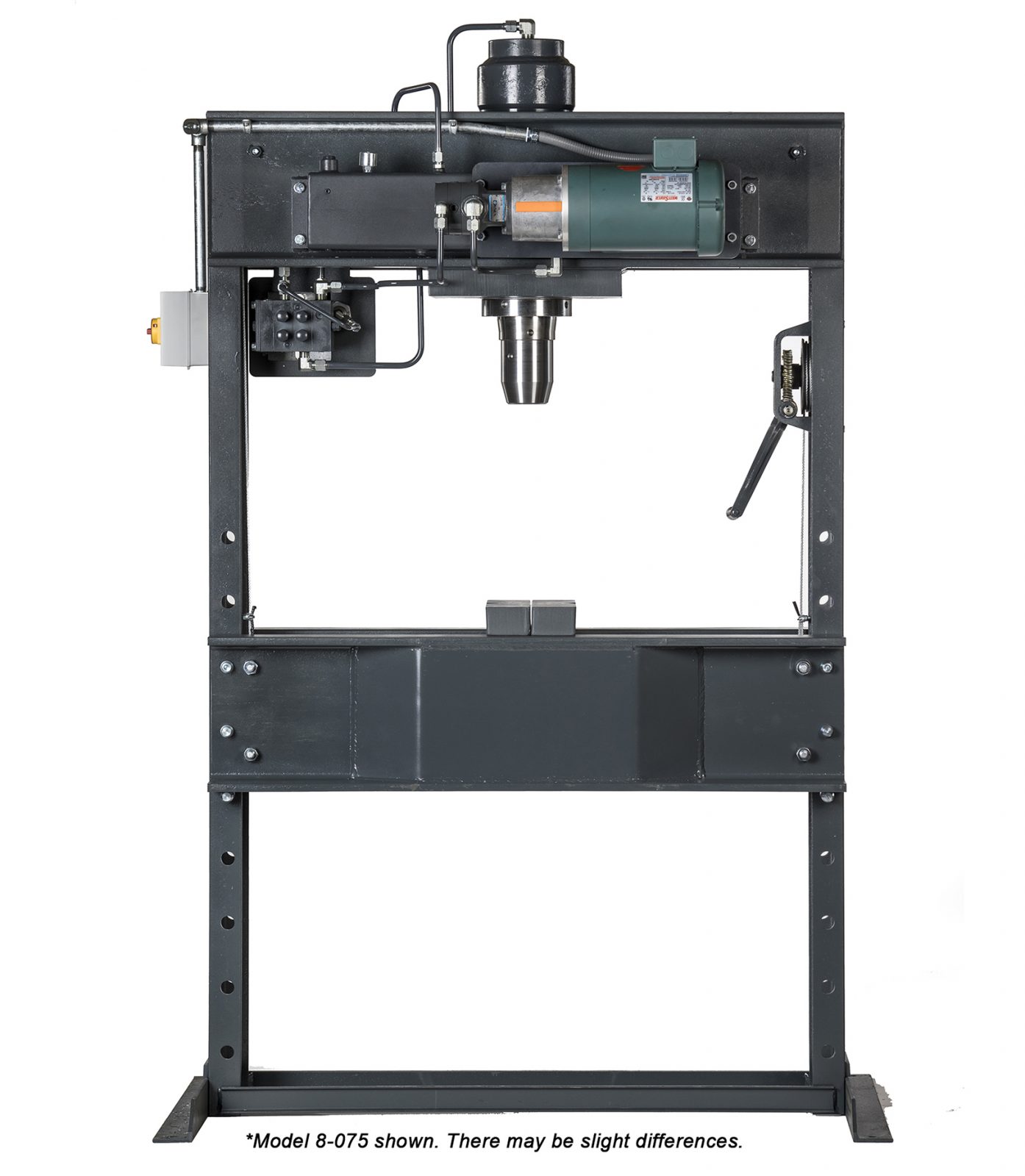

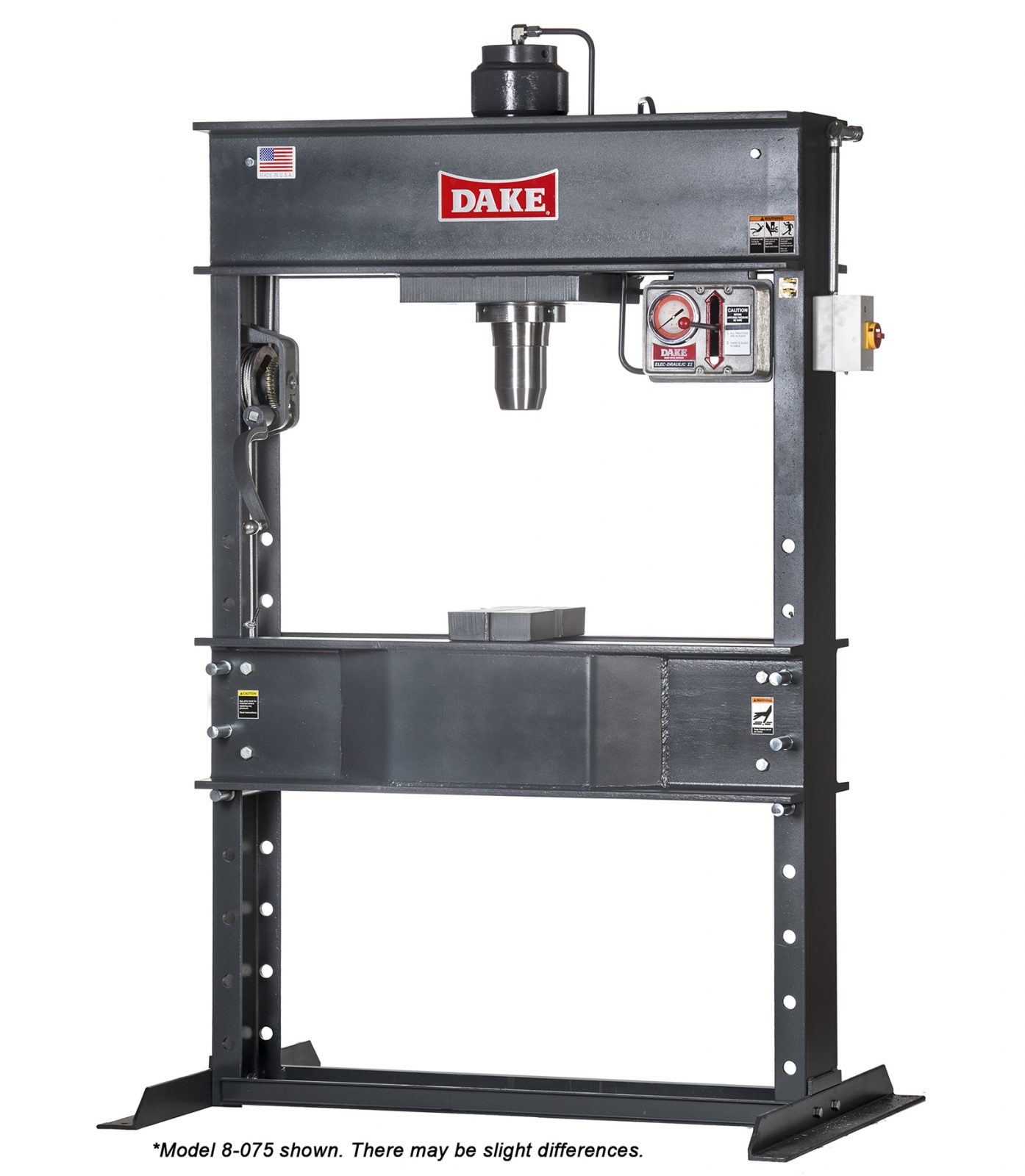

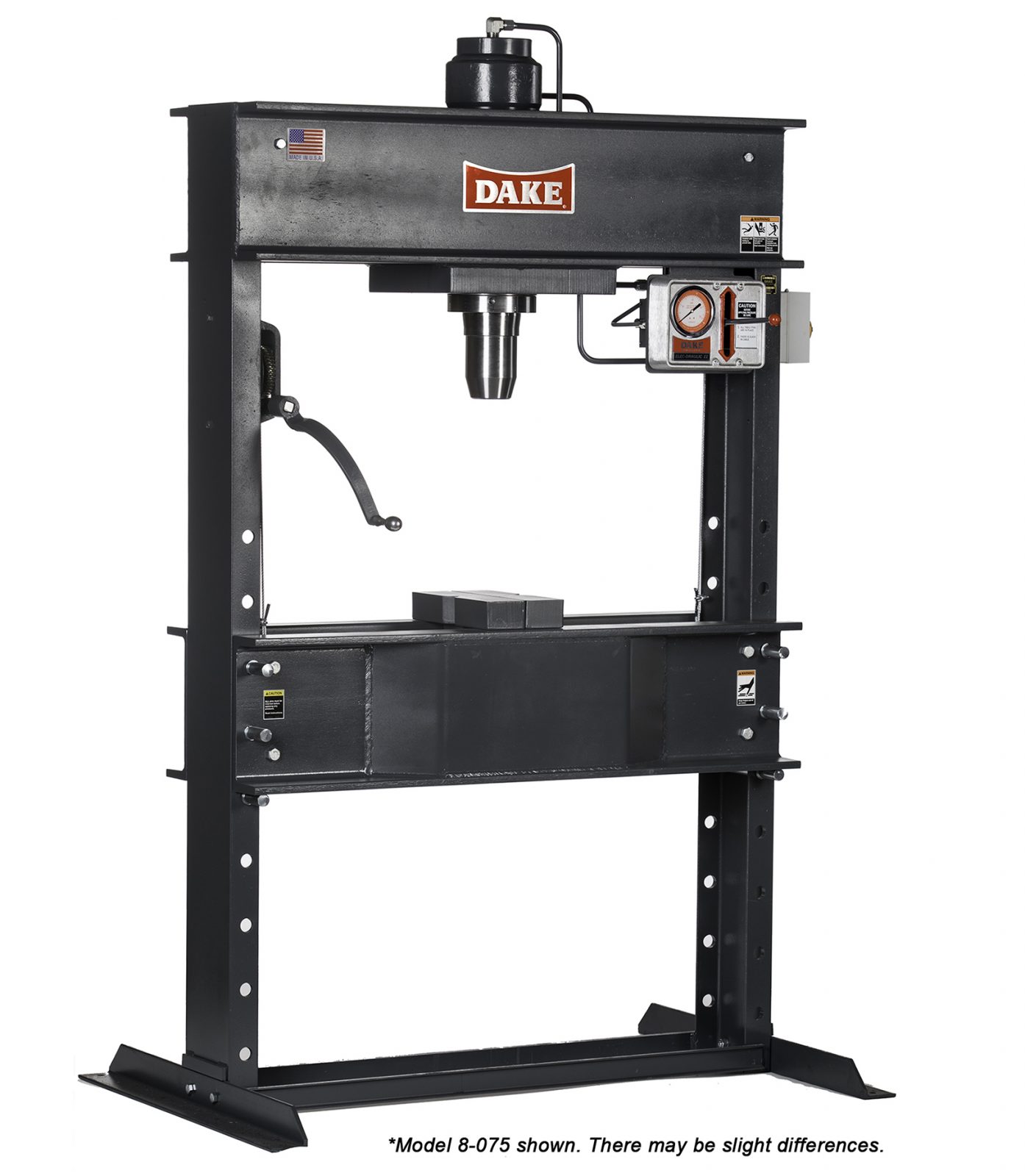

Dake 50 ton Elec-Draulic II press 220v-3ph 2 hp - 908050-2
The 50 ton electric-hydraulic II dual acting press has a 2 horsepower motor, 8 IPM pressing speed, and is 86 inches tall. The dual acting ram allows for super-sensitive ram control with simple operation.
FEATURES:
- Electric operation provides smooth, consistent pressing action.
- Variable ram speed allows fingertip control of ram movement for precise control.
- H-frame mounted control allows convenient control of press when workhead is out of operator’s reach.
- Adjustable table permits easy vertical movement by means of self-locking hoist.
- Double-acting cylinder permits pulling as well as pressing ram action
- Safety valve protects against overloads.
- T-ring seals prevent pressure loss.
STANDARD EQUIPMENT:
- Frame
- 2 Steel V-Blocks
- Flat Ram Nose
- Pump
- Safety Relief Valve
- Self-locking Table Hoist
- Double Acting Workhead
- 2 Steel Table Plates
- Pressure Gauge
SPECIFICATIONS:
- Part Number: 908050-2
- Capacity: 50 tons pressing, 18 tons pulling
- Operation: Electric
- Horsepower: 2
- Voltage: 220V/440V, 3-Phase
- Width between uprights: 32-3/4"
- Width between table channels: 7-1/4"
- Minimum ram to table: 10-1/8"
- Maximum ram to table: 45-1/8"
- Ram travel: 10"
- Screw Travel: n/a
- Horizontal workhead travel: n/a
- Footprint: 43-1/2" x 36"
- Height: 86"
- Weight: 1,360 lbs
- Base: 43-1/2" x 36"
- Ram advance speed: n/a
- Pressing speed: 8 ipm
- RPM: 1,800
- Air Pressure: n/a
