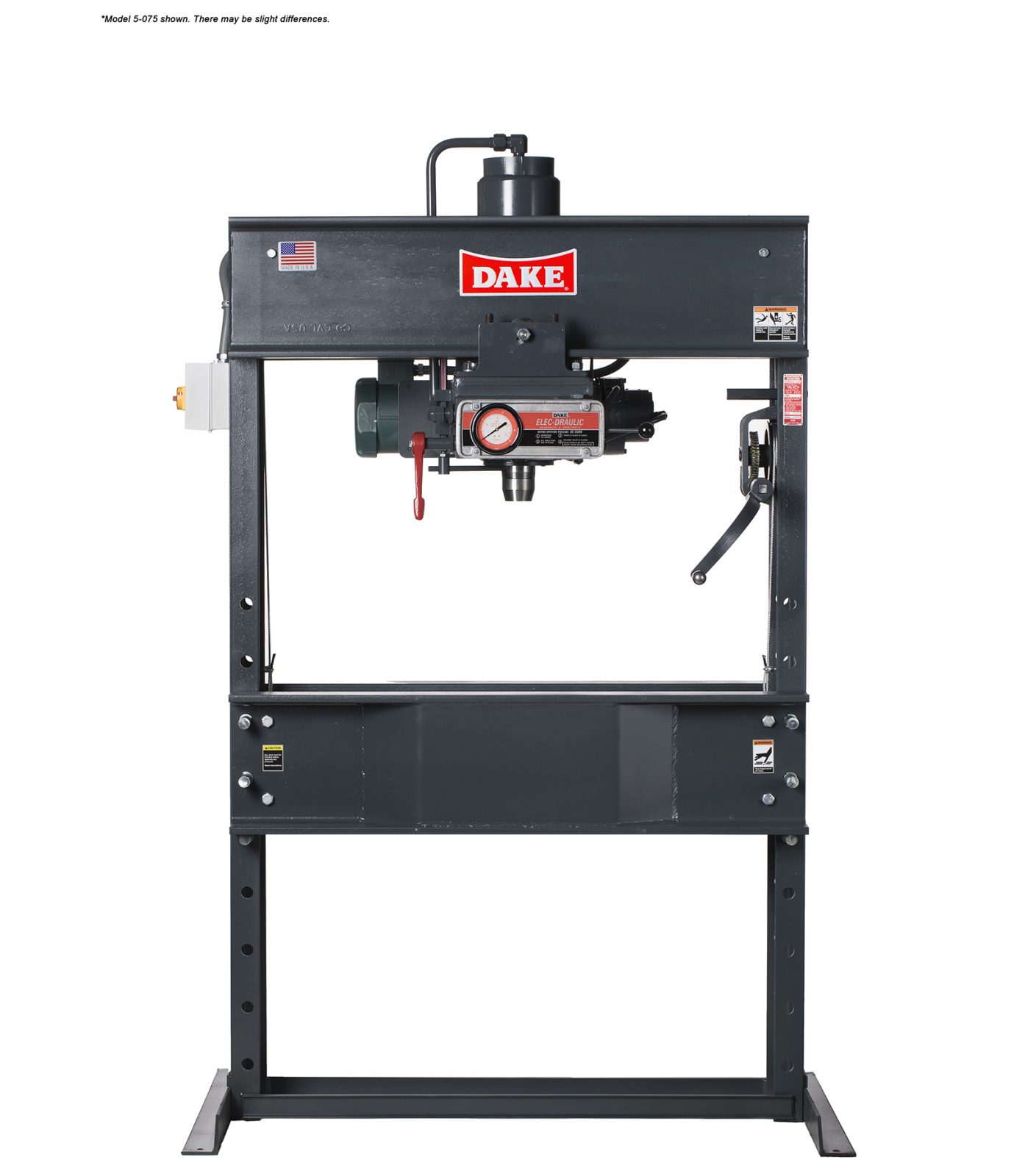

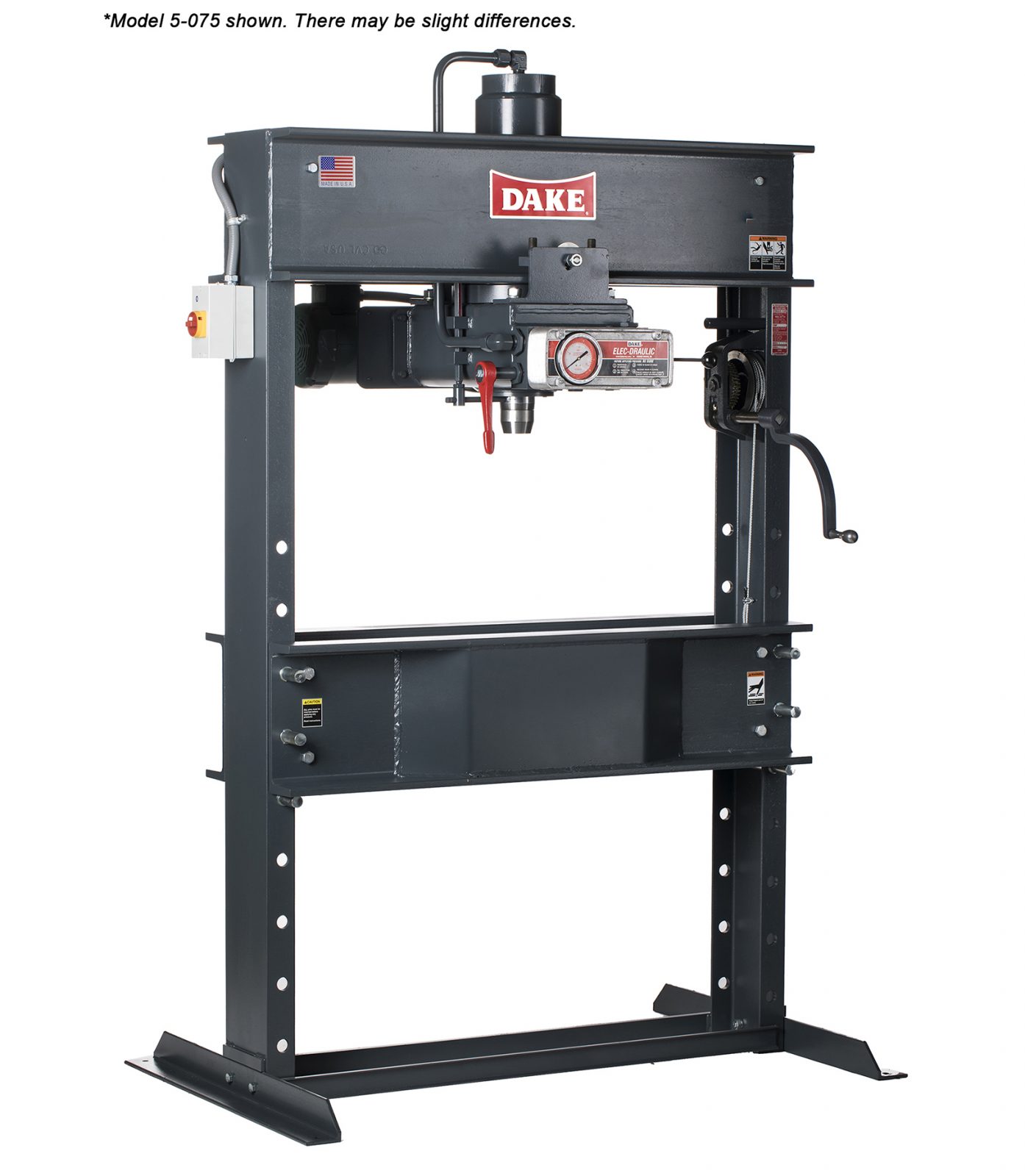

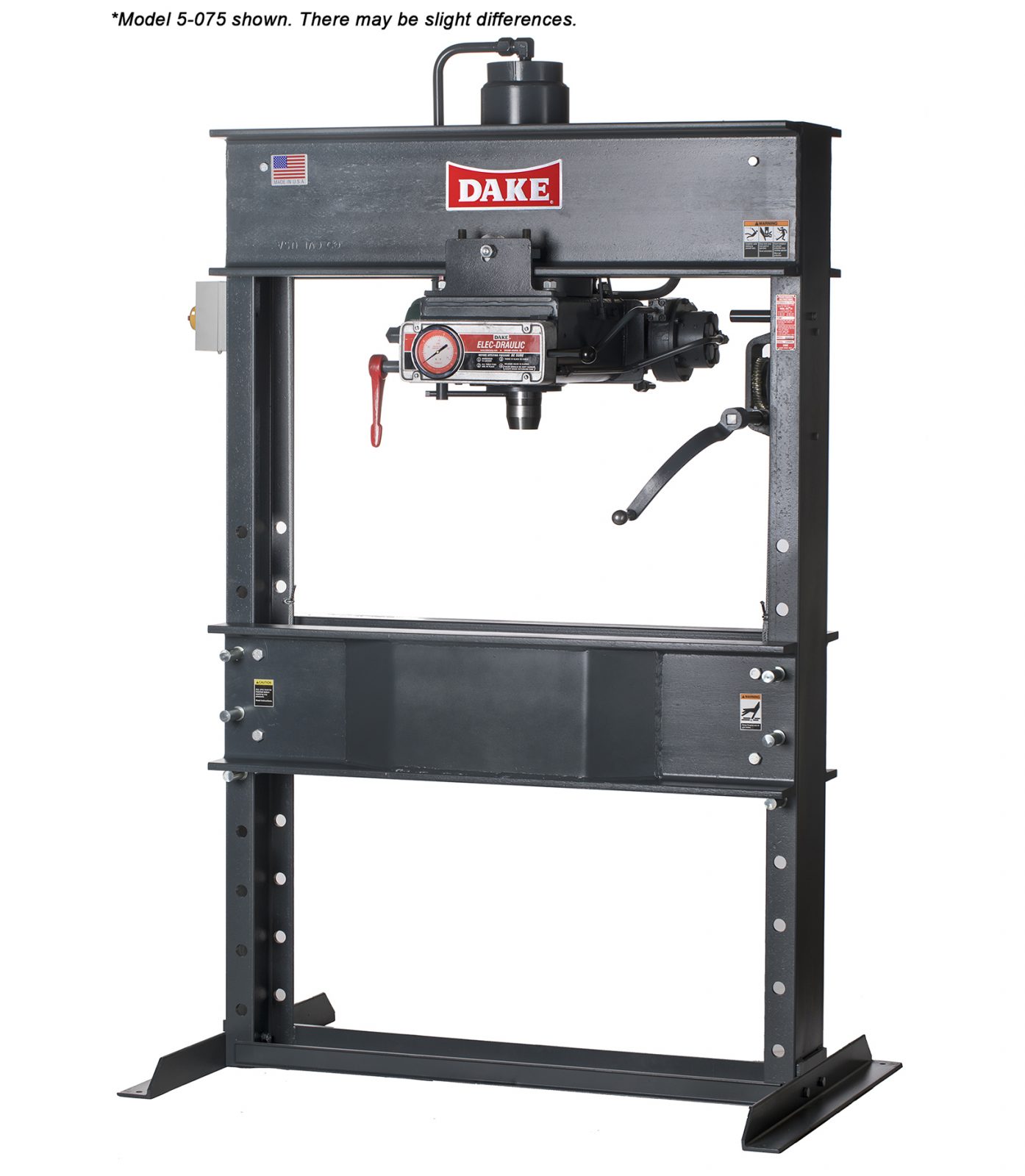

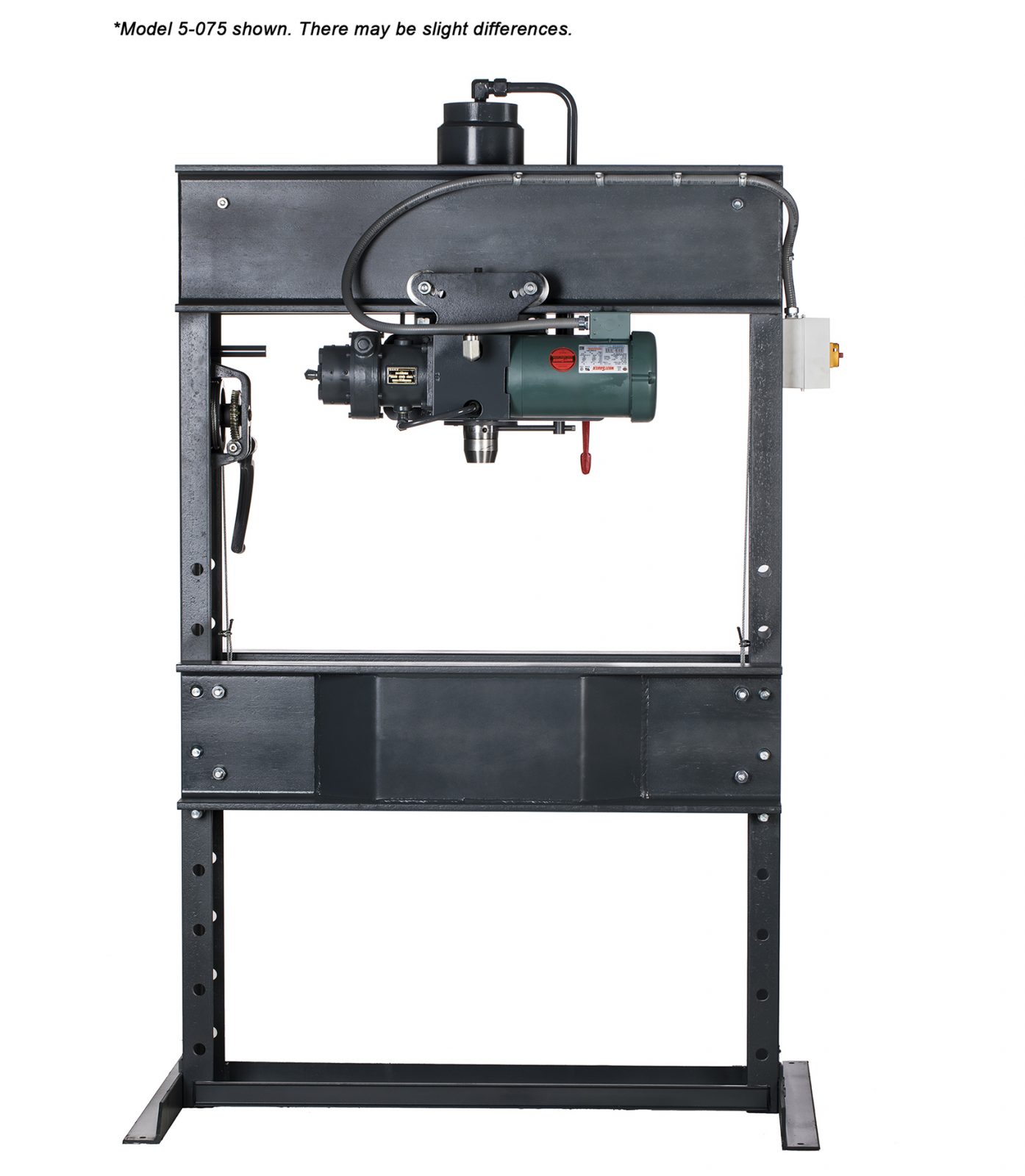

Dake 50 ton Elec-Draulic I press 220v - 905050-2
This 50 ton single-acting electric-hydraulic press offers a 40 IPM ram advance speed, 7 IPM ram pressing speed and a 2 horsepower motor.
FEATURES:
- Movable work-head is roller mounted on ball bearings for off-center work.
- Safety valve protects against overloads.
- Adjustable table permits easy vertical movement by means of self-locking hoist.
- Single-acting cylinder provides fast, reliable pressing and internal spring return.
- Variable ram speed allows fingertip control of ram movement for precise pressure control.
- Rapid ram return starts as soon as release valve is opened and may be stopped at any point by closing the valve.
- Stroke indicator ensures accurate ram control.
STANDARD EQUIPMENT:
- Frame
- 2 Forged Steel V-Blocks
- Flat Ram Nose
- Pressure Gauge
- Self-locking Table Hoist
- Workhead
- 2 Steel Table Plates
- V-ram Nose
- Stroke Indicator
- Safety Relief Valve
SPECIFICATIONS:
- Part Number: 905025-2
- Capacity: 50 tons
- Operation: Electric
- Horsepower: 2
- Voltage: 220V/440V, 3-Phase
- Width between uprights: 32-3/4"
- Width between table channels: 7-1/4"
- Minimum ram to table: 5"
- Maximum ram to table: 40"
- Ram travel: 10"
- Screw Travel: n/a
- Horizontal workhead travel: 14-3/8"
- Footprint: 43-1/2" x 36"
- Height: 87"
- Weight: 1,320 lbs
- Base: 43-1/2" x 36"
- Ram advance speed: 40 ipm
- Pressing speed: 7 ipm
- RPM: 1,800
- Air Pressure: n/a
