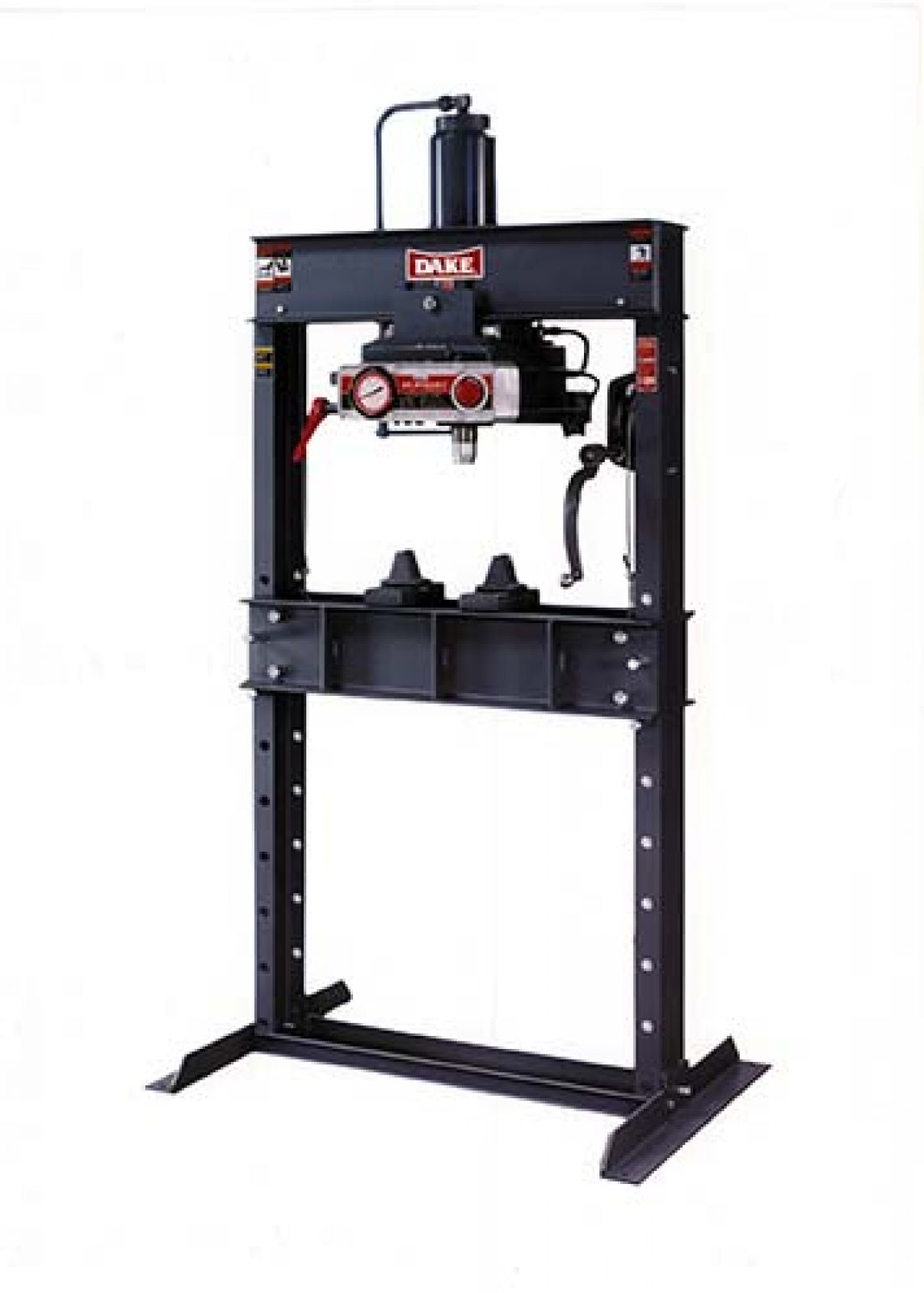

Dake 150 ton Air Operated Press, Single Air Pump - 906650
With 150 tons of pressing power, this air operated press eliminates the need for hand pumping. Standing 95 inches tall, this press offers 25 IMP ram advance speed.
FEATURES:
- Air operation eliminates the need for hand pumping.
- By-pass hole prevents excessive ram extension.
- Rapid ram approach quickly moves ram to work to save production time
- Adjustable table permits easy vertical movement by means of self-locking hoist.
STANDARD EQUIPMENT:
- Frame
- 2 Steel V-Blocks
- Flat Ram Nose
- Stroke Indicator
- Safety Relief Valve
- Workhead
- 2 Steel Table Plates
- Pressure Gauge
- Self Locking Table Hoist
SPECIFICATIONS:
- Part Number: 906650
- Capacity: 150 tons
- Operation: Air
- Horsepower: n/a
- Voltage: n/a
- Width between uprights: 48"
- Width between table channels: 12-1/4"
- Minimum ram to table: 10"
- Maximum ram to table: 30"
- Ram travel: 16"
- Screw Travel: n/a
- Horizontal workhead travel: 21-7/8"
- Footprint: 66" x 42"
- Height: 95"
- Weight: 3,000 lbs
- Base: 66" x 42"
- Ram advance speed: 25 ipm
- Pressing speed: 1 ipm
- Number of Pumps: 1
- Air Pressure: 90-125 psi
