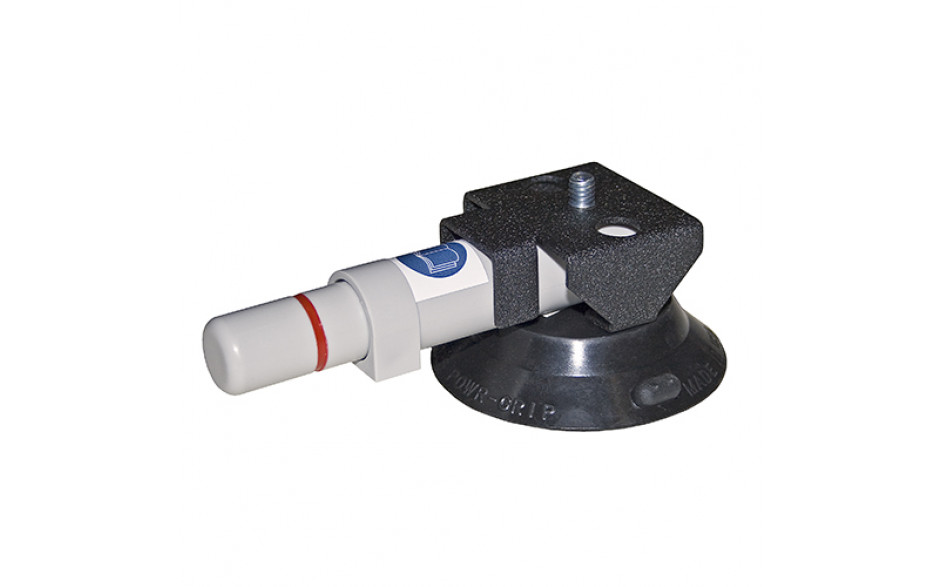

Wood's power grip 3 in mounting cup w/ 1/4-20x 3/8 in threaded stud - TL3AM
Provides a reliable, temporary mounting point for equipment, without marking or damaging most surfaces.
FEATURES:
- Eliminates the need for drilling holes when mounting equipment.
- Red-line indicator warns user of any significant vacuum loss.
- Supplied with pad protector to prevent damage.
- Options:
Other stud lengths and threads available
SPECIFICATIONS:
- Model-TL3AM
- SKU-91150
- Connection Point-3/8" Long 1/4-20 Threaded Stud
- Ideal Uses-Mounting equipment on smooth, nonporous surfaces
- Load Capacity-CLICK HERE
- Height of Mounting Platform (not including stud)-1-13/32" [36 mm]
- Allowable Surface Curvature-Flat / Curved
- Minimum Radius for Curved Loads-4" [102 mm]
- Material and Ambient Temperature Range-0° F [-18° C] — 120° F [49° C]
- Pad Diameter-3” [8 cm]
- Pad Model-TL3
- Rubber Type-Standard
