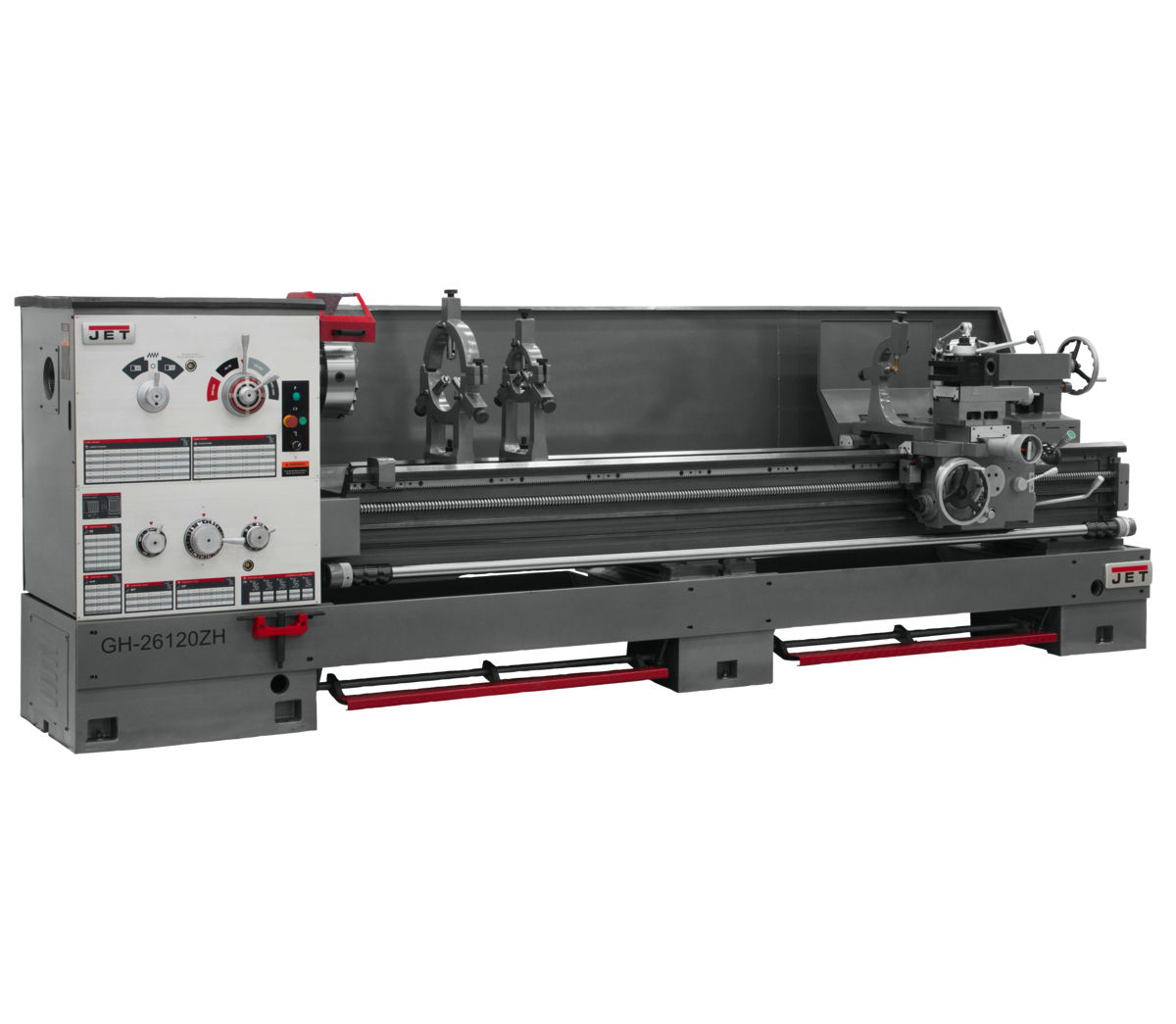

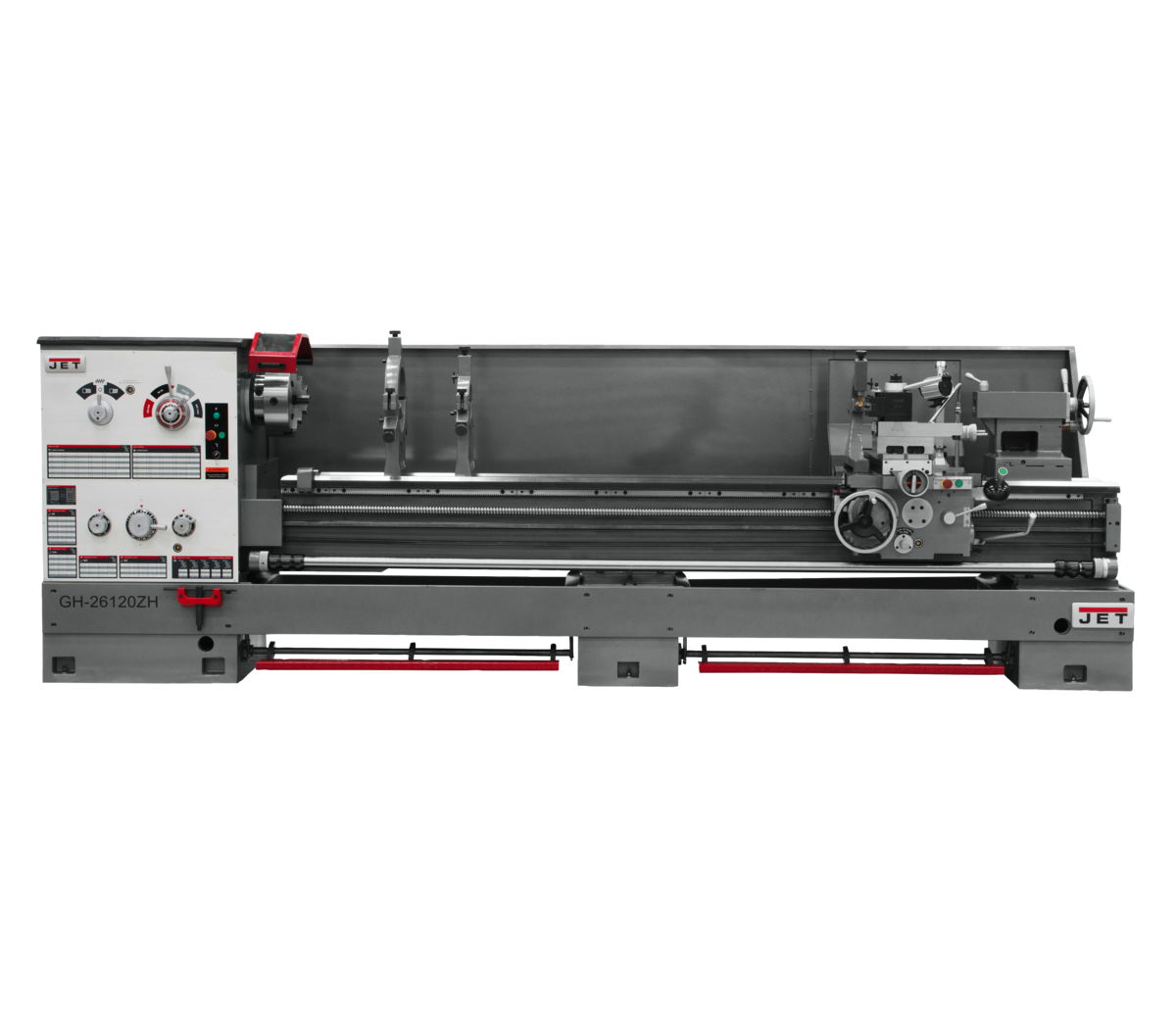

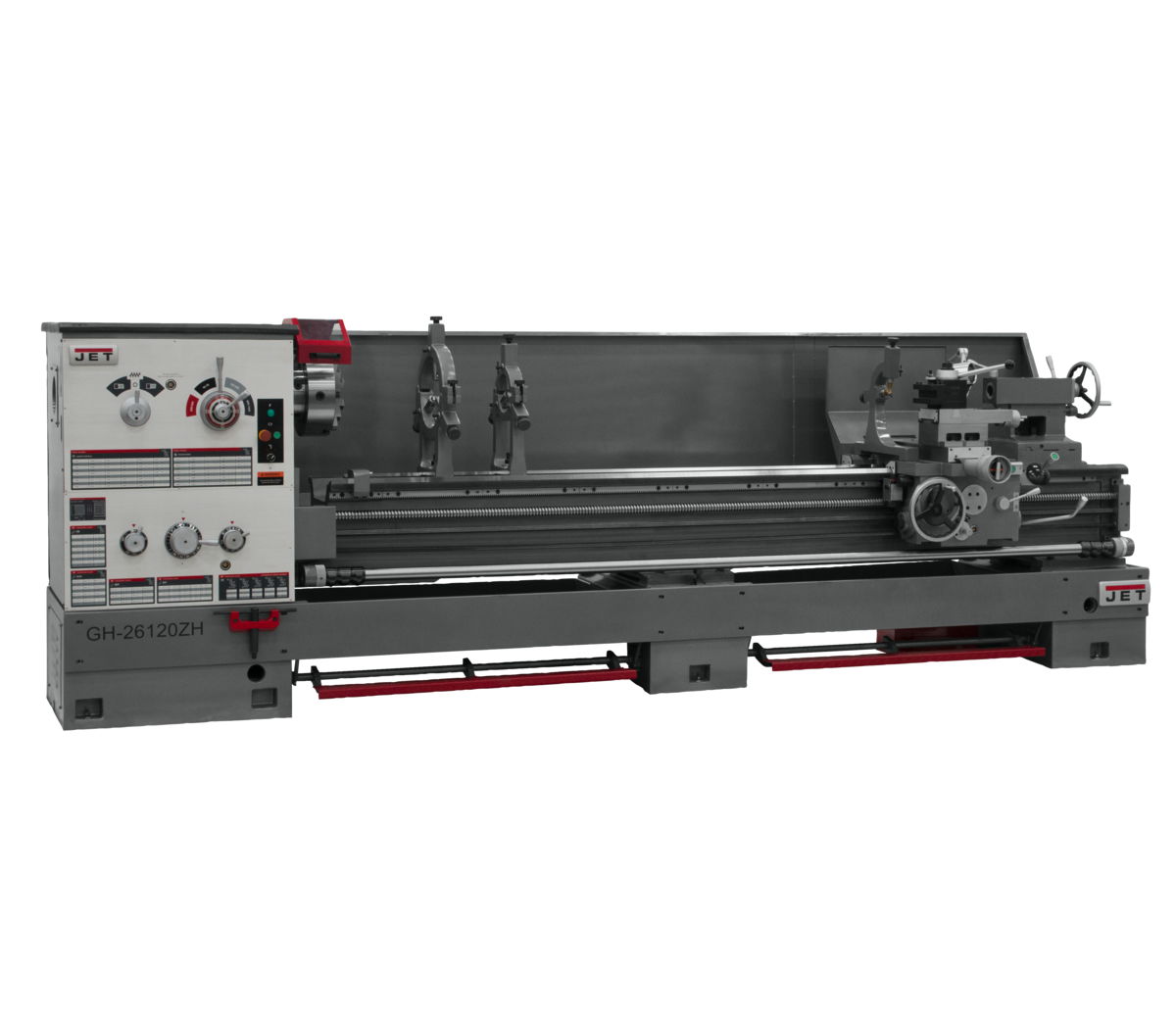

JET GH-26120ZH With ACU-RITE 203 DRO - 321892
The JET ZH-Series 4-1/8” spindle bore lathes feature a clutch operated headstock, universal gearbox, and a rapid traverse on the apron that makes the ZH-Series perfect for high-output production applications. Features you've come to expect in a JET Lathe that is backed by the industry-leading JET Two Year Warranty
FEATURES:
- 4-1/8" Spindle Bore

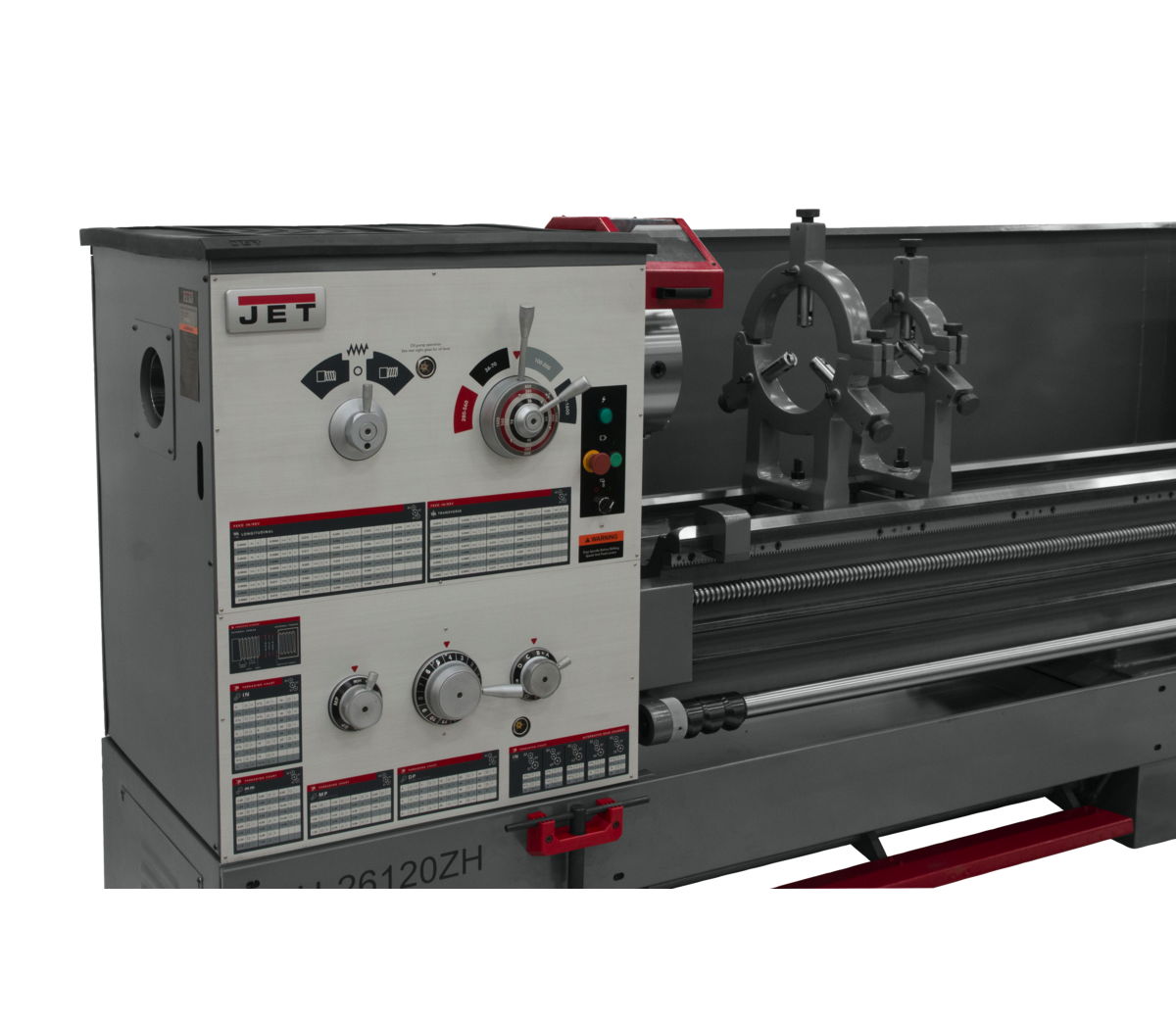

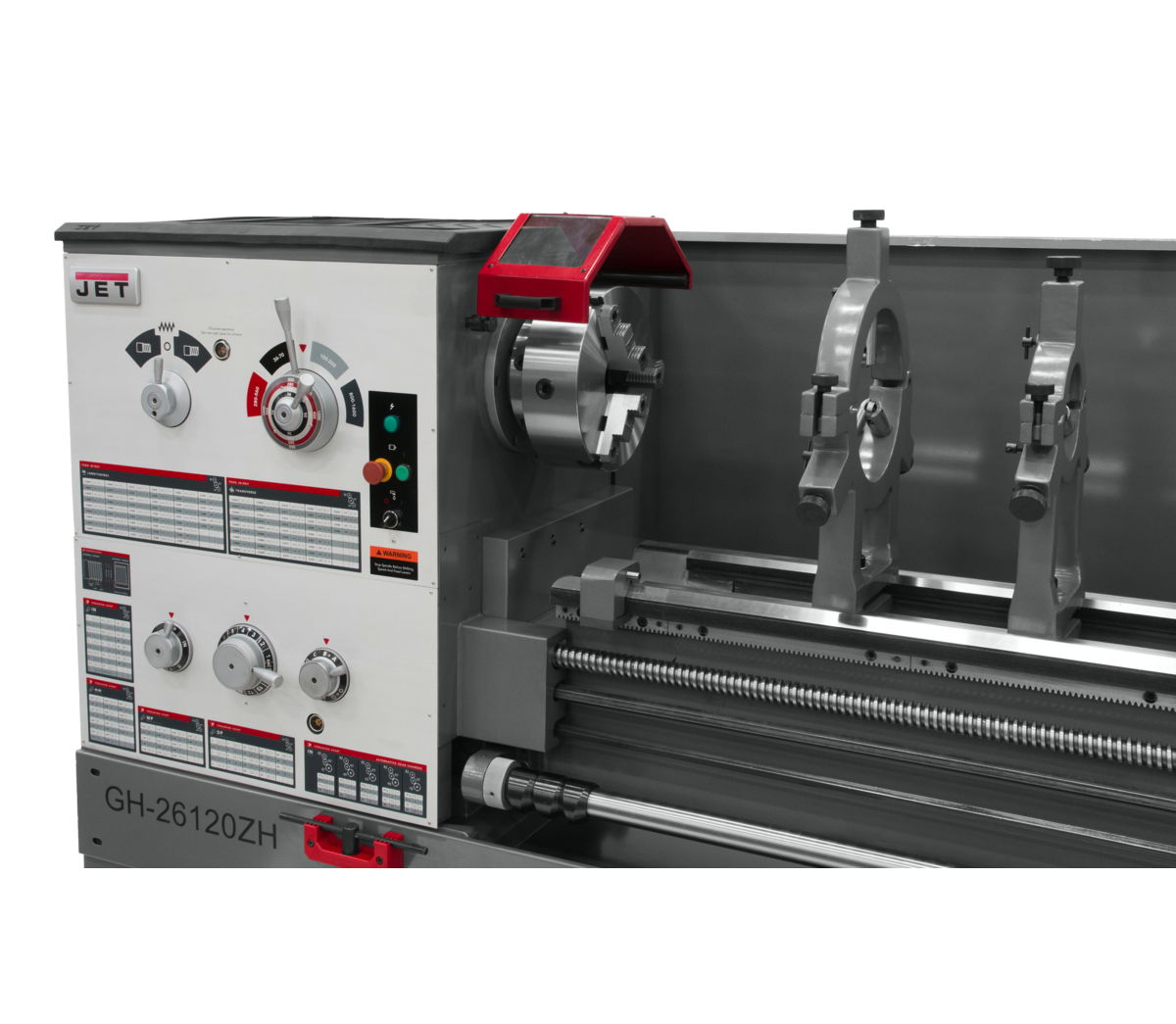

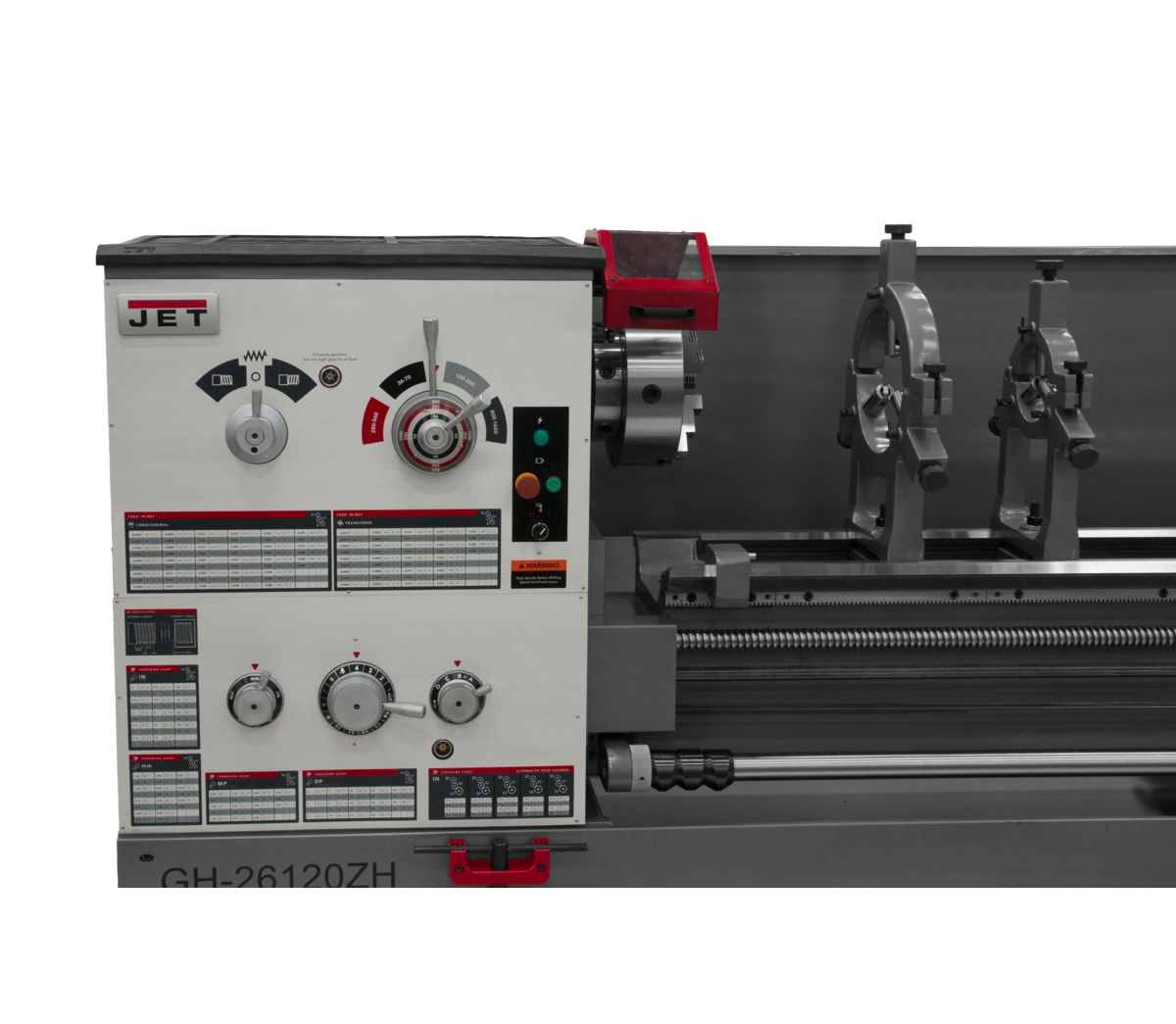

- Clutch operated headstock with all headstock gears hardened and ground
- Universal gearbox allows inch, metric, diametral and module pitch threads, no change gears required
- Meehanite Castings are used for added durability.
- Bed ways are induction hardened and ground for durability.
- Full Length Splash Guard
- Heavy-duty tailstock and quill
- Rapid power traverse to cross slide and carriage
- Siemens Electrics
- Standard Equipment:
- Drive Plate
- 12" 3-Jaw scroll chuck with top reversing jaws
- Face Plate
- 2 Steady Rests with Roller Bearings
- Follow Rest
- Large capacity steady rest with ball bearing tips
- 5pc. Quick change tool post set
- Micro-carriage bed stop
- Fully Integrated Coolant System
- LED work lamp
- Electronic Chuck Key Holder
- Fitted top mats to hold tooling
- E-Stop on Carriage for added safety
- Large easy to use foot brake
SPECIFICATIONS:
- Size: 26 x 120
- Digital Readout: ACU-RITE 203
- Swing Over Bed (In.): 26
- Swing Over Cross Slide (In.): 16-1/2
- Swing Through Gap (In.): 34
- Length of Gap (In.): 8
- Distance Between Centers (In.): 120
- Spindle Bore (In.): 4-1/8
- Spindle Mount: D1-8
- Number of Spindle Speeds: 12
- Range of Spindle Speeds (RPM): 36 - 1,600
- Spindle Taper with Sleeve: MT-5
- Number of Longitudinal and Cross Feed Rates: 65
- Range of Longitudinal Feeds (IPR): .0023 - .0937
- Range of Cross Feeds (IPR): .0040 - .0404
- Number of Inch Threads: 48
- Range of Inch Threads (TPI): 2-30
- Number of Metric Threads: 22
- Range of Metric Threads: 1 - 14
- Max Tool Size (In.): 1-1/4 x 1-1/4
- Compound Slide Travel (In.): 5-1/2
- Cross Slide Travel (In.): 12-3/32
- Carriage Travel (In.): 108-1/4
- Tailstock Spindle Travel (In.): 6
- Taper in Tailstock Spindle: MT-5
- Follow Rest Capacity (In.): 25/32 - 3-15/16
- Steady Rest Capacity (In.): Small 25/32 - 4-29/32, Large 3-15/16 - 9-7/16
- Width of Bed (In.): 16
- Motor (HP): 10 HP, 230/460, 3 Ph
- Prewired (V.): 230V, **SURCHARGE APPLIES FOR 460V RE-WIRE
- Overall Dimensions (L x W x H) (In.): 178 x 43 x 57
- Drive: Geared Head
- Style: (Type) Engine - Large Spindle Bore
- Weight (Lbs.): 9,362
