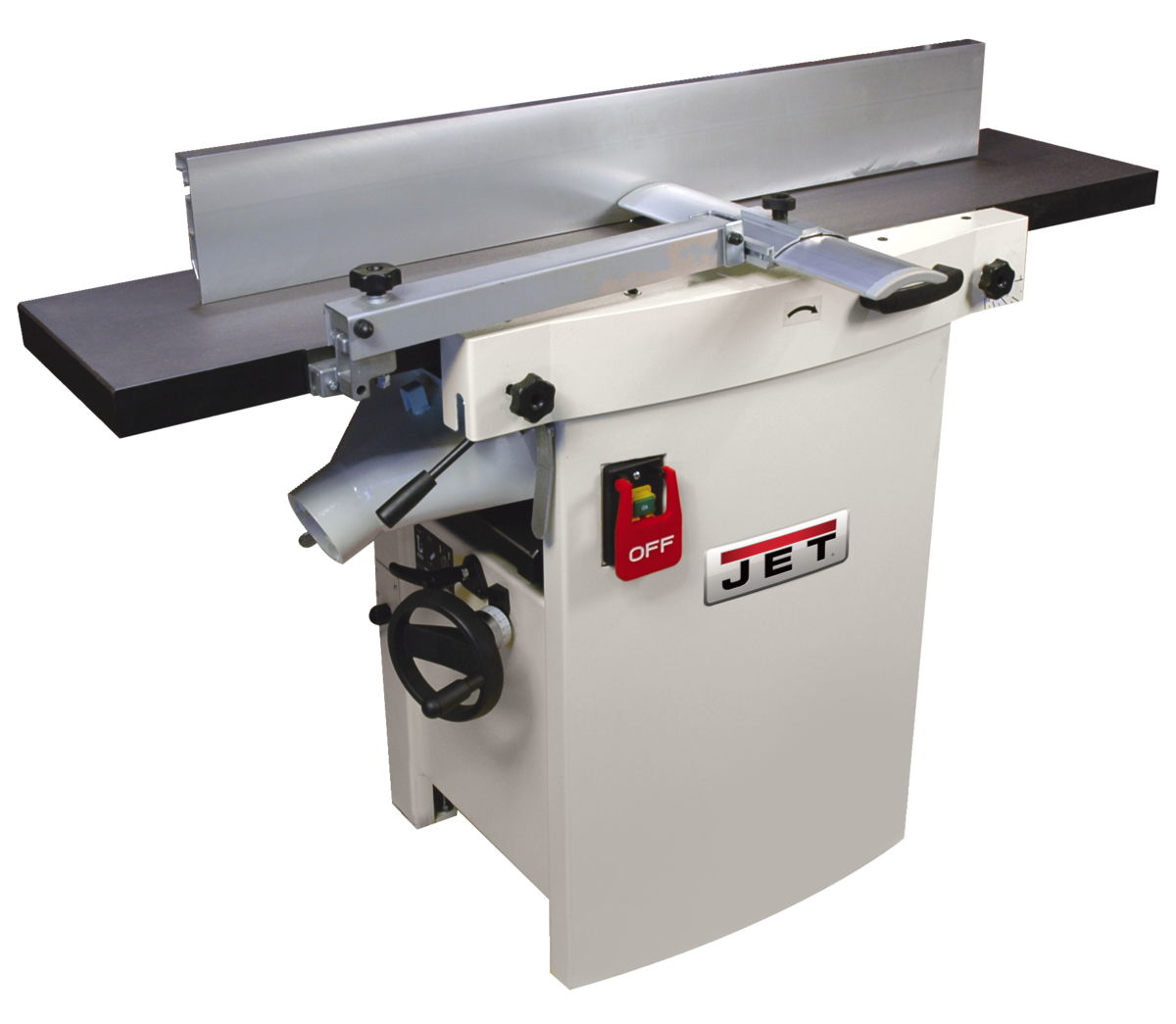

JET JJP-12HH 12 ft. Planer /Jointer with Helical Head - 708476
The innovative JET JJP-12HH Helical Head 12" Jointer/Planer takes our award-winning jointer/planer combination machine and makes it an ever better investment. With the addition of our quality helical cutterhead with indexable carbide inserts, the all-new JJP-12HH sets the standard for creating superior stock in your own workshop.
FEATURES:
- Helical cutterhead with indexable carbide inserts for a superior finish and quieter cut
- Parallelogram design keeps the table close to the cutterhead for improved finish and allows for precise depth of cut adjustments
- Extra large aluminum extruded fence with centered controls for quick adjustments
- Extremely quick changeover between jointing and planing functions. Fence does not need to be removed
- Powerful 3HP induction motor easily handles the toughest jointing and planing tasks
- Heavy-duty, one-piece steel closed stand includes mounting tabs for increased stability
- Built-in dust chute with 4" dust port used for both jointing and planing operations
- Large handwheel for quick and precise adjustments of planer table
- Heavy-duty cast iron tables with a machined finish to ensure accuracy and flatness
- Magnetic switch provides safer and more reliable operation
SPECIFICATIONS:
- Style (Type): Planer/Jointer
- Helical Knife Size (L x W x T) (In.): 15 x 15 x 2.5
- Cutterhead Diameter (In.): 2-3/4
- Cutterhead Speed (RPM): 5500
- Planer Cutting Capacity (W x D) (In.): 12 x 5/32
- Planer Table Size (L x W) (In.): 21-1/4 x 12
- Jointer Cutting Capacity (W x D) (In.): 12 x 1/8
- Jointer Table Size (L x W) (In.): 55 x 12
- Fence Size (L x H) (In.): 43 x 6
- Fence Positive Stops (Deg.): 90, 45 R
- Fence Tilt (Deg.): 90 - 45 R
- Dust Collection Minimum CFM Required (CFM): 400
- Dust Port Outside Diameter (In.): 4
- Motor Power (HP): 3
- Motor Voltage (V.): 230
- Prewired Voltage (V.): 230
