JET JCDC-2 Cyclone Dust Collector, 2HP, 230V - 717520
Are you ready to get more from your dust collector? The Cyclone Dust Collector Collection from JET delivers the efficiency you’ve been waiting for. With a direct mount filter, a radio frequency remote control and a large collection bin these dust collectors take your shop’s capabilities to a new level. Upgrade to a JET Cyclone Dust Collector and experience The Power of Efficiency.
FEATURES:

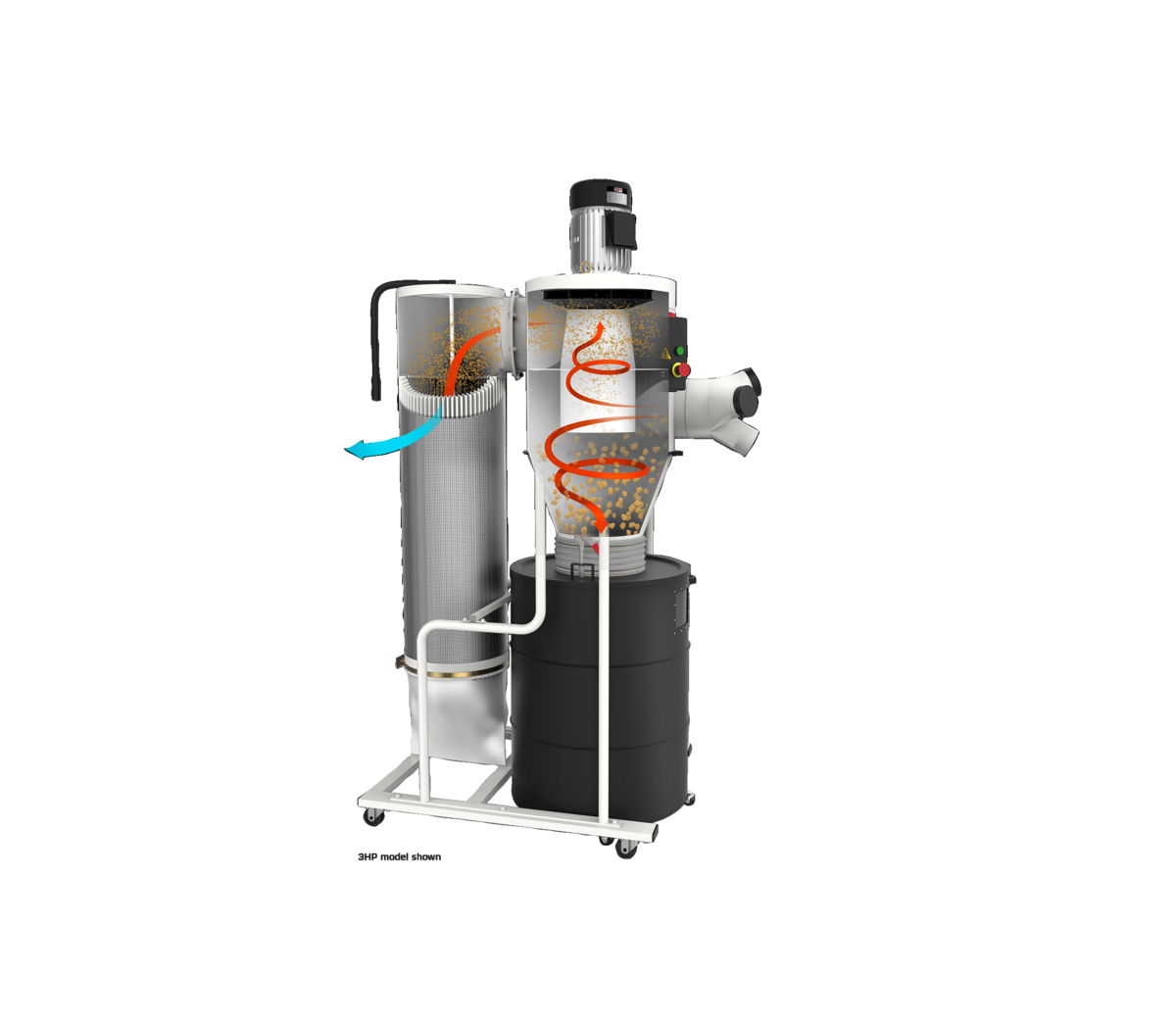

- The cyclone's two stage separation provides more working CFM than comparable horsepower single stage units
- Heavy debris is pulled down to collection drum before debris stream reaches the filter, providing constant suction
- Direct mounted filter eliminates inefficiencies from ridged flex hosing and bends
- Fine dust particles are filtered through pleated material that captures even the smallest particles down to 1 micron and below
- Heavy debris is captured in a 30 gallon drum with quick release levers and independent casters for quick emptying
- Included radio frequency remote control works from up to 50 feet away
- Remote timer settings allows system to run for 2, 4, 6, or 8 hours before automatic shutoff
- Double paddle manual cleaning system quickly cleans the pleated filter
- Swivel casters make it easy to move the unit around the shop
SPECIFICATIONS:
- Number of Air Inlets: 1 at 6", 2 at 4"
- 1-Hose Connection Diameter (In.): 6
- 2-Hoses Connection Diameter (In.): 4
- Air Flow (US Method) @ 6" (CFM): 938 (1,590 m³/hr)
- Air Flow (EU Method) @ 6" (CFM): 1,538 (3,617 m³/hr)
- Air Velocity (US Method) @ 6" (FPM): 4,763 (24.2 m/s)
- Air Velocity (EU Method) @ 6" (FPM): 7,813 (39.7 m/s)
- Static Pressure Loss (US Method) (Wc.): 2.520
- Static Pressure Loss (EU Method) (Wc.): 3.780
- Max. Static Pressure (Wc.): 10.079
- MERV Value: 13
- Filter Efficiency (Micron): 1
- Efficiency (Micron): 99% of 2 micron particles
- Canister Filter Length (In.): 22-5/8
- Canister Filter Diameter (In.): 14-9/16
- Canister Collection Bag (Dia. x L/In.): 23-5/8 x 19-11/16
- Collection Drum Capacity (gal.): 30
- Drum Collection Bag (Dia. x L/In.): 30-11/16 x 32-11/16
- Impeller Material: Steel
- Impeller Diameter (In.): 14-1/2
- Impeller Fins: Radial
- Sound Rating (Db.): 76
- Motor Speed (RPM): 3,450
- Motor Power (HP): 2
- Motor Phase (PH): 1
- Motor Voltage (V.): 230
- Prewired Voltage (V.): 230
- Motor Amps: 9
- Recommended Circuit Size (Amps.): 15 A
- Footprint (L x W/In.): 50-5/8 x 25-7/8
- Assembled Dimensions (L x W x H/In.): 25-7/8 x 50-5/8 x 72-1/4
