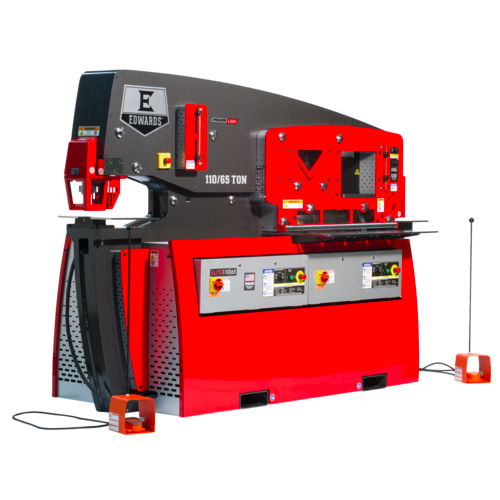

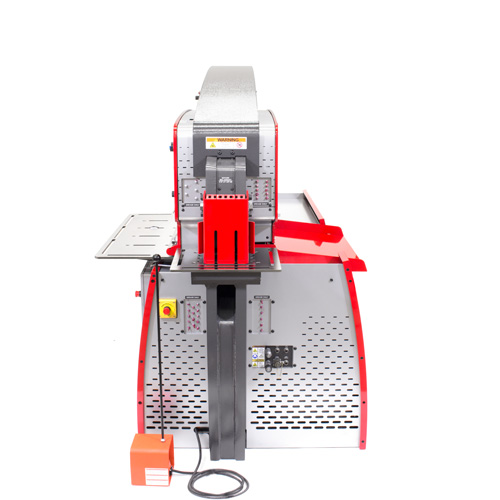

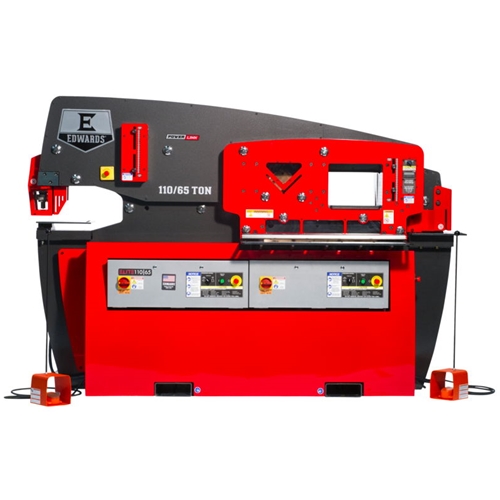

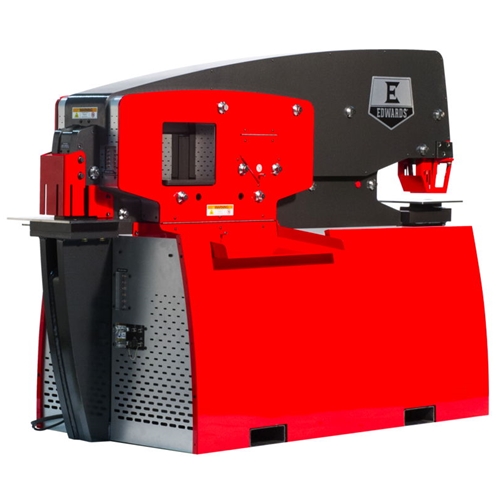

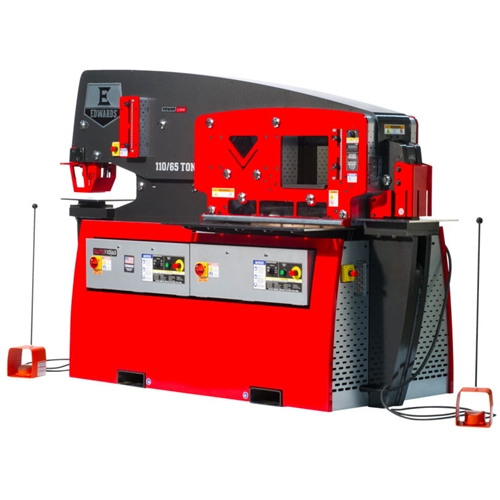

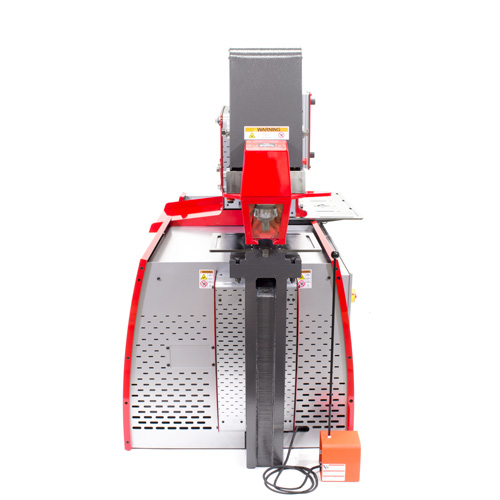

Edwards 110 Ton Elite Ironworker - ELT11065-3P230
Designed for simultaneous use by two operators, the ELITE 110/65 Ton Ironworker contains two independent power plants. This machine includes 5 Workstations: a punch station with oversized throat depth, a 24" wide flat bar shear, angle shear, coper notcher, and Open Cavity that accepts 4 optional Attachments. ELITE Ironworkers have premium features integrated into their design to maximize efficiency and increase productivity. The Hydraulic Hold-Down, Roller Encoder Measuring System, Swing-Away Stripper Assembly and Quick Change Punch Assembly are designed to increase accuracy and save time on this production machine. The standard PowerLink™ System increases your capabilities by turning your Ironworker into a power source for our line of Hydraulic Tools.
- Five Workstations: Standard (4) - Punch, Flat Bar Shear, Angle Shear & Coper Notcher; Open (1) - Customize your ironworker with 12 optional Attachments
- 13 interchangeable Attachments available to tailor the Ironworker to your needs
- 14 optional Accessories available to increase precision and efficiency
- Standard PowerLink™ System increases your capabilities turning your Ironworker into a power source for our ever expanding line of Hydraulic Tools
- Hydraulic Hold-Down
- Two independent power plants produce true Dual Operation
- Hydraulic Hold Down automatically secures your material in place preventing movement for quick and clean shearing on both Flat Bar & Angle Shears
- Roller Encoded Measuring System ensures accuracy for the Flat Bar Shear
- Swing-Away Stripper Assembly provides quick and easy access to the Quick Change Punch Assembly while supporting your material
- Quick Change Punch Assembly speeds up and simplifies the Punch changing process to improve users efficiency
- The nickel-plated Premium Gauging Tables provide a large work area and add precision, speed and repeatability to your punch projects
- Electric foot pedals with integrated jog control
- Adjustable electric stoke control
- Bright LED lights increase visibility
- ANSI B11.5-1988(02) Compliant Guarding
- ETL Certified Controls
- Integrated Lock-out/Tag-out system with multiple location E-Stops (foot pedal, control panel & Punch workstation) for added safety
- Durable, heavy-duty Made In USA steel construction
- Vertical movement produces even pressure resulting in precise punching and shearing with minimal distortion that results in extended tooling life
- Central Lubrication System simplifies Ironworker maintenance
- Punches are easily changeable, long-lasting and available from 1/8" to 4" diameters along with square, oblong, hex, metric, and custom shapes
- Flat Bar Shear blades are made of precision machined, high-quality tool steel with 4 cutting edges for extended life
- Angle Shear blades have 2 corner radii for both thin and thick material and are made of precision tool steel with 2 cutting edges for extended life
Features:
- Flat Bar Shear Max Capacity (In.)3/8 x 24, 1/2 x 14, 1 x 4
- Flat Bar Shear Max Round Capacity (In.)1
- Angle Shear Max Capacity (In.)5 x 5 x 3/8
- Angle Shear Work Height (In.)44
- Coper Notcher Max Capacity (In.)2-1/2 x 6 x 3/8
- Coper Notcher Work Height (In.)35-5/8
- Motor7.5 HP 230V 3Ph
- Amps22
- Hydraulics (GPM)10-1/2
- Hydraulics (PSI)3000
- Hydraulic Reservoir (Gal.)17
- Product Dimensions (In.)61-9/16 x 44-7/8 x 65-1/8
- Shipping Dimensions (In.)48 x 96 x 72
- Height72.0000
- Length48.0000
- Weight8580.0000
- Width96.0000
