Grizzly 8 In x 16 In Variable-Speed Lathe with DRO - G0768Z

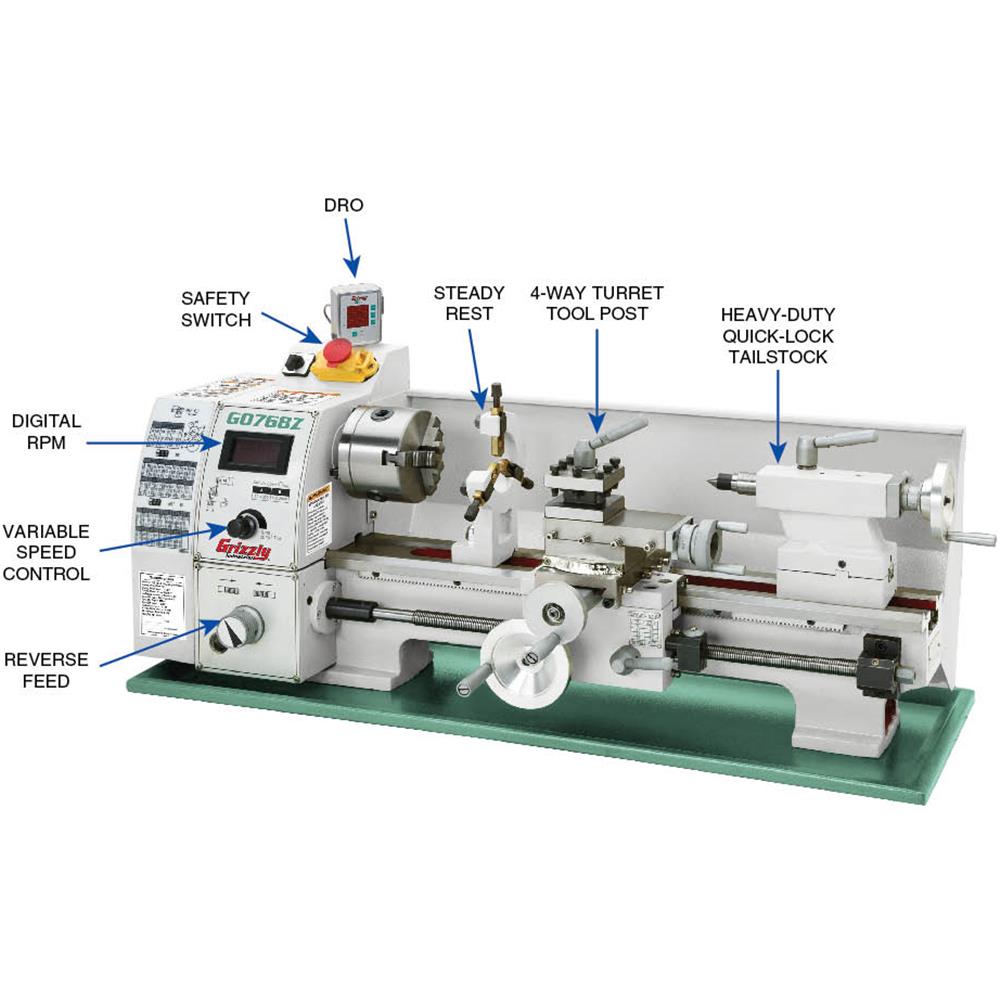

This 8" x 16" Variable-Speed Lathe is perfect for a sturdy workbench or as a stand-alone unit when mounted on the T26599 Optional Stand. Features variable-speed spindle with high/low speed ranges, convenient quick-lock tailstock, reverse feed for cutting left-hand threads, and a great selection of included standard equipment.
Specifications:
- Swing over: bed 8-1/4", cross slide 4-5/8"
- Distance between centers: 15-3/4"
- Spindle: bore 0.787" (20mm), taper MT#3
- Motor: 600W (3/4 HP), 110V, DC, 10A
- Spindle speed ranges: Low 50-1000, High 100-2000 RPM
- Travel: compound rest 2-1/8", cross slide 3"
- Tailstock: quill travel 2", taper MT#2
- Feed speeds: (3) 0.0037"-0.0071"/rev
- Inch threads: (15) 9-44 TPI
- Metric threads: (12) 0.4-3.0mm
- Cuts LH threads
- Footprint: 31-1/2" x 10-1/2"
- Overall size: 36" W x 16" D x 14" H
- Approx. shipping weight: 166 lbs.
Standard Equipment:
- 4" 3-Jaw and 4-jaw chucks
- 6-3/4" Faceplate
- Steady rest & follow rest

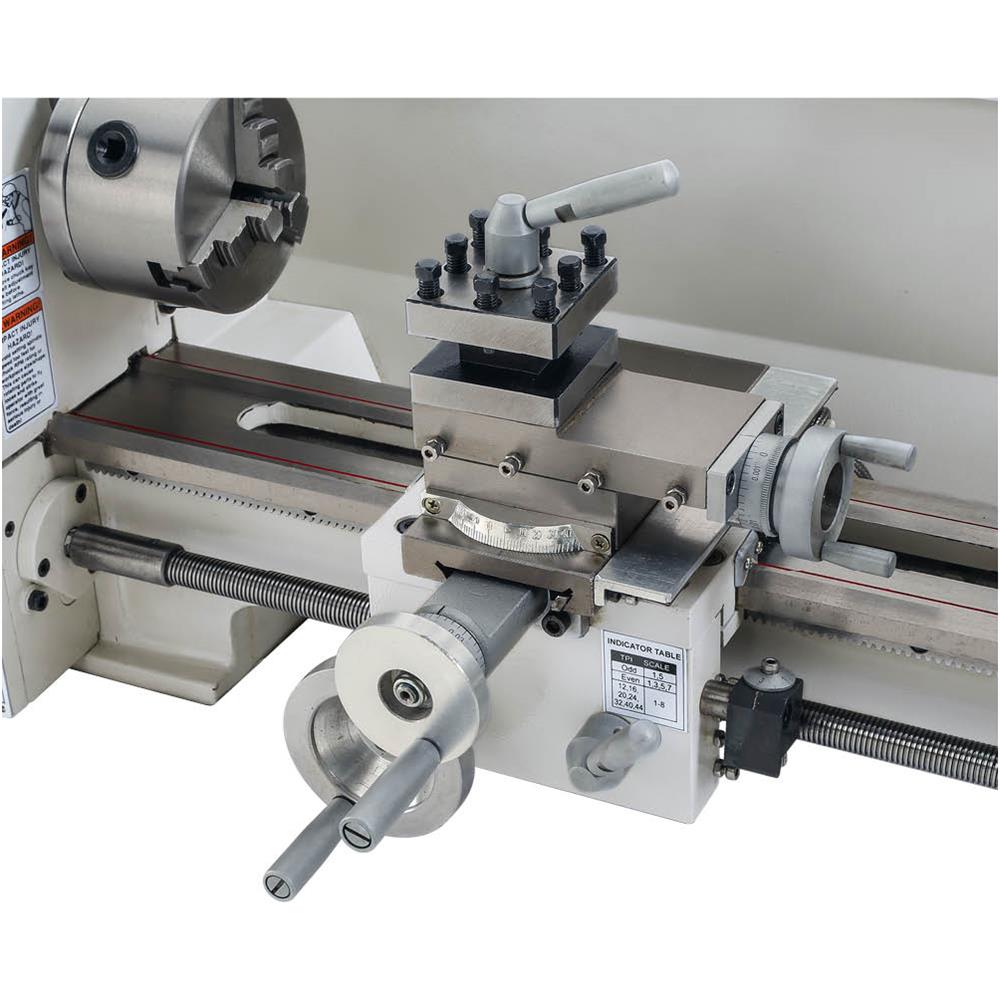

- 4-Way turret tool post (3/8" max tool size)
- MT#2 & MT#3 dead centers
