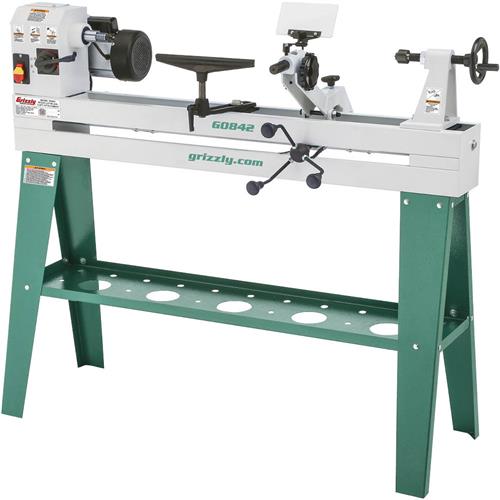

Grizzly 14 Inch x 37 Inch Wood Lathe with Copy Attachment - G0842

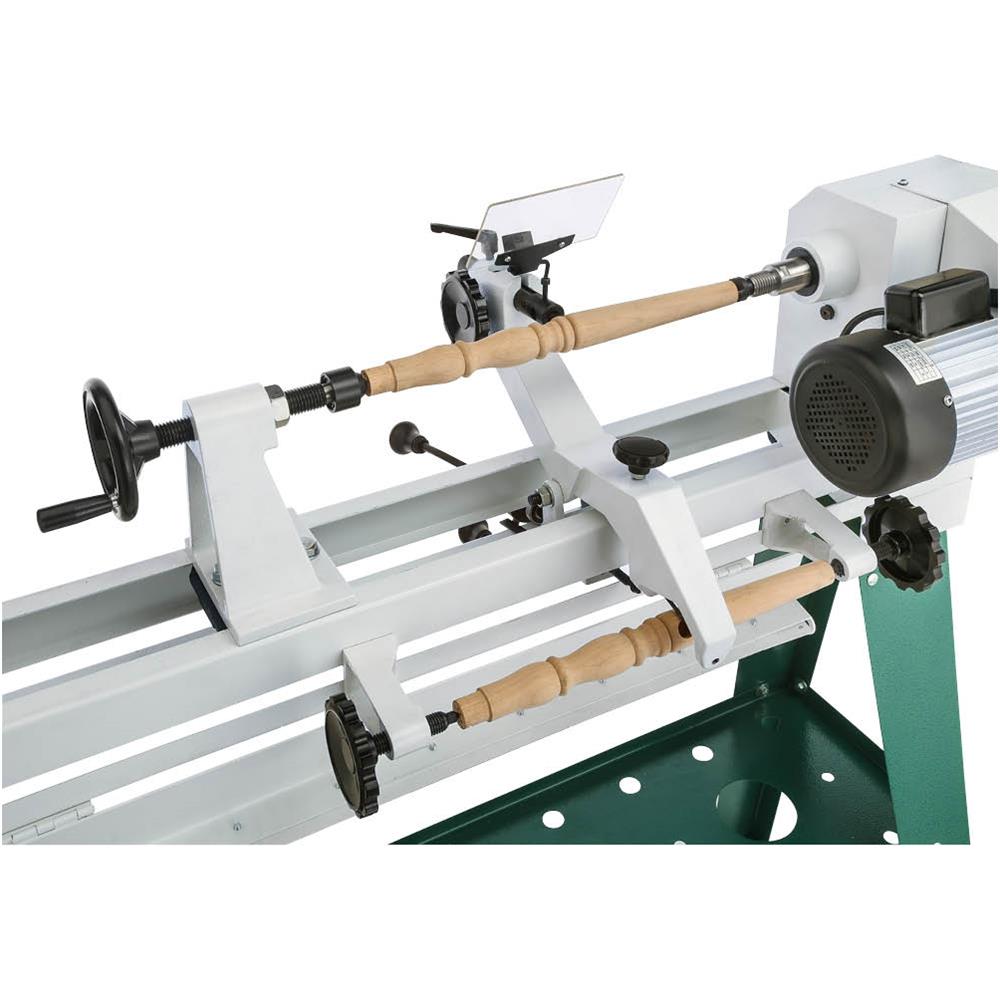

The G0842 Wood Lathe with Copy Attachment is ideal for the hobby furniture maker. With a 110V, 3/4 HP motor and variable-speed spindle, this machine will allow you to easily reproduce stair spindles or chair and table legs up to 32' long using a template or master workpiece. The copy attachment also drops out of the way for turning new spindles.
Specifications:

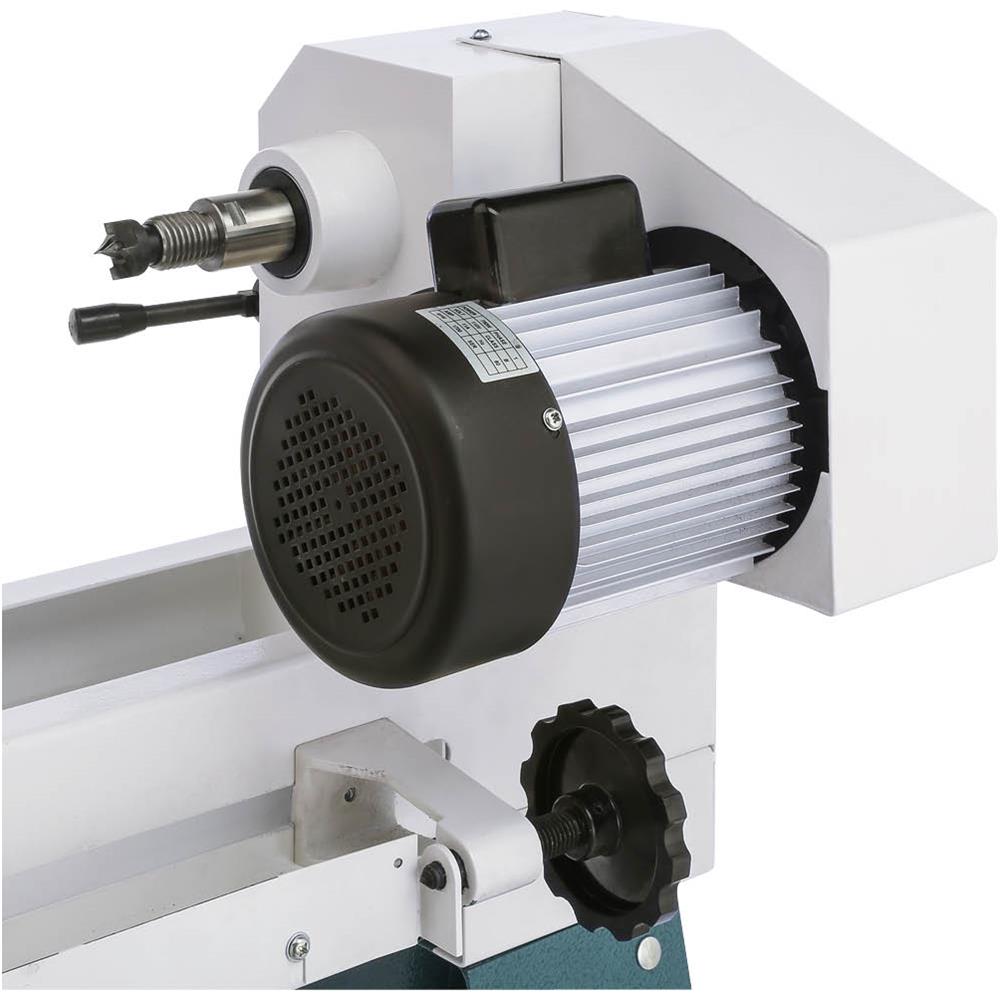

- Motor: 3/4 HP, 110V, single-phase, 11A
- Swing over bed: 14'
- Swing over tool rest base: 9'
- Distance between centers: 37'
- Distance between centers with copy device: 32'
- Spindle speeds: Variable, 600-2400 RPM
- Spindle thread size: 1' x 8 TPI
- Tool rest width: 12'
- Tool rest post diameter: 20mm
- Spindle and tailstock taper: MT#2
- Overall dimensions: 62'L x 24'W x 48'H
- Approximate shipping weight: 164 lb.

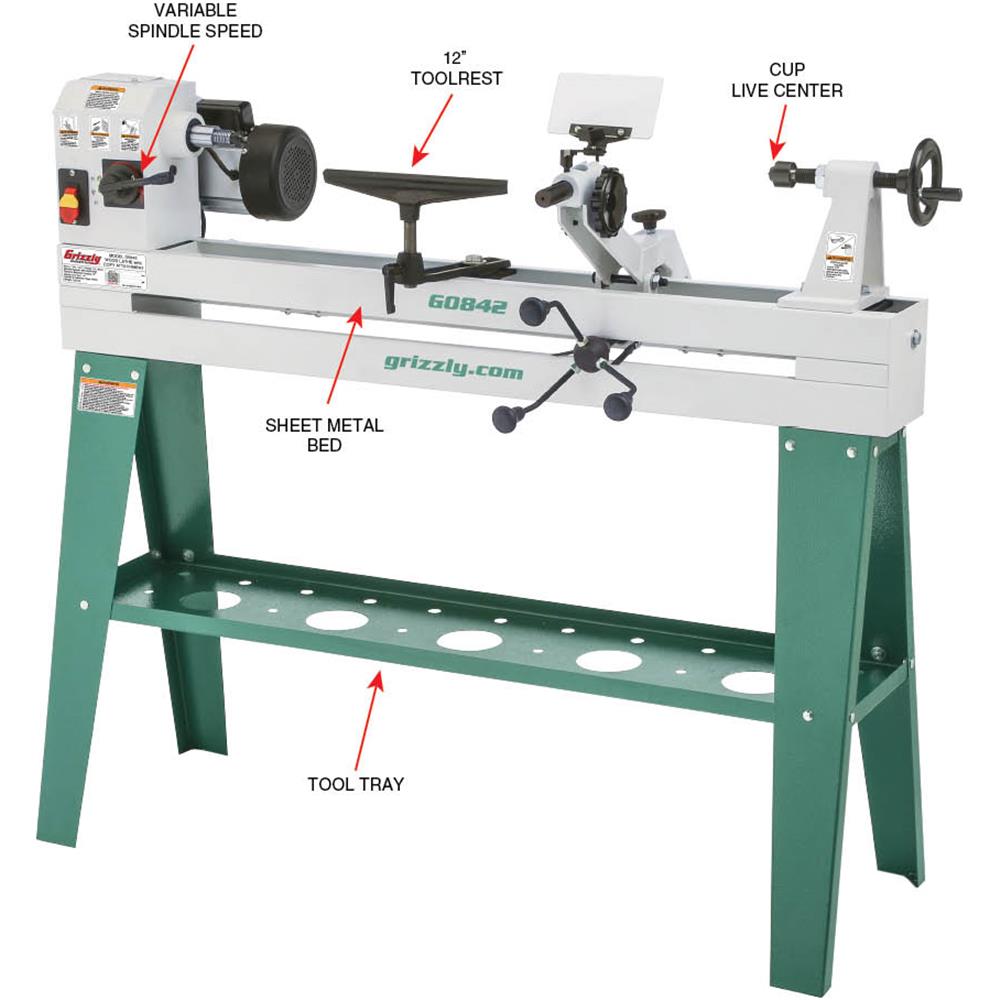

Features:
- 37' between centers
- 14' swing over bed, 9' swing over tool rest

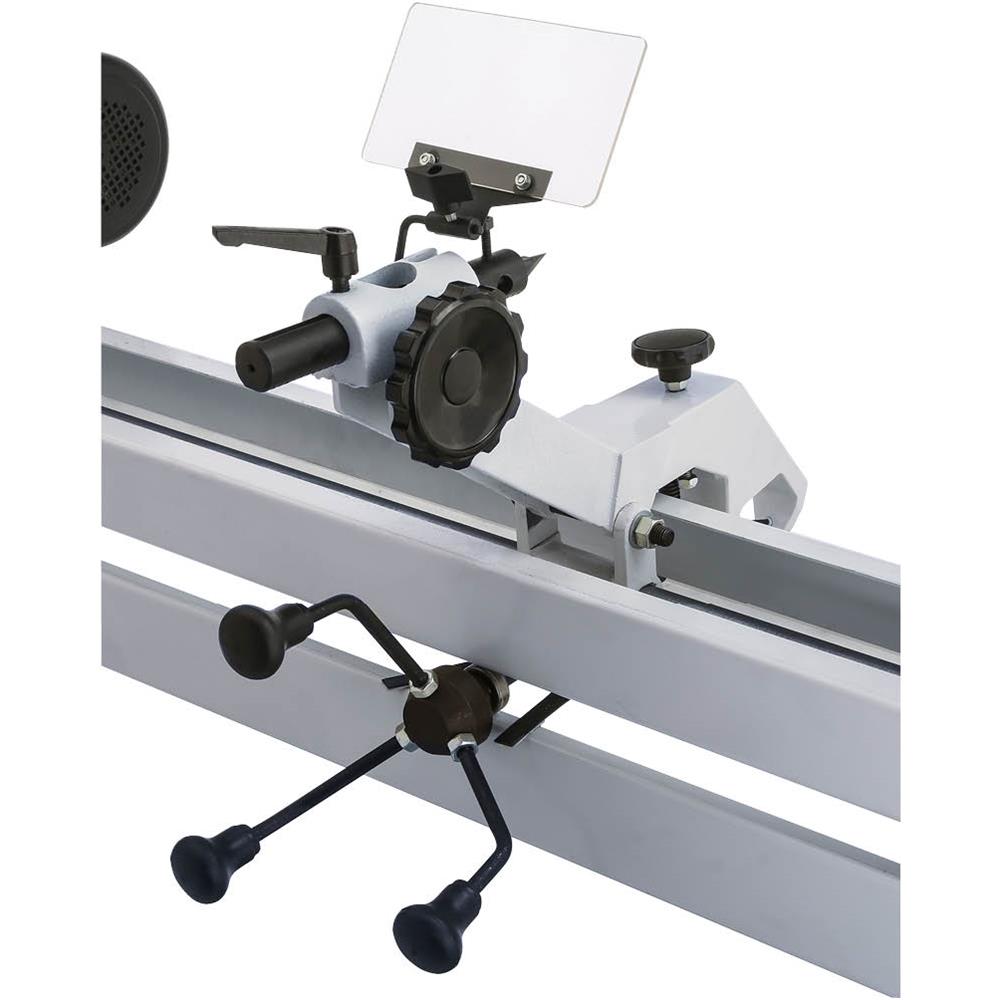

- Copy device for workpieces up to 32' long and 9' diameter
- 12' tool rest
- Includes spur center, cupped live center, knock-out tool, tool rest, and 6' faceplate
