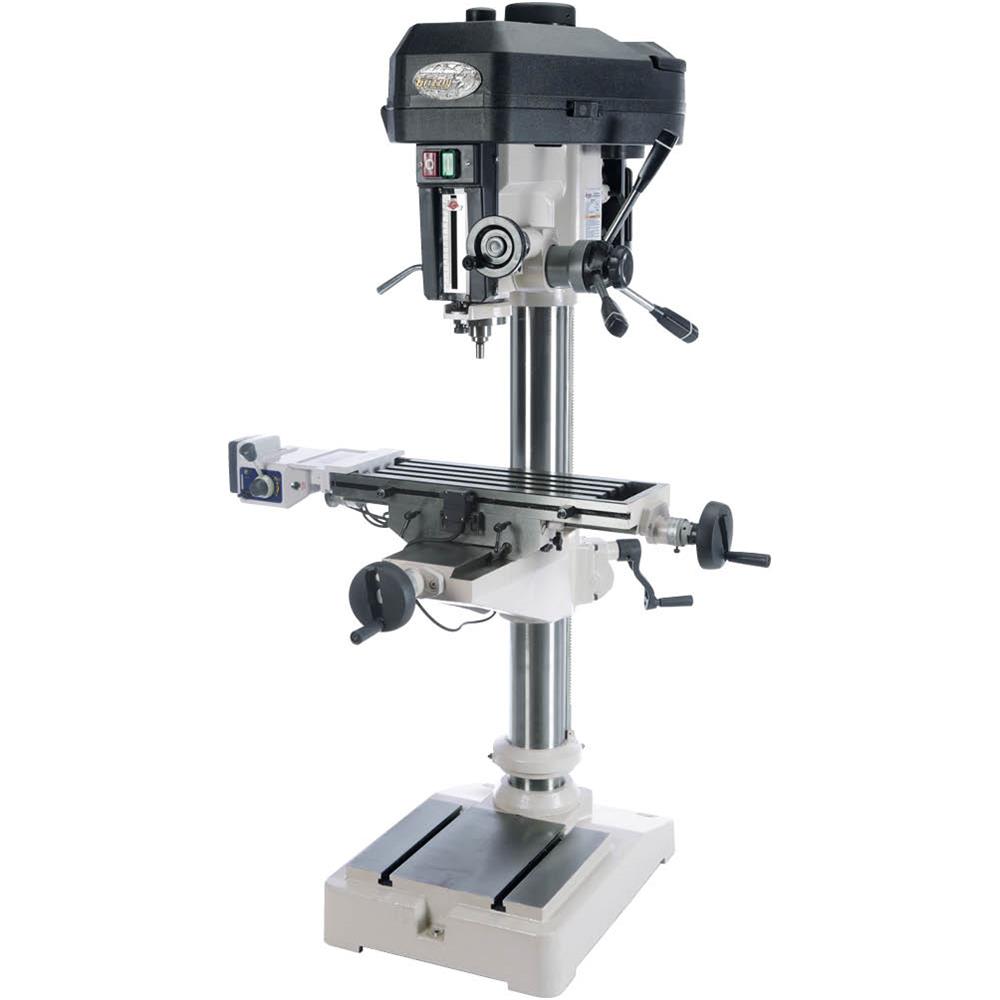

Grizzly 16 Inch Drill Press with Cross-Slide Table and Power Feed - G0810

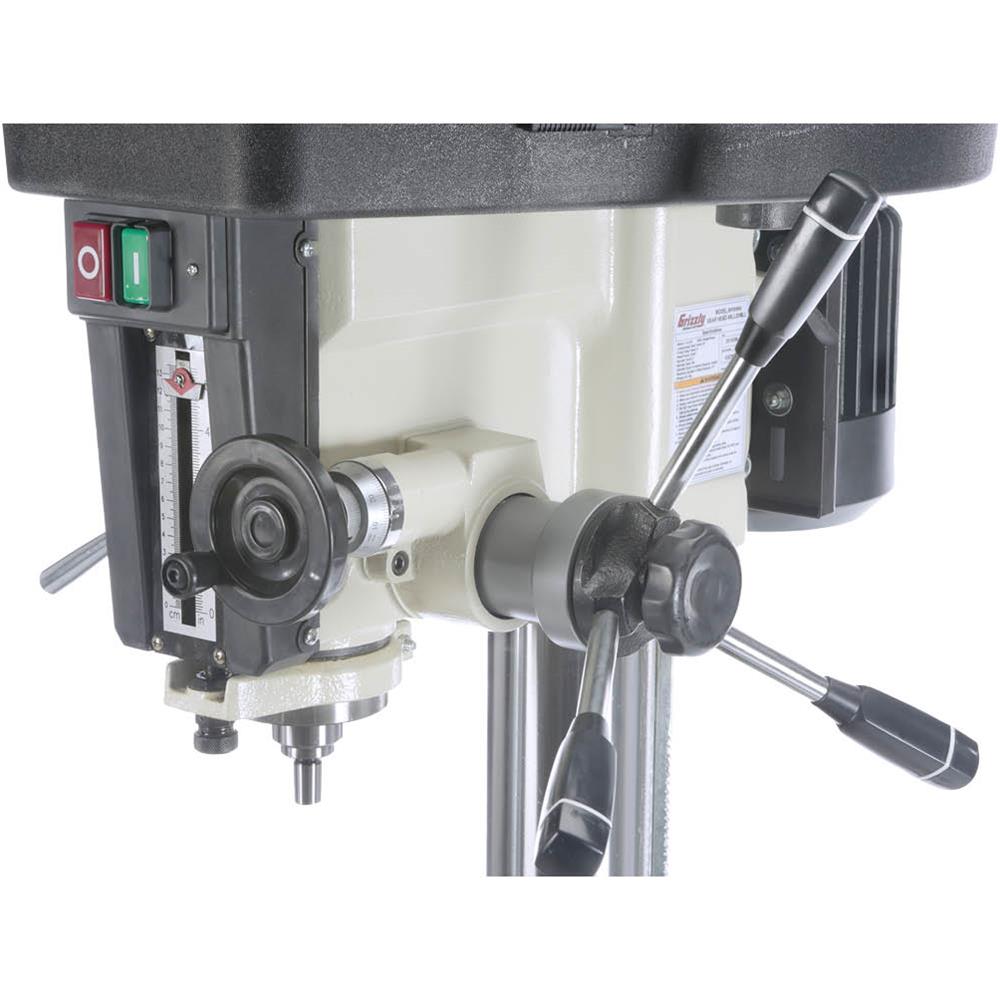

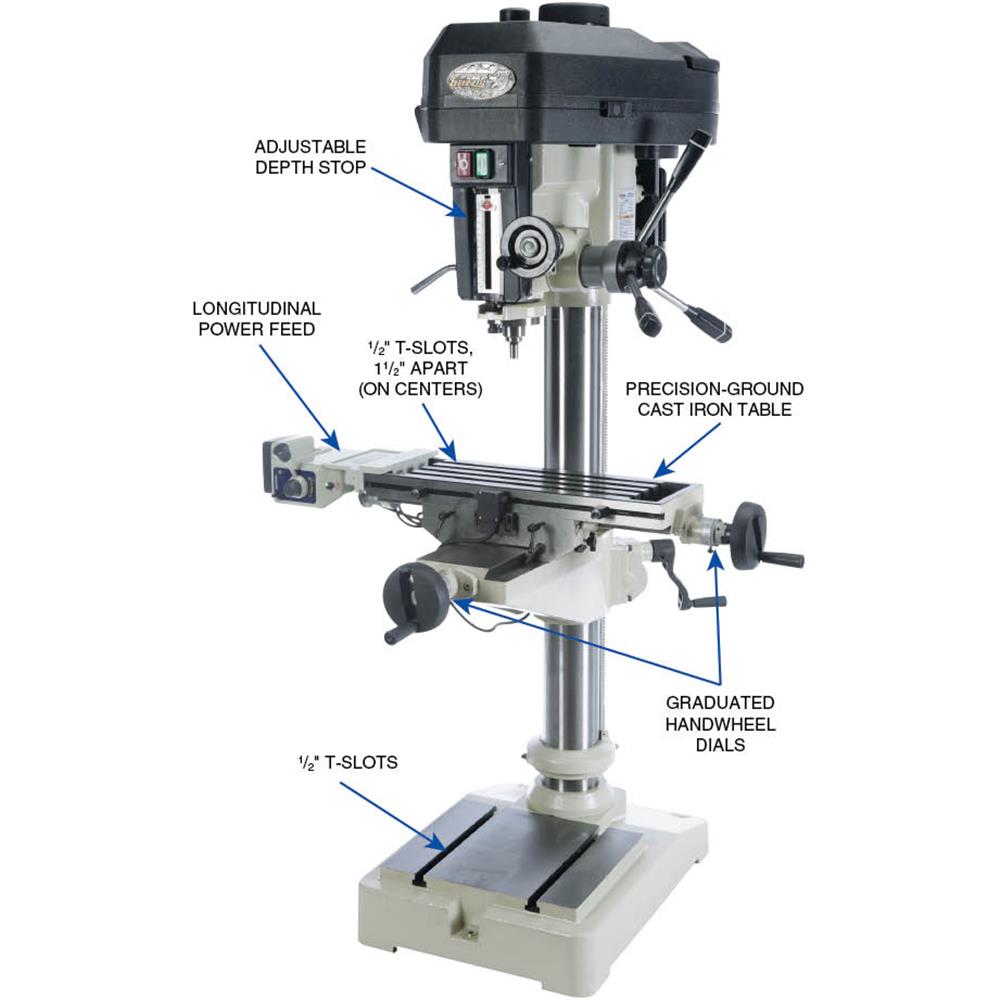

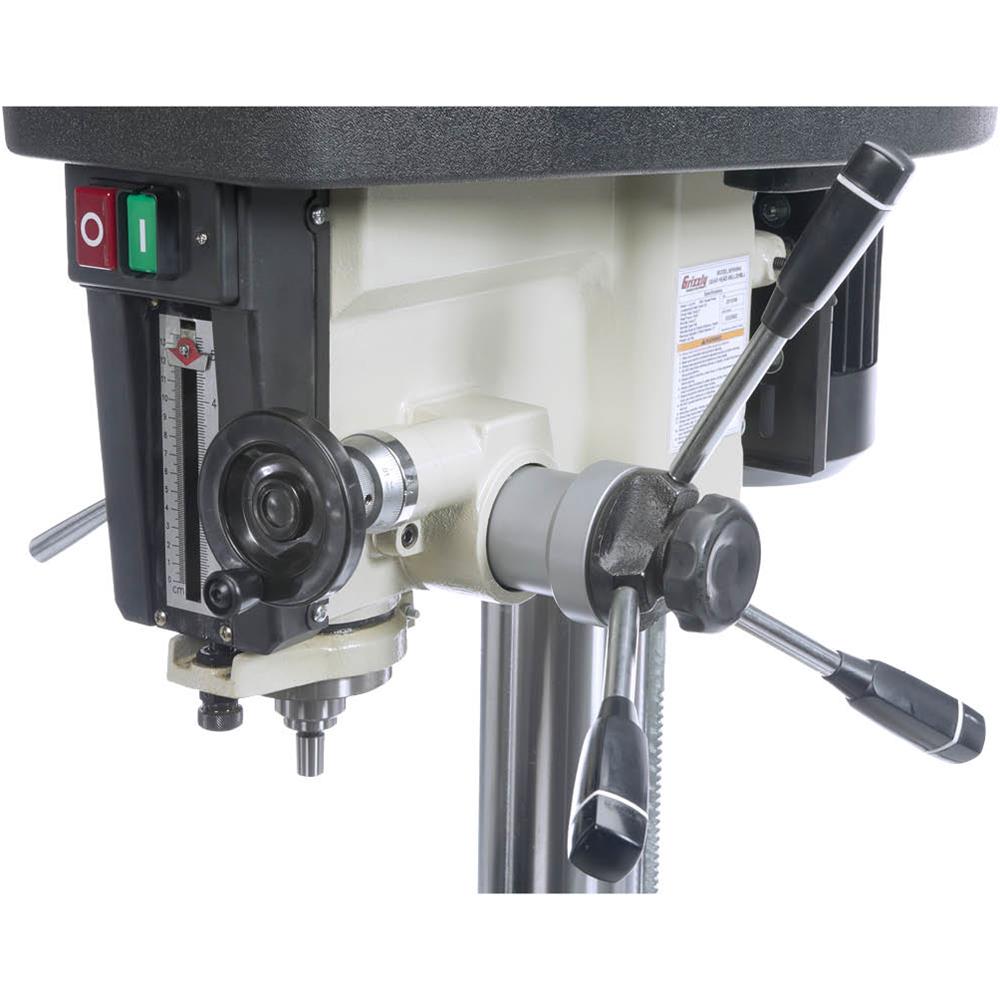

Precision matters, and if you need to drill holes in a straight line or equally spaced apart, you'll love having a drill press with a built-in X/Y table that is even equipped with graduated dials. Our G0810 16' Drill Press provides easy adjustability with both the X and Y-axis - with 14-7/8' of X-axis travel and 7' of Y-axis travel - and a convenient X-axis power feed. Set the depth stop, and use the coarse downfeed for fast production drilling, or switch over to the fine-downfeed handwheel for precision control up or down along the generous 5-1/8' spindle travel. A good drill press also starts from the ground up, and this one offers the foundation you need with a thick, heavy-cast 26' x 19' base and beefed up 4-1/2' column for rigidity and stability you can count on. You would be hard pressed to find a drill press anywhere else with the functionality or capability of this one at such a great price!
Specifications:

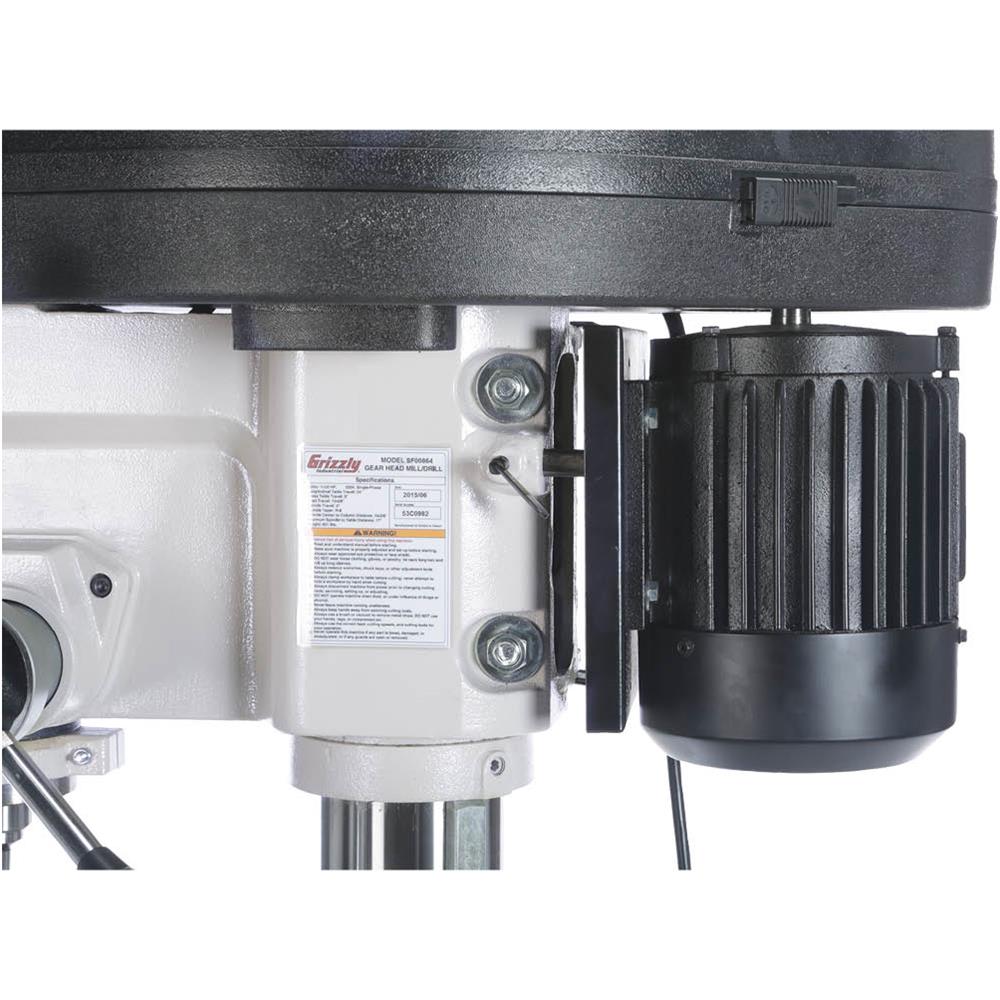

- Motor: 1.5HP, 220V, single-phase, 1720 RPM, 11.5A
- Swing: 16'
- Max distance spindle-to-table: 19-7/8'
- Table size: 23-1/16'L x 7-1/2'W x 1-3/4'H
- Vertical table travel: 20'
- Table swivel (left/right): 360°
- Spindle travel: 5-1/8'
- Number of spindle speeds: 12
- Spindle speeds: 150, 225, 255, 350, 400, 500, 850, 1200, 1500, 1600, 2300, 3000 RPM
- Spindle taper: MT#3
- Quill diameter: 2.95'
- Drilling capacity mild steel: 1-1/4'
- T-slot width: 1/2' (4 on table, 2 on base)
- Overall dimensions: 42'W x 65'H x 39-1/2'D
- Footprint: 26'L x 19'W
- Approximate shipping weight: 685 lb.
Features:
- MT#3 spindle taper
- 12 spindle speeds of 150-3000 RPM
- 360° table rotation around column
- 5-1/4' of spindle travel

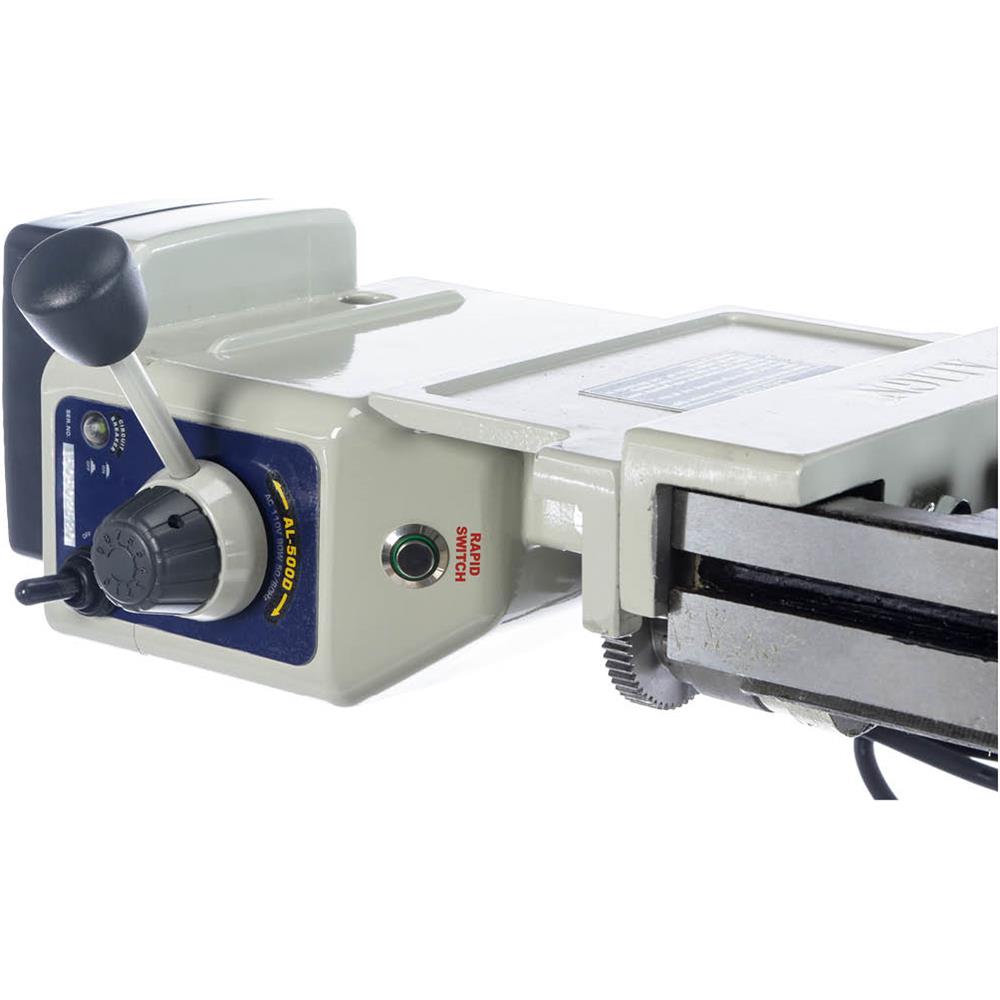

- Longitudinal power feed on X/Y-axis table with independent power supply
- Fine-downfeed handwheel adjustment
