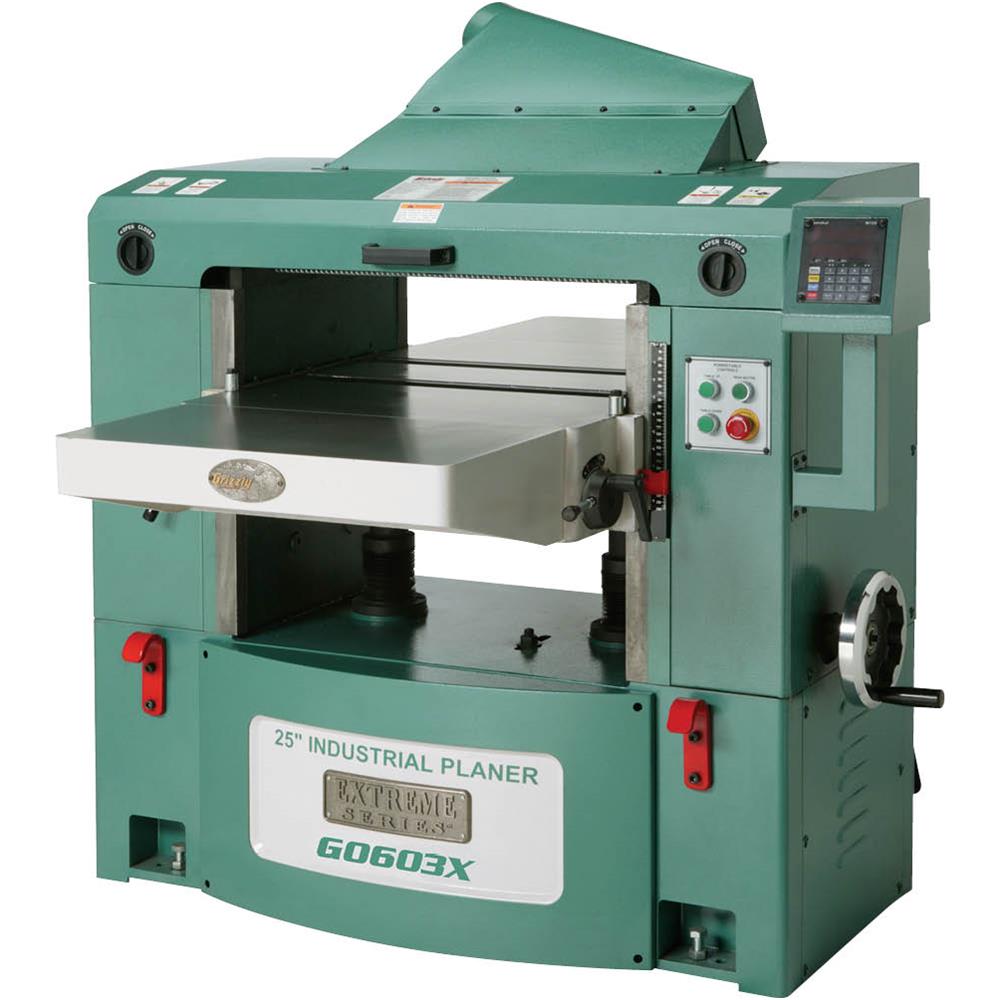

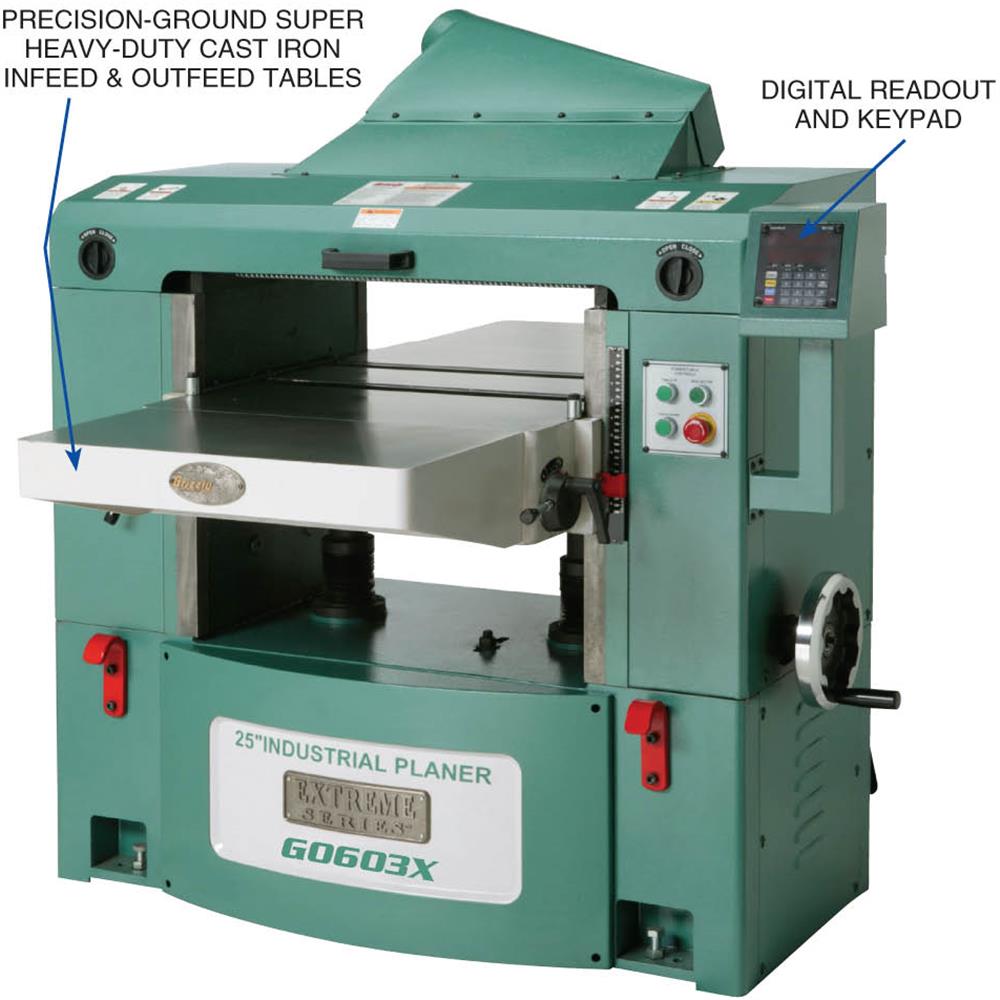

Grizzly 25 Inch 15 HP 3-Phase Extreme Duty Planer w/ Spiral Cutterhead - G0603X
Our G0603X has an incredible 15 HP motor to make quick work of those big planing jobs. It also features a unique spiral cutterhead with 15 rotated inserts for smooth shearing cuts meaning you can say goodbye to tear-out while having an ultra quiet machine and a smoother finish. We’ve even added digital controls to allow you to simply enter the thickness of the board you want or the amount you want to remove, which saves time and reduces waste. All controls are conveniently located. And because it is a Grizzly Extreme Series, you can be assured that your machine will provide years of reliable service.
Features:
- Segmented chip breaker
- 5' dust port
- Micro-adjustable table height
- Infeed roller is serrated steel
- Outfeed roller is finely finished steel

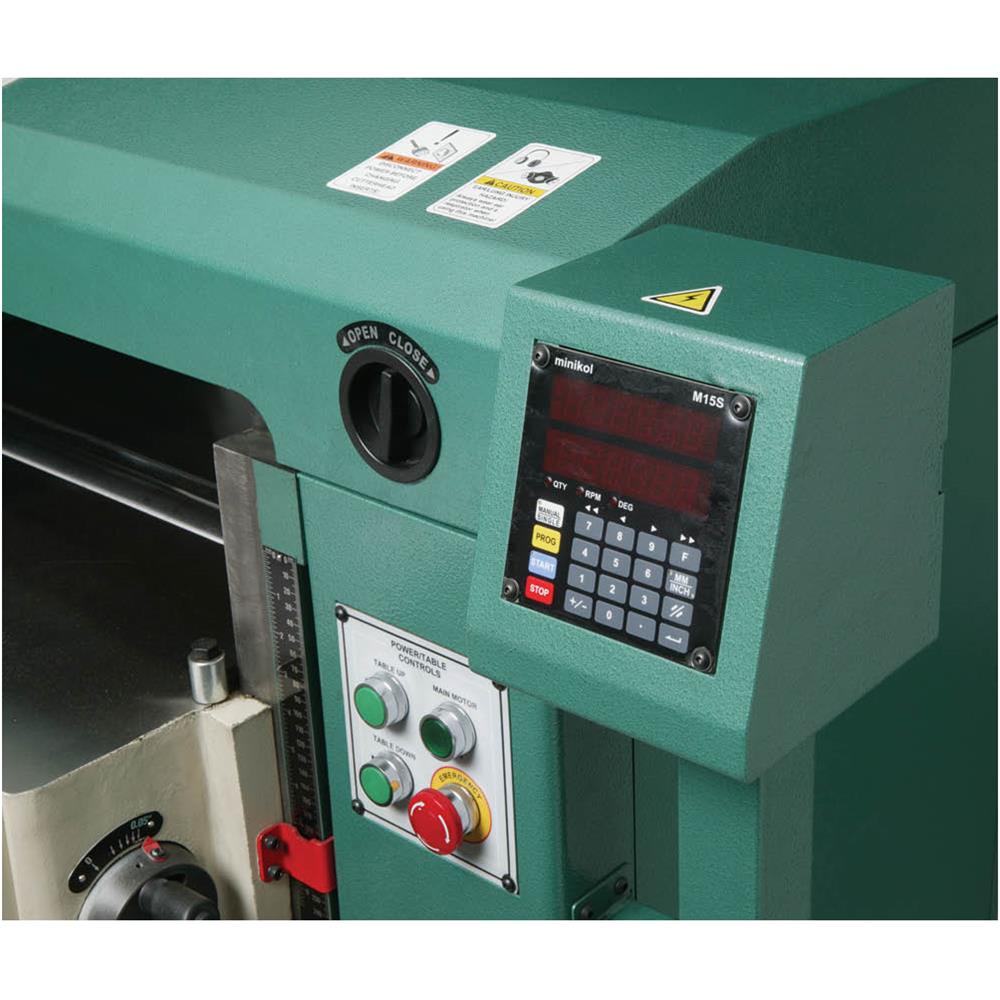

- Digitally controlled table elevation for extreme accuracy
- Adjustable bed rollers
- Easy access cutterhead
- 3-Speed (20,25,30) feed Rate
- Inch/metric readout
- Emergency stop button
Specifications:
- Cutterhead motor: 15 HP, 220V/440V*, 3-phase, 37A/18.5A
- Table elevation motor: 1/2 HP, TEFC, 2.4A/1.2A

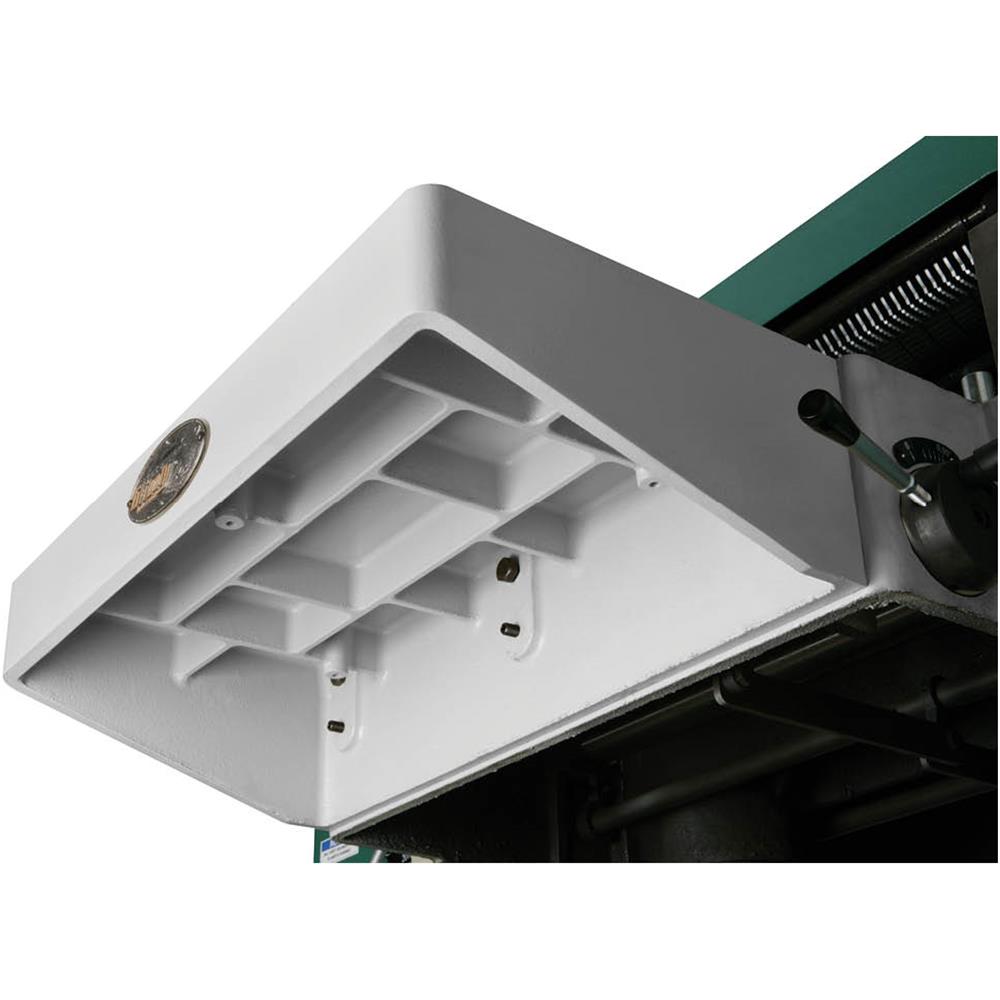

- Precision-ground cast-iron table
- Table size: 25' x 57'
- Maximum cutting width: 25'
- Maximum stock thickness: 9'
- Maximum cutting depth: 1/4'
- Minimum stock thickness: 1/4'
- Minimum stock length: 10'
- Feed rate: 20, 25 & 30 FPM

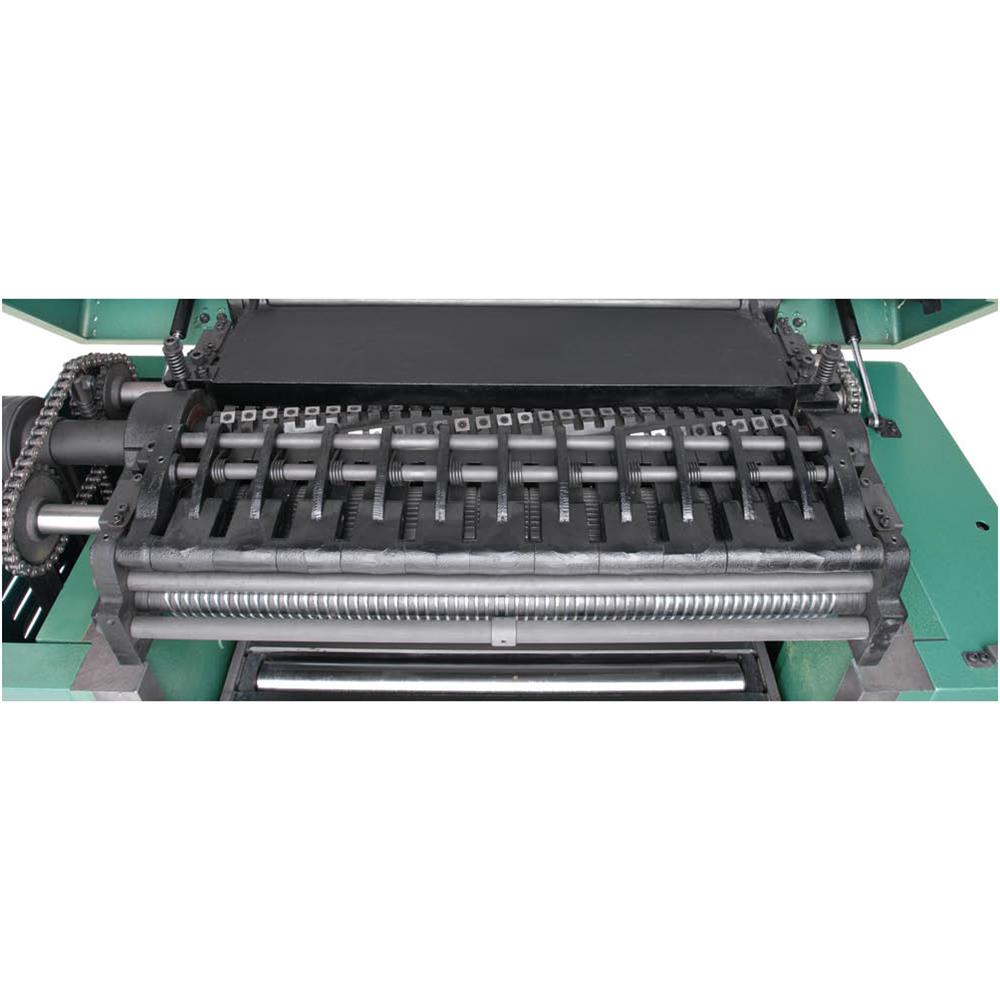

- Cutterhead: 6 spirals, 170 inserts
- Cutterhead speed: 4900 RPM
- Power transfer: Triple V-belt
- Overall size with infeed/outfeed tables: 60-1/4'H x 57-3/8'W x 54-3/8'D
- Approximate shipping weight: 2054 lbs.
*440V operation requires purchasing additional components and installation by our technicians. Please call customer service at (570) 546-9663 for more information
