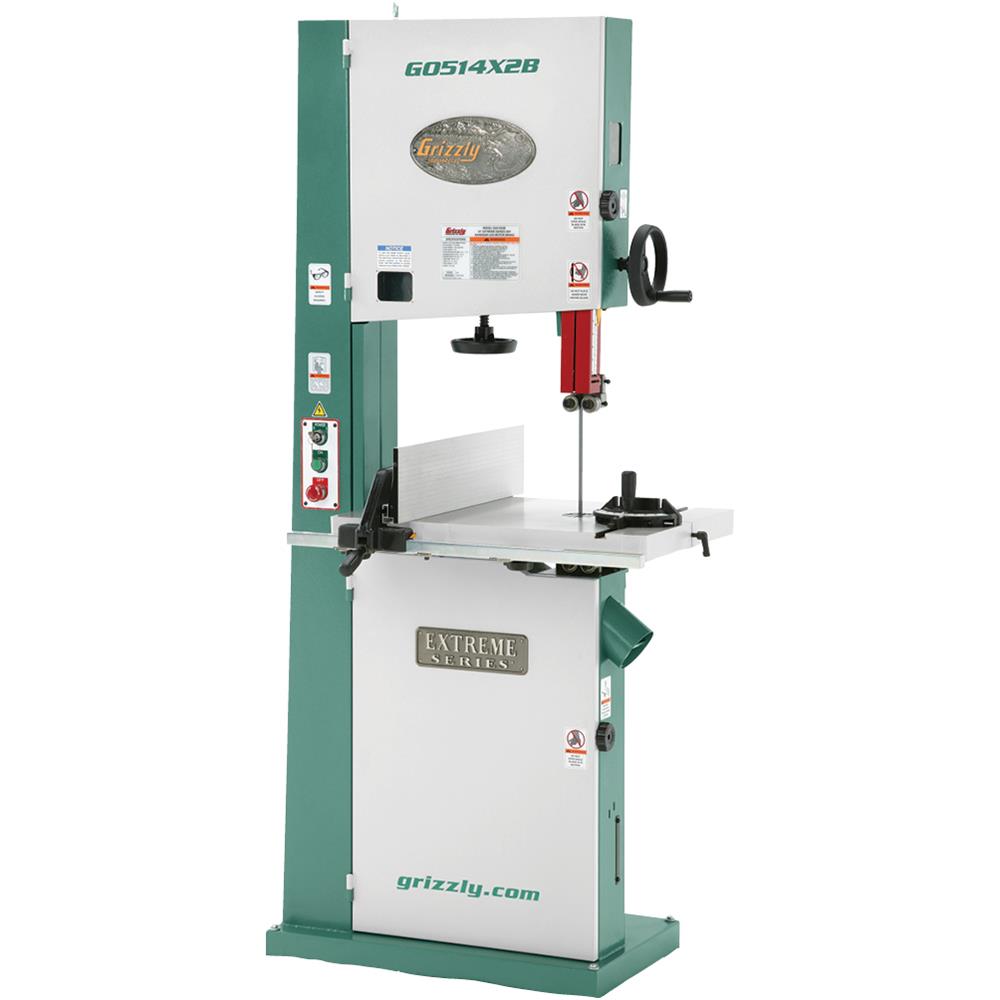

Grizzly 19 Inch 3 HP Extreme-Series Bandsaw with Motor Brake - G0514X2B

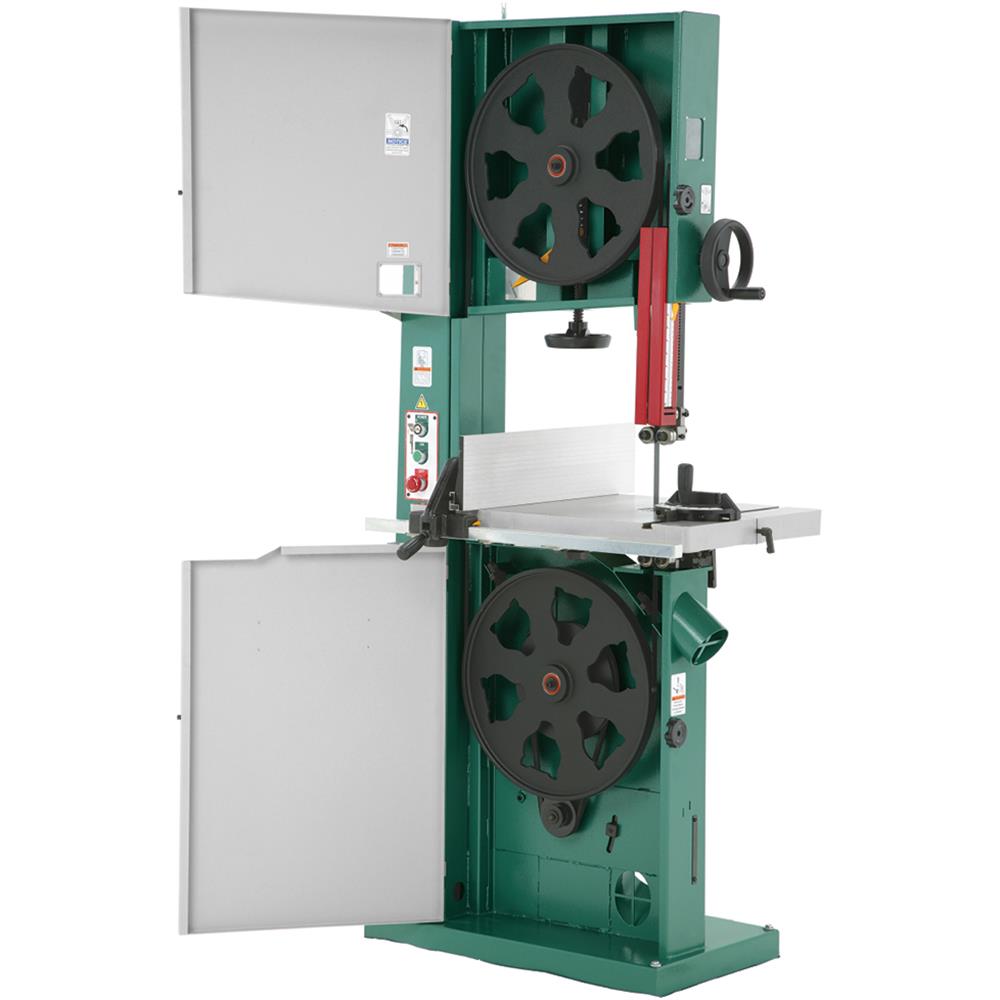

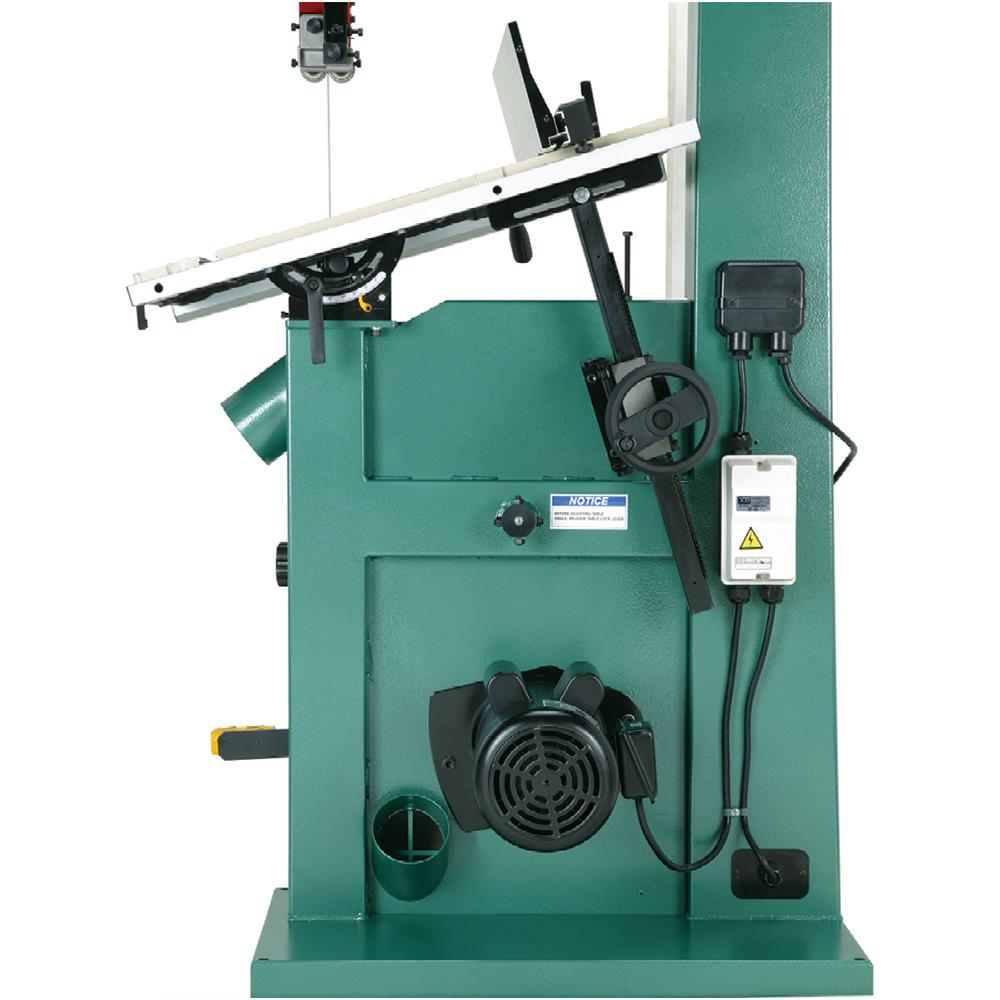

We took our rock-solid G0514X 19' Heavy-duty Extreme Series Bandsaw, added a few more features and came up with a new line of ultimate 19' Bandsaws. This saw features an lightning-fast electronic motor brake, a cast iron table trunnion, rack and pinion table tilt control with extra table support, and an innovative resaw fence. The electronic motor brake stops the blade in approximately 3 seconds all with the simple push of a switch. Now that's fast and easy!
CSA certified meeting CSA C22.2 #71.2-10, #105-1953, and UL 987-7th standards!
SPECIFICATIONS:
- Motor: 3 HP, 220V, single-phase, 12A, TEFC, 60 Hz
- RPM: 1725
- Precision ground cast iron table
- Table size: 26-3/4' x 19' x 1-1/2' thick
- Floor to table height: 37-1/2'
- Cutting capacity/throat: 18-1/4'
- Maximum cutting height: 12'
- Blade size: 143' long
- Blade widths available: 1/8' - 1-1/4'
- 2 Blade speeds: 1700, 3500 FPM
- Wheels: fully balanced cast iron with polyurethane tires
- Wheel covers: pre-formed, hinged steel

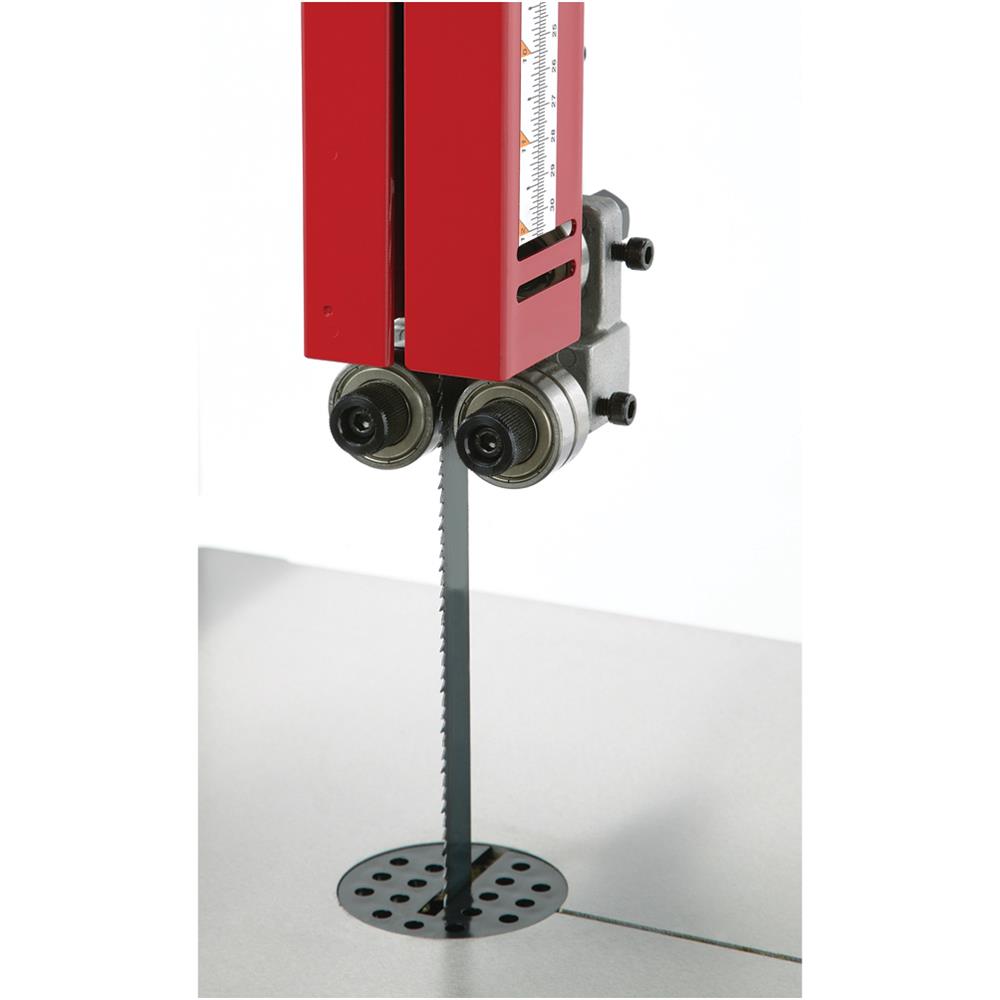

- Blade guides: dual ball bearing with full enclosure protection
- Bearings: sealed and permanently lubricated
- Overall size: 76' H x 36' W x 32' D
- Approximate shipping weight: 512 lbs.
FEATURES:
- Blade tension indicator
- Micro adjusting geared table tilting mechanism
- Height scale measurement
- Fence with scale and magnifying window

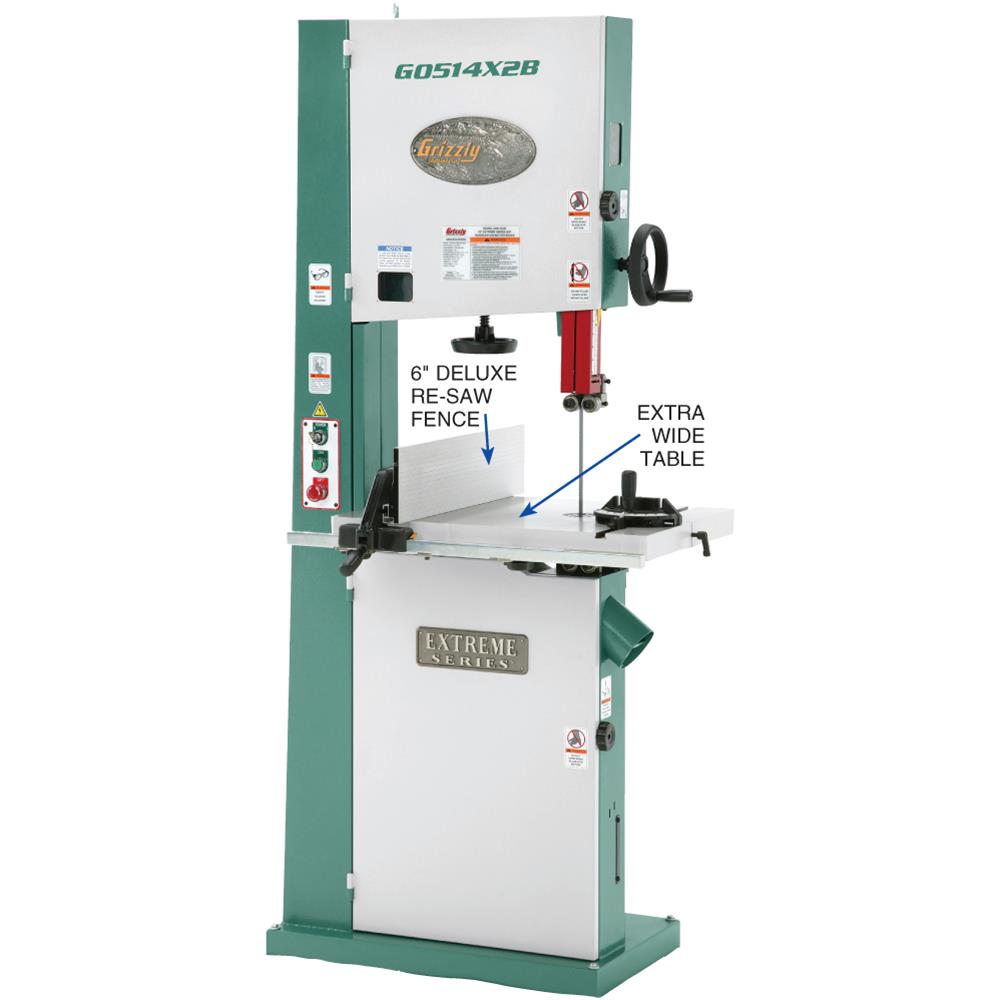

- Deluxe cast iron fence with extruded aluminum re-saw fence
- Miter gauge
- 4' dust port x 2
- Table tilt 5° left, 45° right
- Quick change blade release/tensioning
- Rack and pinion upper guide adjustment

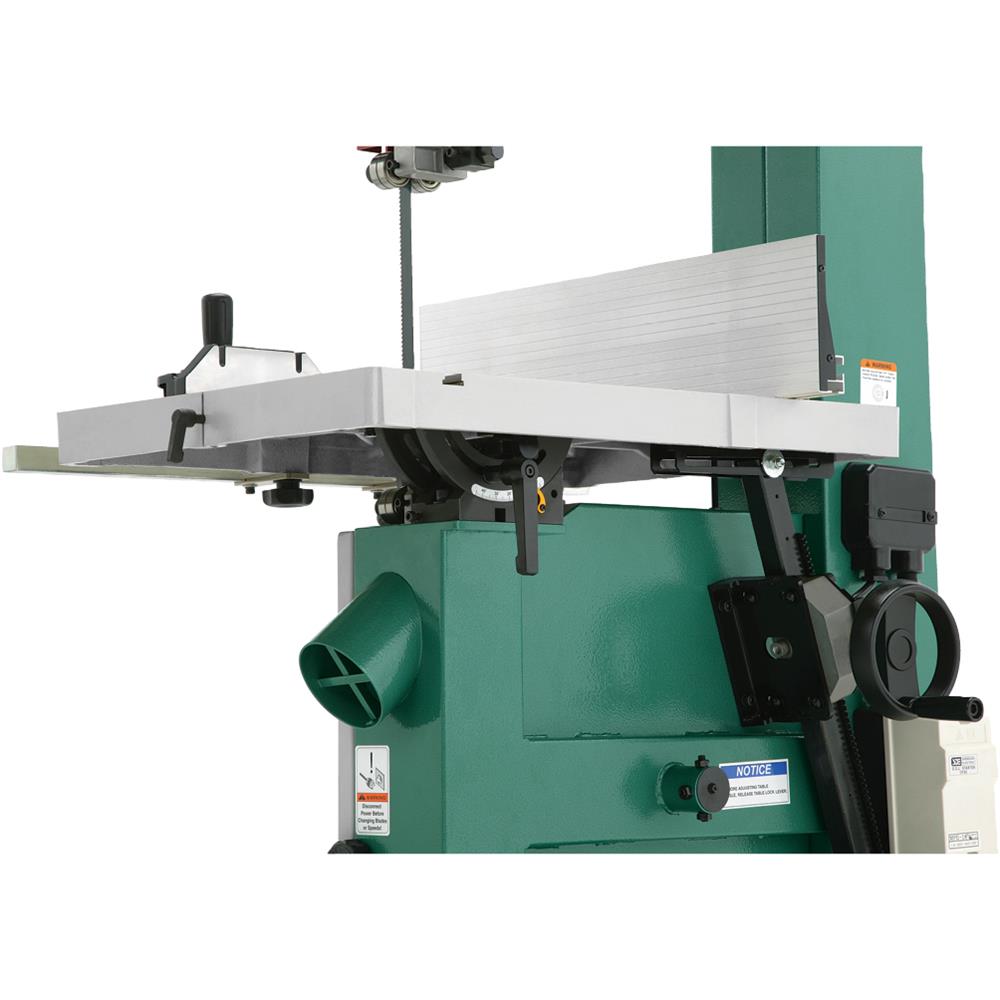

- Rack and pinion table tilt mechanism
- Motor brake
- Cast iron trunnion
- Includes 3/4' blade
