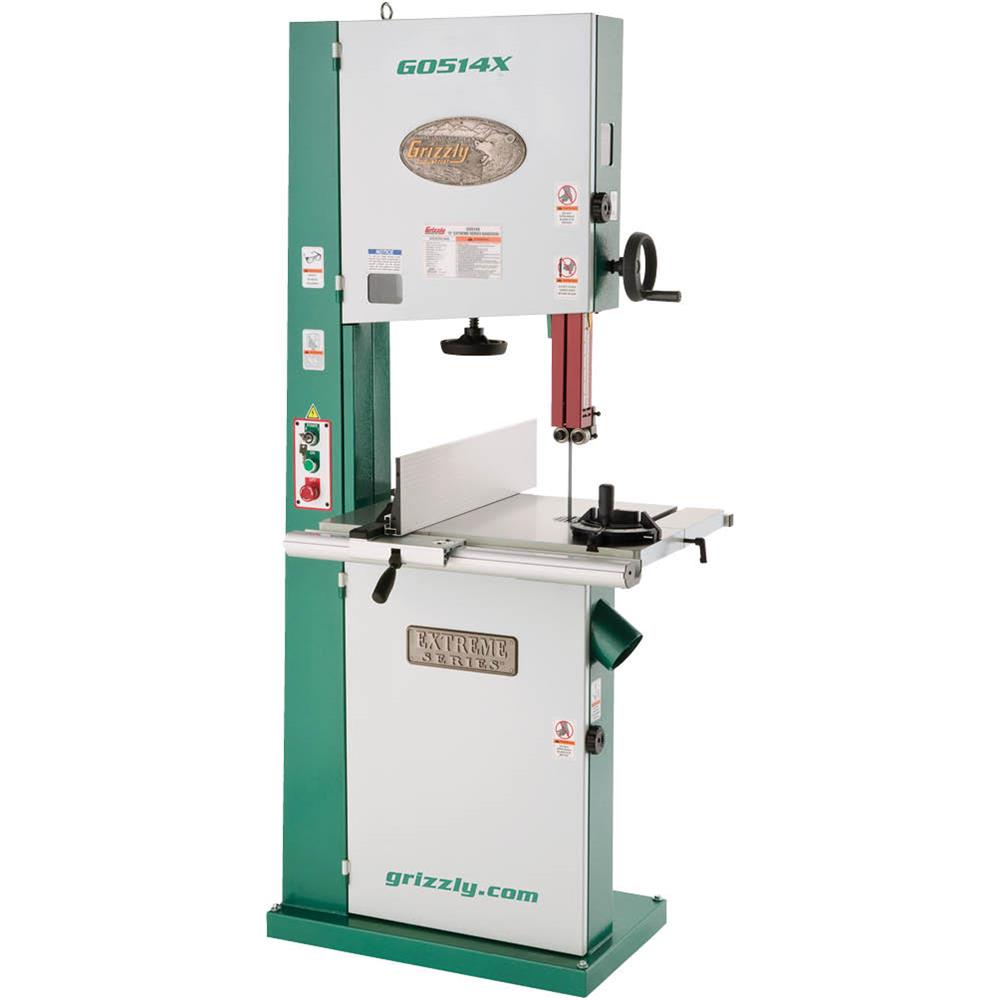

Grizzly 19 Inch 3 HP Extreme Series Bandsaw - G0514X

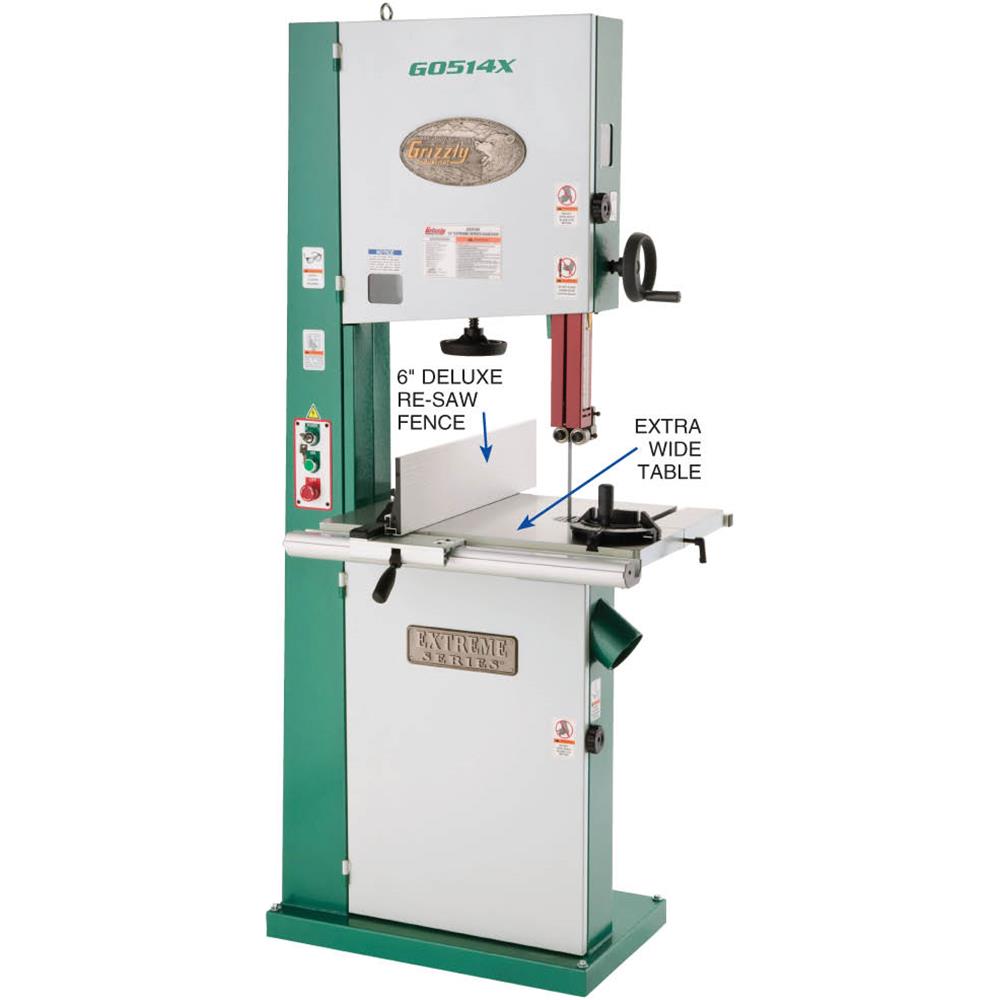

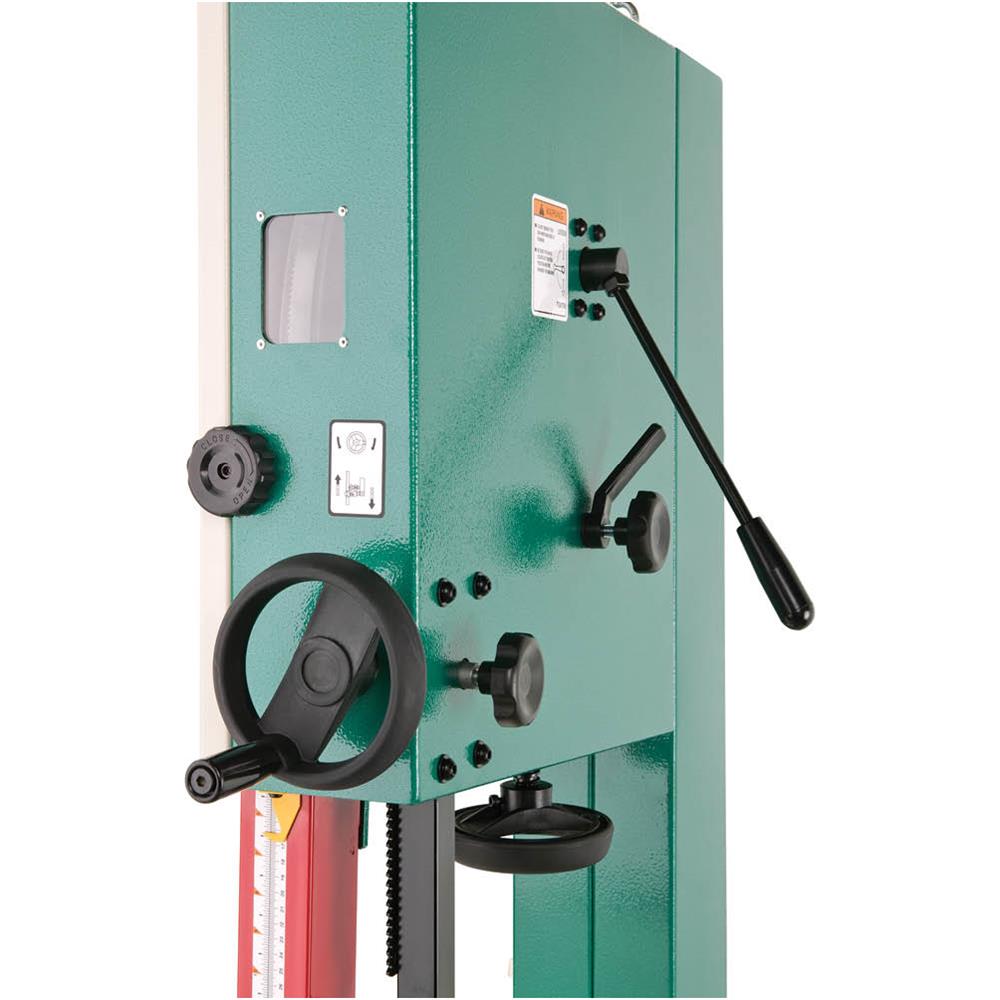

We have taken our ever popular and highly regarded G0514 and made another Extreme Machine. Cast-iron wheels, double-row ball-bearing blade guides, and a 3 HP motor help make this a wood devouring saw. Also, the extra large tilting table and Grizzly patent-pending Re-saw Fence make controlling the cut easy. You will really appreciate the extra features like two 4' dust ports, a tracking window, quick-release blade tension device, and blade tension scale. Both blade guide height and blade tension are handwheel controlled, and the wheel covers are hinged for convenience.
Certified to UL & CSA standards!
Specifications:
- Motor: 3 HP, 220V, single-phase, TEFC capacitor start induction, 60 Hz, 12A, 1725 RPM
- Precision-ground cast-iron table
- Table size: 26-3/4' x 19' x 1-1/2' thick
- Floor to table height: 37-1/2'
- Cutting capacity/throat: 18-1/4'
- Maximum cutting height: 12'
- Blade size: 143' long
- Blade sizes available: 1/8' – 1-1/4'
- 2 Blade speeds: 1700, 3500 FPM
- Wheels: computer-balanced cast-iron with polyurethane tires

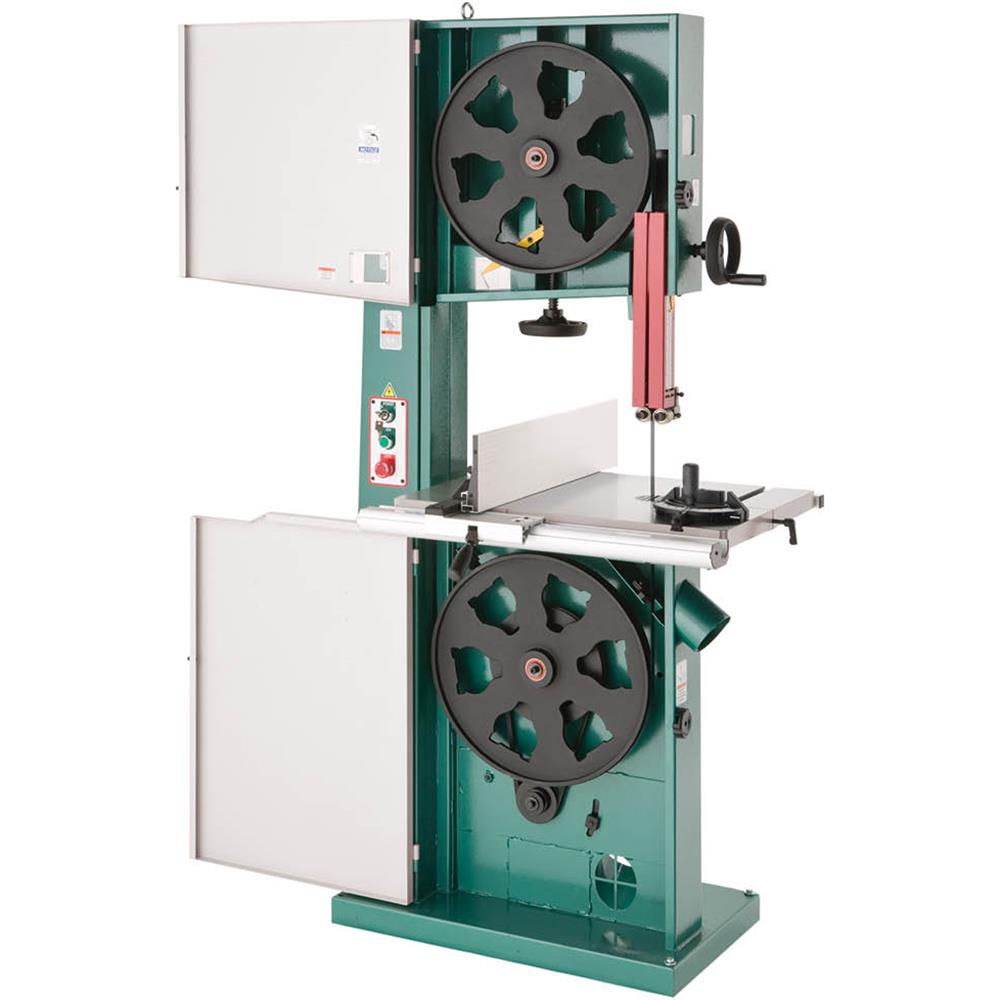

- Wheel covers: pre-formed, hinged steel

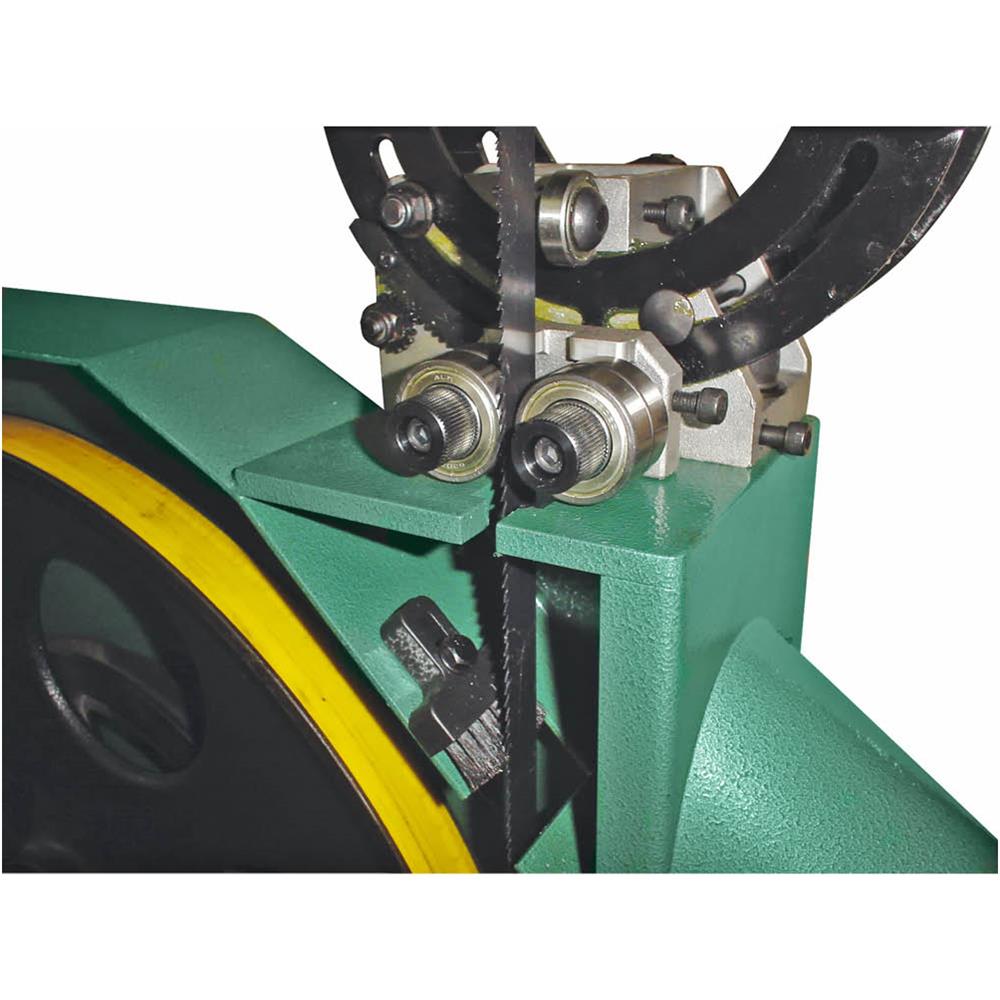

- Blade guides: dual ball bearing with full enclosure protection
- Bearings: sealed and permanently lubricated
- Footprint: 29-1/2' x 17-3/4'
- Overall size: 76'H x 36'W x 32'D
- Approximate shipping weight: 460 lbs.
Features:
- Blade tension indicator
- Micro-adjusting gear table
- Height scale measurement

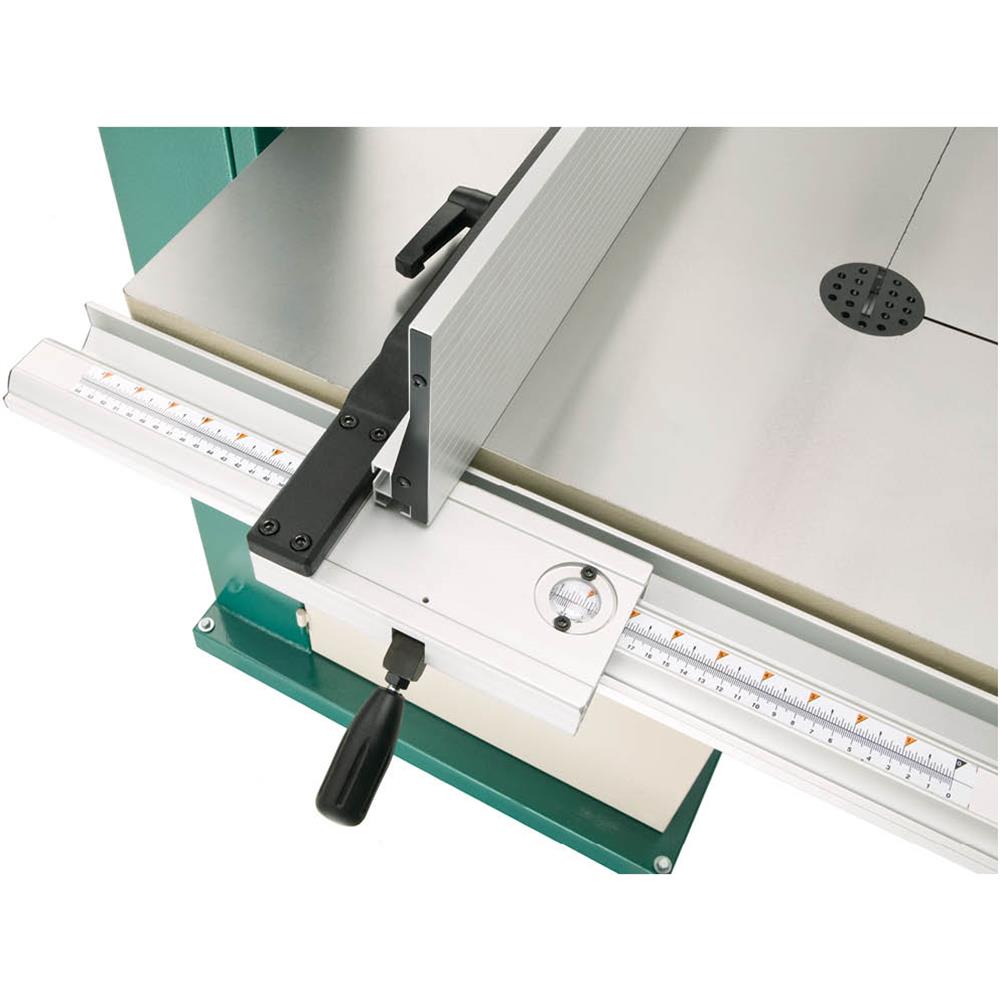

- Fence with scale and magnifying window
- Deluxe cast-iron fence with extruded re-saw fence
- Includes miter gauge
- Two 4' dust ports
- Table tilt: 5° left, 45° Right
- Quick-change blade release/tensioning
- Rack and pinion upper guide adjustment
- Includes 3/4' 6-TPI hook blade
