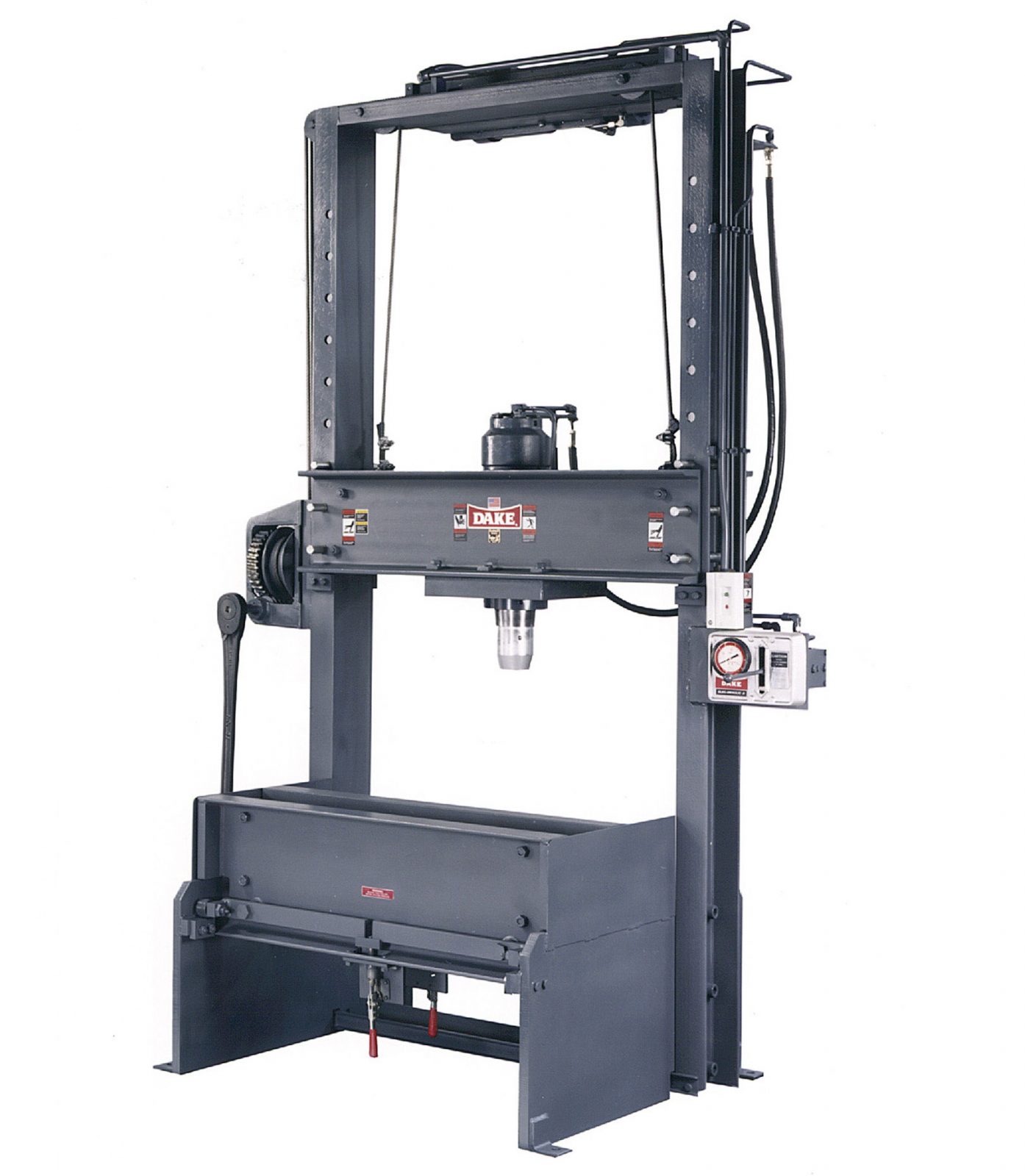

Dake 150 ton Movable Table Press - 942503

Dake 150 ton Movable Table Press - 942503

150 ton capacity press with electric hydraulic operation. The 42-500 models offer a larger ram-table range than the 42-400 models. The movable table allows overhead loading of heavy work pieces. An adjustable workhead height provides maximum daylight for over-sized work.


Features:

• Movable table allows overhead loading of heavy workpieces.
• Heavy-duty hoist easily raises and lowers workhead.
• Adjustable workhead height provides maximum daylight for oversized work.
• Toggle clamps lock table securely in place.

Standard Equipment:

• ½” Keyed chuck
• Drift for bit removal
• Plexiglas chip and chuck guard

Specs:

• Model: 42-503
• Number: 942503
• Capacity: 150 tons
• Operation: Elec-Draulic
• Horsepower: 10
• Voltage: 220V/440V, 3-Phase
• Width between uprights: 48”
• Width between table channels: 12-1/2”
• Minimum ram to table: 15-1/2”
• Maximum ram to table: 65-1/2”
• Ram travel: 16”
• Screw Travel: n/a
• Horizontal workhead travel: n/a
• Footprint: 58” x 56”
• Height: 150”
• Weight: 4,700 lbs
• Base: 58” x 56”
• Ram advance speed: n/a
• Pressing speed: 17 ipm
• RPM: n/a
• Air Pressure: n/a



---
