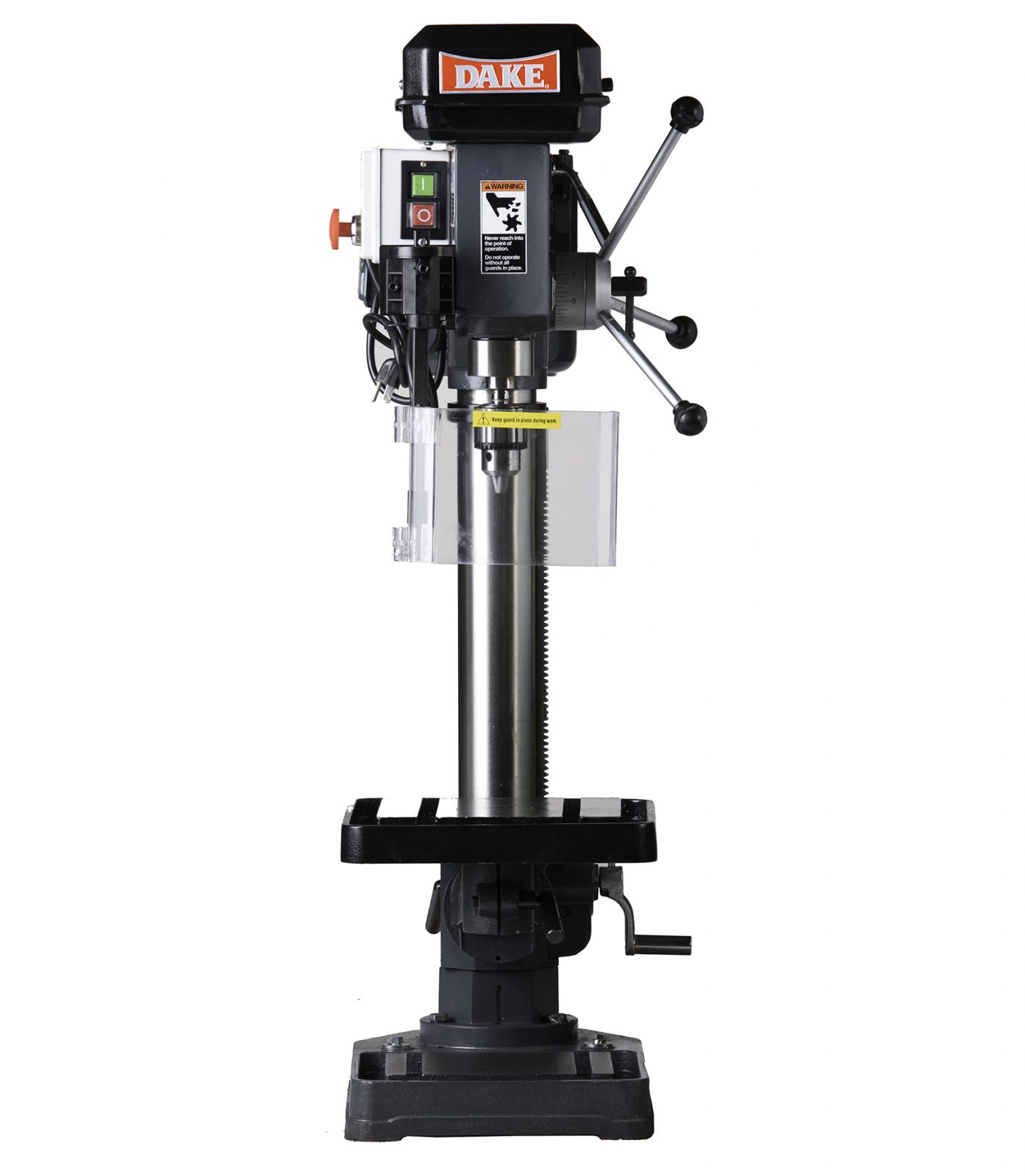

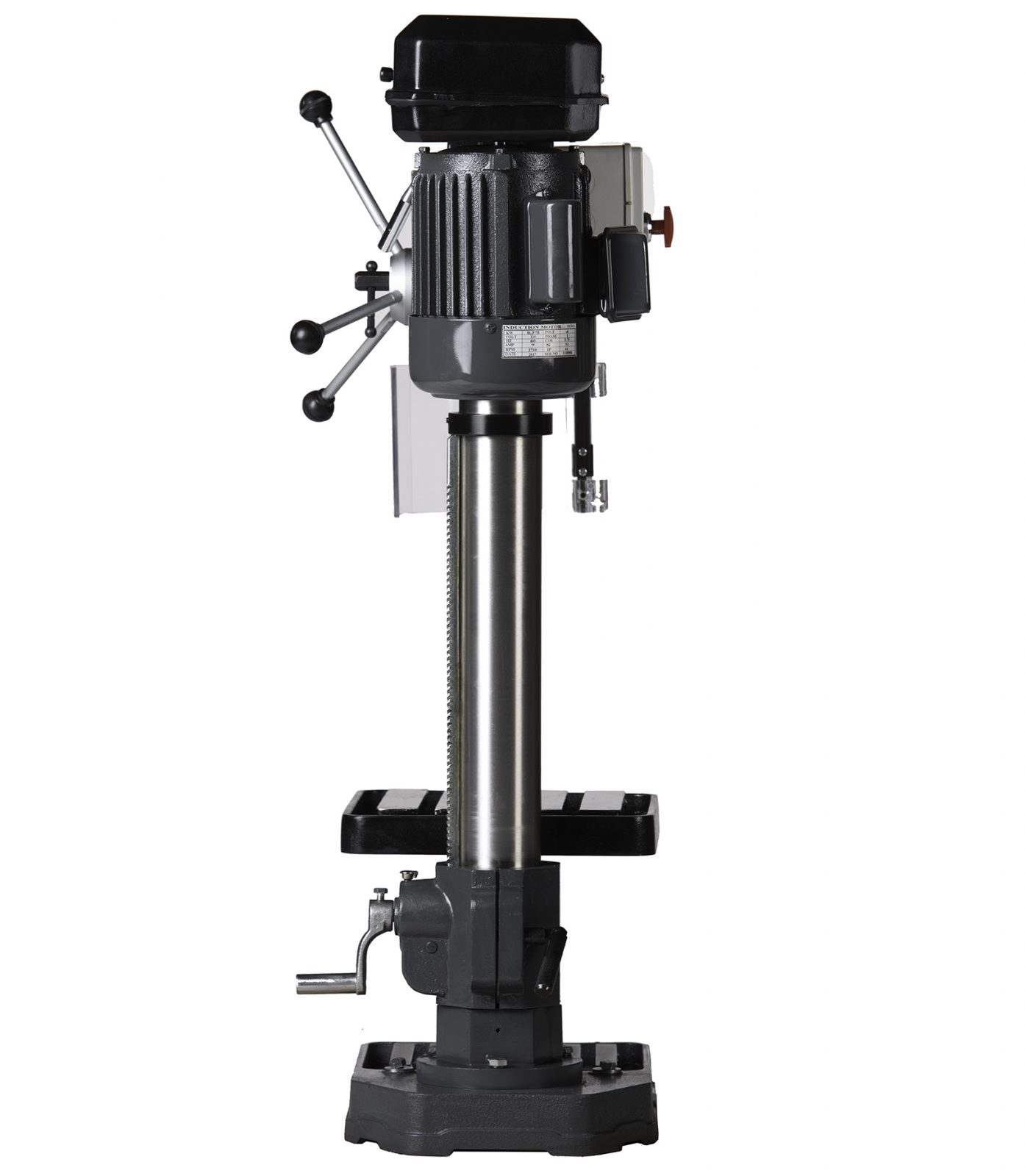

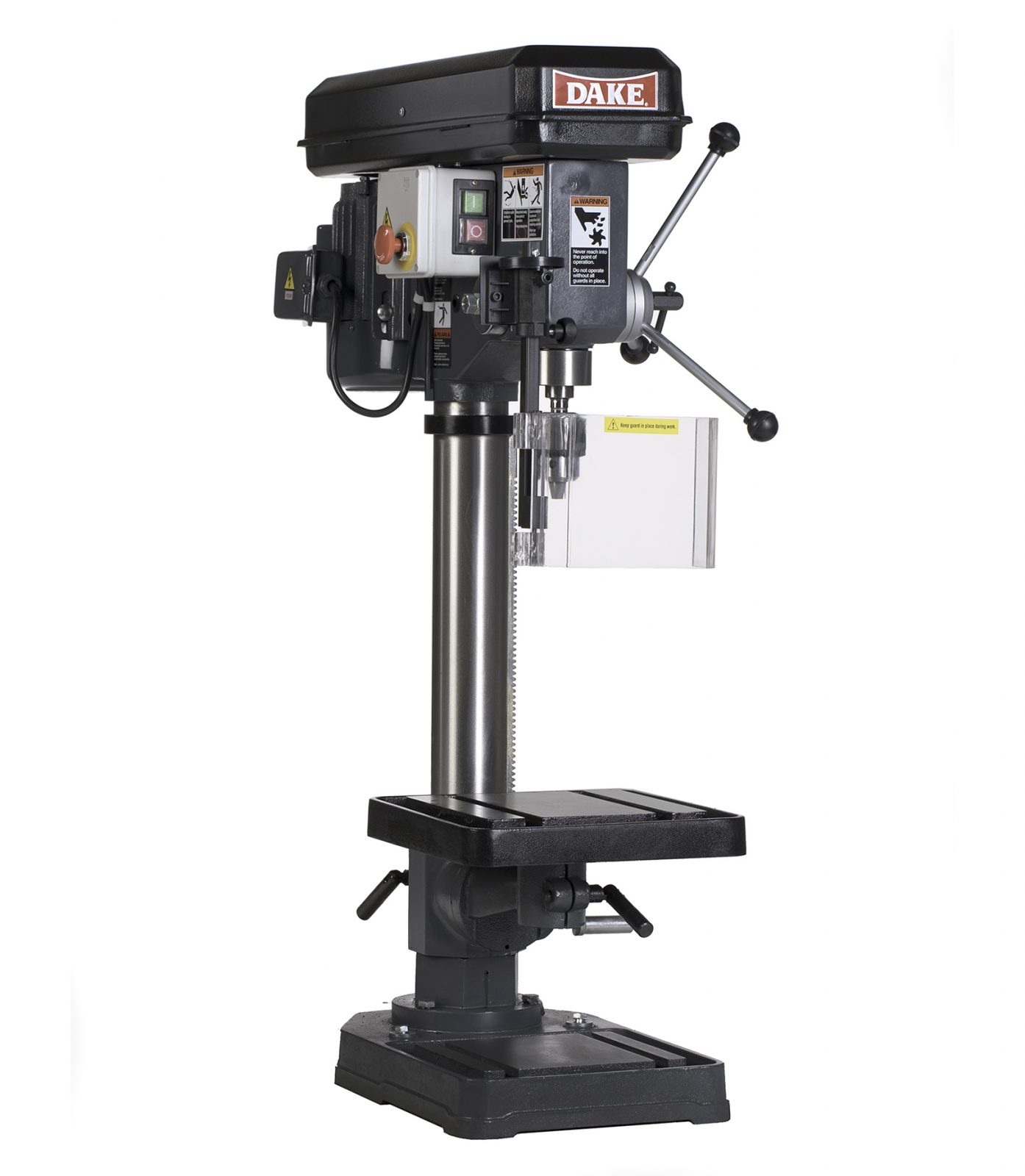

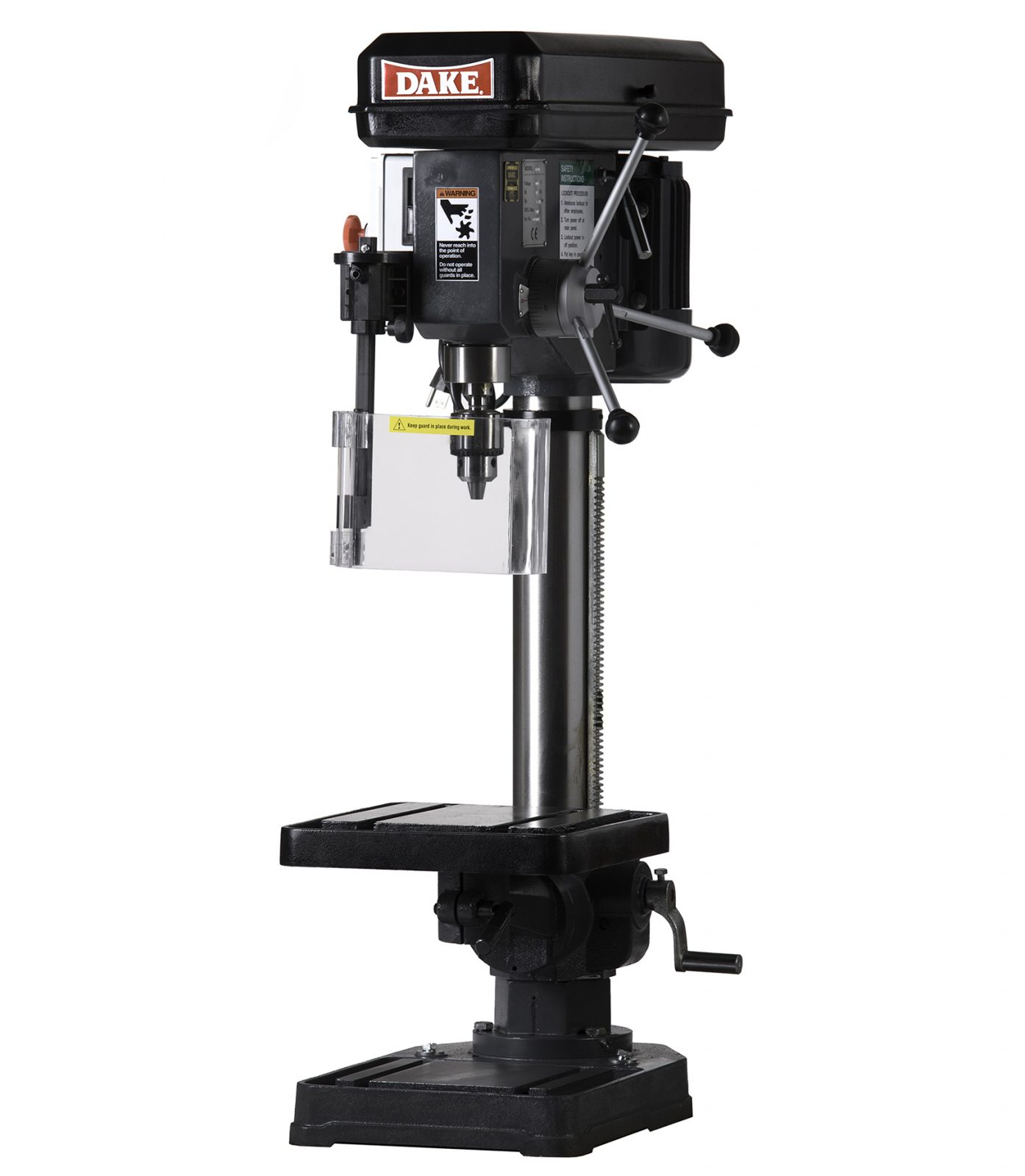

Dake Bench Model Drill Press - TB-16
Bench model drill press featuring a locking handle hub, CE safety electrical package, a large diameter sturdy spindle, and massive cast head. Capable of quick bit changes and quick belt tension release for easy speed changes.
Features:
- A locking handle hub with convenient dial-in adjustment and an easy to read scale for fast, accurate, and repeatable depth setting changes.
- Large diameter sturdy spindle for rigid drilling has four bearing points for smooth operation.
- Bench and floor models both have machined table and base surfaces with t-slots for mounting and fixturing.
- Quick release belt tensioning for fast, easy speed changes.
- CE safety electrical package features push button on/off switch, emergency stop button, low voltage controls, thermal overload, and interlock safety switch for belt cover.
- Massive cast head, machined column, and sturdy cast base reduces vibration.
- Quick bit changes with standard Morse Taper (MT), common adaptors or standard keyed chuck.
- Handle has 3 spokes with spring return for precise operator control and ergonomic operation.
Standard Equipment:
- ½” Keyed chuck
- Drift for bit removal
- Plexiglas chip and chuck guard
Specs:
- Model: TB-16
- Number: 977100-1
- Drill capacity: 5/8”
- Horsepower: 1/2
- Motor: n/a
- Spindle taper: MT2
- Working diameter: 14-1/8”
- Number of speed: 9
- Spindle speed range: 240-3,400 rpm
- Electrics: CE 110-volt
- Weight: 175 lbs
- Spindle travel: 3-1/8”
- Column diameter: 3-1/8”
- Table depth: 11-3/4”
- Table width: 11-3/4”
- Base depth: 17-3/4”
- Base width: 12-1/4”
- Spindle to table: 16-1/2”
- Spindle to base: 26-1/2”
- Overall height: 42-1/2”
* specifications subject to change without notice.
