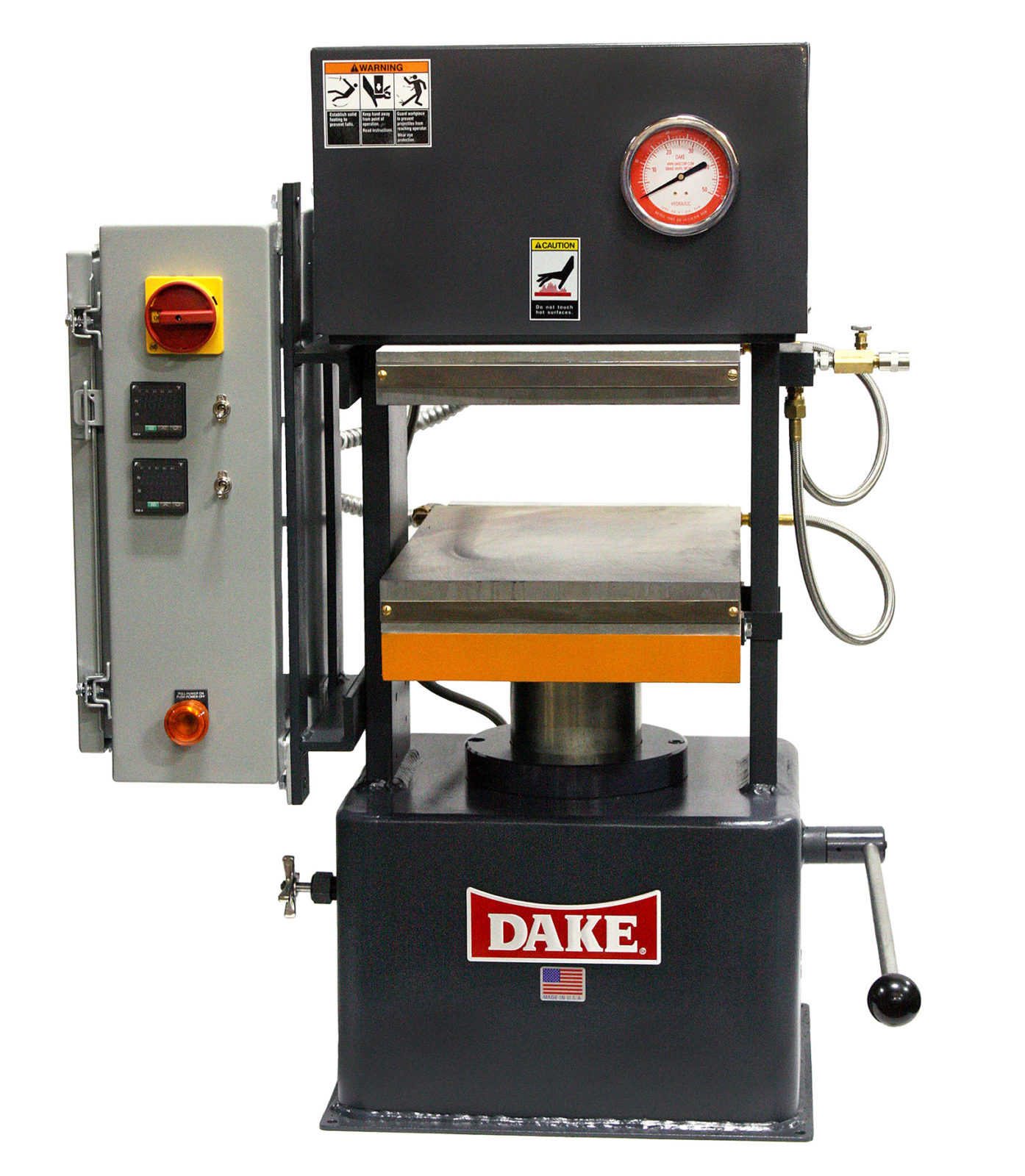

Dake 75 ton Laboratory Press - 44-275
Laboratory press with electric platens, isolated control panel that stays cool to the touch, precise temperature control with separate controls for each platen, and a two position ram. Great for molding, laminating, testing, and more.
Features:
- Self-leveling, electrically cooled, precision ground steel platens are pre-wired into the control panel. Heating elements are replaceable.
- Heating elements are replaceable.
- Unique dual acting pump provides a rapid advance of the ram.
- Conversion of pump to high pressure-low volume output provides accurate control and easy operation.
- Ability to hold pressure for extra long periods of time.
- Release valve on side of the press enables operator to adjust the pressure accurately as well as accomplish gradual decompression or fast opening of the press.
- Side mounted control panel.
- Precise temperature control. Temperatures are accurately controlled from 100˚ to 600˚F.
- Removable ram adaptor allows for greater daylight working height.
Standard Equipment:
- Electric Platens
- Precise Digital Temperature Control
- Hydraulic System
- Two Position Ram
Specs:
- Tonnage: 75
- Maximum temp: 600° F
- Watts per press: 10,800
- Voltage single phase: 220V/440V, 3-Phase
- Amps: 26
- Number of openings: 1
- Stroke: 6”
- Platens: 19” x 19”
- Daylight between each platen...: 6”
- Daylight between each platen...12”
- Base dimensions: 26” x 21”
- Overall height: 51”
- Weight: 1,900 lbs
* specifications subject to change without notice.
