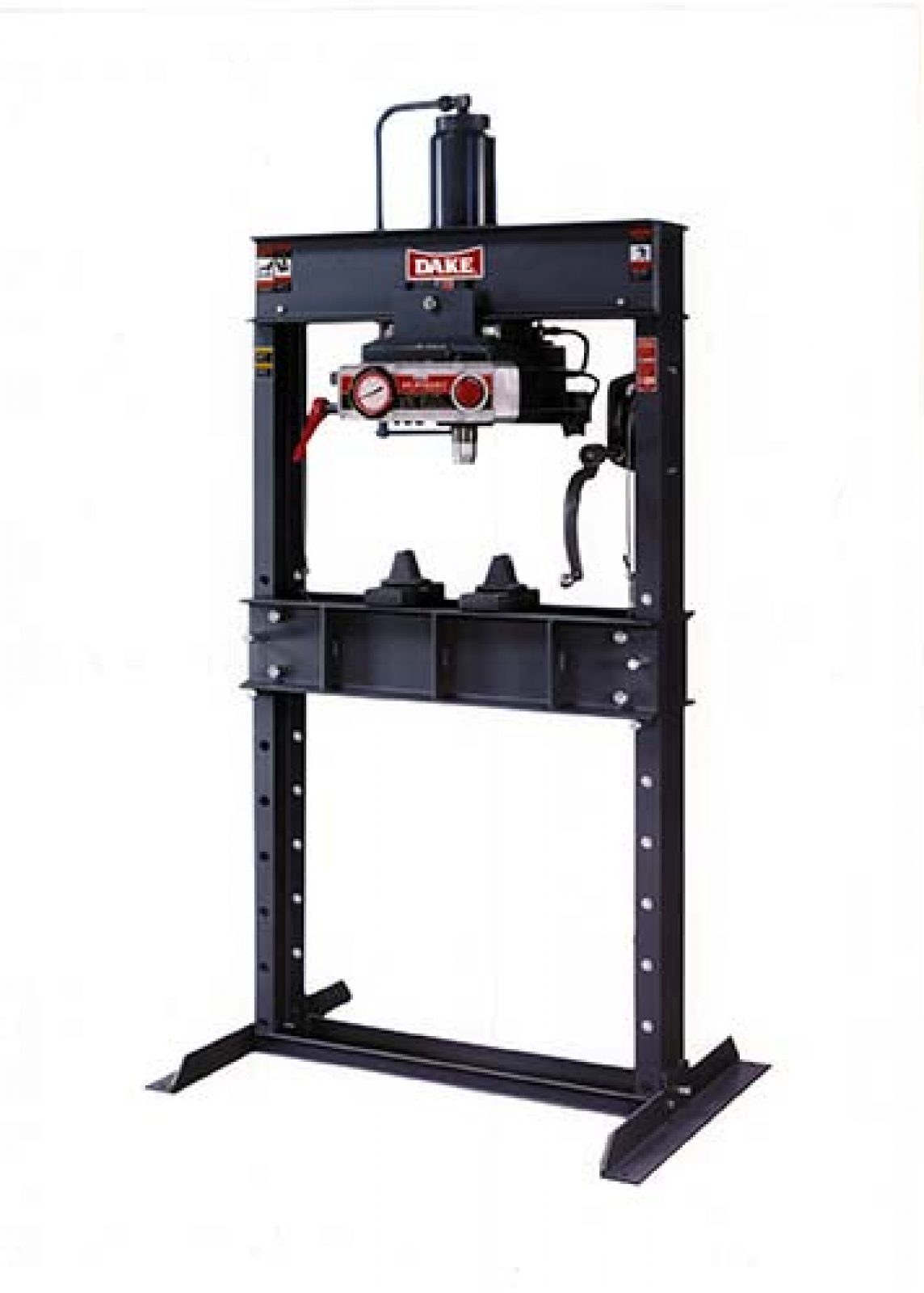

Dake 25 tons Hand Operated Presses - 906425
Offering 25 tons of pressing power, this air operated press eliminates the need for hand pumping with either a single or dual pump option. Standing 81 inches tall, this press offers 100 IMP ram advance speed.
Features:
- Air operation eliminates the need for hand pumping.
- By-pass hole prevents excessive ram extension.
- Rapid ram approach quickly moves ram to work to save production time
- Adjustable table permits easy vertical movement by means of self-locking hoist.
- Double pump for faster pressing
Standard Equipment:
- Frame
- 2 Steel V-Blocks
- Flat Ram Nose
- Stroke Indicator
- Safety Relief Valve
- Work-head
- 2 Steel Table Plates
- Pressure Gauge
- Self Locking Table Hoist
Specs:
- Number: 906425
- Capacity: 25 tons
- Operation: Air
- Horsepower: n/a
- Voltage: n/a
- Width between uprights: 33.5"
- Width between table channels: 5-3/16"
- Minimum ram to table: 1"
- Maximum ram to table: 36"
- Ram travel: 10"
- Screw Travel: n/a
- Horizontal workhead travel: 13-1/2"
- Footprint: 42-1/2" x 30"
- Height: 81"
- Weight: 800 lbs
- Base: 42-1/2" x 30"
- Ram advance speed: 100 ipm
- Pressing speed: 10 ipm
- Number of Pumps: 2
- Air Pressure: 90-125 psi
* specifications subject to change without notice.
