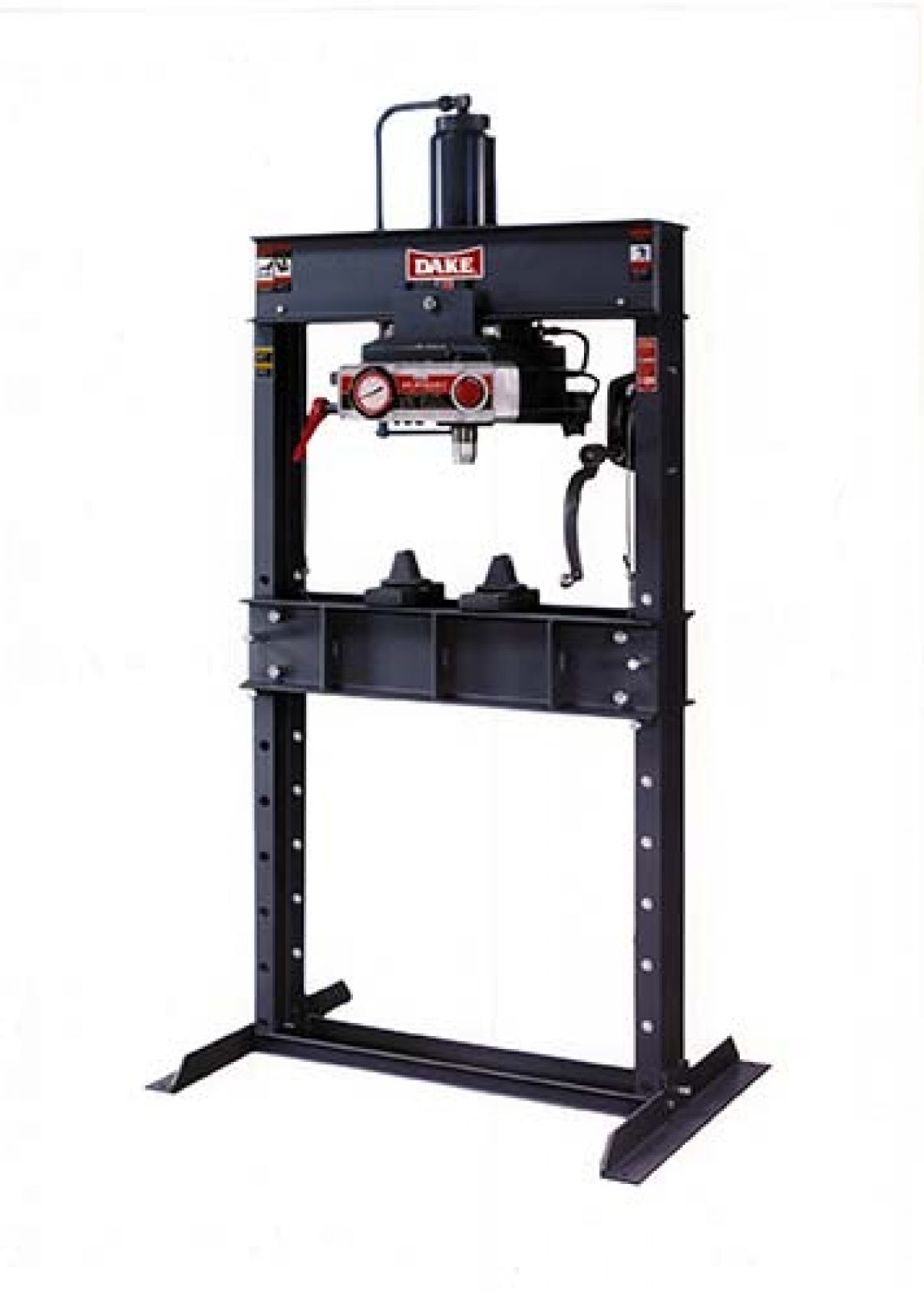

Dake 50 ton Hand Operated Presses - 906450
Offering 50 tons of pressing power, this air operated press eliminates the need for hand pumping with either a single or dual pump option. Standing 87 inches tall, this press offers 55 IMP ram advance speed.
Features:
- Air operation eliminates the need for hand pumping.
- By-pass hole prevents excessive ram extension.
- Rapid ram approach quickly moves ram to work to save production time
- Adjustable table permits easy vertical movement by means of self-locking hoist.
- Double pump for faster pressing
Standard Equipment:
- Frame
- 2 Steel V-Blocks
- Flat Ram Nose
- Stroke Indicator
- Safety Relief Valve
- Workhead
- 2 Steel Table Plates
- Pressure Gauge
- Self Locking Table Hoist
Specs:
- Number: 906450
- Capacity: 50 tons
- Operation: Air
- Horsepower: n/a
- Voltage: n/a
- Width between uprights: 32-3/4"
- Width between table channels: 7-1/4"
- Minimum ram to table: 5"
- Maximum ram to table: 40"
- Ram travel: 10"
- Screw Travel: n/a
- Horizontal workhead travel: 13-3/4"
- Footprint: 43-1/2" x 36"
- Height: 87"
- Weight: 1150 lbs
- Base: 43-1/2" x 36"
- Ram advance speed: 55 ipm
- Pressing speed: 5 ipm
- Number of Pumps: 2
- Air Pressure: 90-125 psi
* specifications subject to change without notice.
