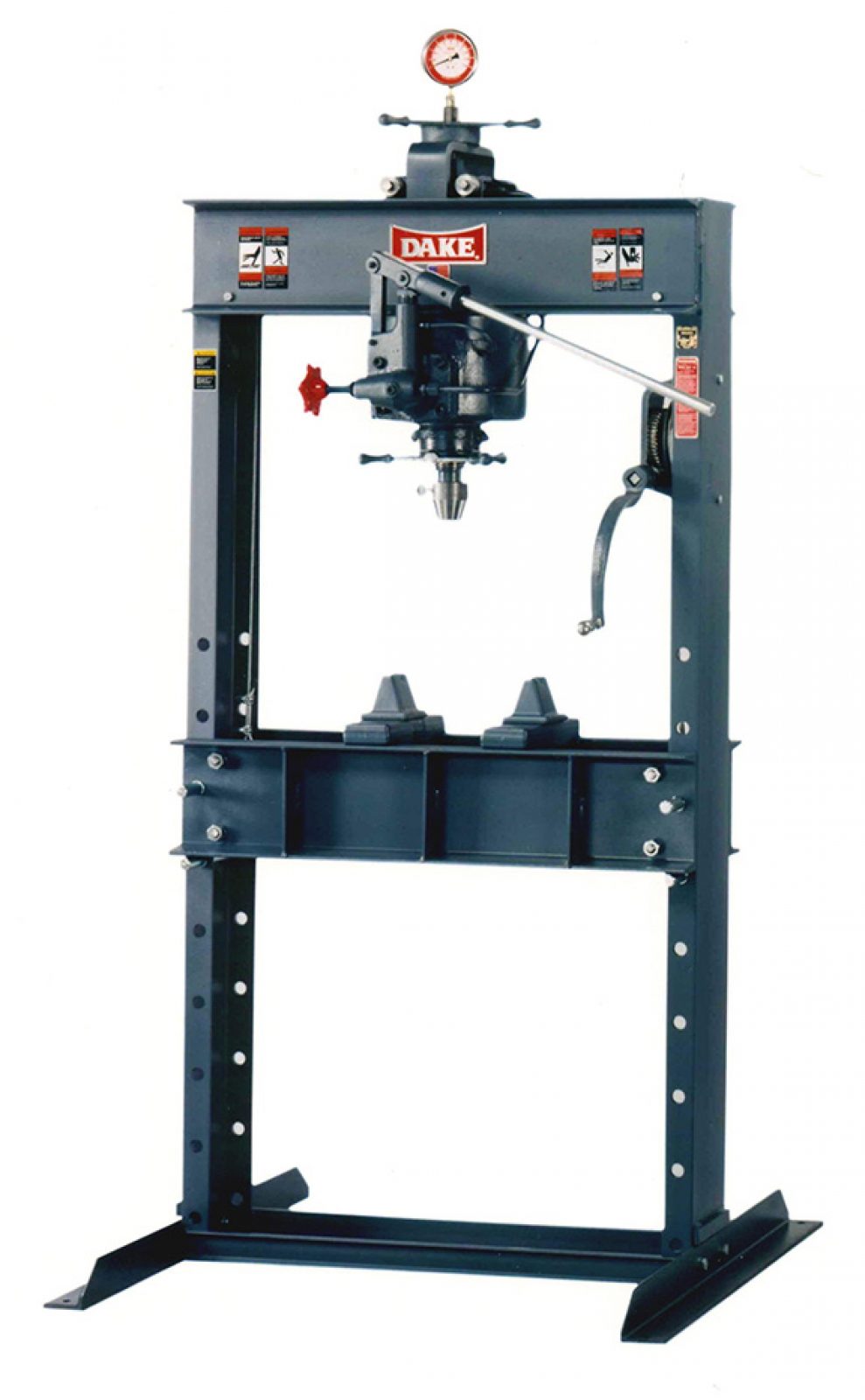

Dake 50 ton Hand Operated Presses - 907002
The 50H hand operated hydraulic press offers 50 tons of pressing power. This press is 85 inches tall, offers 7 ¼ inches between the table channels, and a 20 ¾ inch horizontal workhead travel.
Features:
- Hand operation for economical performance.
- By-pass hole prevents excessive ram extension.
- Rapid screw traverse of ram permits quick, easy movement of the ram by means of a convenient handwheel.
- Rapid ram return starts as soon as release valve is opened and may be stopped at any point by closing the valve.
- Adjustable table permits easy vertical movement by means of self-locking hoist.
Standard Equipment:
- Frame
- 2 Steel V-Blocks
- Flat Ram Nose
- Pressure Gauge
- Workhead
- 2 Steel Table Plates
- Self-Locking Table Hoist
Features
Hand operation for economical performance.
By-pass hole prevents excessive ram extension.
Rapid screw traverse of ram permits quick, easy movement of the ram by means of a convenient handwheel.
Rapid ram return starts as soon as release valve is opened and may be stopped at any point by closing the valve.
Adjustable table permits easy vertical movement by means of self-locking hoist.
Specs:
- Number: 907002
- Capacity: 50 tons
- Operation: Hand
- Horsepower: n/a
- Voltage: n/a
- Width between uprights: 32-3/4"
- Width between table channels: 7-1/4"
- Minimum ram to table: 5"
- Maximum ram to table: 40"
- Ram travel: 4"
- Screw Travel: 7"
- Horizontal workhead travel: 20-3/4"
- Footprint: 43-1/2" x 36"
- Height: 85"
- Weight: 810 lbs
- Base: 43-1/2" x 36"
- Ram advance speed: n/a
- Pressing speed: n/a
- RPM: n/a
- Air Pressure: n/a
* specifications subject to change without notice.
