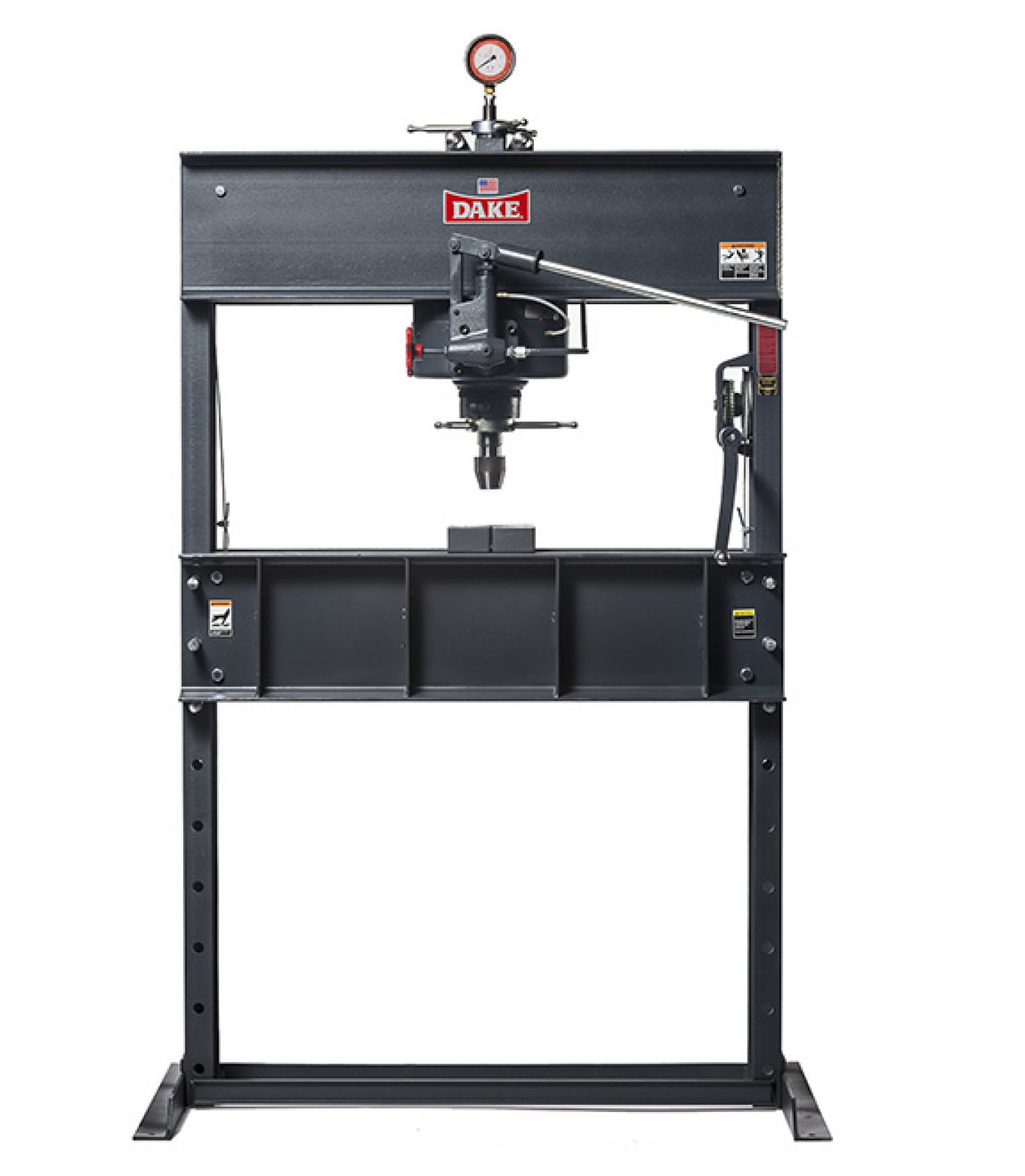

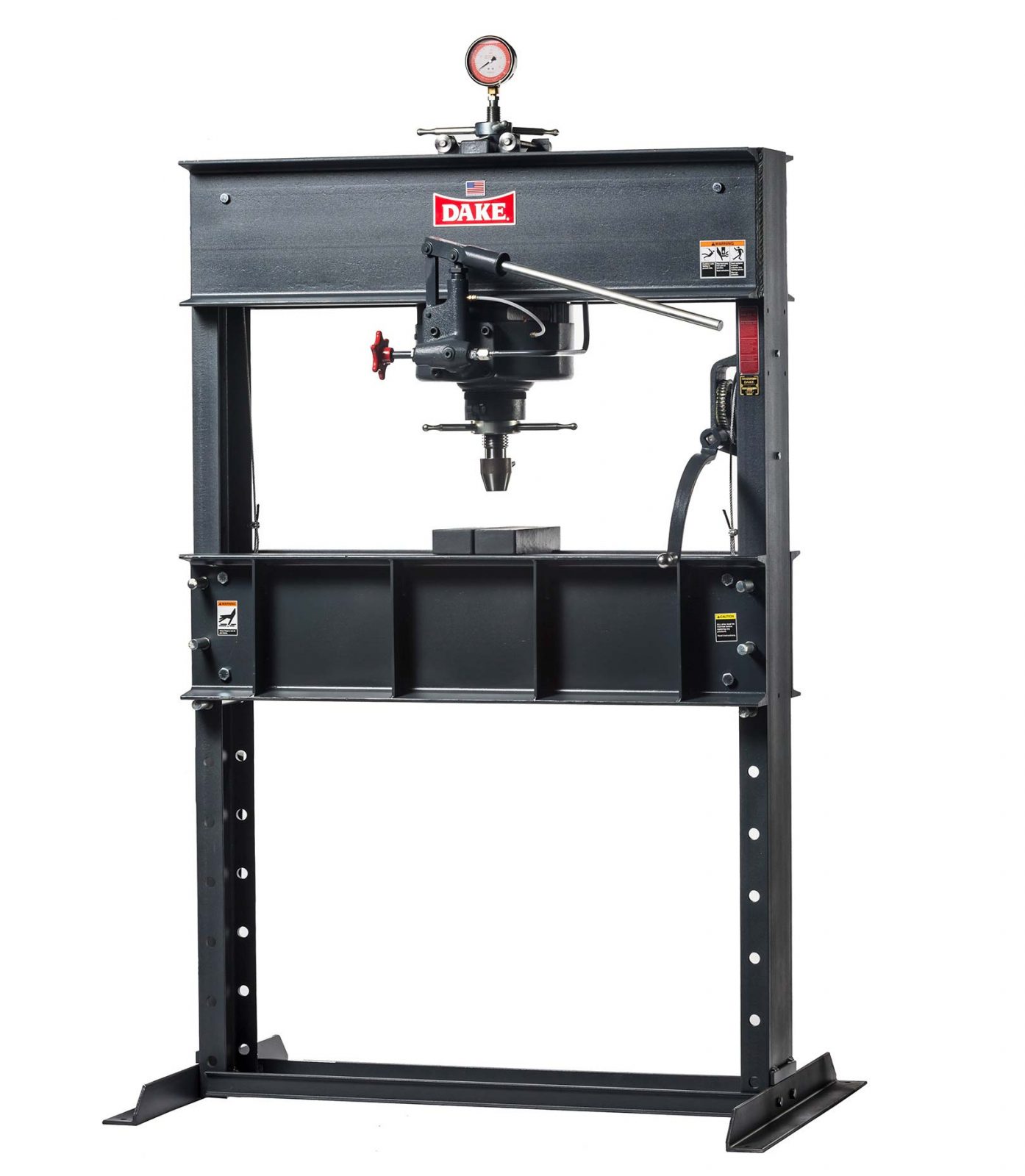

Dake 150 ton Hand Operated Presses - 907005
The 150H hand operated hydraulic press offers 150 tons of pressing power. This press is 95 inches tall, has an 8 inch screw travel, 27 1/4 inches of horizontal workhead travel, and 8 inches of ram travel.
Features:
- Hand operation for economical performance.
- By-pass hole prevents excessive ram extension.
- Rapid screw traverse of ram permits quick, easy movement of the ram by means of a convenient hand-wheel.
- Rapid ram return starts as soon as release valve is opened and may be stopped at any point by closing the valve.
- Adjustable table permits easy vertical movement by means of self-locking hoist.
Standard Equipment:
- Frame
- 2 Steel V-Blocks
- Flat Ram Nose
- Pressure Gauge
- Workhead
- 2 Steel Table Plates
- Self-Locking Table Hoist
Specs:
- Number: 907005
- Capacity: 150 tons
- Operation: Hand
- Horsepower: n/a
- Voltage: n/a
- Width between uprights: 48"
- Width between table channels: 12-1/8"
- Minimum ram to table: 5"
- Maximum ram to table: 25"
- Ram travel: 8"
- Screw Travel: 8"
- Horizontal workhead travel: 27-1/4"
- Footprint: 66" x 42"
- Height: 95"
- Weight: 2,750 lbs
- Base: 66" x 42"
- Ram advance speed: n/a
- Pressing speed: n/a
- RPM: n/a
- Air Pressure: n/a
* specifications subject to change without notice.
