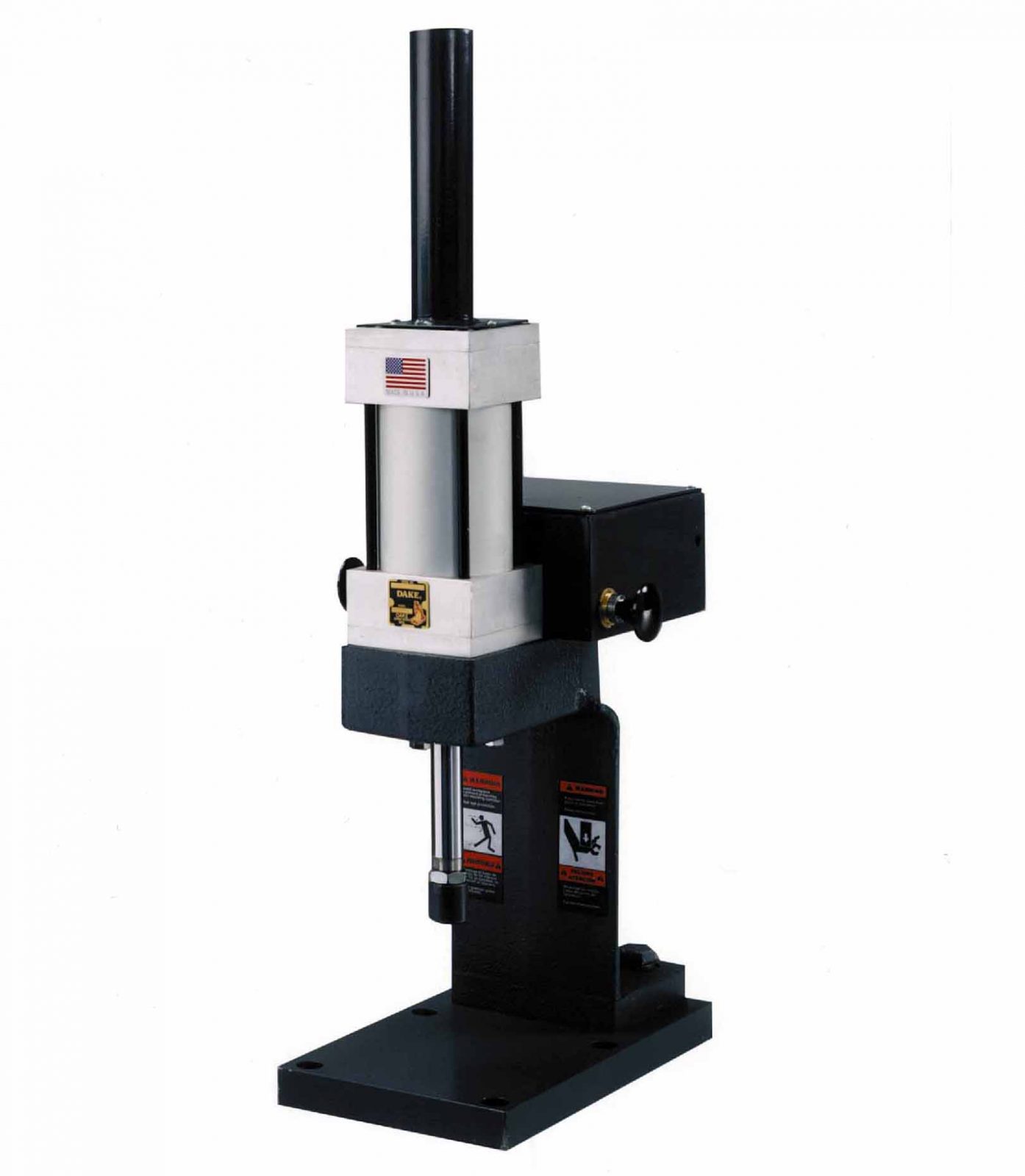

Dake Air Arbor Press 1,000 lbs capacity - 901210
Offering 1,000 lbs of pressing capacity this air arbor press comes complete with a cast iron frame and quality air cylinder.
Features:
- Non-rotating double acting ram eliminates guide pins on most tooling
- Threaded rod end permits nose piece and tooling to be easily attached and detached
- Dual-palm push buttons must be engaged before the ram will move and cannot be mechanically by-passed
- Air filter/regulator combination assembly ensures clean and continuous air flow to press
- Chrome-plated piston rod resists rust and ensures long life
- Easily adjusted ram speed, pressure, and stroke allow accurate control of ram movement
- Polyurethane rod wiper protects cylinders from dust and contaminants
- Daylight can be increased with ease
Standard Equipment:
- Cast Iron Frame
- Air Cylinder
- Double-acting Ram
- Chrome-plated Piston Rods
- Air Filter/Regulator Combination
Specs:
- Number: 901210
- Capacity: 1,000 lbs
- Air pressure: 90 psi
- Ram travel: 4"
- Weight: 110 lbs
- Thread: 3/4 - 16
- Length of Thread: 1-1/8"
- Daylight w/o nose piece: 8-11/16
- Daylight w/ nose piece: 8
- Nose piece diameter: 1-1/4"
- Throat: 5"
- Work area: 9" x 6"
- Plate thickness: 1-1/4"
- Base: 14-9/16" x 8"
- Hole pattern: 7-1/4" x 3-1/4"
- Overall height: 34"
* specifications subject to change without notice.
