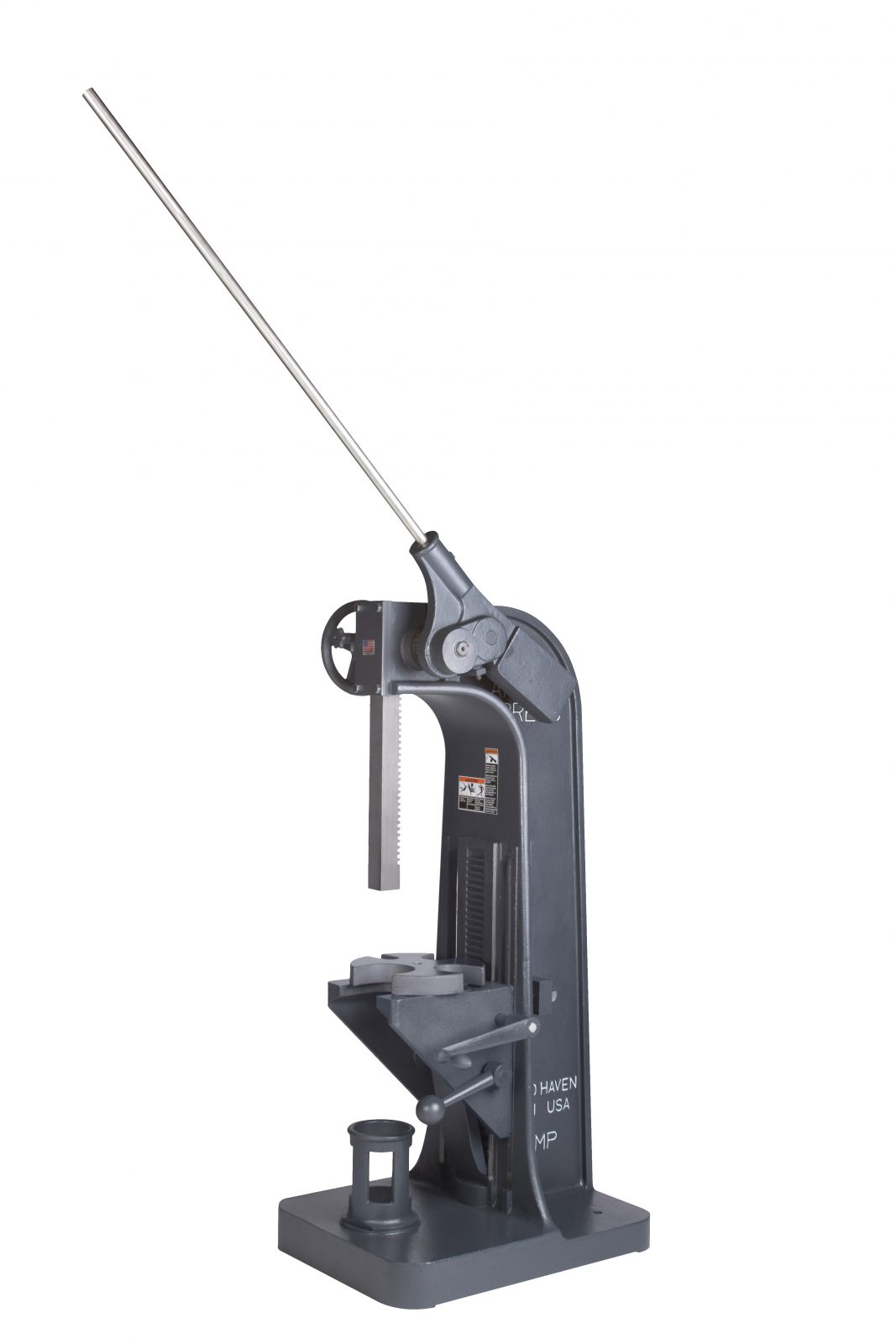

Dake Compound Leverage Arbor Press 12 Ton - 903007

Dake Compound Leverage Arbor Press 12 Ton - 903007

This 12 ton compound leverage arbor press is designed for floor use. It features a cast iron frame and incorporates a reinforced spine design which adds rigidity to the press body. The frame is machined for maximum stability and drilled to permit bench or pedestal mounting. A sliding pin easily converts the press from compound to single leverage. Table and slotted table plate are flat and parallel to provide accurate support.



Features:

• Compound leverage mechanism allows greater pressure application with minimum effort.
• Rack and pinion table adjustment
• Sliding pin easily converts press from compound to single leverage.

Standard Equipment:

• Cast Iron Frame
• Ram
• Rack and Pinion Table
• Slotted Table

Specs:

• Number: 903007
• Capacity: 12 tons
• Leverage ratio: 112:1
• Ram size: 2” x 2” x 24”
• Maximum diameter work: 20”
• Throat: 10”
• Largest arbor: 5-¼”
• Maximum ram to table: 26”
• Minimum ram to table: 24-½”
• Capacity over table: n/a
• Capacity over table plate: n/a
• Base length: 37”
• Base width: 21-½”
• Height: 62”
• Weight: 1,350 lbs



---
