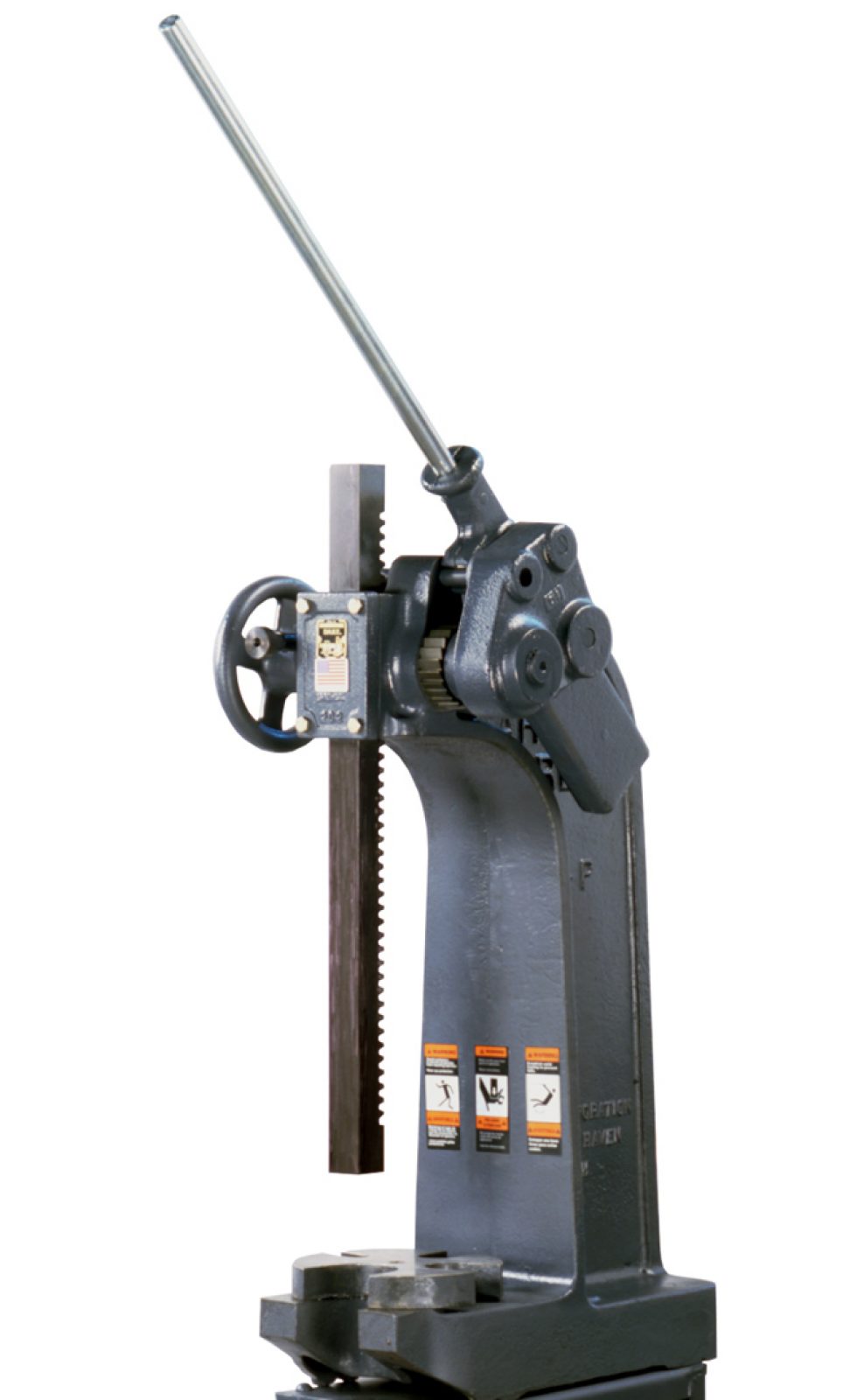

Dake Compound Leverage Arbor Press 6 Ton - 903003

Dake Compound Leverage Arbor Press 6 Ton - 903003

This 6 ton compound leverage arbor press features a 21 ½ ” max ram to table height. A reinforced spine design adds rigidity to the press body. The frame is machined for maximum stability and drilled to permit bench or pedestal mounting. A sliding pin easily converts the press from compound to single leverage. Table and slotted table plate are flat and parallel to provide accurate support.


Features:

• Compound leverage mechanism allows greater pressure application with minimum effort.
• Sliding pin easily converts press from compound to single leverage.

Standard Equipment:

• Cast Iron Frame
• Ram
• Slotted Table

Specs:

• Number: 903003
• Capacity: 6 tons
• Leverage ratio: 66:1
• Ram size: 1-½” x 1-½” x 27”
• Maximum diameter work: 15-½”
• Throat: 7-¾”
• Largest arbor: 3”
• Maximum ram to table: 21-½”
• Minimum ram to table: 20-¼”
• Capacity over table: n/a
• Capacity over table plate: n/a
• Base length: 20”
• Base width: 8-¼”
• Height: 32-½”
• Weight: 315 lbs



---
