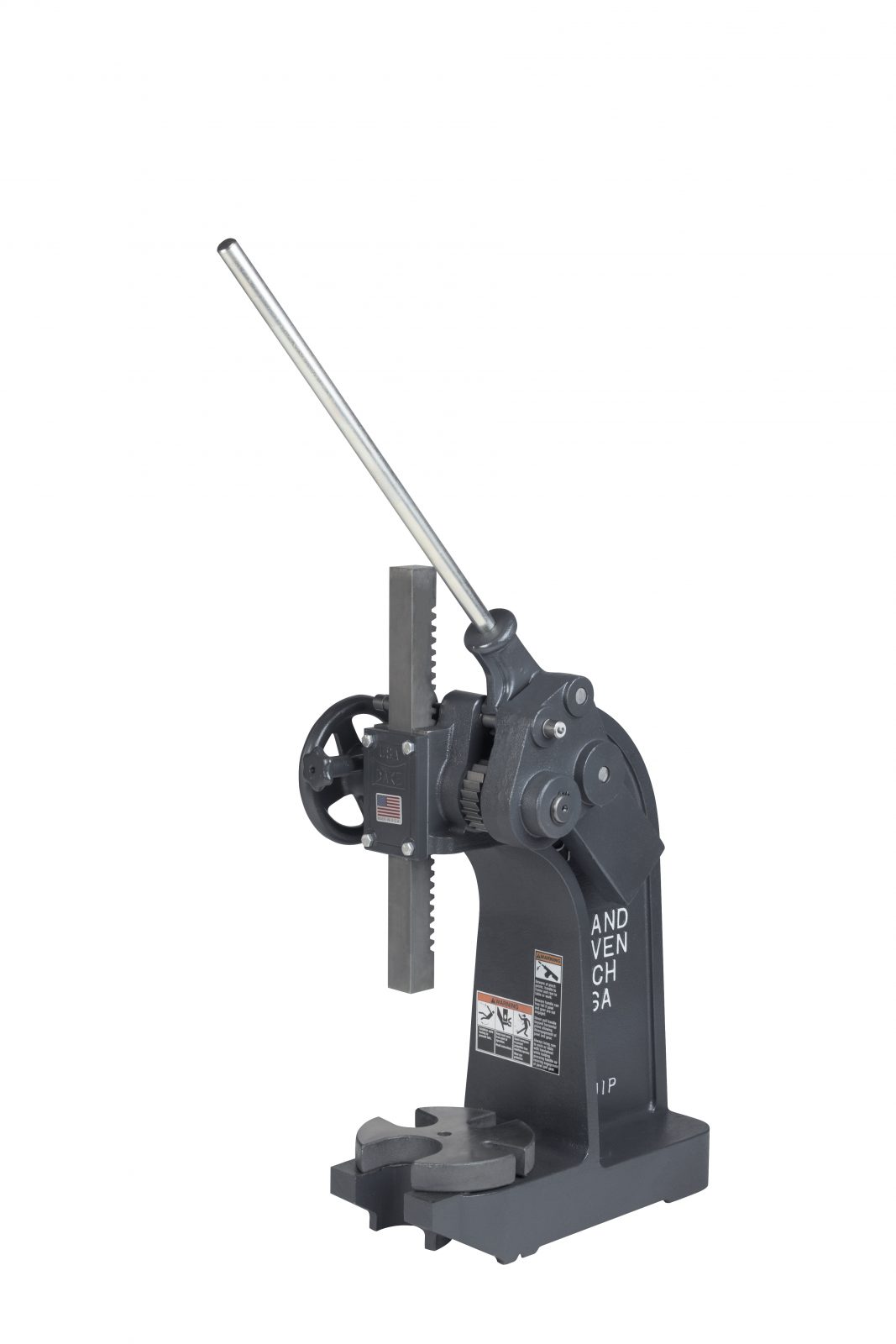

Dake Compound Leverage Arbor Press 6 Ton - 903004
This 6 ton compound leverage arbor press features a cast iron frame and incorporates a reinforced spine design which adds rigidity to the press body. The frame is machined for maximum stability and drilled to permit bench or pedestal mounting. A sliding pin easily converts the press from compound to single leverage. Table and slotted table plate are flat and parallel to provide accurate support.
Features:
- Compound leverage mechanism allows greater pressure application with minimum effort.
- Sliding pin easily converts press from compound to single leverage.
Standard Equipment:
- Cast Iron Frame
- Ram
- Slotted Table
Specs:
- Number: 903004
- Capacity: 6 tons
- Leverage ratio: 66:1
- Ram size: 1-½” x 1-½” x 19”
- Maximum diameter work: 15-½”
- Throat: 7-¾”
- Largest arbor: 3”
- Maximum ram to table: 15”
- Minimum ram to table: 13-¾”
- Capacity over table: n/a
- Capacity over table plate: n/a
- Base length: 8-¼”
- Base width: 20”
- Height: 26”
- Weight: 260 lbs
