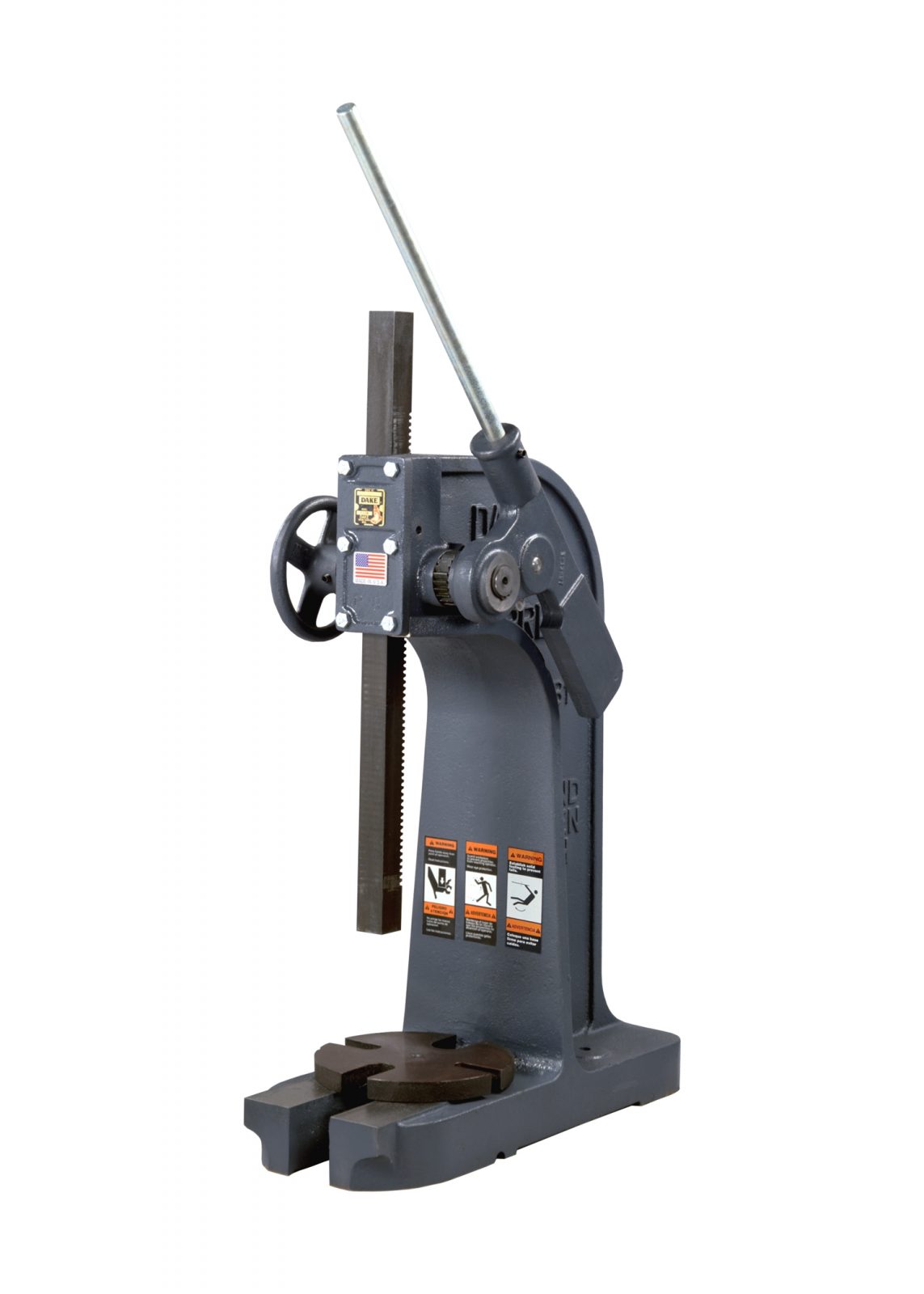

Dake Ratchet Lever Arbor Press 3 Ton - 902002
3 ton ratchet lever arbor press that is designed for broaching. An optional pedestal is available.
Features:
- Ratchet device permits lever to be used in most convenient position.
- Counterweight returns lever quickly after down-stroke.
- Hand-wheel advanced ram to work quickly.
Standard Equipment:
- Cast Iron Base
- Hand-wheel
- Ram
- Notched Table Plate
- Counter weight
Specs:
- Number: 902002
- Capacity: 3 tons
- Leverage ratio: 48:1
- Ram size: 1-1/4” x 1-1/4” x 24-1/2”
- Maximum diameter work: 14”
- Throat: 7”
- Largest arbor: 2”
- Maximum ram to table: n/a
- Minimum ram to table: n/a
- Capacity over table: 18-1/4”
- Capacity over table plate: 17-1/2”
- Base length: 21”
- Base width: 8-1/4”
- Height: 28”
- Weight: 196 lbs
