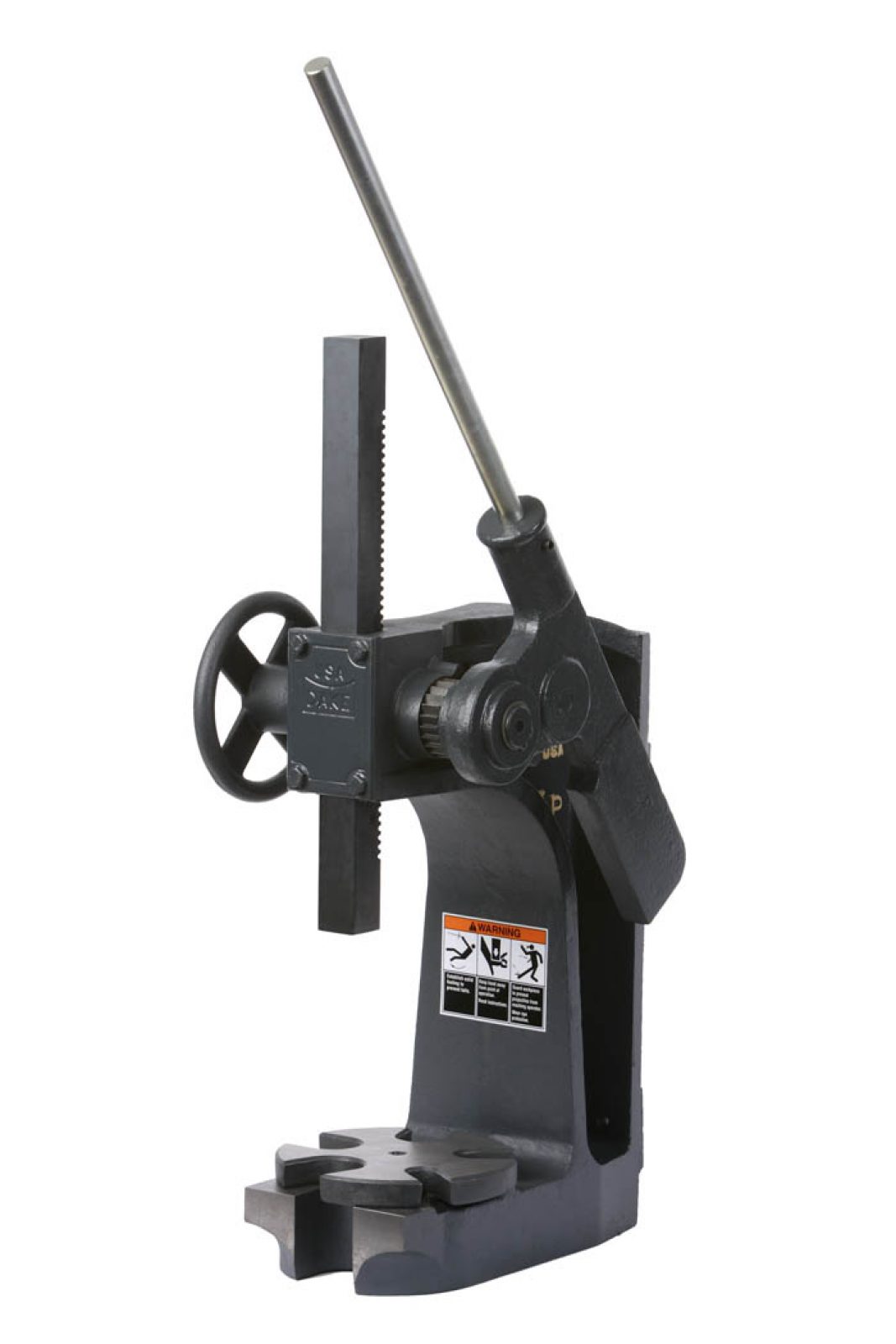

Dake Ratchet Lever Arbor Press 3 Ton - 902007
The side mount model of the ratchet lever series offers 3 tons of pressing capacity and a friction brake.
Features:
- Ratchet device permits lever to be used in most convenient position.
- Counterweight returns lever quickly after down stroke.
- Hand wheel advanced ram to work quickly.
- Mounts to side of press
Standard Equipment:
- Cast Iron Base
- Hand wheel
- Ram
- Notched Table Plate
- Counter weight
Specs:
- Number: 902007
- Capacity: 3 tons
- Leverage ratio: 48:1
- Ram size: 1-1/4” x 1-1/4” x 16-1/2”
- Maximum diameter work: 14”
- Throat: 7”
- Largest arbor: 2”
- Maximum ram to table: n/a
- Minimum ram to table: n/a
- Capacity over table: 11-1/2"
- Capacity over table plate: 10-3/4”
- Base length: n/a
- Base width: n/a
- Height: 18-1/2”
- Weight: 125 lbs
* specifications subject to change without notice.
