Dake Ratchet Lever Arbor Press 5 Ton - 3A

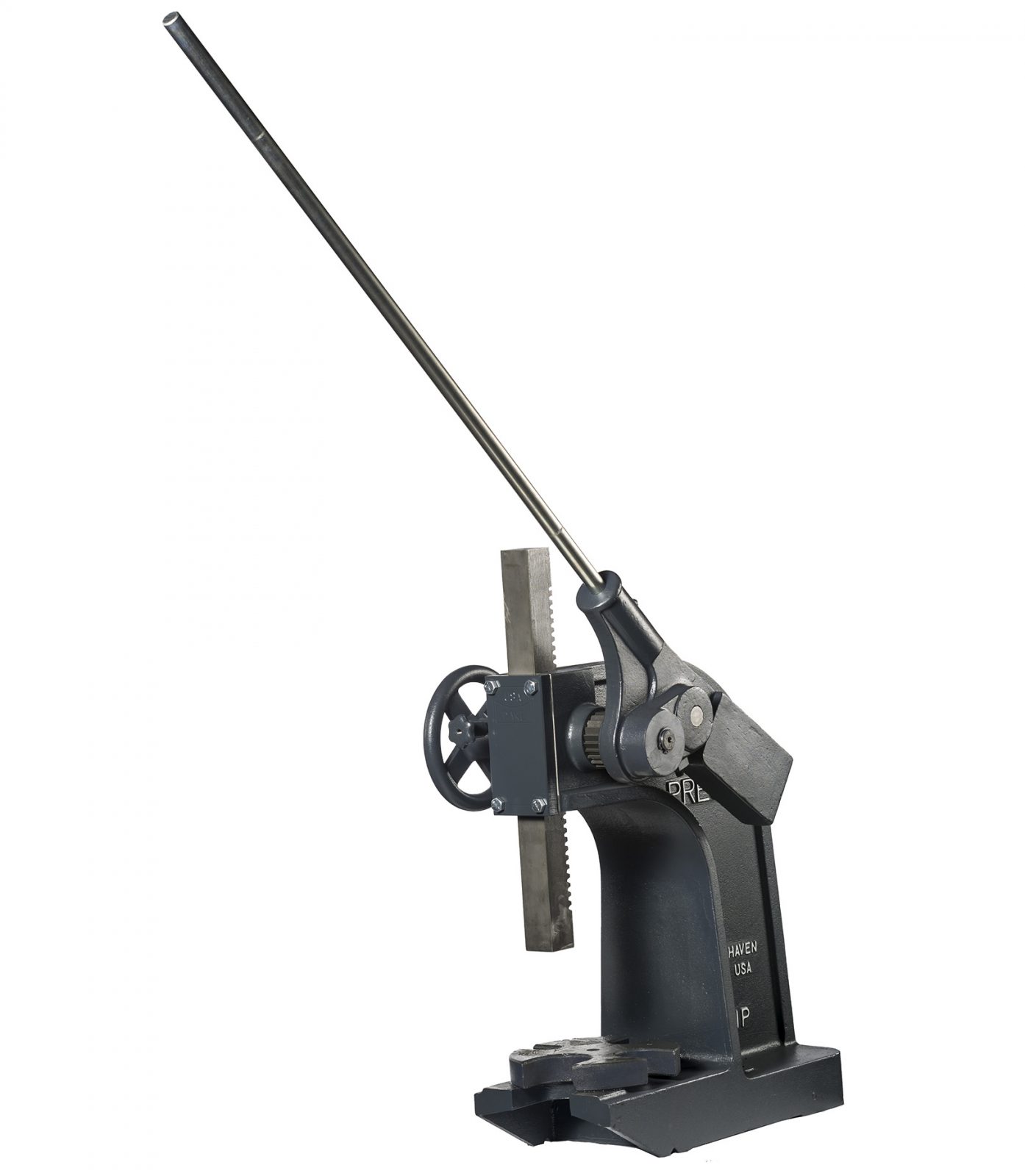

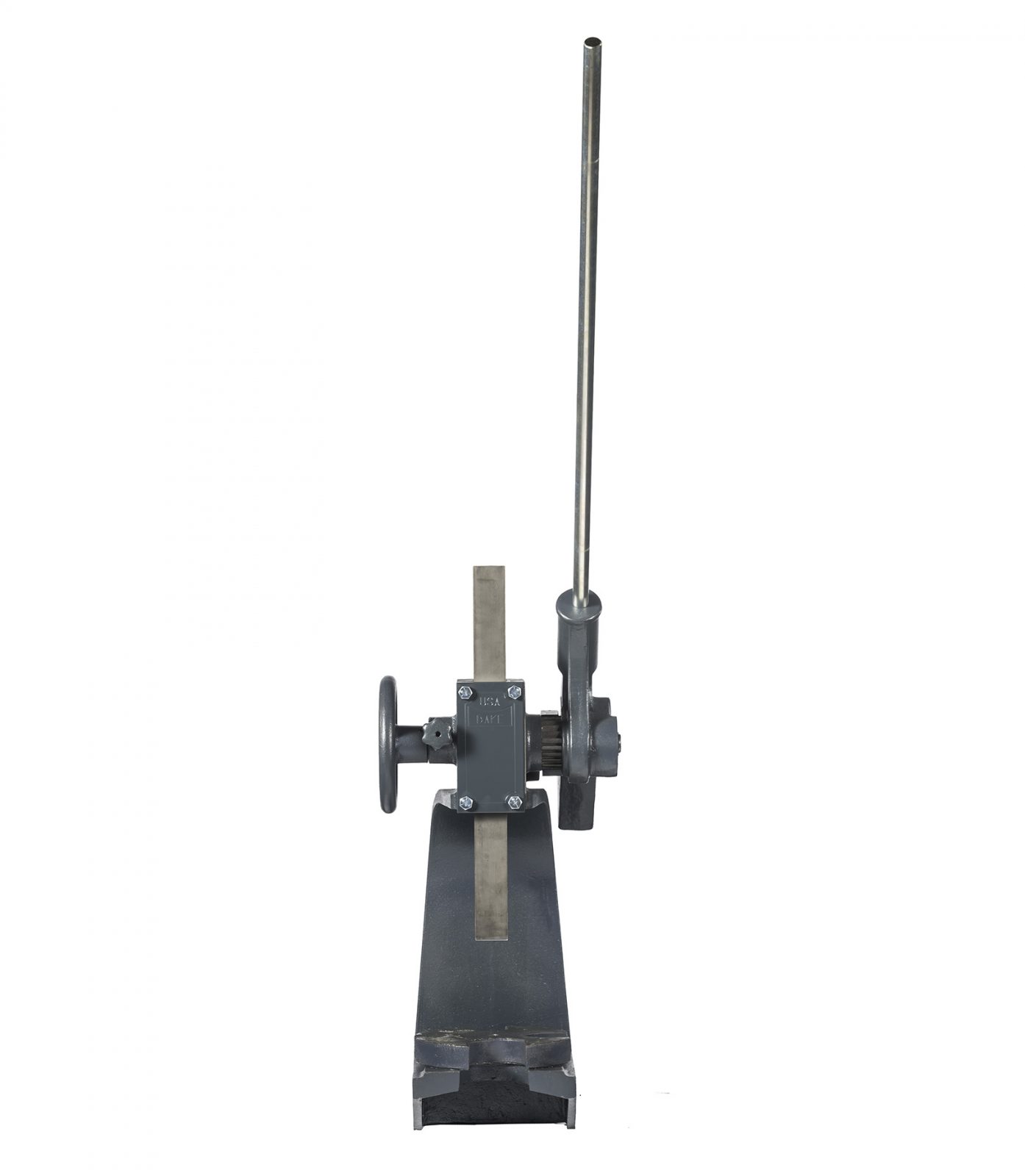

This 5 ton ratchet lever arbor press features a handwheel, counter weight, and is designed to fit the right position for your job. Add an optional pedestal to complete this set up.
Features:
- Ratchet device permits lever to be used in most convenient position.
- Counterweight returns lever quickly after downstroke.
- Handwheel advanced ram to work quickly.
Standard Equipment:
- Cast Iron Base
- Handwheel
- Ram
- Notched Table Plate
- Counter weight
Specs:
- Number: 902004
- Capacity: 5 tons
- Leverage ratio: 55:1
- Ram size: 2” x 2” x 23”
- Maximum diameter work: 20”
- Throat: 10”
- Largest arbor: 4”
- Maximum ram to table: n/a
- Minimum ram to table: n/a
- Capacity over table: 16”
- Capacity over table plate: 14-1/2”
- Base length: 24”
- Base width: 10”
- Height: 28-1/2”
- Weight: 450 lbs
* specifications subject to change without notice.
