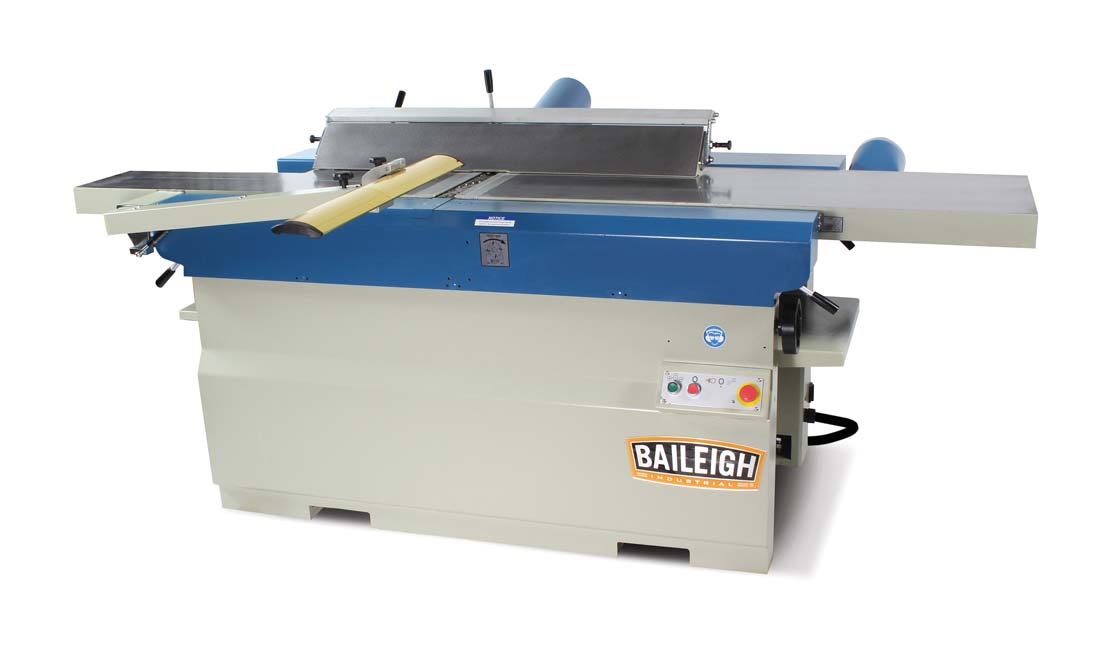

Baileigh 7.5 hp 220-volt 3-phase Jointer/Planer JP-1898-NC
Built from steel and cast iron, this numerically controlled 18” jointer/planer saves space and does the work of 2 machines without compromising on quality.
Features:
- 7.5 hp motor has enough strength to cut and smooth 18” boards.
- 4.75” helical cutter head (included) spins at 5,700 rpm.

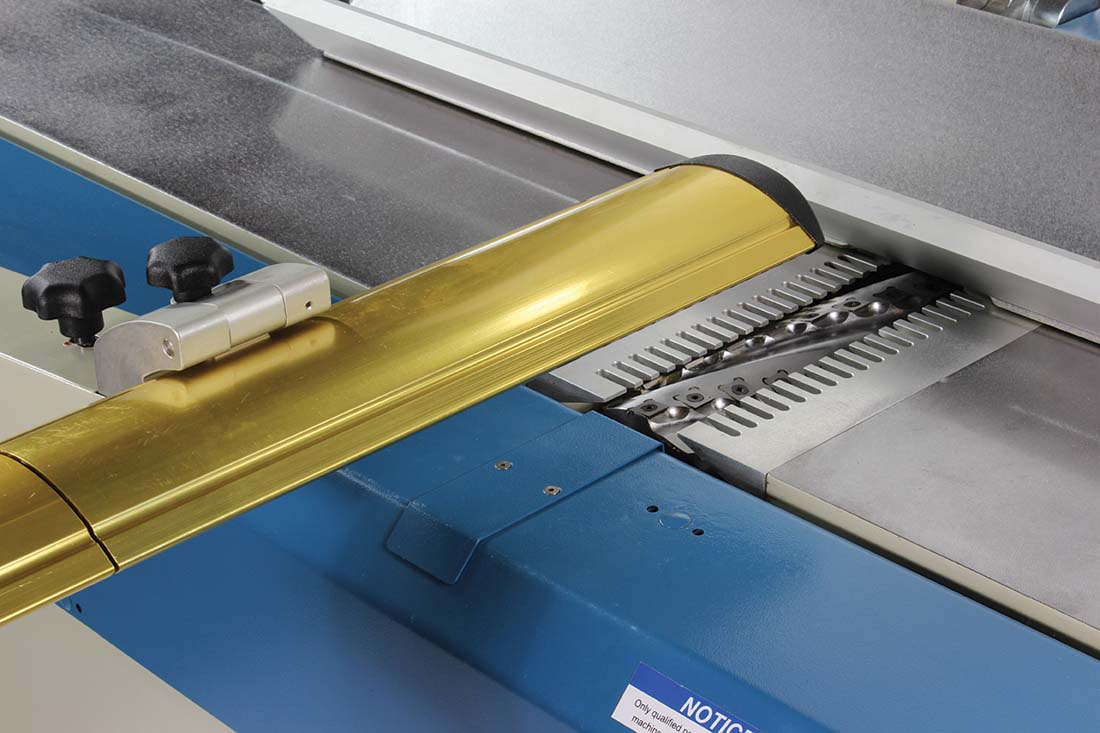

- 6 rows of rotatable carbide blades on the spiral cutter head will remain sharp for much longer than a straight-knife cutter could.
- Runs on 220-volt 3-phase power.
- 98” table supports your boards, ensures true, straight cuts.

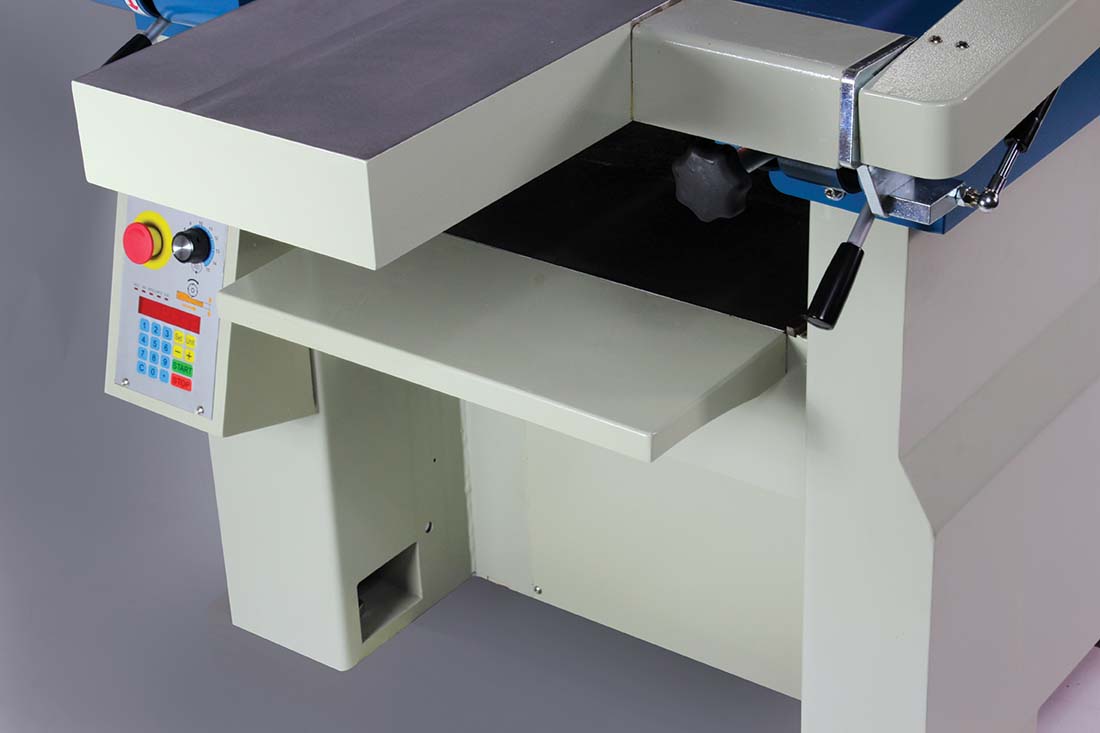

- Digital controller lets you adjust the height of the 63” x 18” jointer table.
- Programmable system for the planer lets you enter your desired spacing, and machine takes care of the rest.

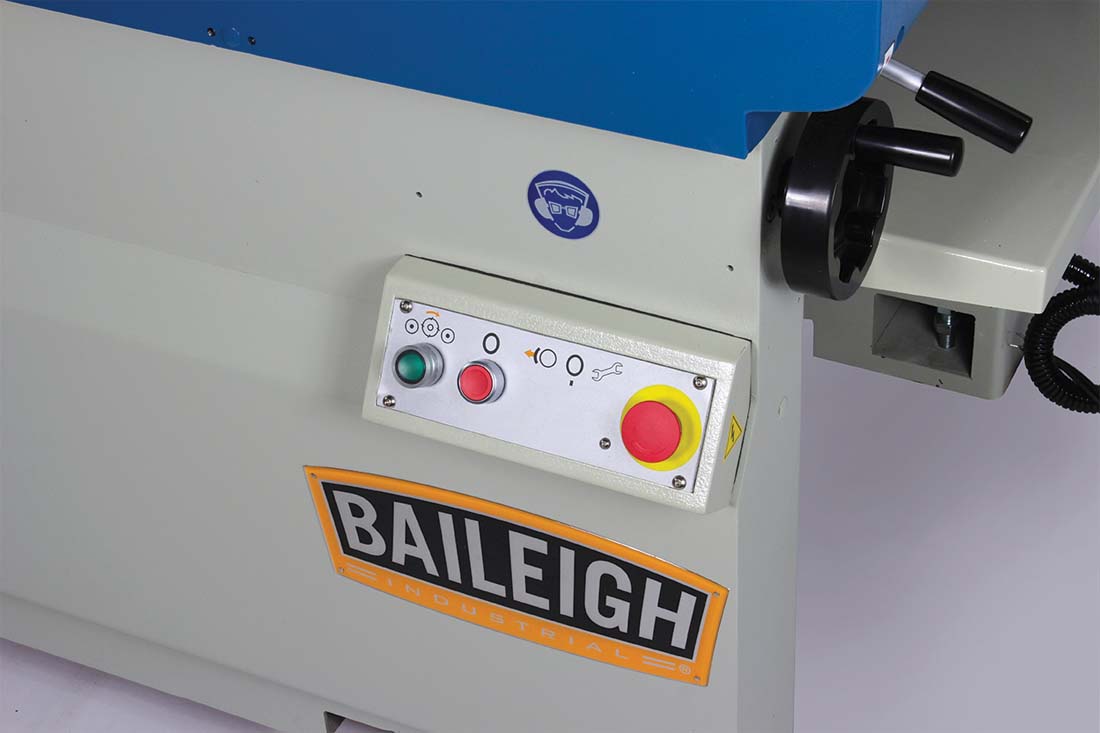

- Control panels with big stop and start buttons are simple to use.
- Parallelogram-style jointer bed helps prevent accidents by maintaining a tight, uniform gap between the table and the cutter—regardless of the table height.
- 5/16” maximum cutting depth at the jointer station.

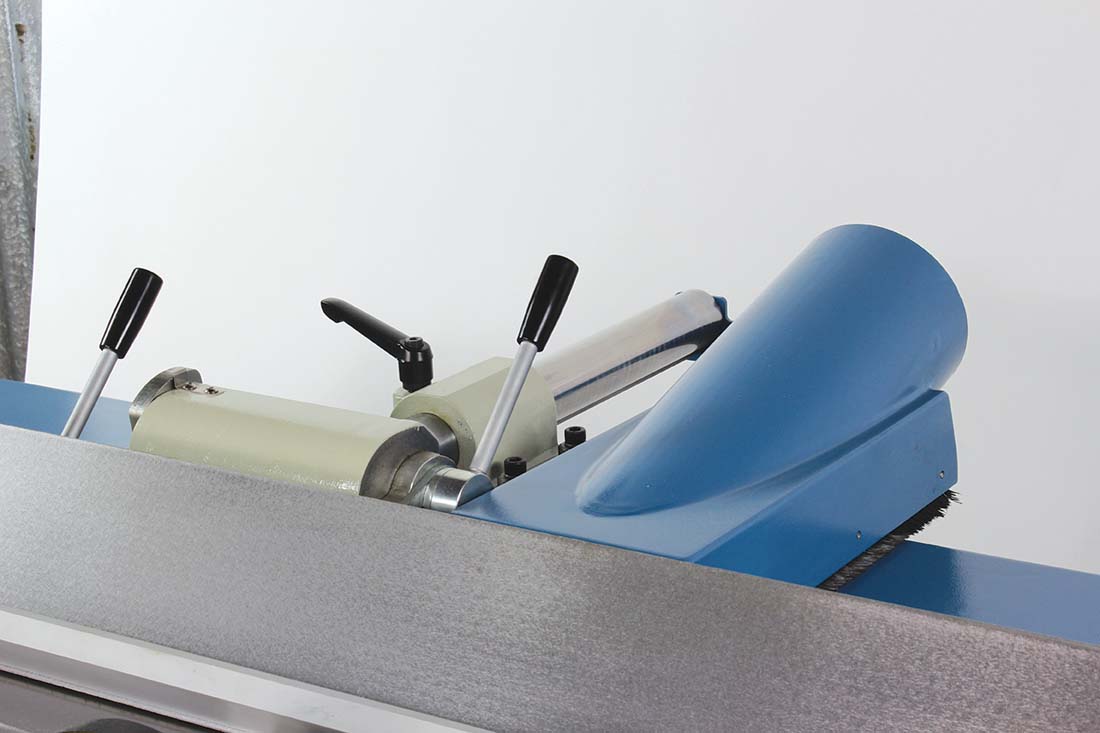

- Fence can tilt up to 45° for edge joining.
- 71” x 18” planer table (with a large resting area on both sides) makes it easier for you to maneuver the material.
- Variable infeed speed from 16 to 50 feet per minute lets you finetune to fit the wood you’re working with and get a better finish.
- Rubber infeed and outfeed rollers reduce friction and keep boards moving smoothly.
- 2 large 6” dust ports, one for each function, can connect to your dust collector so your shop stays pristine with safe, breathable air.
- Covered by a 1-year parts warranty.
- Replacement parts are in stock at our Wisconsin warehouse. We can get them to you without delay.
- You can count on lifetime technical support by phone from a team of experience woodworkers, all of whom know our machines inside and out.
Specifications:
- Item Number: JP-1898-NC
- Table Size (Length): 98"
- Table Size (Width): 18"
- RPM: 5700
- Fence Tilt: 45°
- Cutter Head Diameter: 4.75'
- Max Stock Width: 18'
- Number of Knives: Helical Head
- Maximum Stock Height: 9.8"
- Minimum Stock Thickness: 3/16'
- Feed Speed: 16 to 50 FPM Variable
- Table Elevation: Digital Control
- Jointer Maximum Cutting Depth: 1/4"
- Power: 220V Three Phase
- Horse Power: 7.5
- Weight (lbs): 3036
* specifications subject to change without notice.
