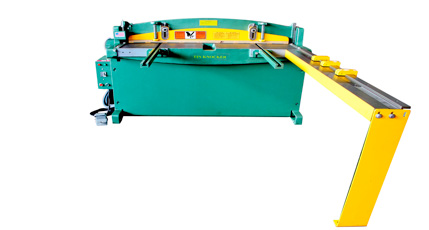

Tin Knocker 52 Inch x 16 Guage Hydraulic Sheet Metal Shearr TK-H1652
The Tin Knocker power squaring shear makes shearing light gauge metal easy. The design and features make shearing accurate and efficient. This shear can accommodate 52” sheet with a maximum capacity of 16-gauge mild steel. The hydraulically powered unit features fast and smooth shearing action.
INCLUDES: Front support arms, Parallel rack and pinion back gauge, 5ft squaring arm with drop stops.
Specifications:
- Weight: 1350 lbs.
- Dimensions: 72 x 48 x 36 in.
- Maximum shearing capacity, mild steel: 16 ga. / 1,6 mm
- Maximum shearing capacity, stainless steel: 20 ga. / 1,0 mm
- Maximum cutting length: 52 in. / 1320 mm
- Back gauge range: 30 in. / 762 mm
- Front gauge range: 37 in. / 940 mm
- Standard motor: 3 hp. – 220 Volt/ 1 phase / 60HZ
- Floor space, gauges in position: 66 x 76 x 42 in/ 1676 x 1930 x 1070 mm
