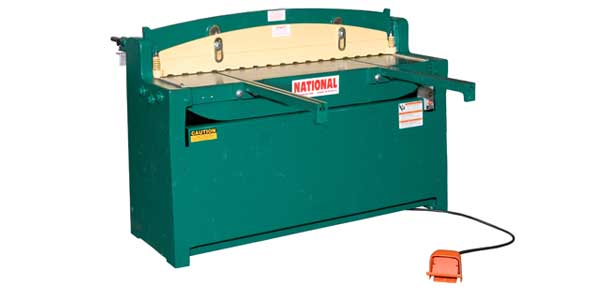

National 4 Foot x 10 Gauge Hydraulic Sheet Metal Shear - NH5210
National heavy duty power shears are equipped with a fully integrated hydraulic unit. Complete with electrical hydraulic valve, pilot operated-pressure relief valve, heavy duty foot switch that allows this unit to return to the top of the stroke when the operator removes his foot from the foot switch. Heavy duty double acting cylinders. Fully enclosed control panel. The National shear is actuated by a portable shrouded electric foot switch attached to a long flexible cable so it may be positioned comfortable to the operator. Steel side frames, all steel cutter heads and tables with solid 4-edge high carbon high chromium blades. Quick adjusting back gauge for direct reading with a positive lock. Standard with table gauges and front arm extensions.
Hydraulic Shears: 3 Year Warranty - Made in USA
Features:
- Mild Steel- 10 Gauge: 3.4mm
- Stainless Steel- 14 Gauge: 1.9mm
- Strokes Per Minute- Approx. 25
- Cutting Legnth- 52”
- Shipping Weight- 1950lbs
- Floor Space w/ Gauges- 62” x 79 7/8” x 42 1/4
- Oil Reservoir Capacity- 24 gal
- Motor-5 h.p. 208 volt
- 1800 rpm 240 volt
- 3 phase 460 volt
