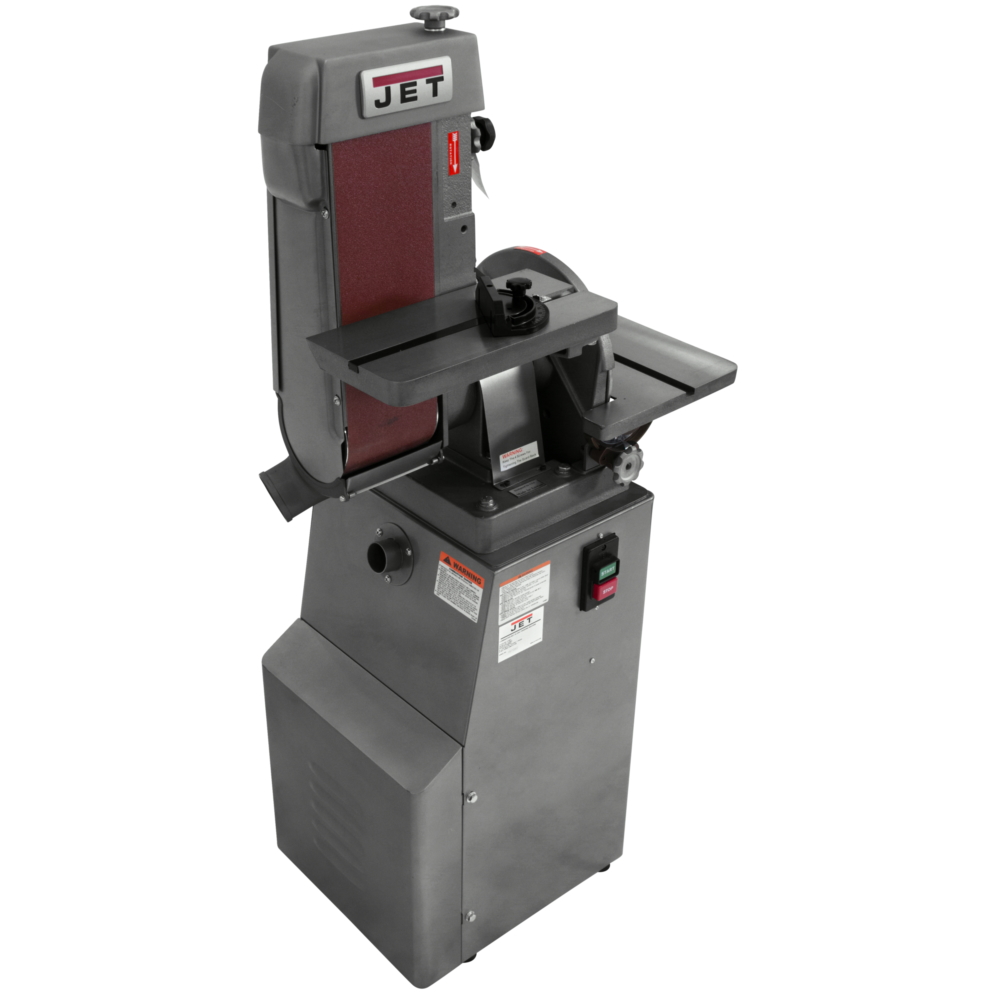

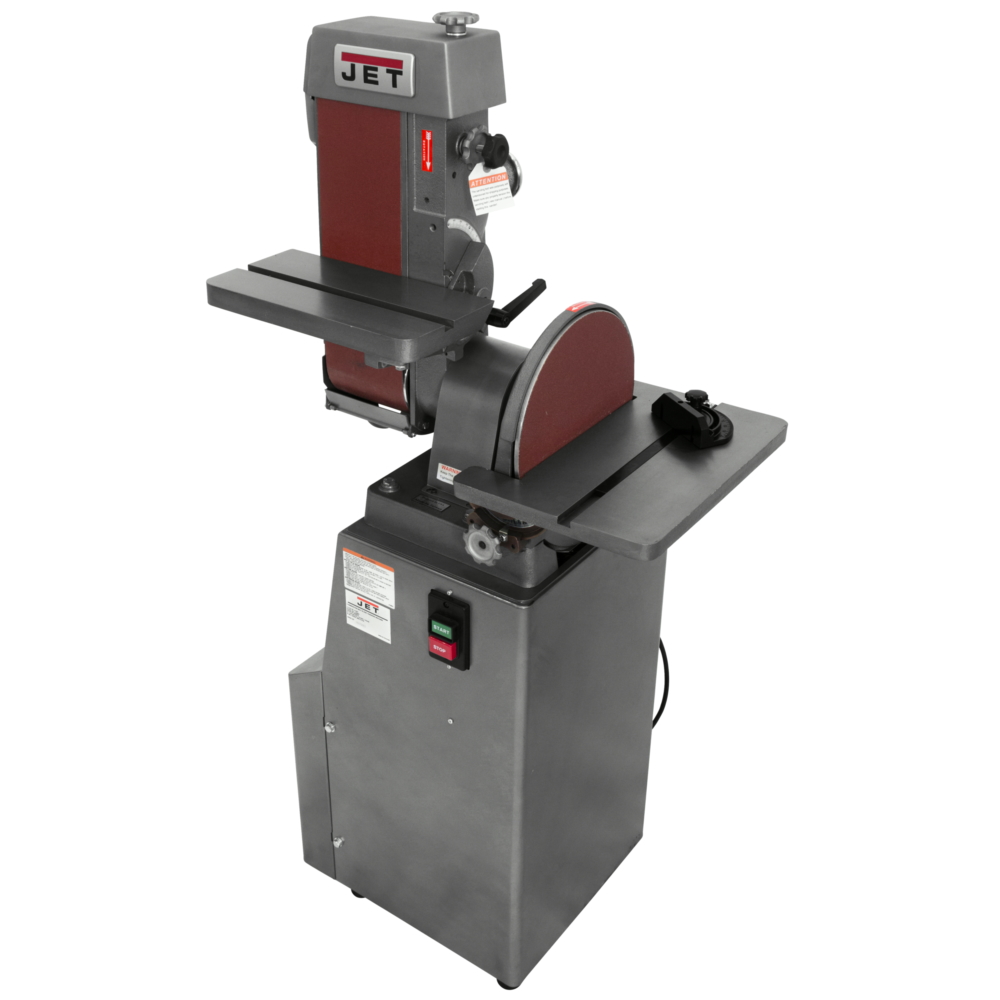

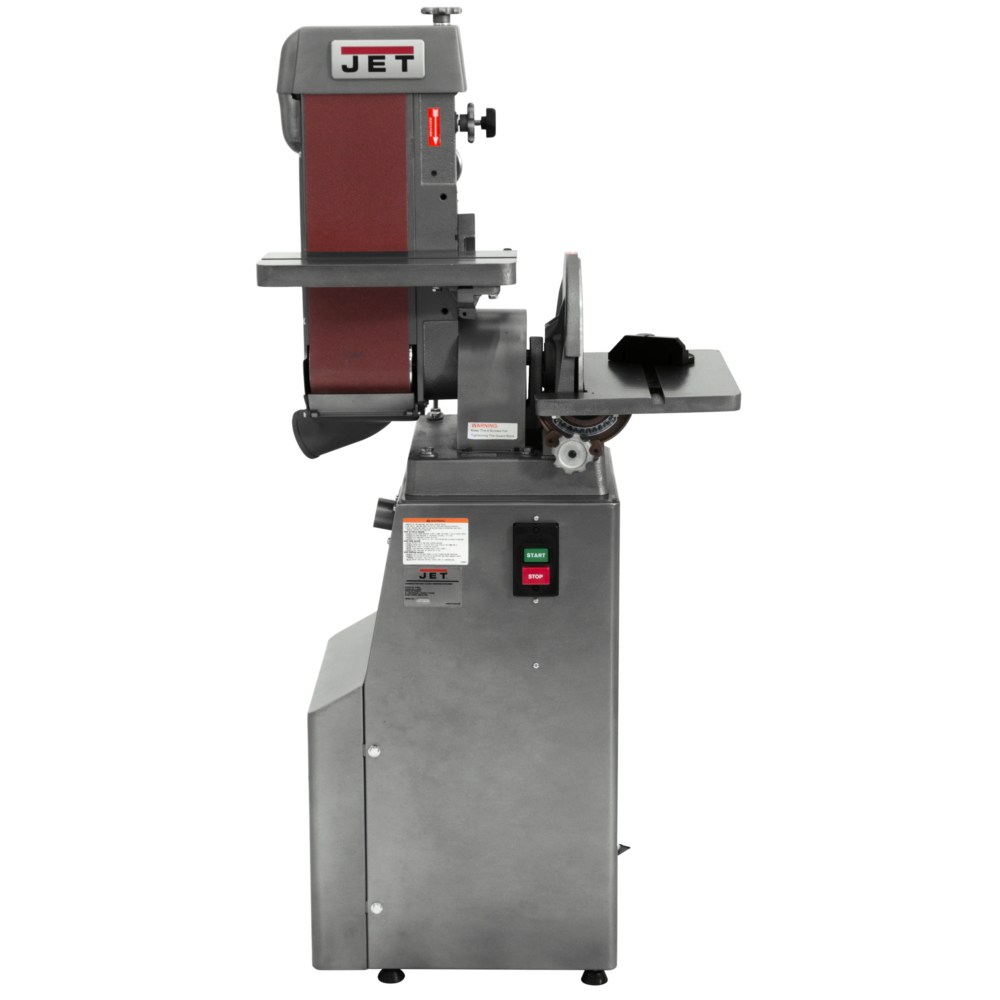

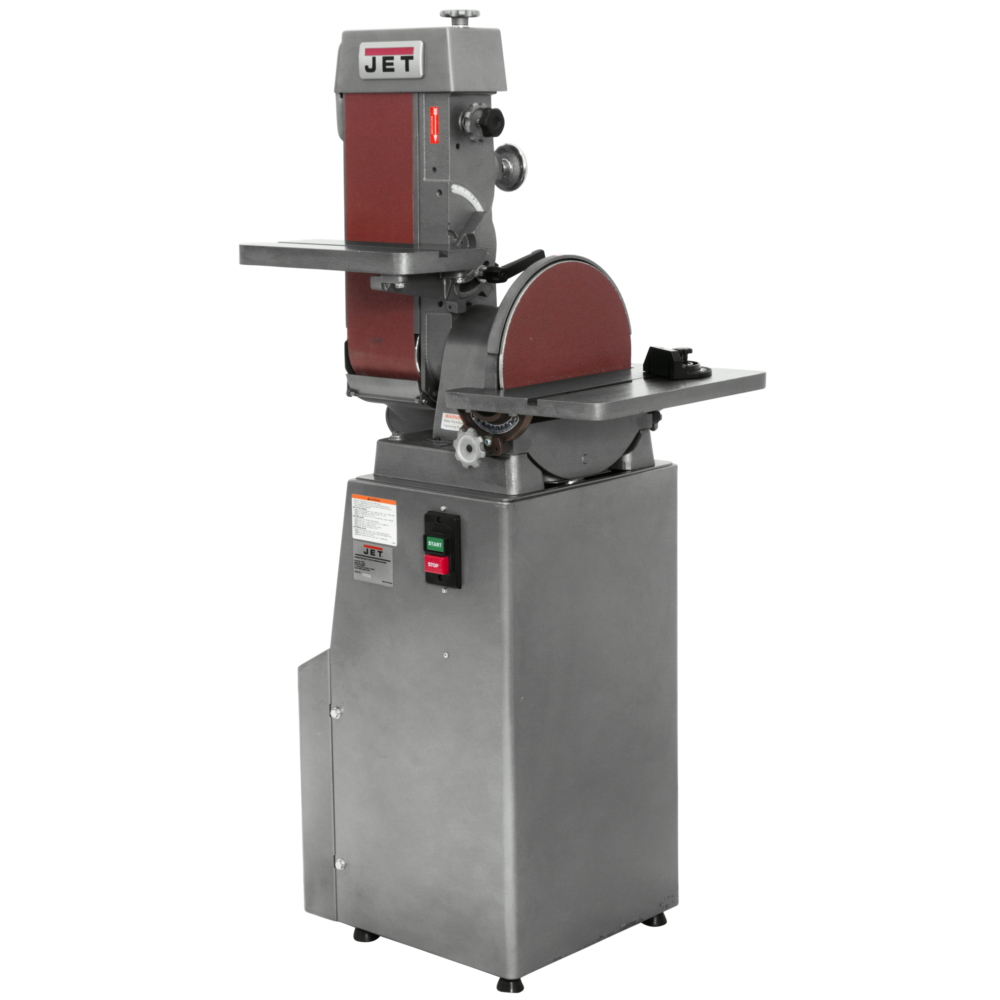

Jet 6 Inch x 48 Inch Industrial Belt and 12 Inch Disc Finishing Machine 115V 1Ph - 414551
High-speed precision and amazing versatility. This rugged piece of equipment has a belt that operates at any angle, and conforms to curves, angles or circular finishing and grinding operations. Machinists who take great pride in their work prefer the JET Industrial Combination Belt & Disc Finishing Machine
Features:
- For added safety, the J-4200A follows strict guidelines and electrical requirements to be certified by CSA Group
- Plain and compound miters are easily obtained by using the standard die cast aluminum miter gauge
- Fully machined, balanced disc
- Belt operates at any angle
- Removable upper belt guard for contour finishing
Specifications:
- Disc Diameter (In.) 12
- Disc Speed (RPM) 1,960
- Belt Size (W x L) (In.) 6 x 48
- Belt Speed (SFPM) 2,850
- Disc Table Size (L x W) (In.) 12 x 16-3/8
- Disc Table Tilt (Deg.) 45 Out, 20 In
- Table Slots (In.) 3/8 & 3/4
- Belt Table Tilt (Deg.) 45 Out, 20 In
- Belt Table Size (In.) 7-3/8 x 14-3/4
- Motor (HP) 1-1/2 HP, 115V, 1Ph
- Overall Dimensions (L x W x H) (In.) 29 x 19 x 58
- Weight (Lbs.) 250
