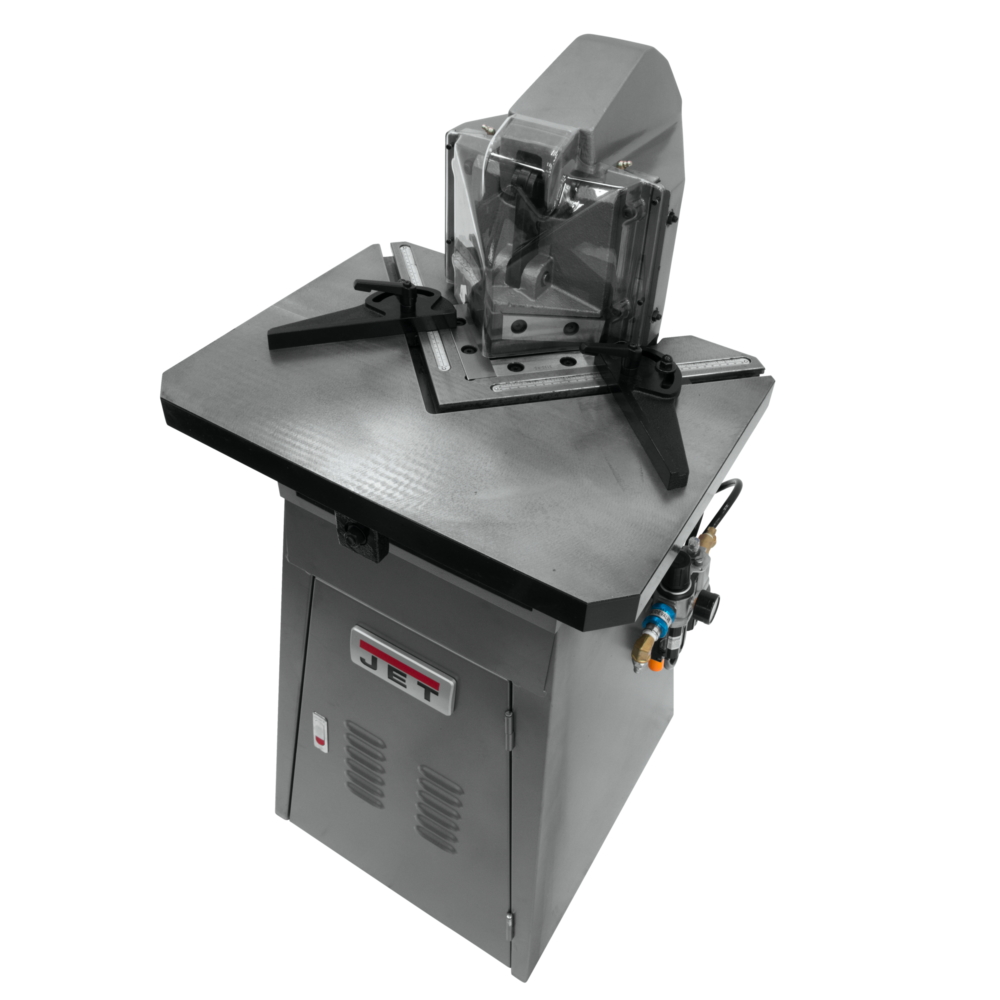

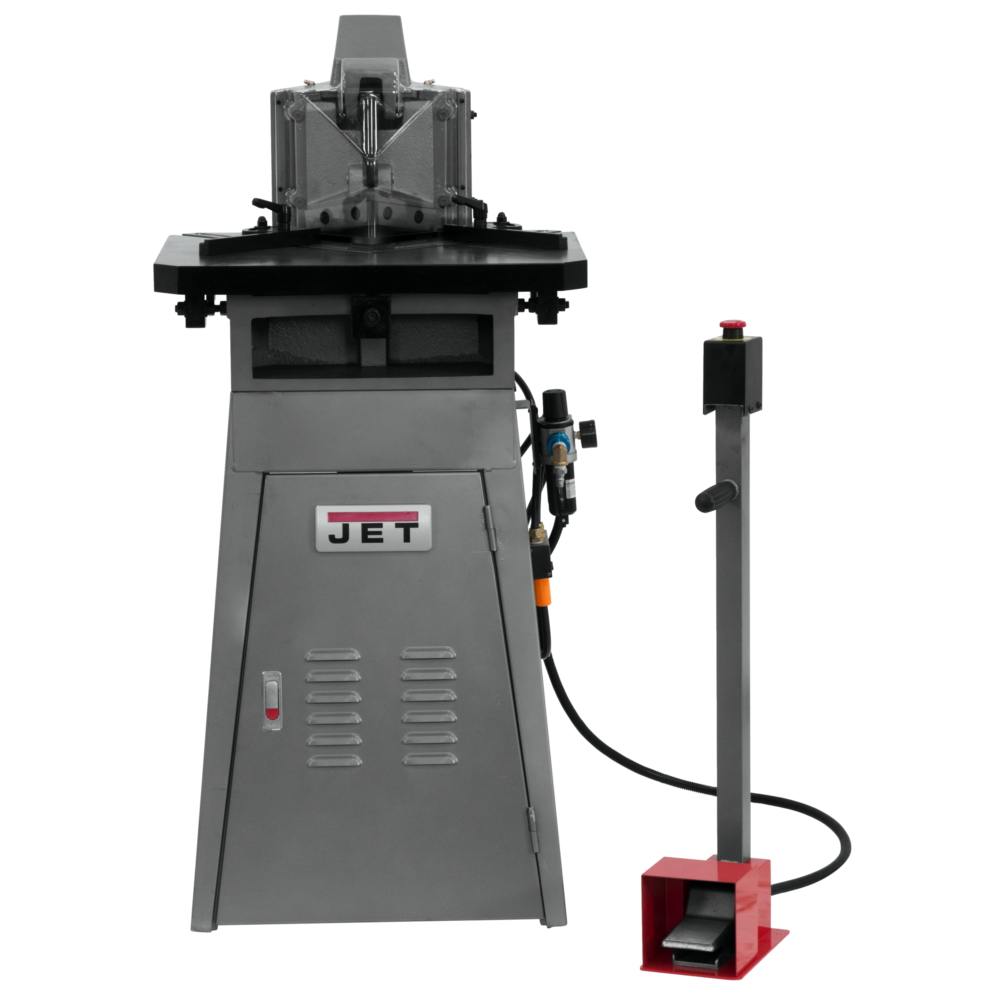

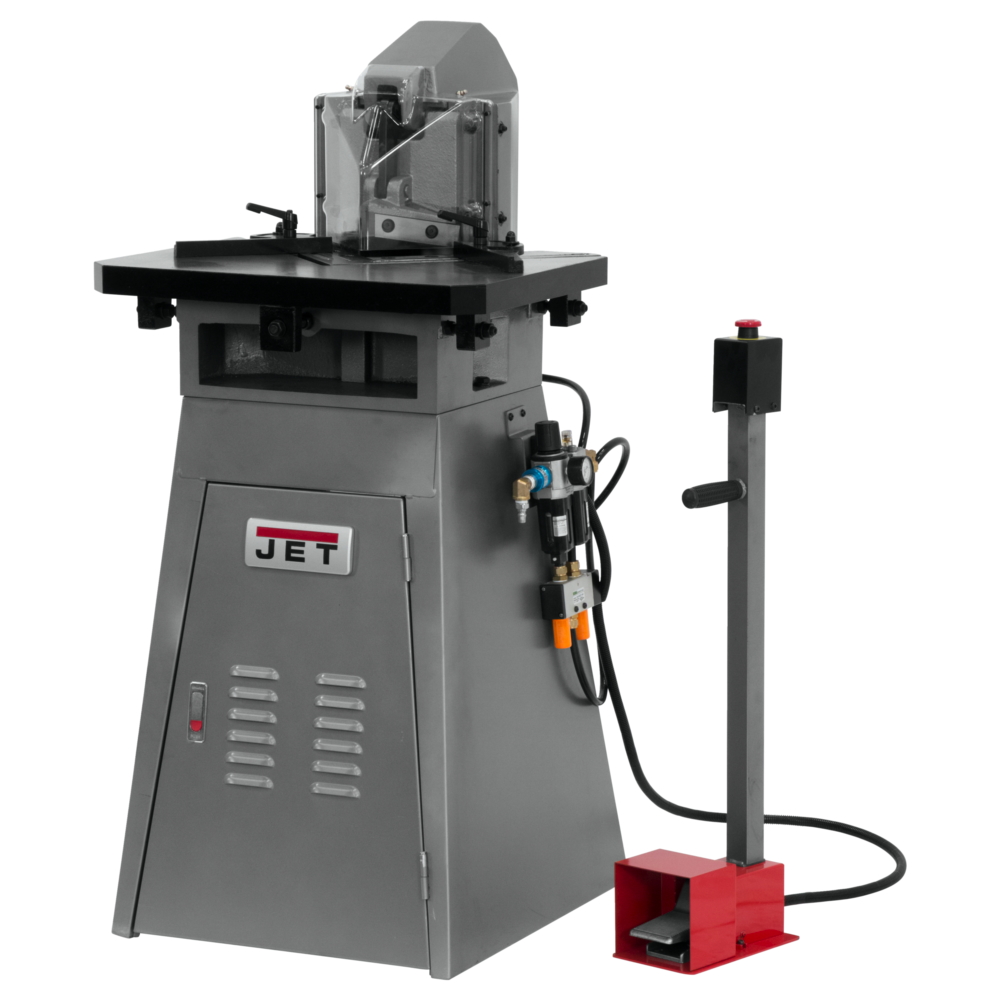

Jet Pneumatic Sheet Metal Notcher-PMN-11
The JET Pneumatic Notcher handles up to 11 gauge mild steel, cutting perfect notches with blades that are fixed at 90°. The 5” blades can be regularly re-sharpened to increase savings and durability. The oversized table includes guides to improve accuracy.
Features:
- Strong casted head for years on use
- Rigid sheet metal stand helps hold accuracies of the cut
- All blades are guarded to protect the operator
- Blades can we reshapened many times for a lifetime of savings

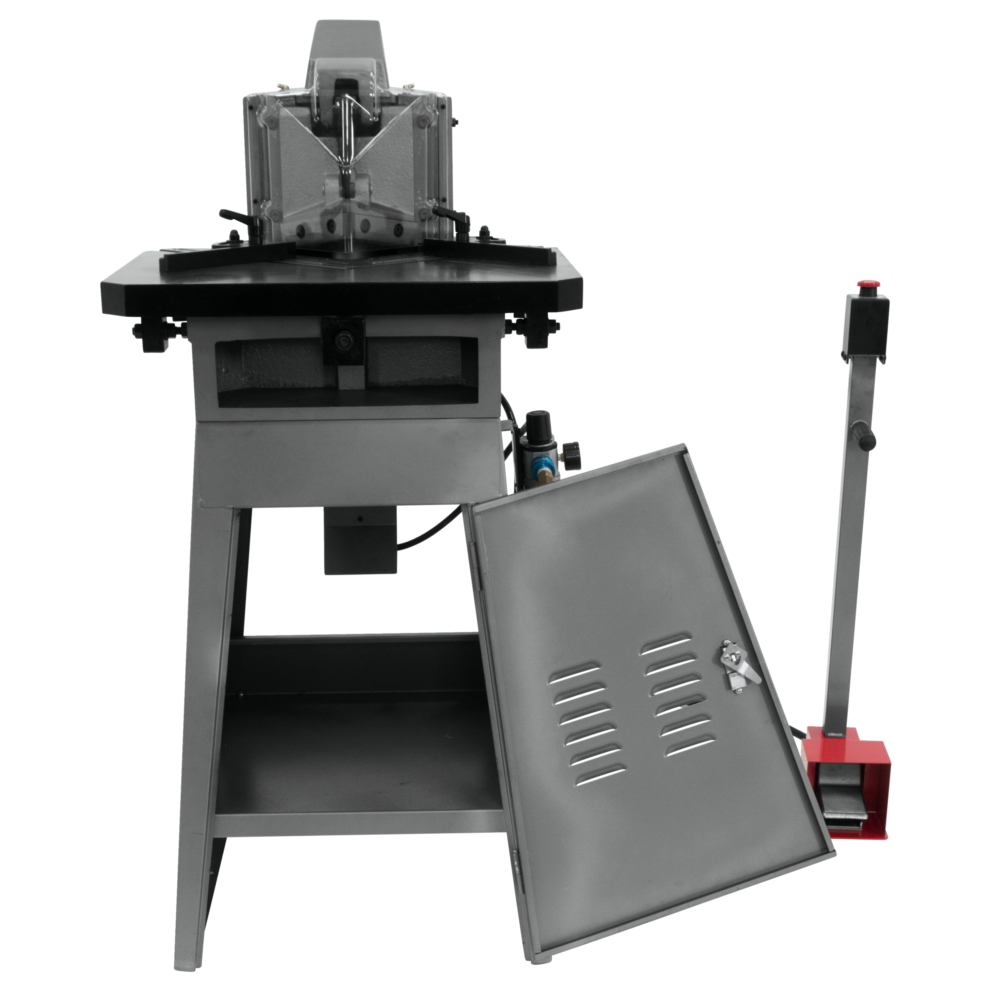

- Enclosed cabinet with storage shelf

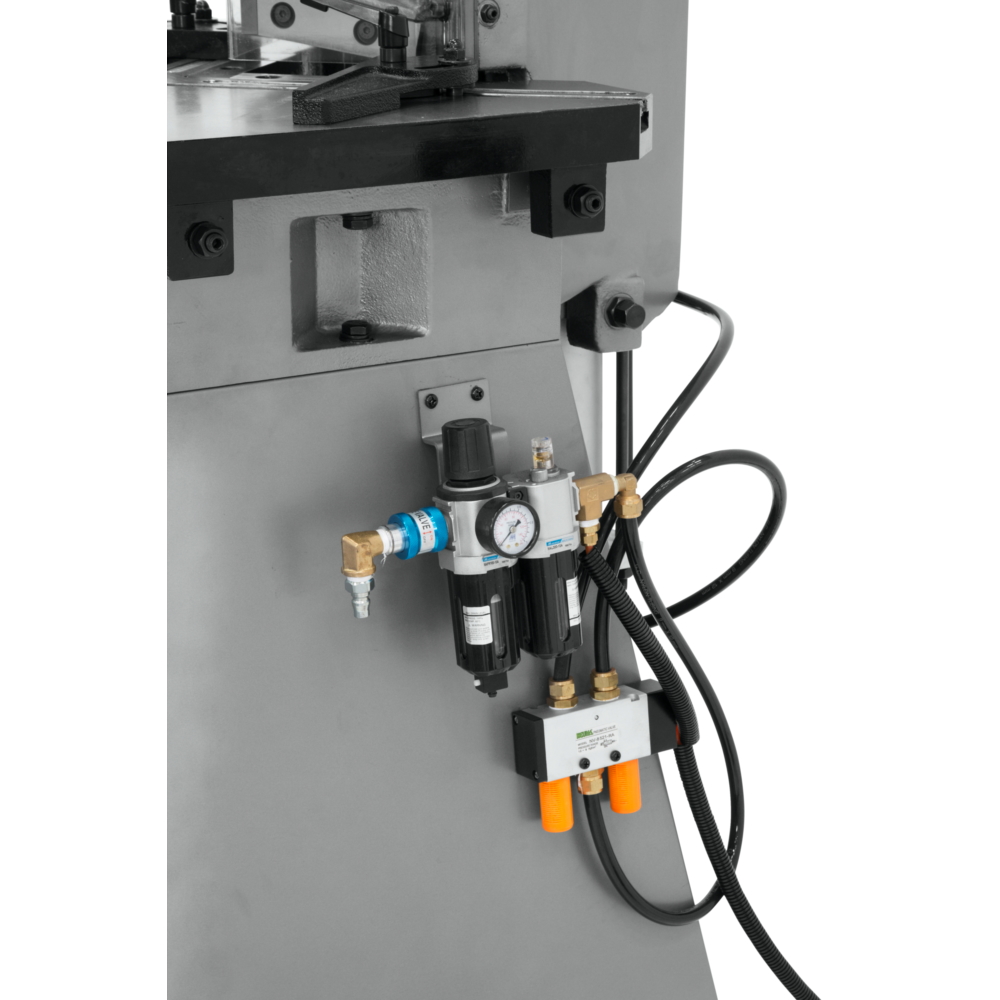

- 115 psi Working pressure allows this notcher to be used with almost any standard air compressor.
Specifications:
- Cutting Capacity (Gauge) 11
- Maximum Notch (In.) 5 x 5
- Overall Dimensions 29.68 x 27.8 x 53.78
- Weight (Lbs.) 414
- Max. Capacity (Gauge) 11
- Max. Notcher Dimensions (In.) 5 x 5
- Fixed Notch Angle (°) 90°
- Max. Flow Rate 4.4
- Strokes per Minute 50
