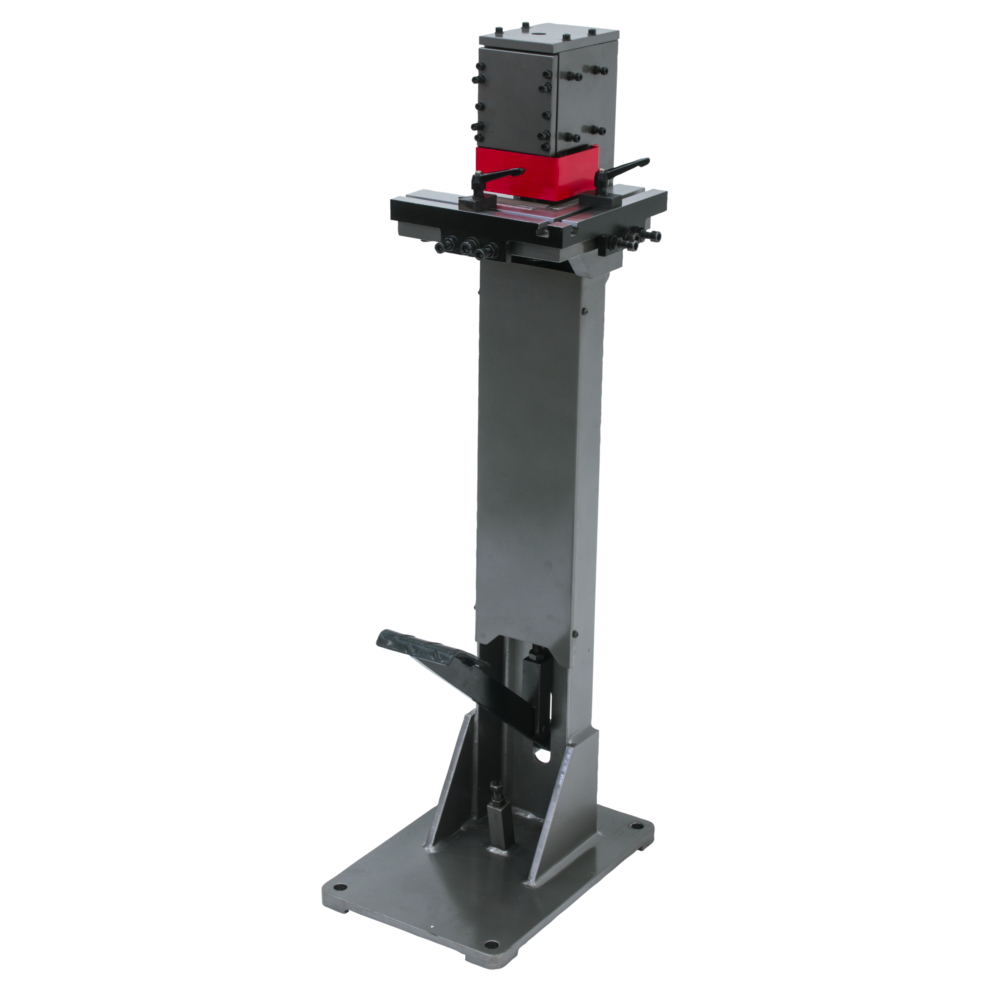

Jet 16 Gauge Corner Notcher-FN-16
Built with a heavy-duty frame and a 3.15’’ by 3.15’’ notching capacity, the Corner Notcher delivers the durability needed to notch sixteen-gauge mild steel for years in your shop.
Features:
- Heavy duty frame for years of notching
- Blade can be reversed for longer cutting life
- Front cover keeps all dirt and debris away from the lifting spring
- Large base increases stability while notching
- Foot pedal curved with diamond plate material for Operator safety
- Spring assisted Foot Pedal for ease of use
- Symmetric design of table and blades for both right & left handed users
- Increased foot pedal to gain mechanical advantage
- Tool less handles added for indexing the blade
- Inch/Metric Scales added on both sides of the table for quick measurement
Specifications:
- Model Number FN-16
- Table Size (in.) 10 x 10
- Fixed Notching Angle (deg.) 90º
- Notching Capacity (in.) 3-1/4 x 3-1/4
- Gauge 16
- Blade Length (in.) 3
- Stroke Length (in.) 1
- Overall Dimensions (L x W x H / in.) 16-3/4 x 11-3/4 x 46
- Net Weight (lbs.) 180
- Gross Weight (lbs.) 233
