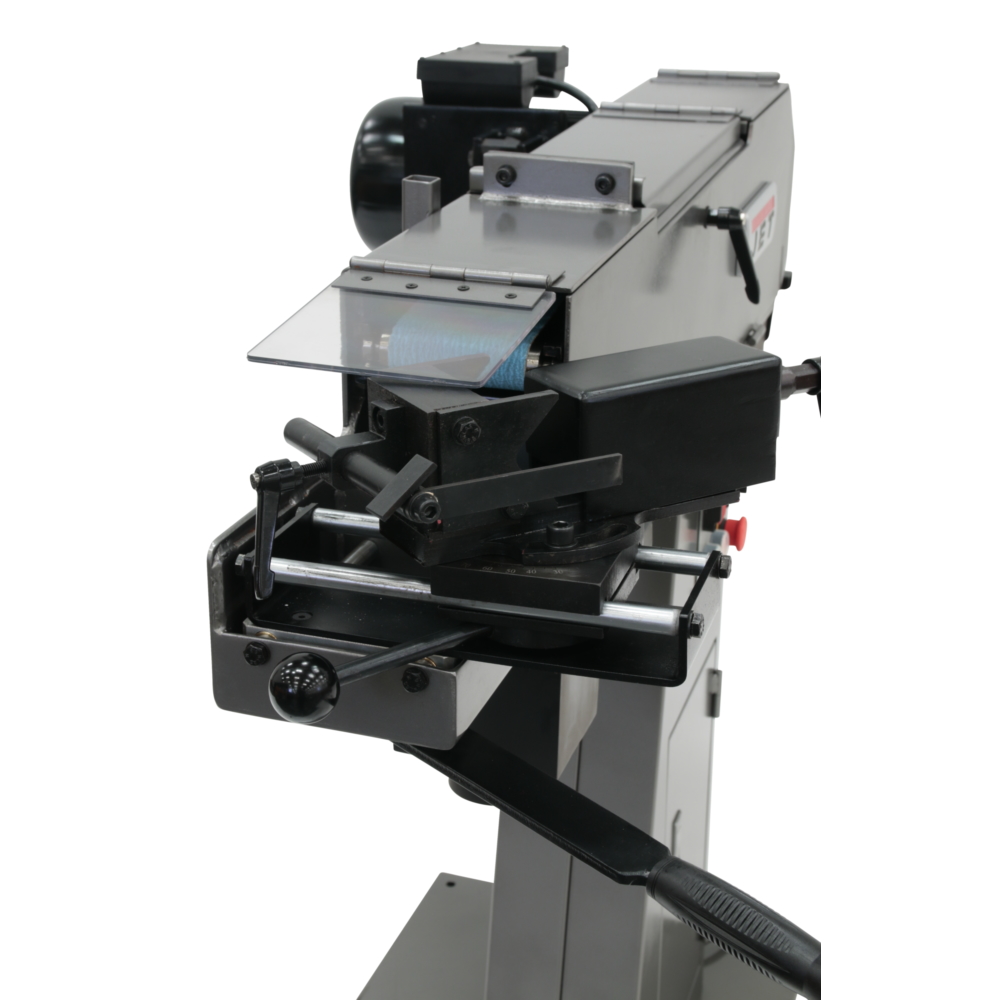

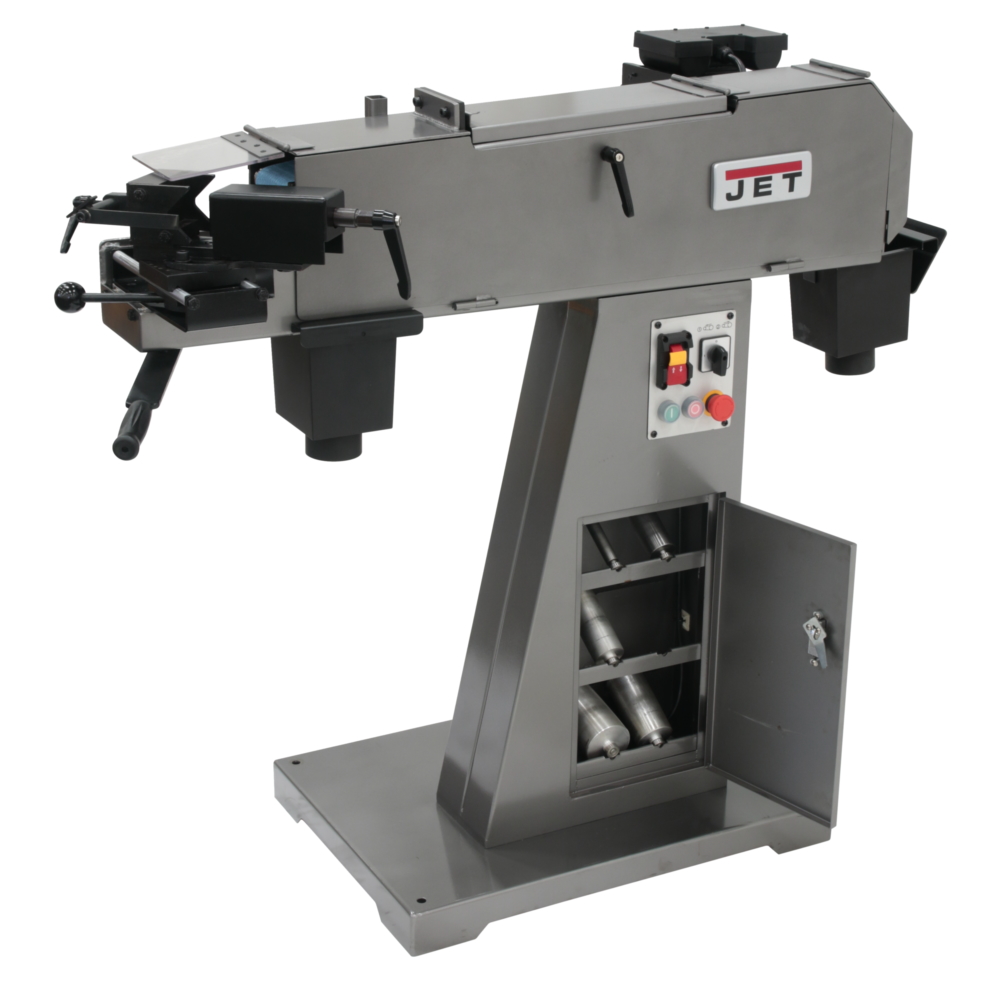

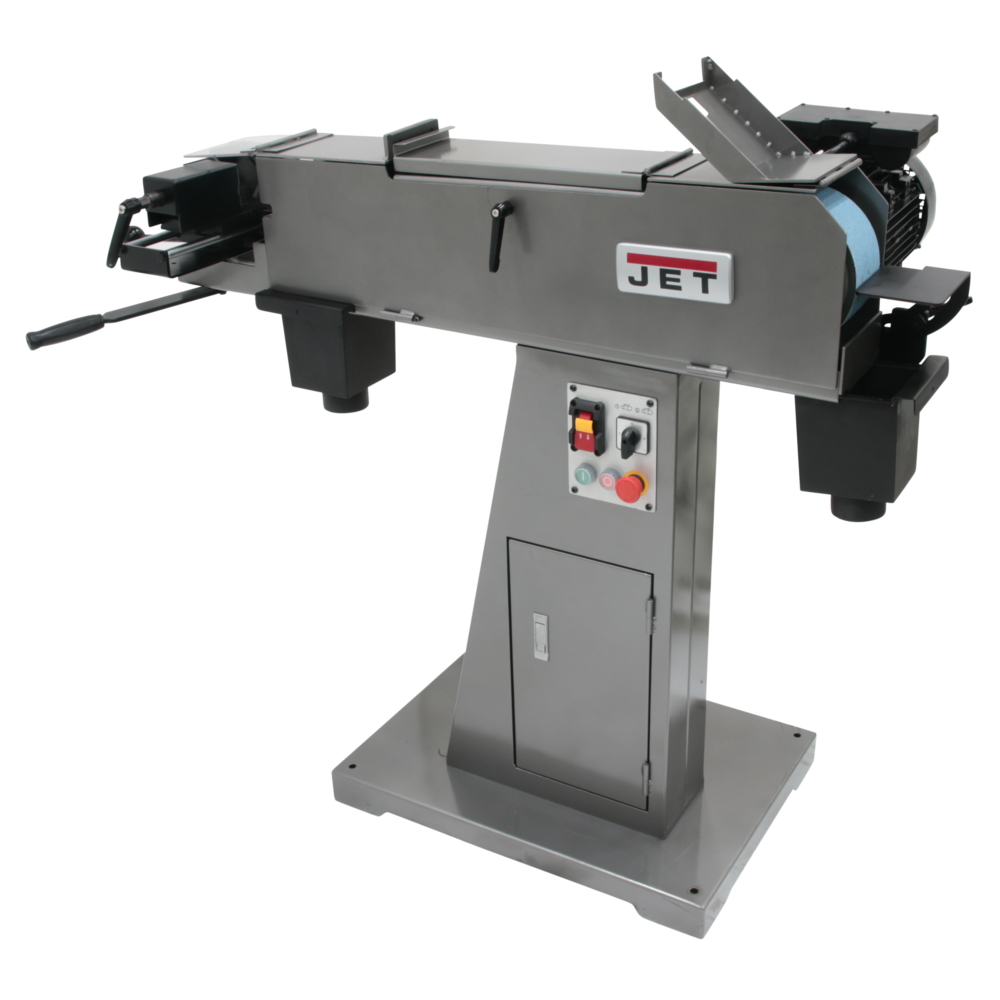

Jet Dual Station Abrasive Notcher 230V 1PH-DSAN4-1
The Dual Station Abrasive Notcher delivers the one-two punch your shop needs to maximize output. The innovative two-station design provides quick and easy access to notching, grinding, and deburring.
Features:
- Constructed of heavy-duty gauge steel
- Totally enclosed fan cooled, AC induction motor
- CSA/CUS: Following strict guidelines and electrical requirements, this JET Notcher is CSA/CUS certified
- Safety on/off switch
- Two station design provides quick easy access, from grinding, notching and deburring at 3 different stations
- Forward and Reverse switch for change of belt direction for standard grinding on rear of machine
- Seven rollers 1/2” to 2-1/2” come standard
- Roll changing made easy and tool less
- Multi-positional hand lever vise
- Designed for quick belt changes
- Convenient storage location in the stand for all mandrels/rollers
- Two 3" Dust Ports for easy cleanup
- Standard Accessories
- Three replacement belts, one each of 36G, 60G & 80G come standard
- Seven rollers 1/2" to 2-1/2"
- Belt Guard
Specifications:
- Overall Dimensions 47.24 x 23.6 x 46.5
- Pipe Notching Capacity - OD 1/2 to 2-1/2 OD (in.)
- Net Weight (Lbs.) 361
- Motor Power (HP) 3HP, 230V, 1Ph
- Gross Weight (Lbs) 545
- Angle Degrees (Deg.)90 to 30
- Roll Sizes (In.) 1/2, 3/4, 1,1-1/4, 1-1/2, 2, 2-1/2
- Speed (RPM) 3400
- Working Height (In.) 40-3/4
