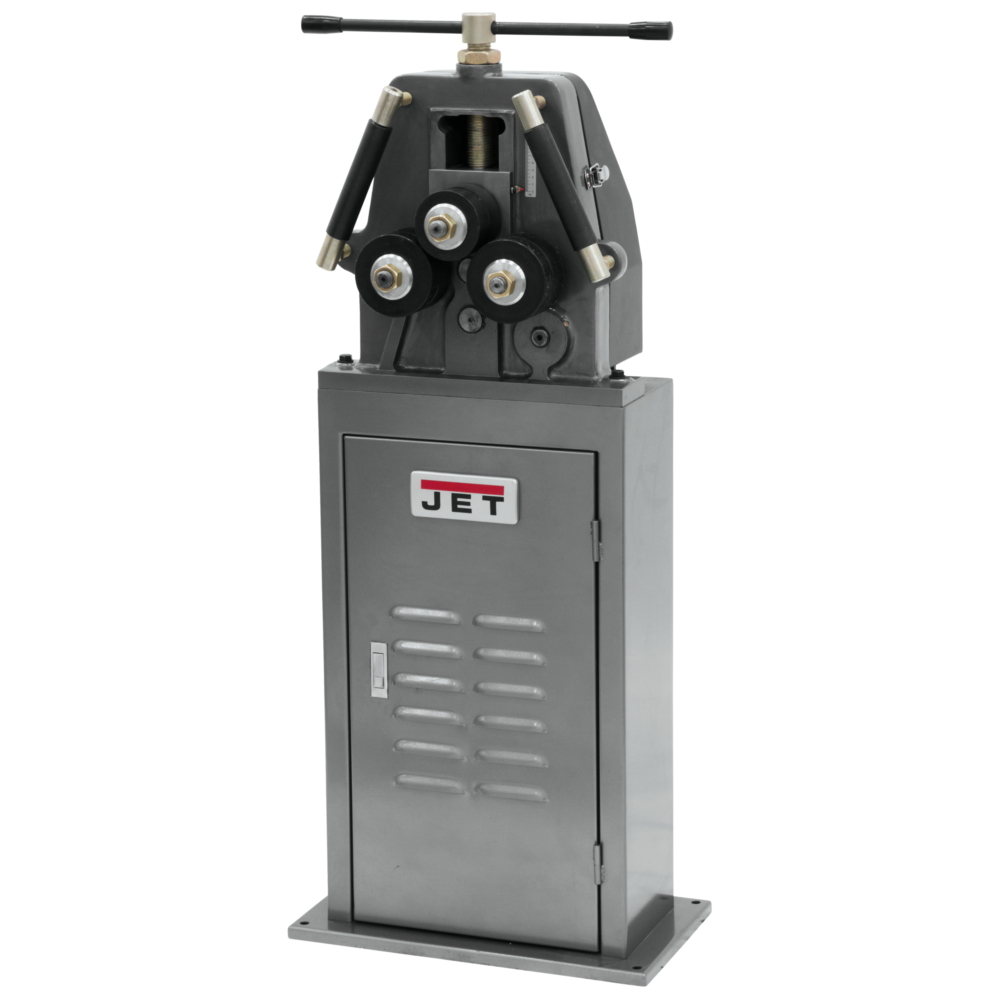

Jet MANUAL PINCH ROLL BENDER-MPR-10HV
The JET Manual Pinch Roll Bender offers great versatility, bending and rolling round, square, and solid tubing and flat bar. Heavy-duty cast iron construction is machined to strict tolerances to maintain accuracy.
Features:
- Heavy duty cast iron construction machined to strict tolerances with maintain tolerances and accuracy
- Hardened rolling shafts with bronze bushings ensures the machine will last for years of operation
- Open face design allows the operator to roll full circles
- Reduction gearbox cuts down on operator fatigue
- Equipped with various size segment rolls for flat bar, square tubing and angle iron
- Base comes standard with a full storage cabinet
Specifications:
- Style (Type) 3 Roll Pyramid Style
- Operating Positions: Vertical
- Pipe Capacity (Size/Min Dia.):1/ 0.28
- Round Tube Capacity (Size/Min Dia.):1-1/4 (20)
- Solid Round Capacity (Size/Min Dia.):7/8 (20 min dia)
- Flat Bar Easy Way (Size/Min Dia.):2 (6-1/2 min dia)
- Number and Diameter of Rolls (In.):3 & 3-1/2
- Angle Iron Capacity (Size/Min Dia.):1-1/4 (.30)
- Shaft Center Distance:1.18
- Lower Roll (Dia.):4.65
- Pinch Single
- Overall Dimension:57-7/8” x 22-53/64” x 21-21/32”
- Weight (Lbs.):420
