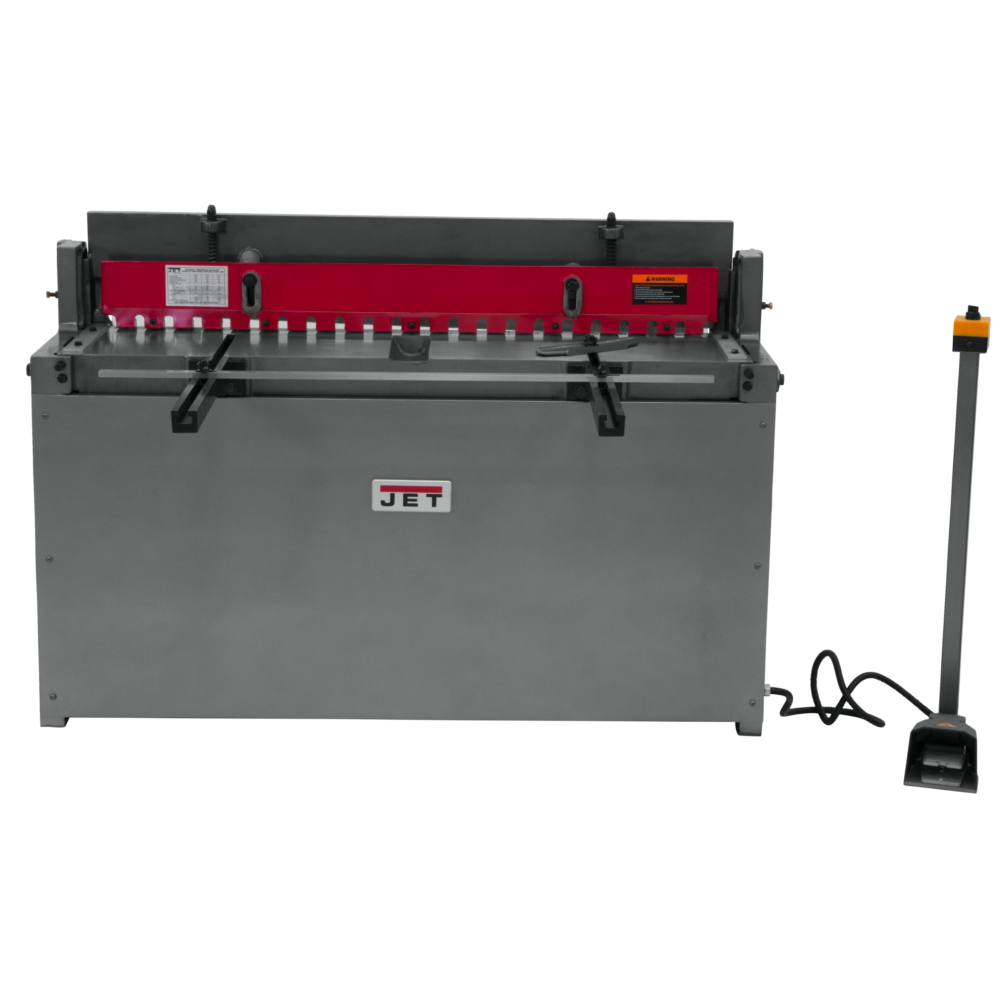

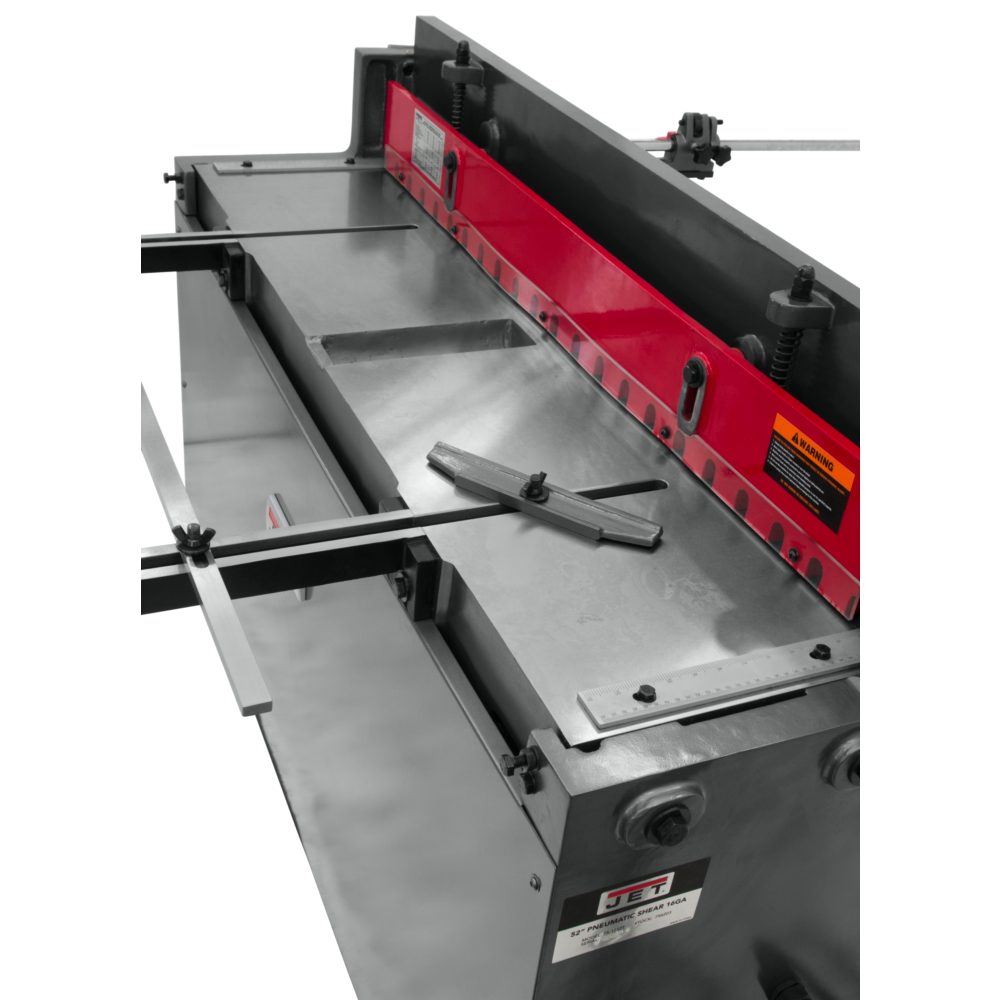

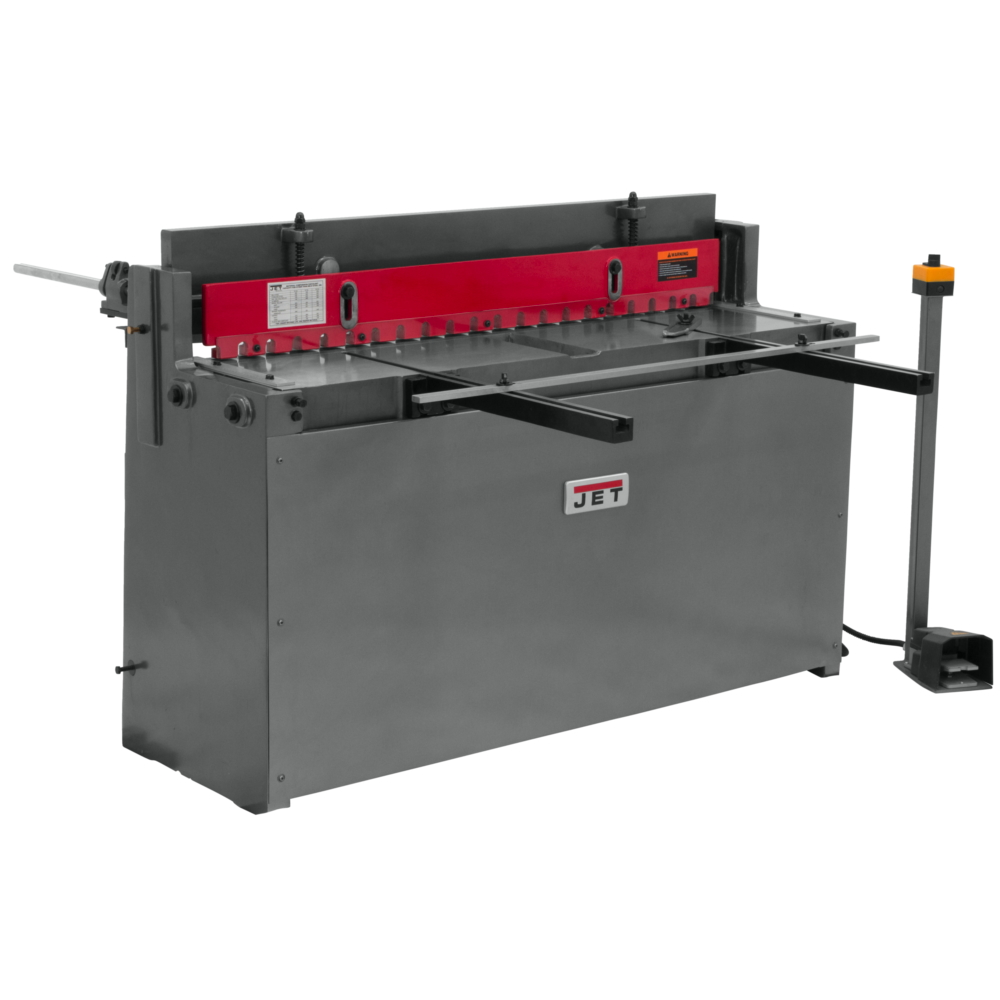

Jet 4 FOOT 16 GAUGE Gauge Pneumatic Shear-PS-1652T
The JET PS-1652T delivers the strength and accuracy your shop demands in a rugged, cast-iron grade frame. Capable of making the big cuts, and versatile enough to handle just about any job you need completed. The pneumatic control system ensures smooth operation and smooth cuts along the precision-aligned bed and beam.
Features:
- Hi-quality cast-iron grade frame to eliminate deflection across the blade-span and blade frame work
- Low cutting angle to cut narrow strips without twisting
- Precise bed and beam alignment assures working accuracy
- Adjustable working bed for correct setup according to the blade clearance
- 16 gauge maximum capacity for mild-steel
- 14 gauge maximum capacity for aluminum and copper alloys
- 40 Strokes per Minute - Full Length
- 8.8 Air Consumption - CFM
Specifications:
- Style (Type) Pneumatic
- Max. Soft. Alloy Capacity (Gauge) 12 - 14
- Mild Steel Capacity (Gauge) 16
- Shearing Length Capacity (In.) 52
- Back Gauge Capacity (In.) 28-1/2
- Front Gauge Capacity (In.) 28
- Strokes Per Minute (Full Length) 40
- Air Consumption (CFM) 25.3
- Overall Dimensions 60 x 24 x 43
- Weight (Lbs.) 1,048
