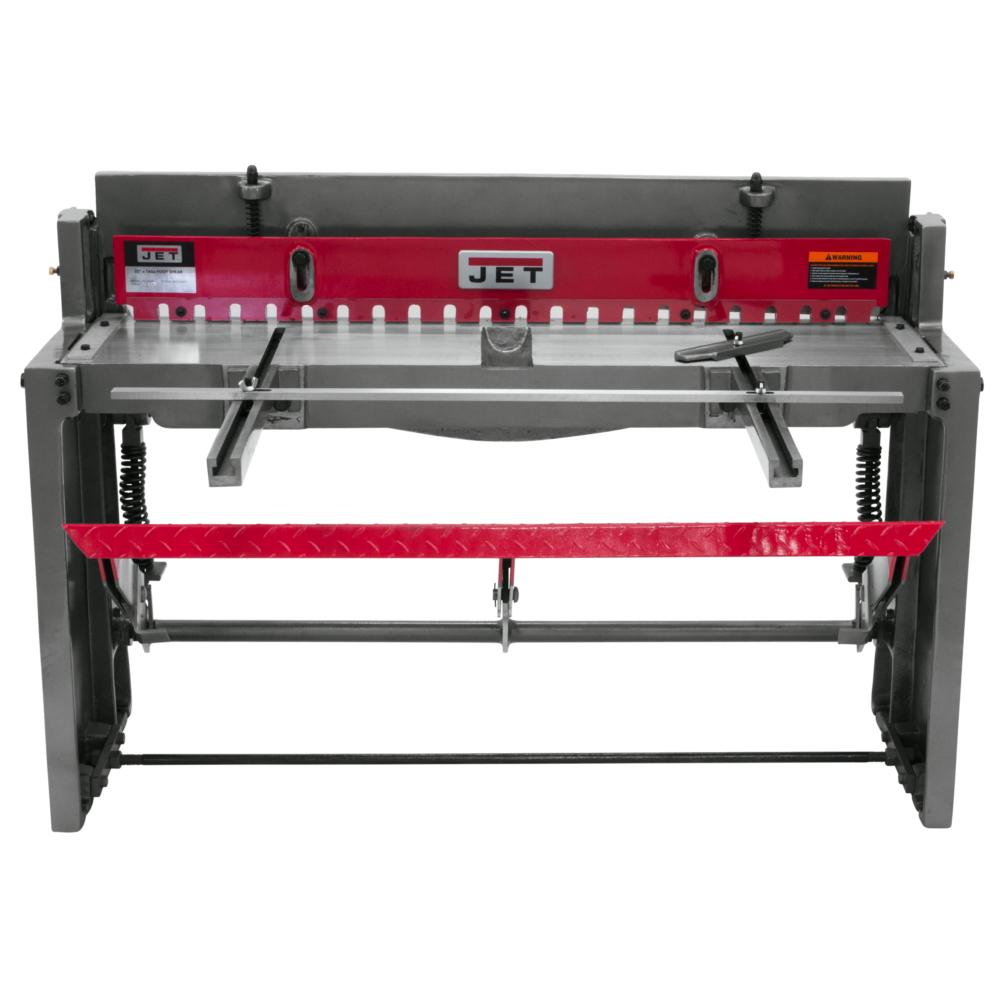

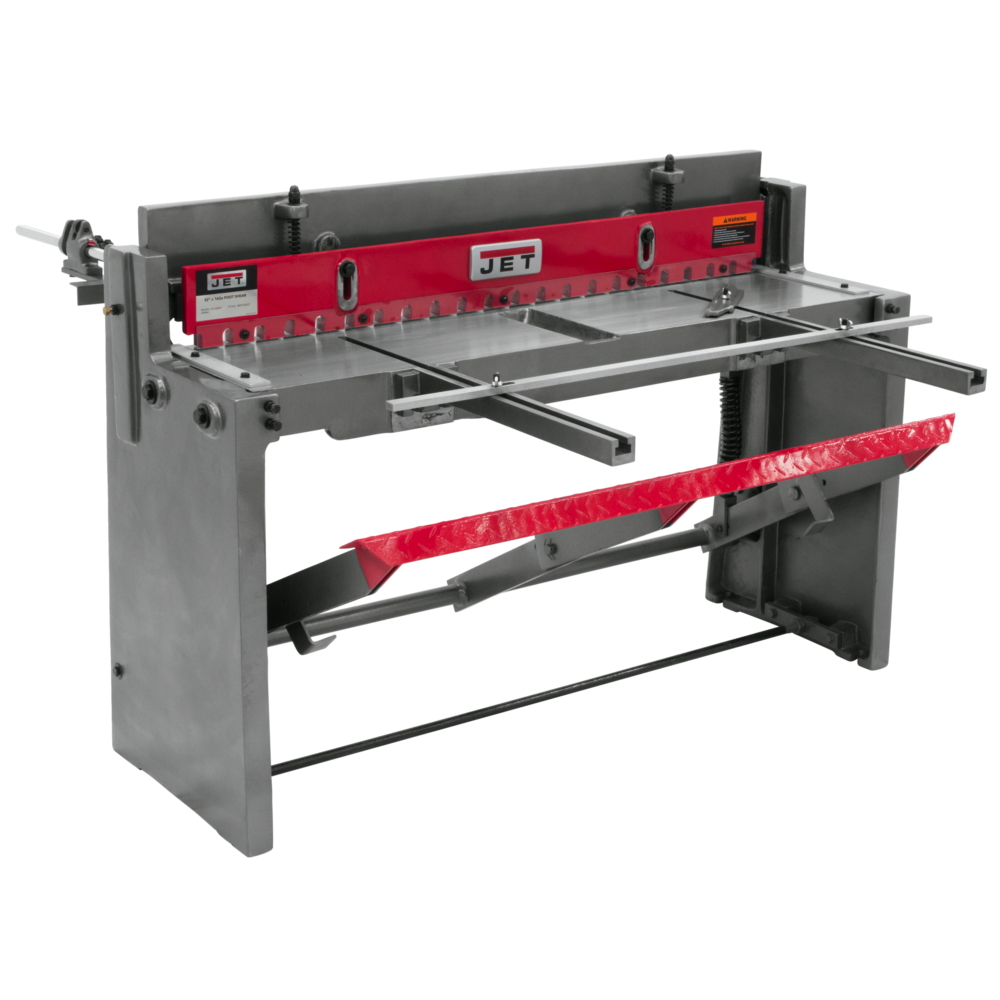

Jet 4 FOOT 16 GAUGE Foot Shear-FS-1652J
JET Foot Shears with high quality, hardened and tempered stainless steel blades are ideal for precision shearing of mild steel up to 16 gauge. An adjustable hold down clamp keeps materials secure during operation to prevent errors, and compound leverage allows the user to perform work within the machine's rated capacity with ease.
Features:
- Hi-quality cast-iron grade frame to eliminate deflection across the blade-span and blade frame work
- Adjustable clamping bar keeps material secured during operation

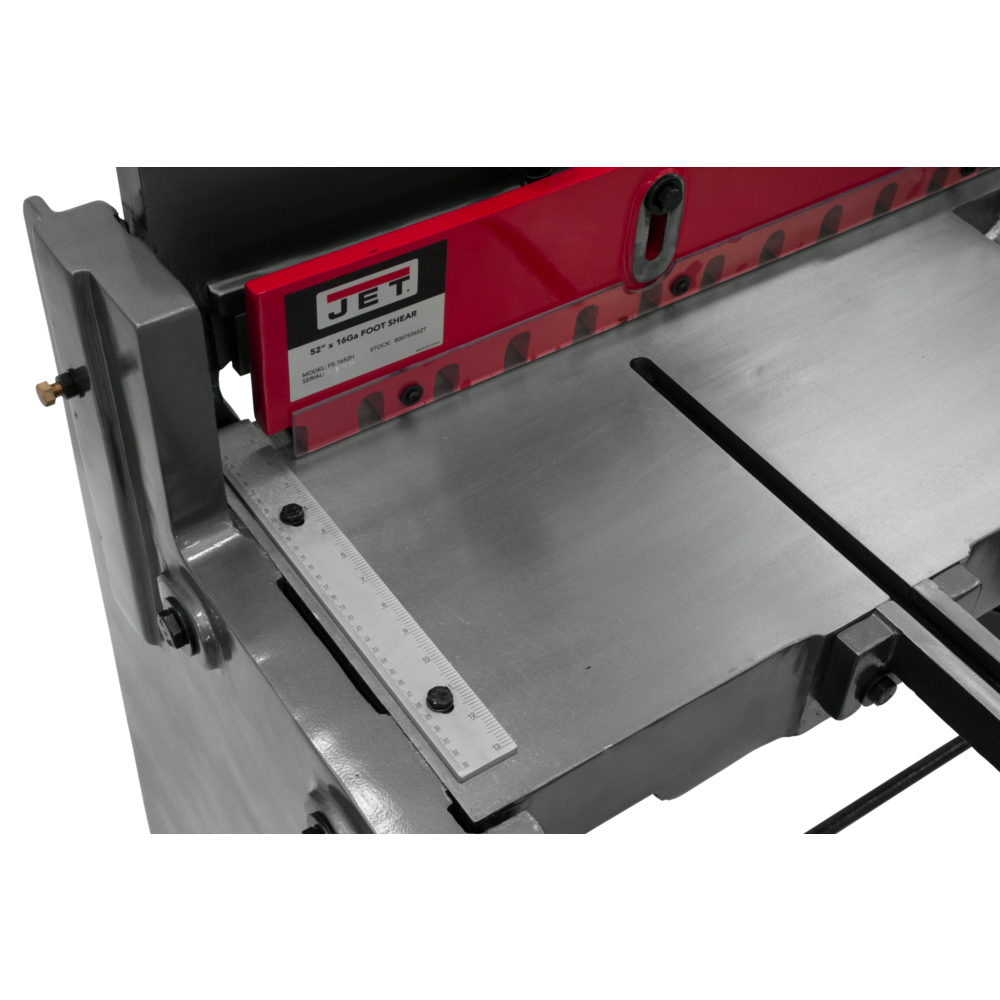

- Precise bed and beam alignment assures working accuracy
- Upper blade is a four-way; bottom blade is two-way

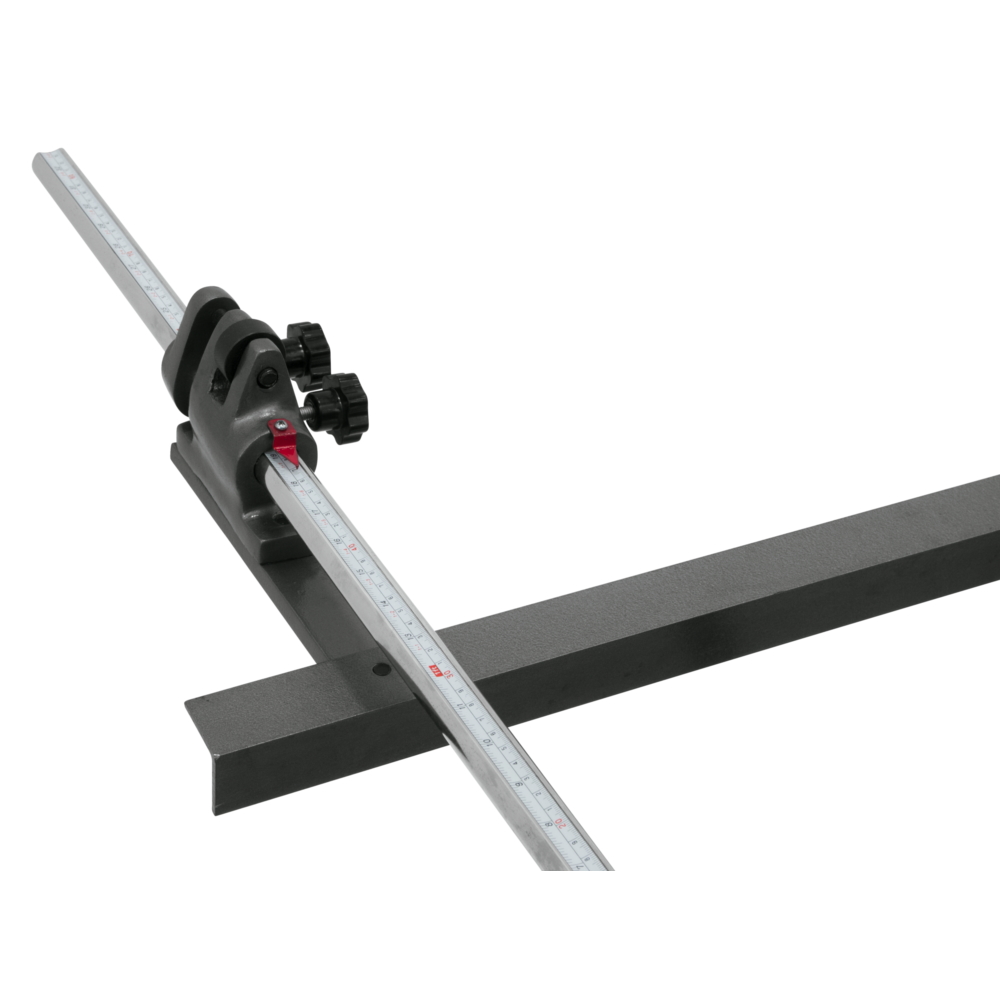

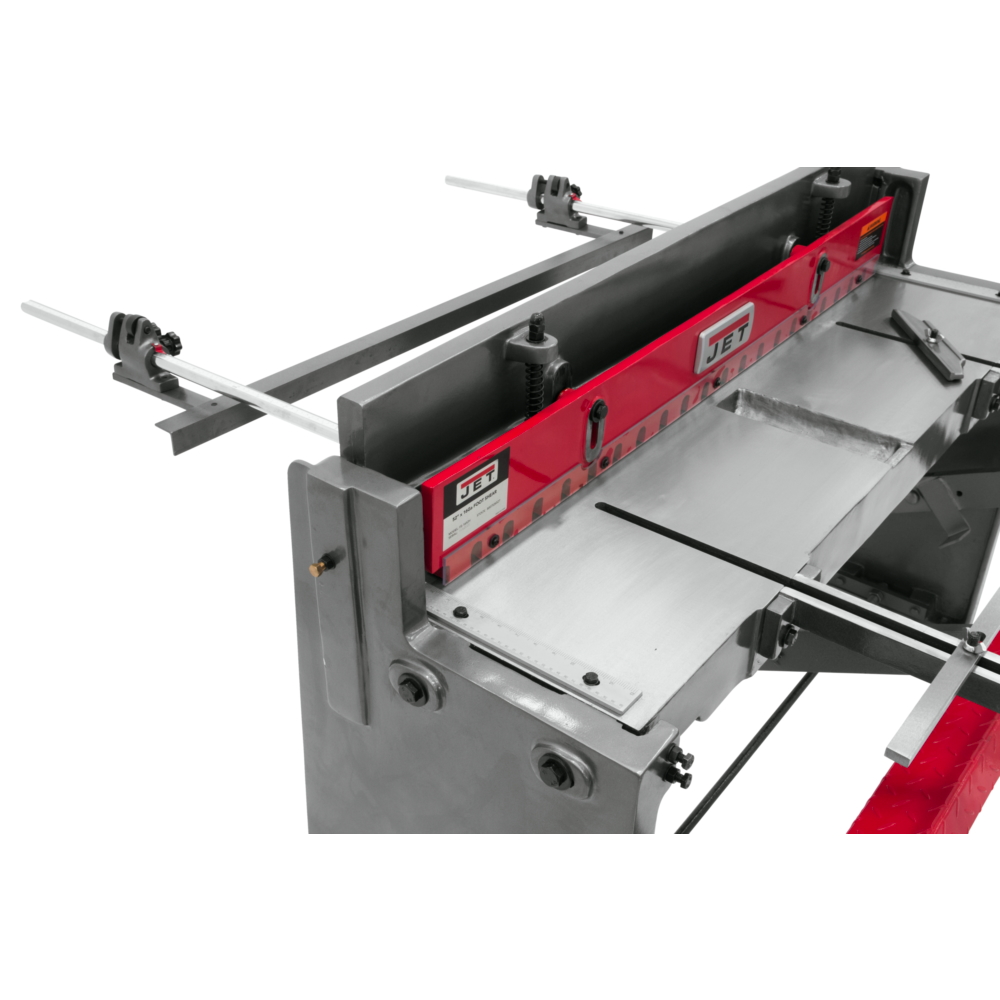

- Rear depth gauges with micro adjustment for precise measurements
- 16 gauge maximum capacity for mild-steel
- 14 gauge maximum capacity for aluminum and copper alloys
- 20 gauge maximum capacity for stainless steel
Specifications:
- Style Foot Shear
- Sheet Capacity 52
- Max. Soft. Alloy Capacity 14
- Mild Steel Capacity 16
- Shearing Length Capacity 52
- Back Gauge Capacity 25-1/2
- Front Gauge Capacity 28
- Cutting Blade Length 52
- Overall Dimensions 62-1/4 x 72 x 41-1/2
- Weight 1,220
