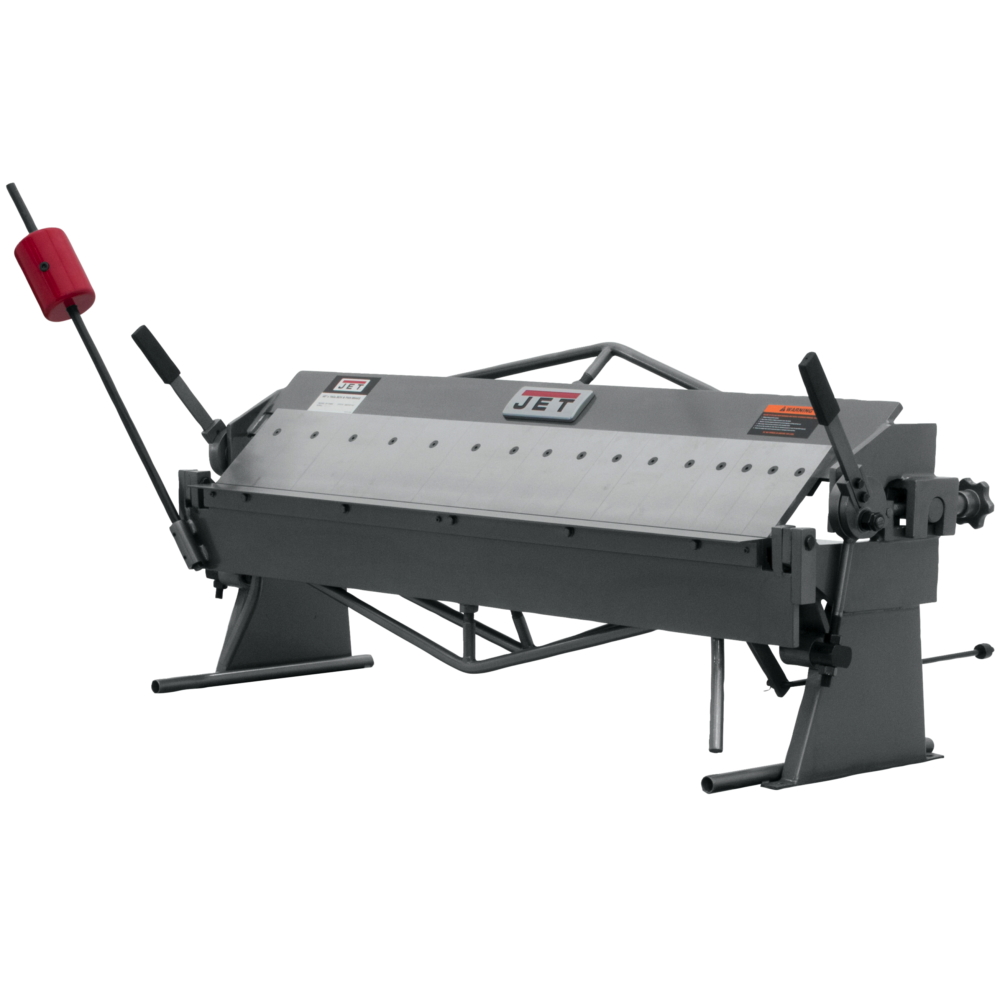

Jet 4 Foot x 16 Gauge Bench Model Box & Pan Brake -BPB-1650-754105
Box and Pan Brakes from JET are perfect for the larger, high volume shop that requires versatility yet demands rugged durability and bending precision
Features:
- Incorporates all the features of our standard hand brakes but with greater range of applications
- With fingers installed it can be used as a full-length nose bar, turning the machine into a straight bending brake
- Stop rod for repeatable bending

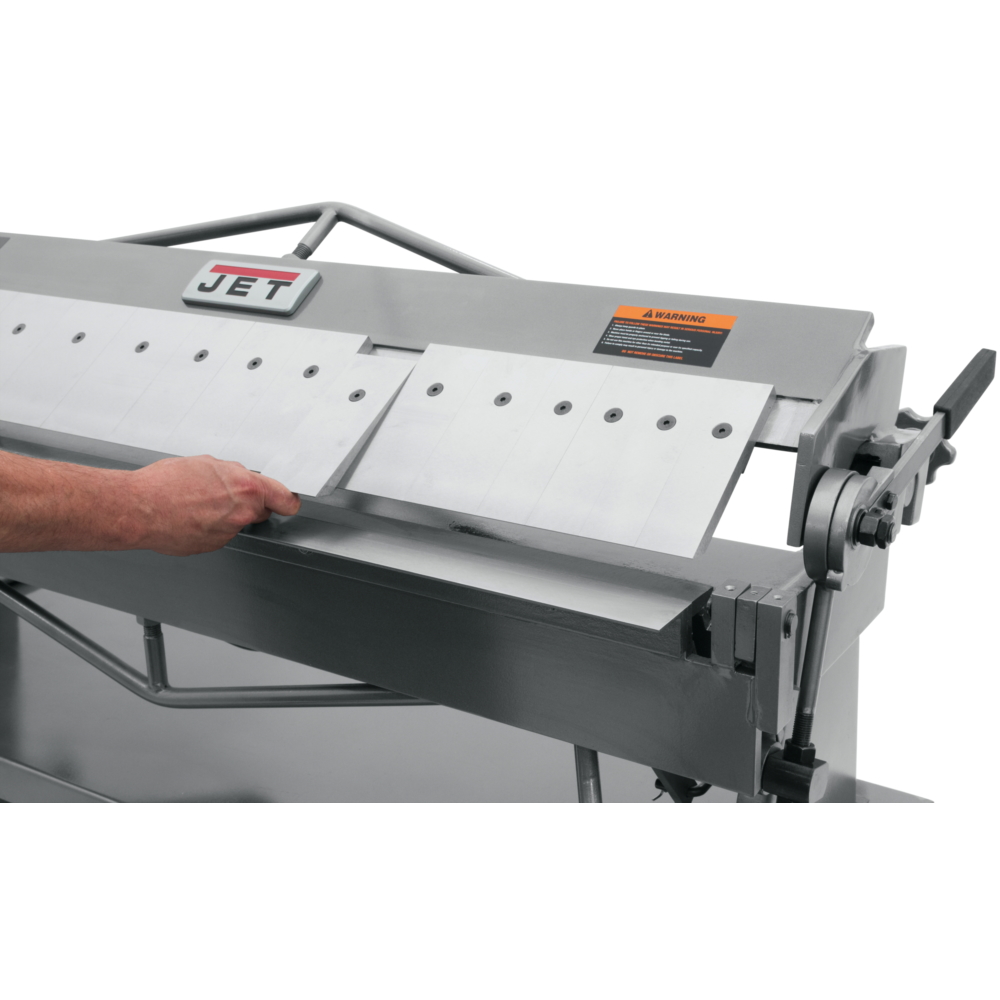

- Sectioned fingers are easily removed for box bending and special forming operations
- Total of 16 assorted size section fingers
Specifications:
- Style (Type) Bench Box and Pan Brake
- Mild Steel Capacity (Gauge) 16
- Bending Length Capacity (In.) 50
- Maximum Box Depth (In.) 4
- Maximum Lift of Beam (In.) 1-1/4
- Beam Adjustment (Front to Rear) (In.) 5/8
- Number and Width of Fingers (In.) 16 (4@2in, 6@3in, 6@4in)
- Finger Nose Angle (Deg.) 45
- Nose Radius (In.) 1/32
- Includes Stand-754200
- Overall Dimensions (L x W x H) (In.) 66 x 23-1/4 x 32-1/4
- Weight (Lbs.) 448
