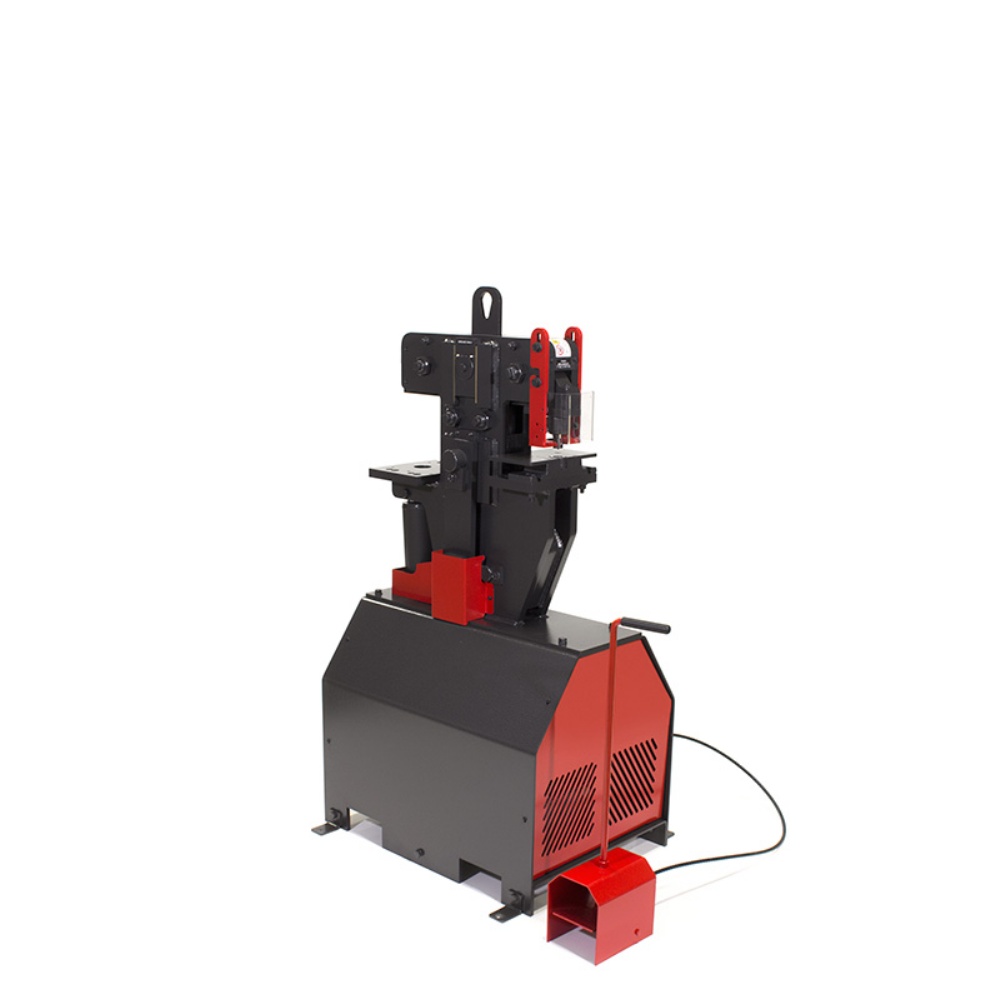

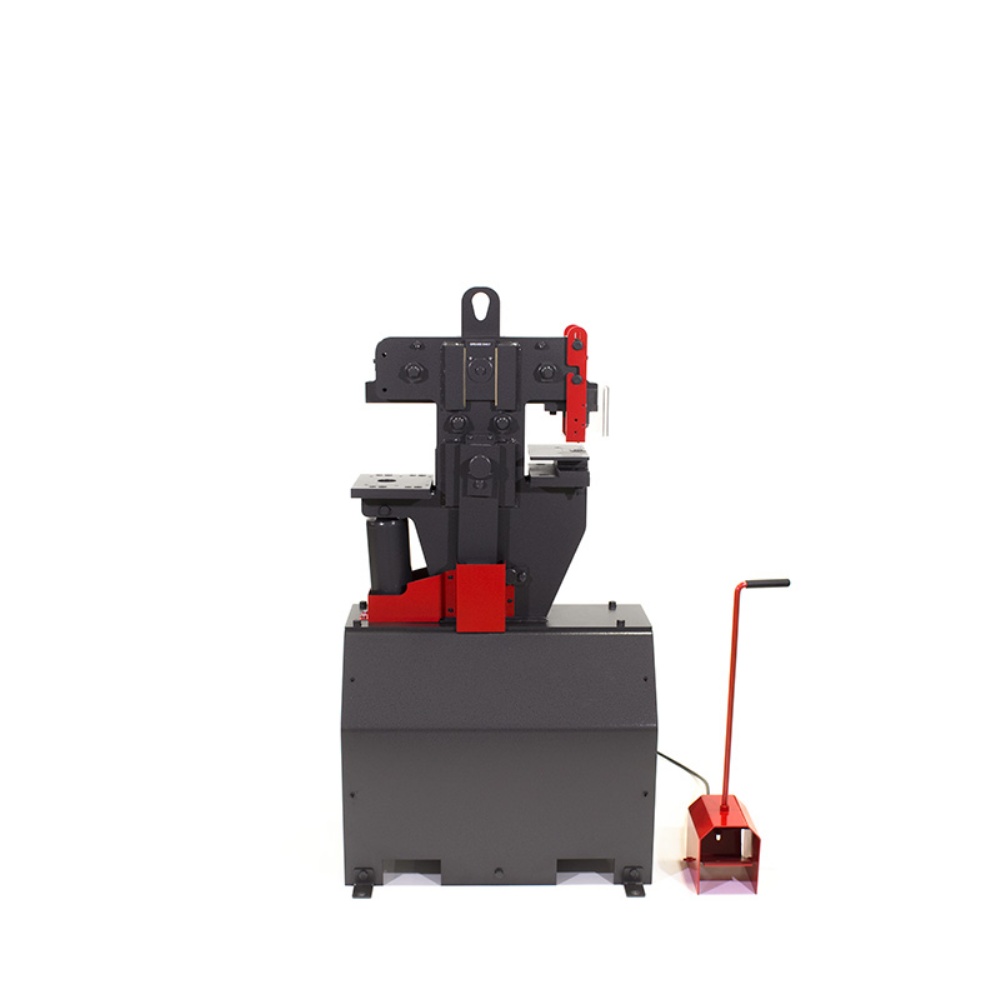

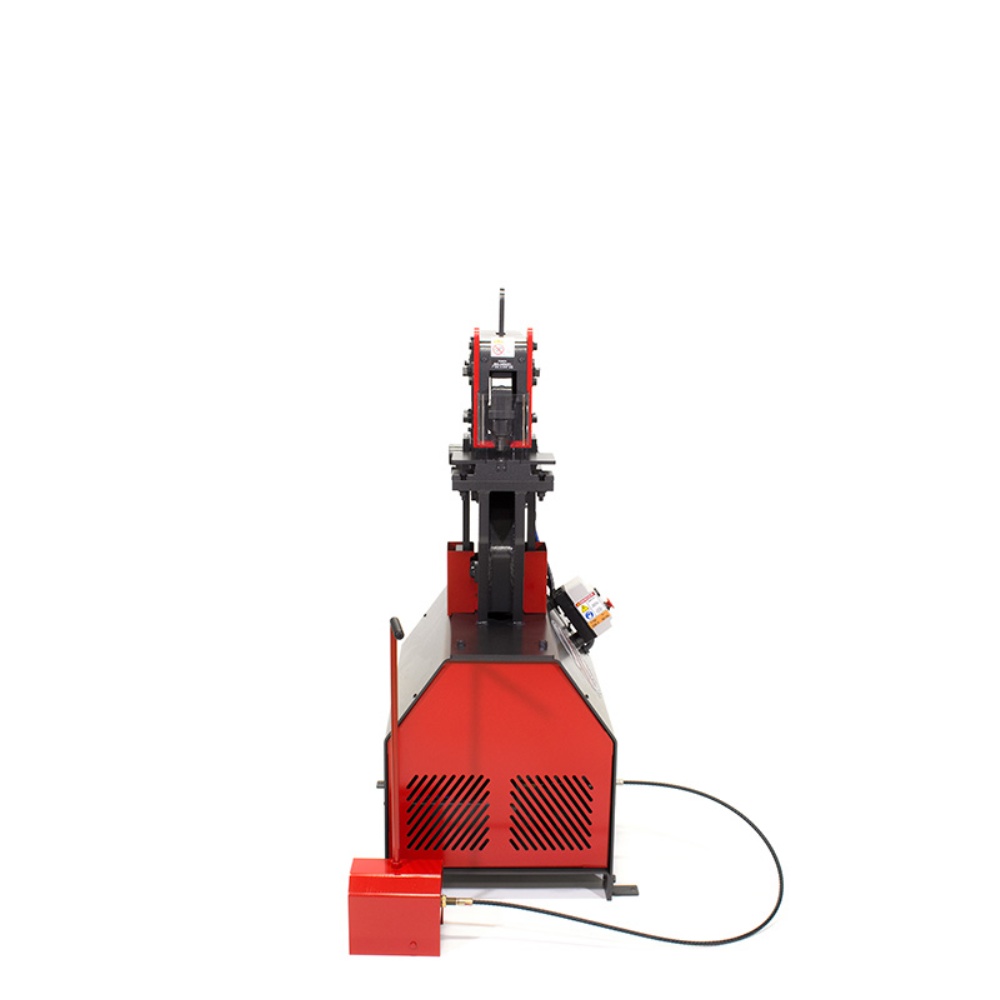

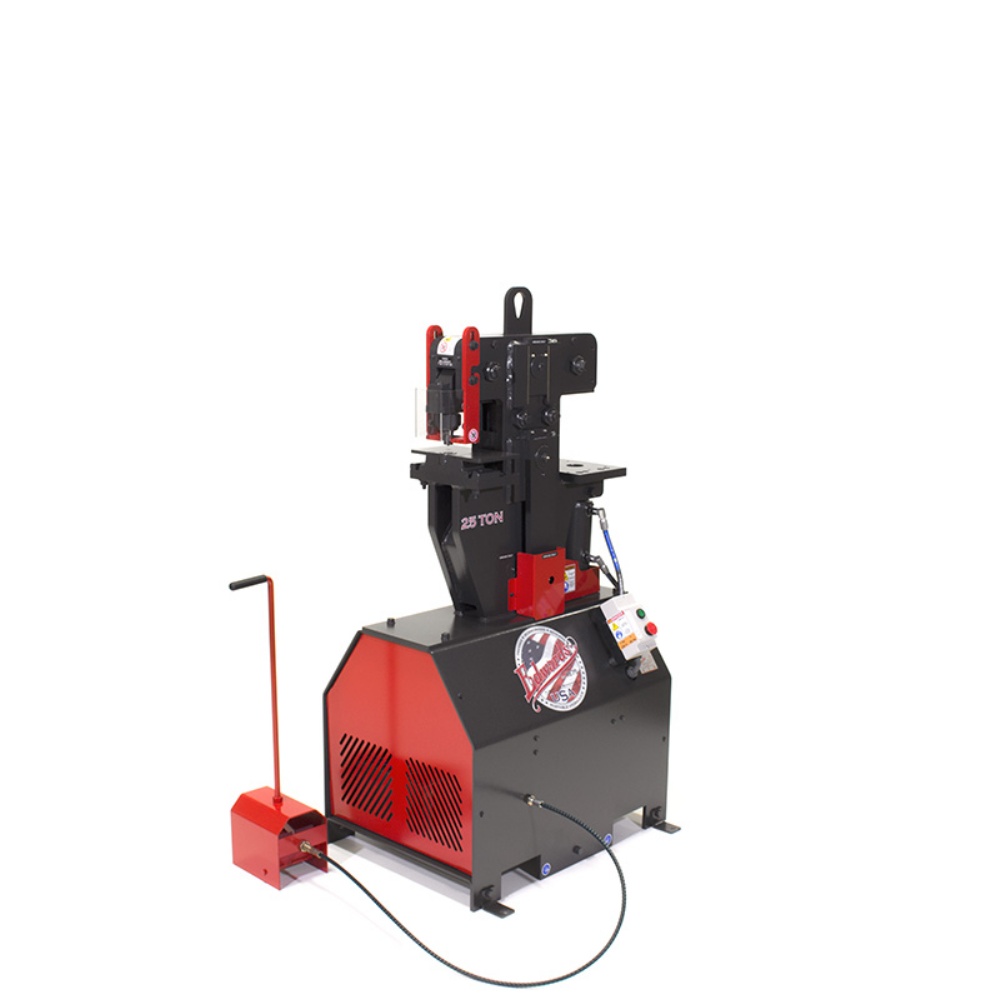

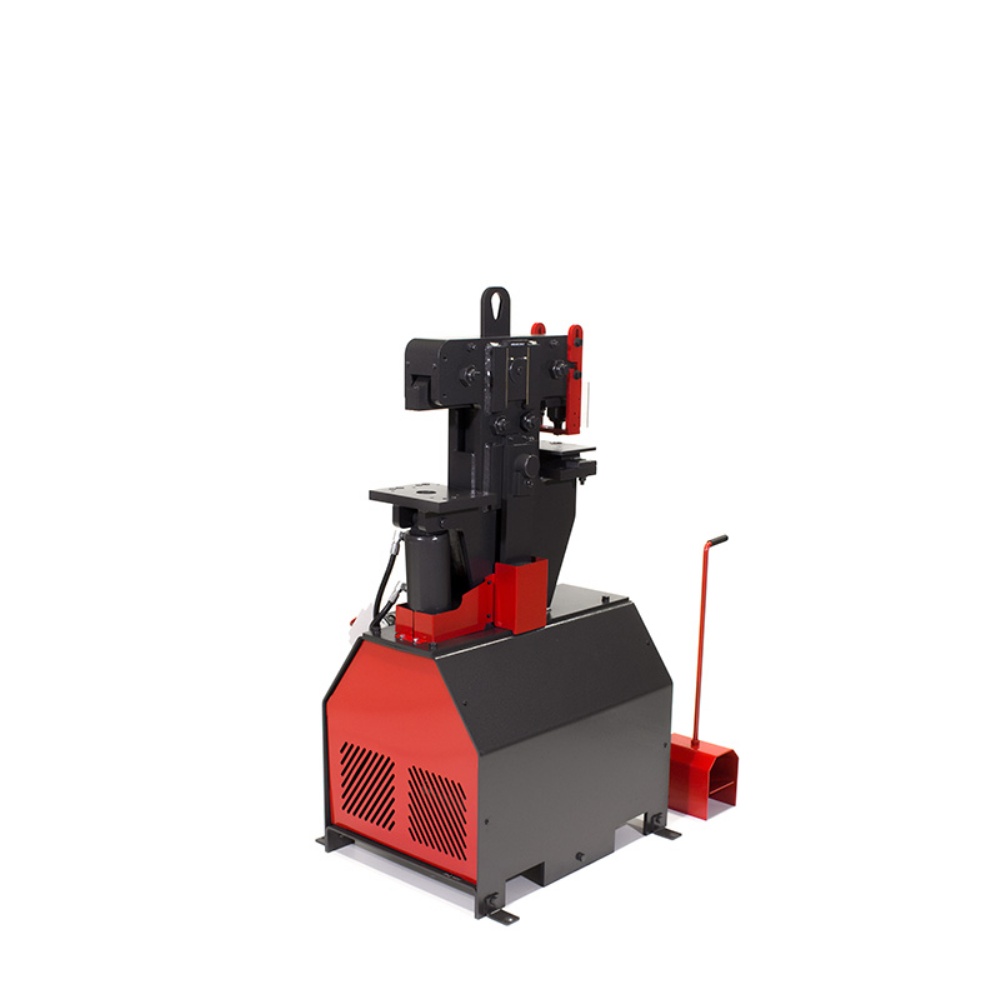

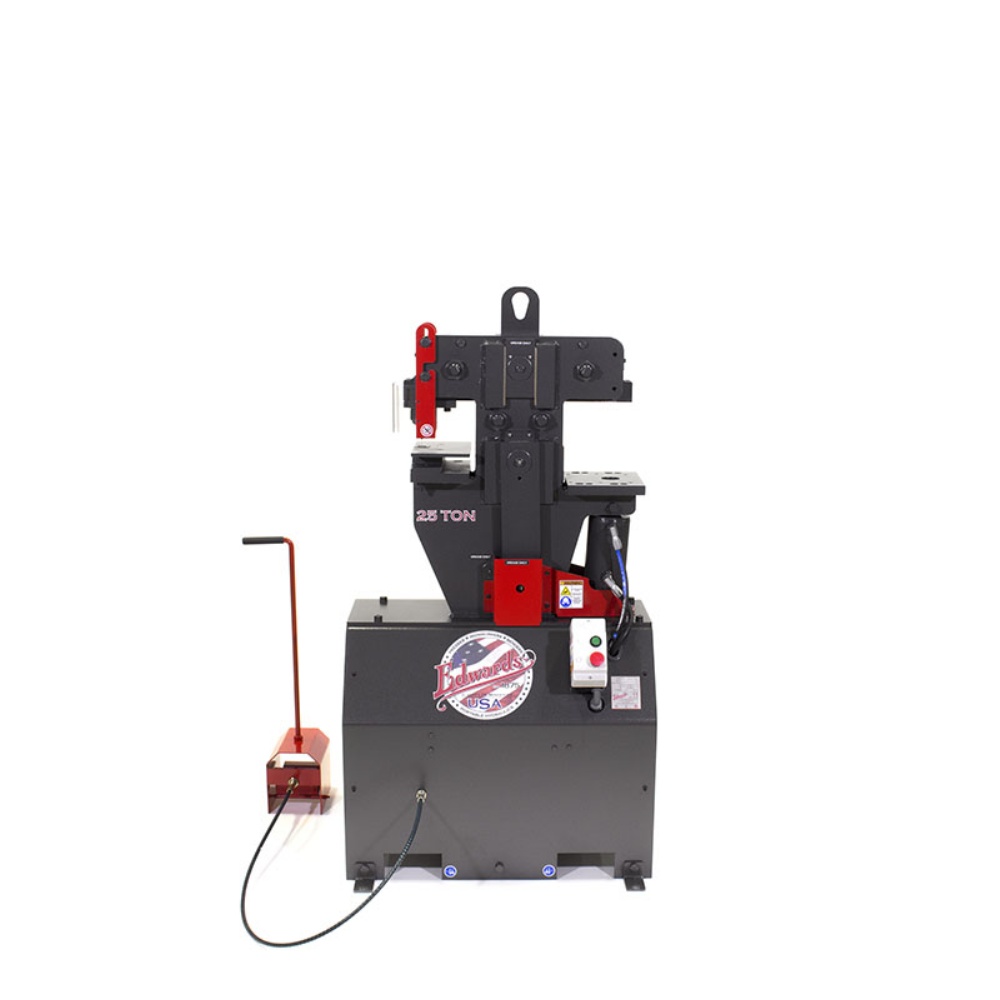

Edwards 25 Ton Jaws Jr Ironworker 1PH 120V
Two Available Workstations
Punch Assembly with Pedestal Die Table
Universal Open Tooling Station
Specialized for Smaller Jobs
Compact footprint and affordability make the Edwards 25 Ton JAWS Ironworker the perfect fit for garages or small fab shops. Standard features include a Punch Assembly with Pedestal Die Table and a universal open tooling station to accept a variety of optional Tooling Accessories.
Maximum Capacity.............1"dia. in 5/16" plate
Work Height.......................38-1/2"
Open Station Specifications
- Throat Depth......................5"
- Open Height.......................8"
- Shut Height........................7"
- Stroke................................1"
- Work Height.......................35-3/4"
Open Station Tooling Options
- Angle Notcher
- Pipe Notcher
- Coper/Notcher
- Multi Shear
- Rod Shear
- Punching Assembly
- Oversized Punching Assembly
- 241 Punch Assembly
- Brake
Accessories Available
- Magnetic Squaring Arm
- Pedestal Die Table
- Magna Light
- Urethane Stripper
General Specifications
- Rated Capacity...................25 Ton
- Throat................................5-1/2"
- Open Height.......................6"
- Shut Height........................5"
- Stroke................................1"
- Electric Motor Standard......1 HP, 1 Phase, 208/220 v, 1725 rpm, 7 amp
- Electric Motor Option.........1 HP, 1 Phase, 110 v, 1725 rpm, 14 amp
- Hydraulic Pump Size..........11 gpm - 2 stage
- Valve Pressure...................2200 psi
- Reservoir...........................3 gallons
- Cylinder............................1-3/4" ram
- Dimensions:
- base............29" x 23"
- height..........55"
- shipping weight...1000 lbs
