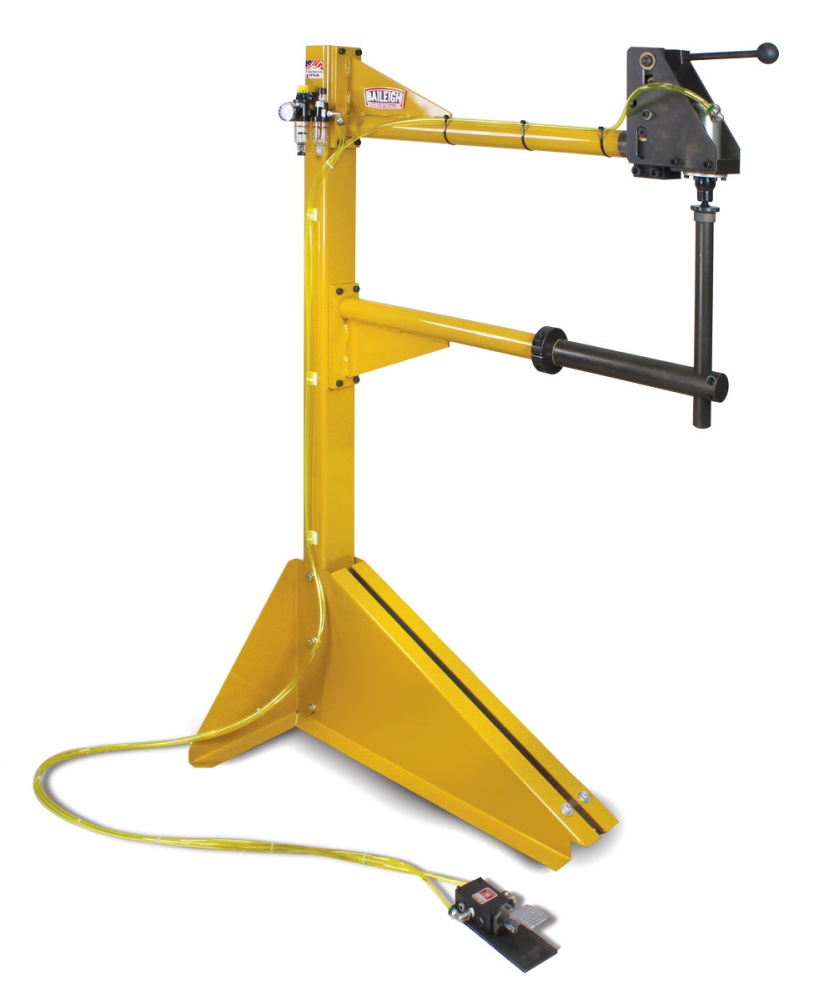

Baileigh Industrial Planishing Hammer PH-36A
Baileigh Industrial is known worldwide for their line of metal shaping machines. The PH-36A planishing hammer is no exception. This well thought out machine is built in the USA with only the highest quality components. Everything on the PH-36A is adjustable making it the most versatile planishing hammer on the market. Even the air motor is completely rebuildable, which would allow you to change the characteristics of the hit for your application. (Call a representative for more information)
For even more versatility, add the optional dog leg bottom brace. This will open up the clearance on the bottom of the machine for those tight radii applications.
- 16 gauge mild steel capacity
- Air operation
- Includes filter, oiler, and footpedalu 36" throat depth
- Adjustable material opening
- Top and bottom supports have adjustable length for offset planishing
- Includes 7 radius dies, flat, 2",3", 6", 8", 12", and 24"
- Fully assembled
SPECIFICATIONS:
- Item Number PH-36A
- Mild Steel Capacity 16 ga.
- Tooling Height Adjustment 11"
- Speed (Variable) 3200 beats / minute
- Included Tooling Flat 2", 3", 6", 12", 24" Radii
- Throat Depth 36"
- Aluminum Capacity 14 ga.
- Power 80 - 120 Psi.
- Shipping Weight 200 lbs.
- Shipping Dimensions 60" x 44" x 68"
* specifications subject to change without notice.
