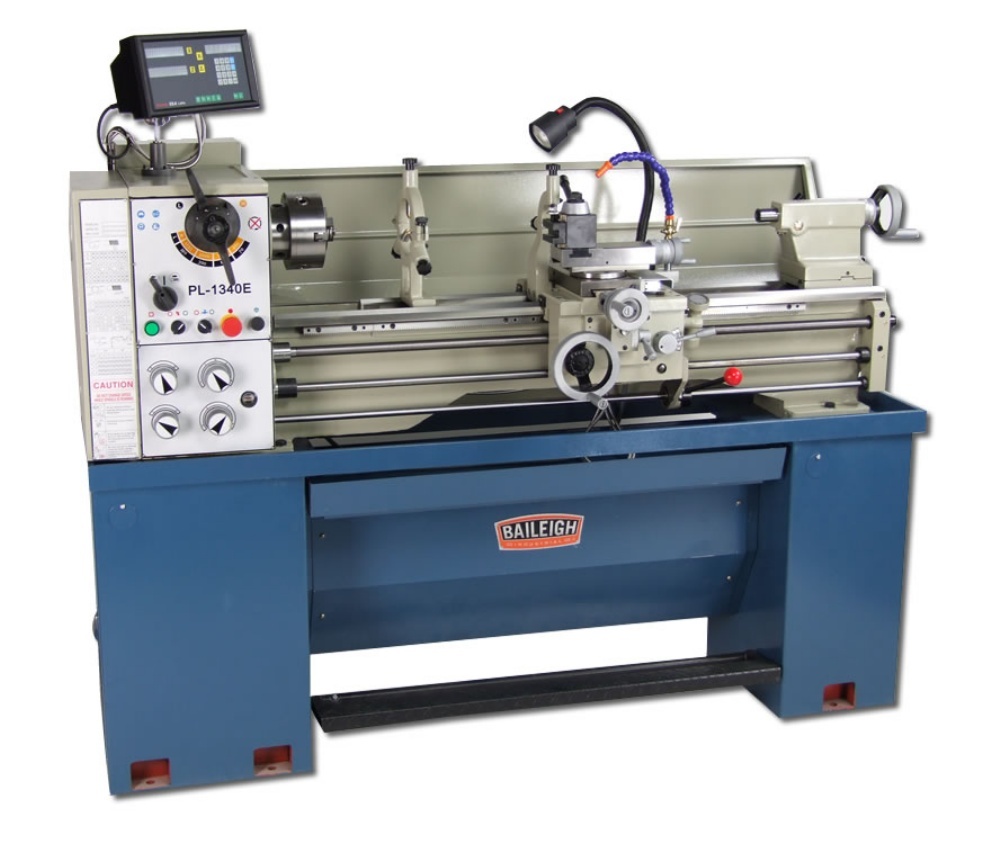

Baileigh Industrial Baileigh Metal Lathe PL-1340E
Baileigh Industrial’s PL-1340E metal working lathe offers the perfect solution for small to medium sized machine shops as well as schools that are looking to upgrade outdated equipment without using up their budget. As with all Baileigh Industrial gear head metal lathes, the PL-1340E comes standard with precision ground and hardened ways offering years of tight tolerances. The castings on the PL-1340E are also of the highest quality to ensure smooth chatter free cuts to prolong tooling life.
The Baileigh Industrial PL-1340E is powered by 220v single phase. It also has 8 spindle speed that range from 70 to 2000 rpm. The Baileigh Industrial PL-1340E metal working lathe includes many standard features that the others do not; digital read out, three and four jaw chucks, steady rest, follow rest, face plate, live center, foot brake, coolant system, halogen work light, quick change tool post, and much more making this a great value for anyone.
Like all Baileigh Industrial products, this metal lathe is designed using the highest quality components. Using only the highest quality components ensures years of worry free operation.
SPECIFICATIONS:
- Item Number PL-1340E
- Sleeve Travel 4.5"
- Spindle Bore 1.50"
- Spindle Bore Taper Morse #5
- Sleeve Taper Morse #3
- Sleeve Diameter 1.65"
- Range Of Inch Threads 4 - 56 T.P.I.
- Metric Thread Range 0.4 – 7 mm
- Spindle Nose D1-4"
- Travel Of Cross Slide 6.29"
- Travel Of Top Slide 2.68"
- Width Of Bed 7.375"
- Spindle Speed 8 (70 – 2000 rpm)
- Swing In Gap 18.750"
- Swing Over Bed 13"
- Swing Over Cross Slide 7.750"
- Longitudinal Feed Range 0.002" – 0.0548"/rev
- Lead Screw Thread Pitch 8 T.P.I.
- Length Of Gap 5"
- Max. Tool Selection .625" x .625"
- Cross Feed Range 0.007" – 0.0187"/rev
- Distance Between Centers 3667
- Power 220V Single Phase
- Shipping Weight 1,430 lbs.
- Shipping Dimensions 79" x 33" x 59"
* specifications subject to change without notice.
