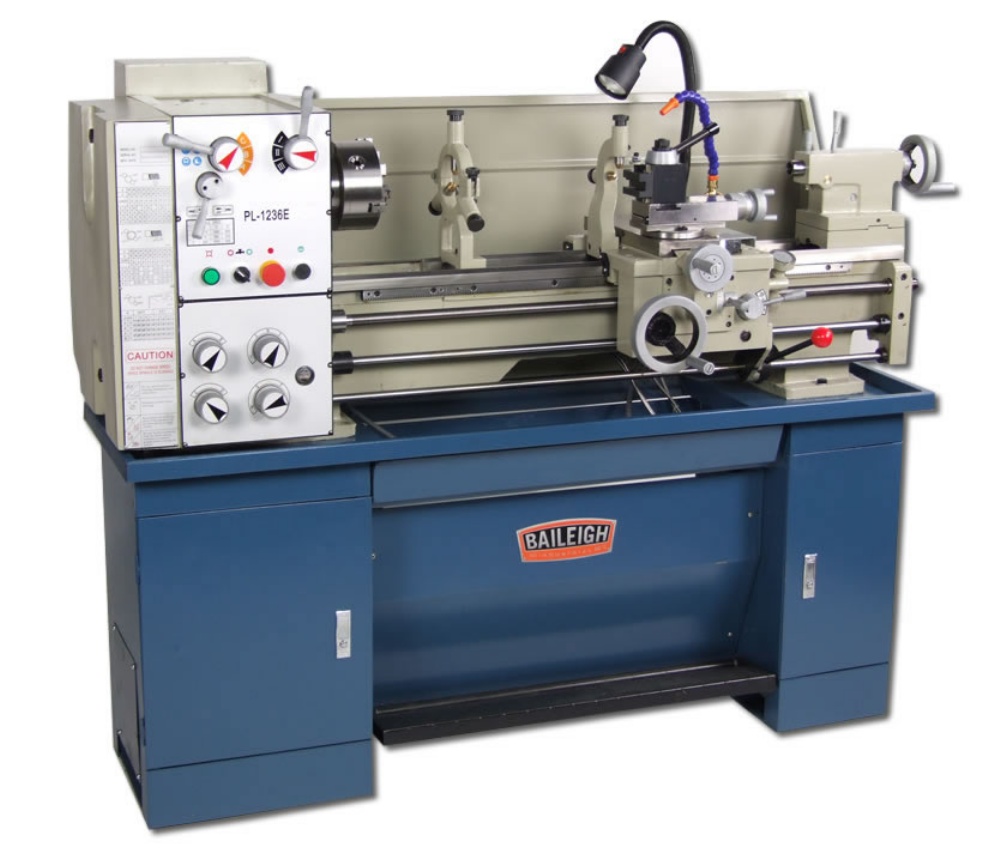

Baileigh Industrial Metal Lathe PL-1236E

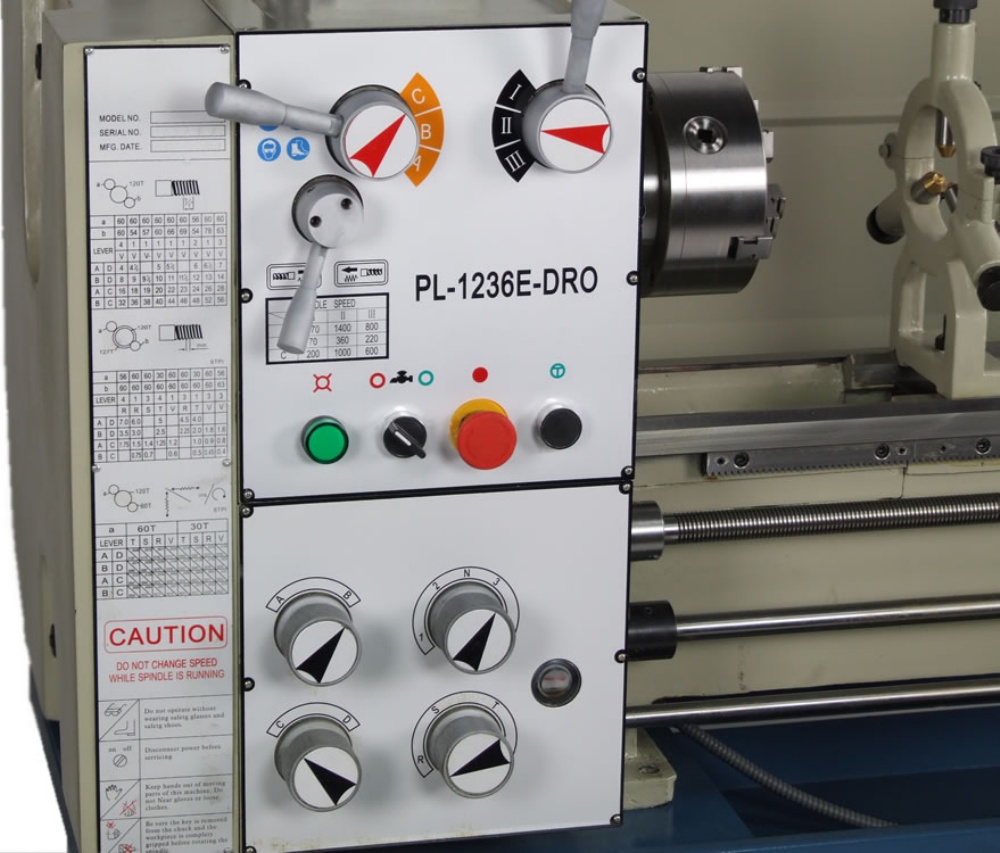

The PL-1236E is a great metal lathe for anyone that is looking an economical lathe that is high in quality and features. Like all Baileigh Industrial lathes, the PL-1236E gear head metal lathe has an integrated gear system that allows for taping, turning, and polishing with a range of speeds from 70 to 1400 RPM. The PL-1236E is built to last with only top quality components and all ways are ground and hardened to ensure long life.
The Baileigh Industrial PL-1236E metal lathe is powered by a 220v system.

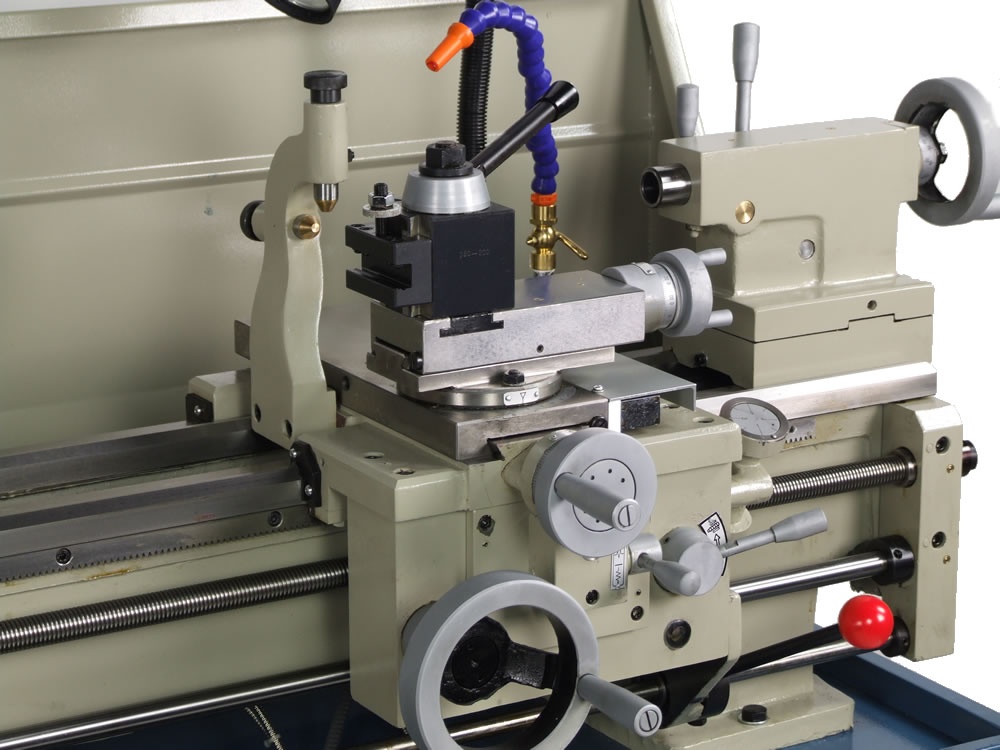

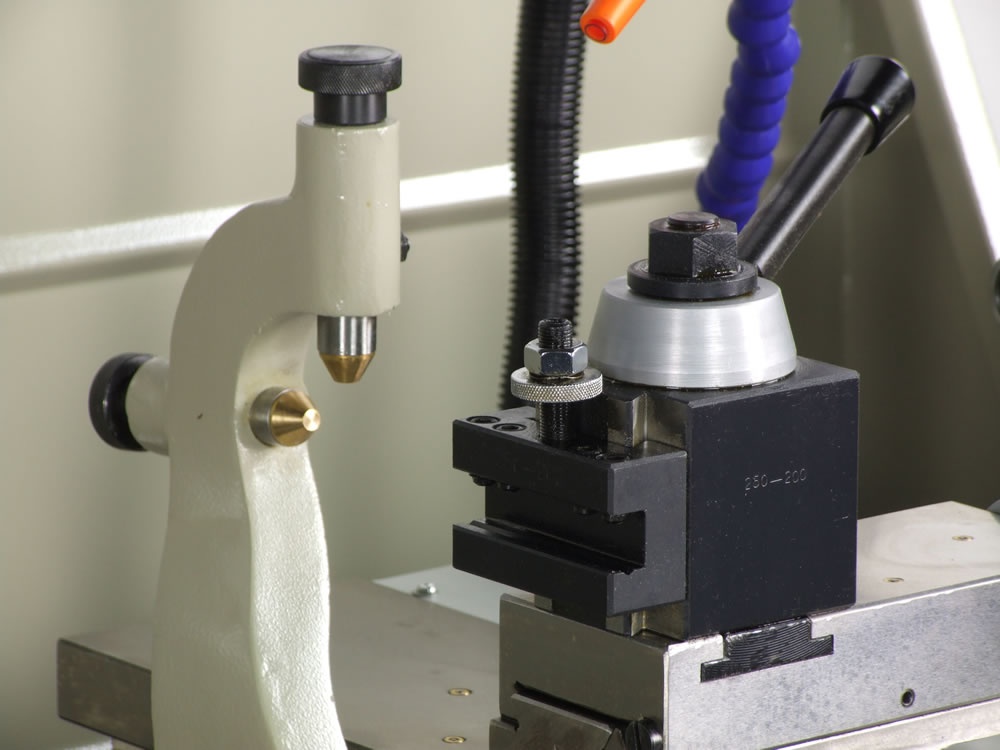

As far as entry level metal lathes go, this one has all the features of the more expensive models. The included accessories are, three and four jaw chucks, steady rest, follow rest, face plate, live center, foot brake, coolant system, and halogen work light.
SPECIFICATIONS:
- Item Number PL-1236E
- Sleeve Travel 4"
- Spindle Bore 1.50"
- Spindle Bore Taper Morse #5
- Sleeve Taper Morse #3
- Sleeve Diameter 1.250"
- Range Of Inch Threads 4 - 56 T.P.I.
- Metric Thread Range 0.4 – 7 mm
- Spindle Nose D1-4"
- Travel Of Cross Slide 5.312"
- Travel Of Top Slide 3.250"
- Width Of Bed 7.125"
- Spindle Speed 9 (70 – 1400 rpm)
- Swing In Gap 17"
- Swing Over Bed 12"
- Swing Over Cross Slide 7.625"
- Longitudinal Feed Range 0.002" – 0.0548"/rev
- Lead Screw Thread Pitch 8 T.P.I.
- Length Of Gap 6"
- Max. Tool Selection .625" x .625"
- Cross Feed Range 0.007" – 0.0187"/rev
- Distance Between Centers 36"
- Power 220V / 1-phase
- Shipping Weight 1,232 lbs.
- Shipping Dimensions 67" x 31" x 60"
* specifications subject to change without notice.
