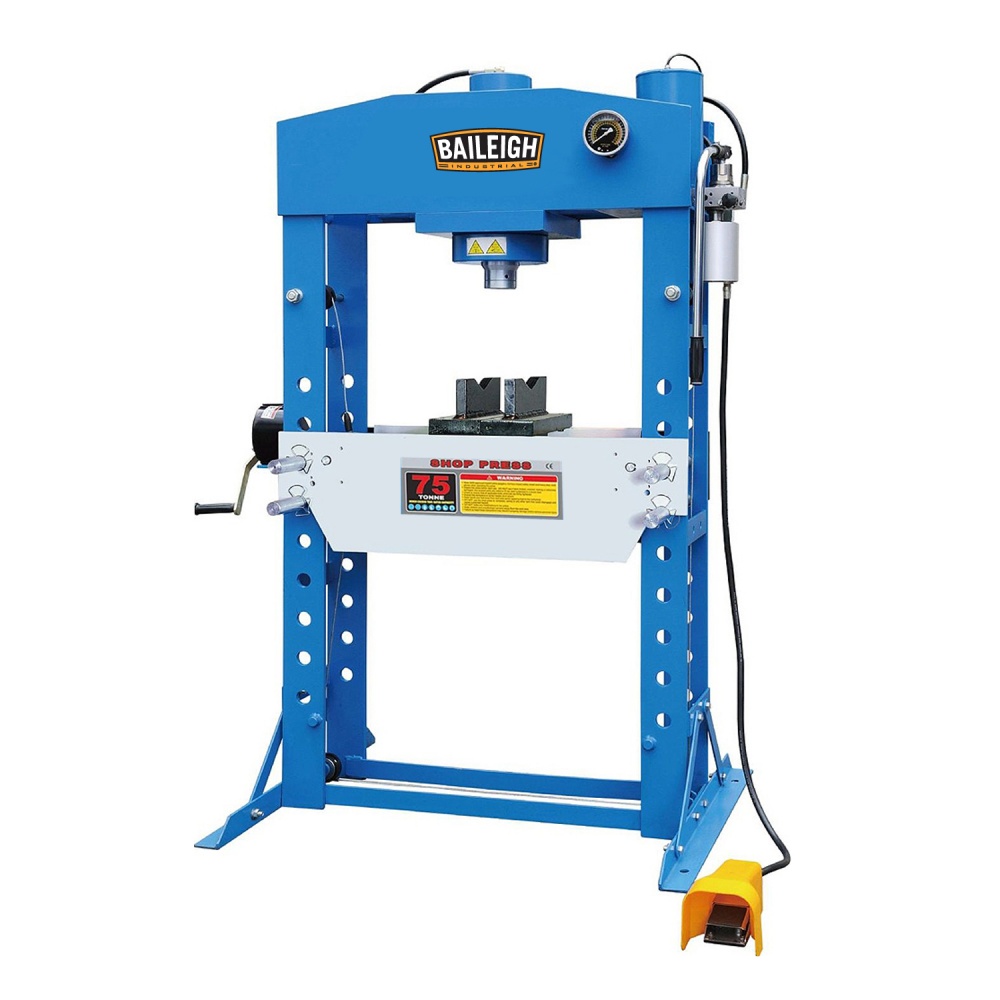

Baileigh Industrial Pneumatic Shop Press HSP-75A
This H-frame press maintains accuracy with fully-welded steel main frame. Go ahead and use its full 75 tons of force. This air-powered shop press won’t flex or buckle on you!
- 31.5” working width.

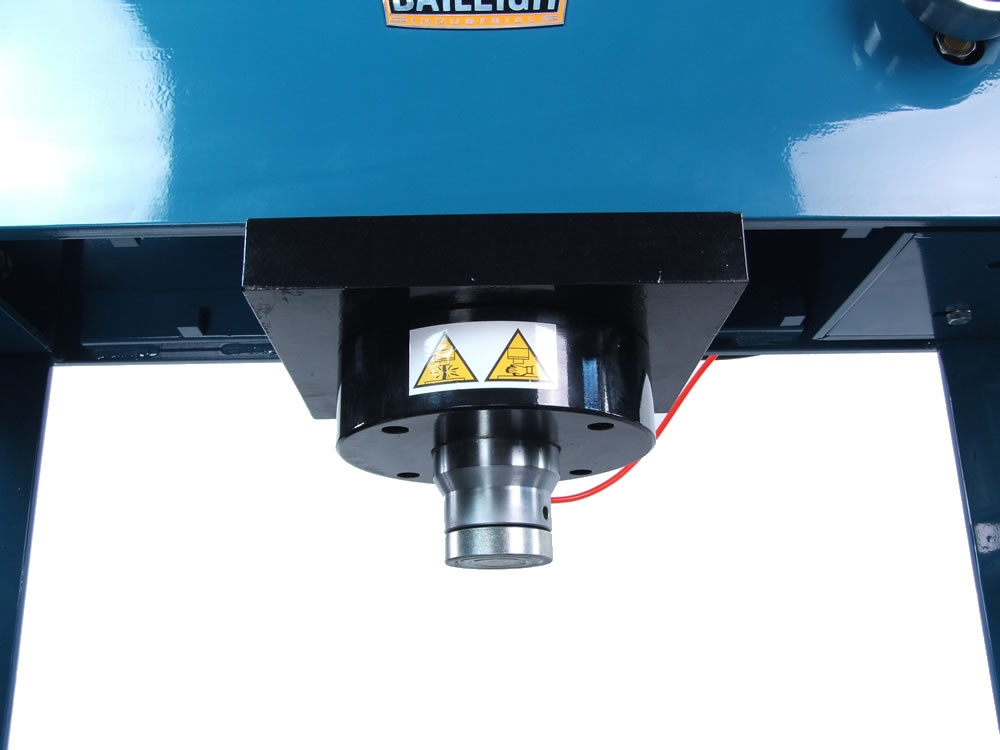

- Large 9” diameter cylinder with a 9.8” stroke.
- Requires a 90 to 115 psi compressor.
- Industrial-grade hydraulics help the machine last and run smoothly for many years of productivity.
- Integrated foot pedal makes this H-frame press easy to control.

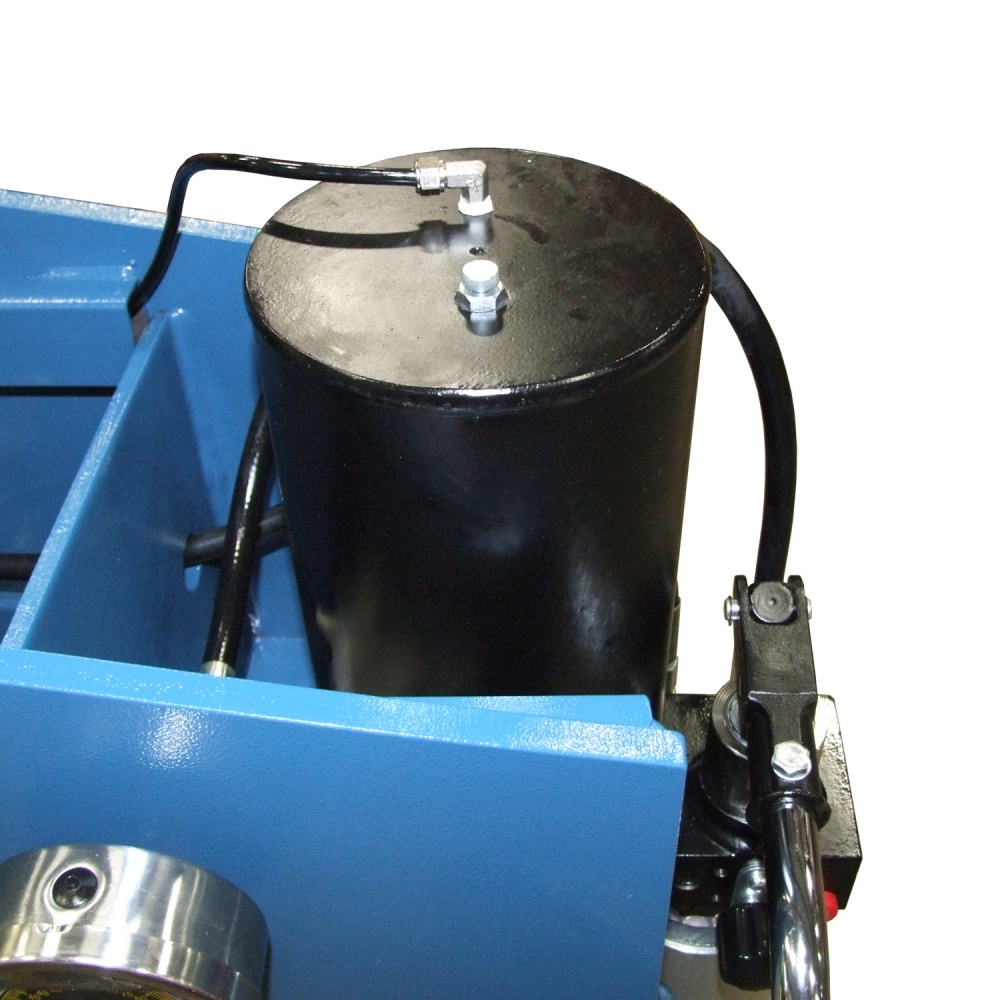

- If you’d like more delicate control, you can choose the manual hand pump located on the side of the HSP-75A.

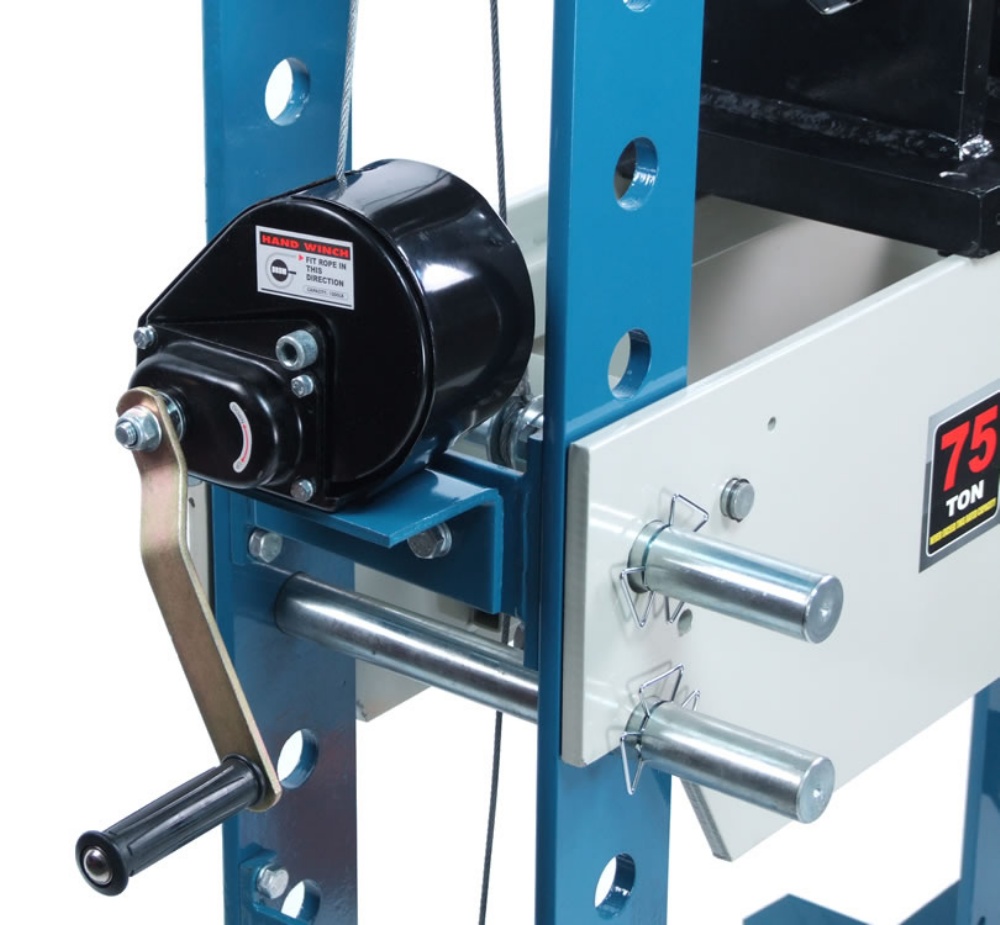

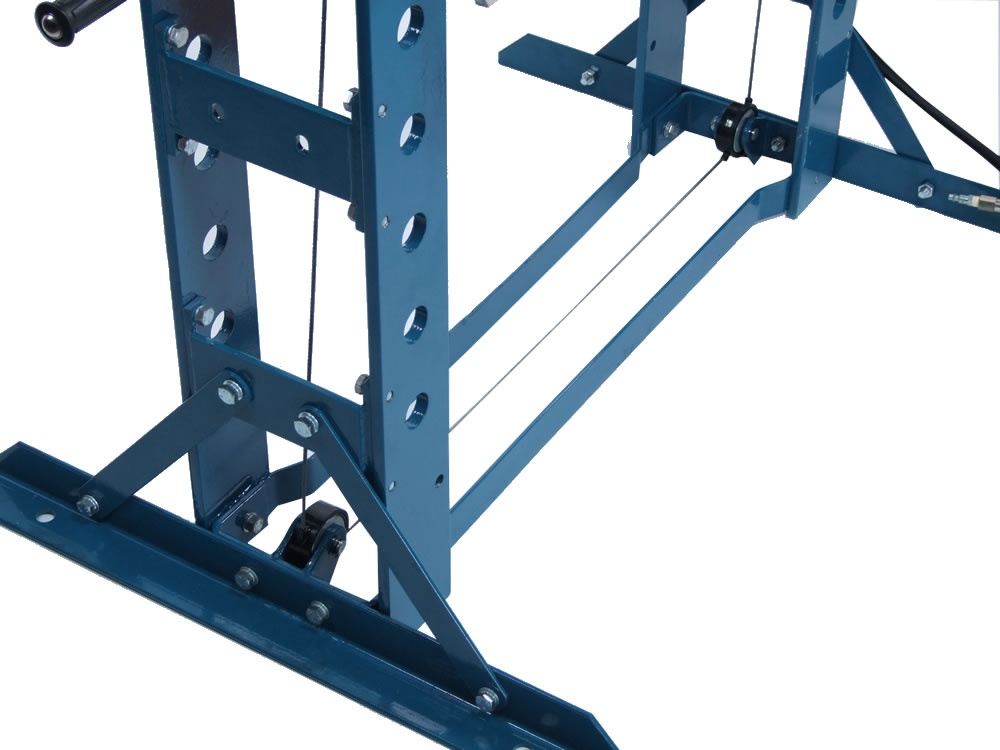

- Winch and pulley system will save time when lifting and lowering the working table. (It also saves strain on your back muscles.)

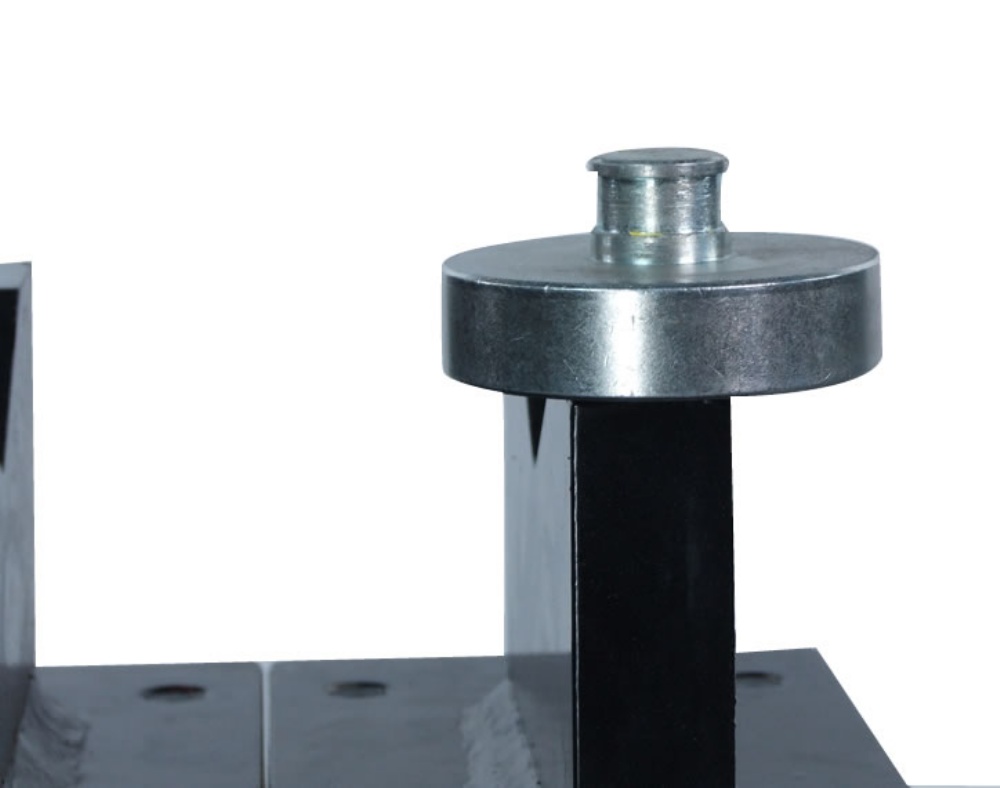

- Comes standard with a V-block set.
- You can count on Baileigh for a 1-year parts warranty as well as lifetime technical support by phone.
SPECIFICATIONS:
- Item Number HSP-75A
- Piston Head Diameter 3"
- Movable Cylinder Yes
- Working Width 31.5"
- Maximum Capacity 75 tons
- Cylinder Stroke 9.8"
- Cylinder Diameter 9"
- Distance From Table To Ram Min. 6.69" - Max. 34.80"
- Power Pneumatic / Manual
- Shipping Weight 1,300 lbs.
- Shipping Dimensions 83" x 44" x 24"
* specifications subject to change without notice.
