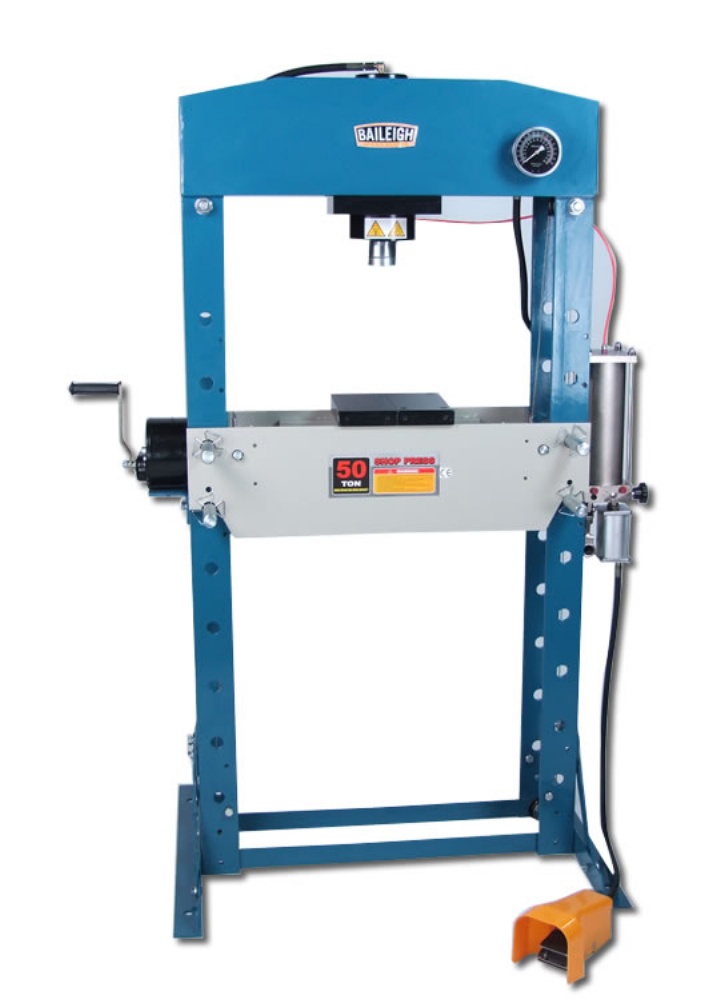

Baileigh Industrial Air/Hand Operated H-Frame Press HSP-50A
The most popular kind of H-frame press in fabrication and machine shops is the 50-ton upright. You won’t find a higher quality 50-ton pneumatic shop press than Baileigh’s HSP-50A.
- 28.5” working width.

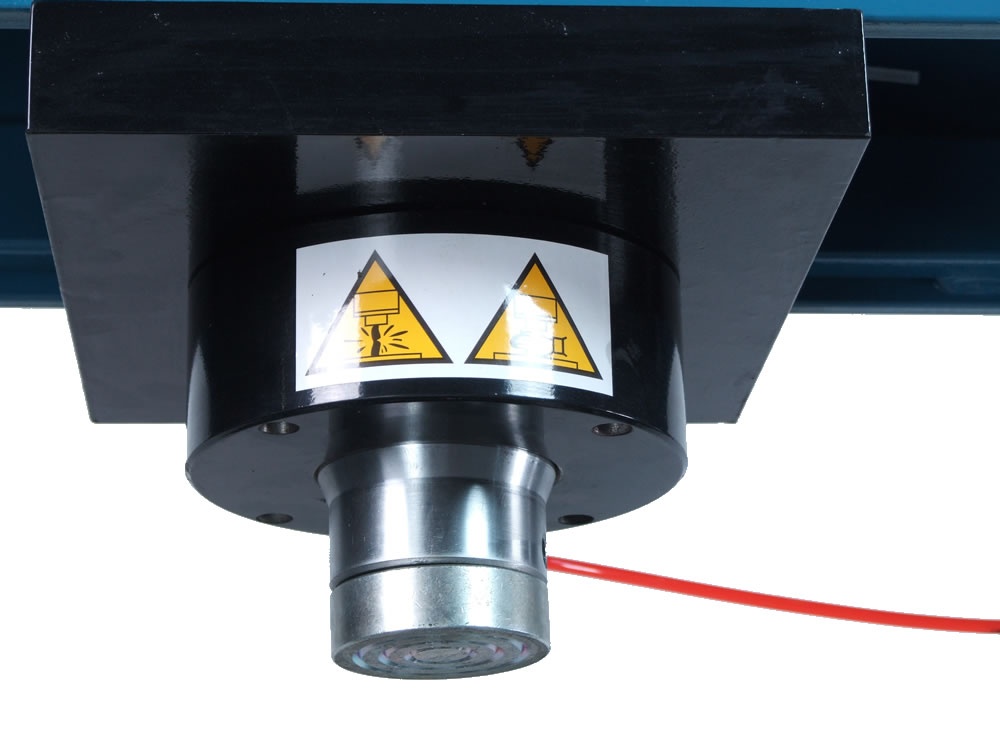

- Large 6” diameter cylinder with 7.8” stroke.
- Industrial-grade hydraulics ensure years of smooth, useful operation.
- Foot pedal allows for simple and convenient machine control.

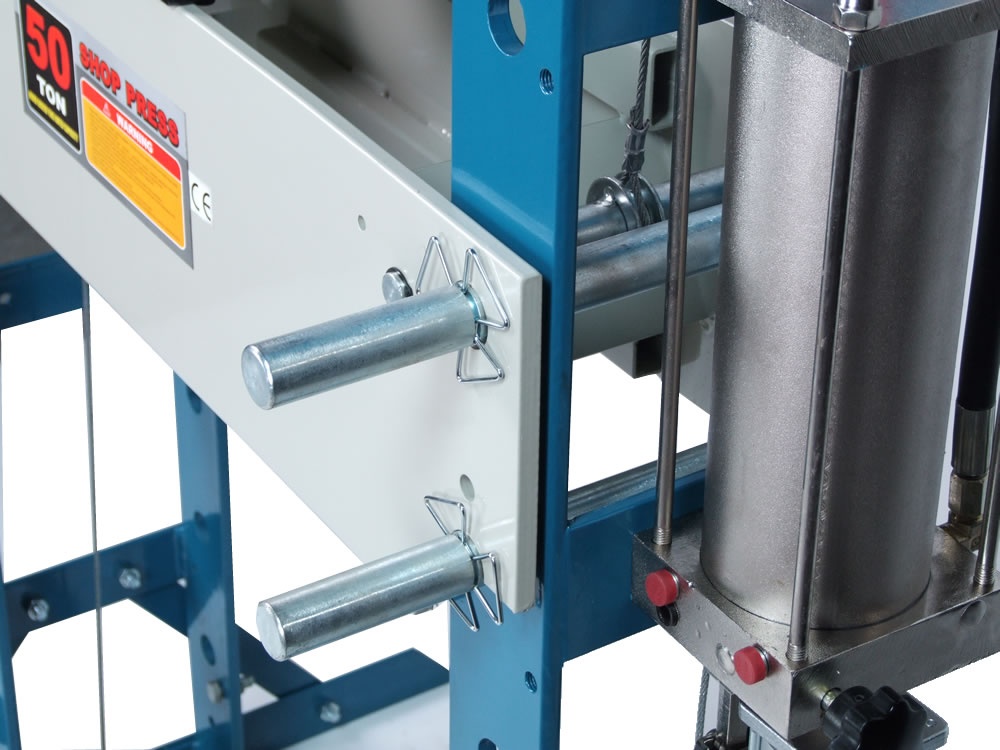

- Manual hand pump on the side of the HSP-50A offers more control for delicate applications.

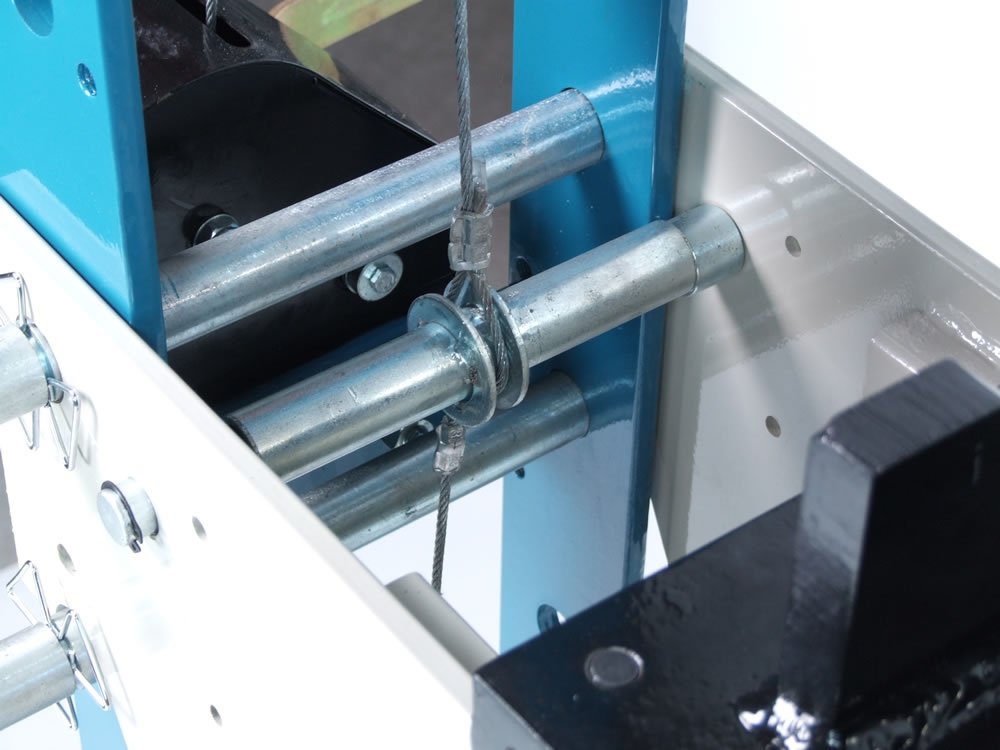

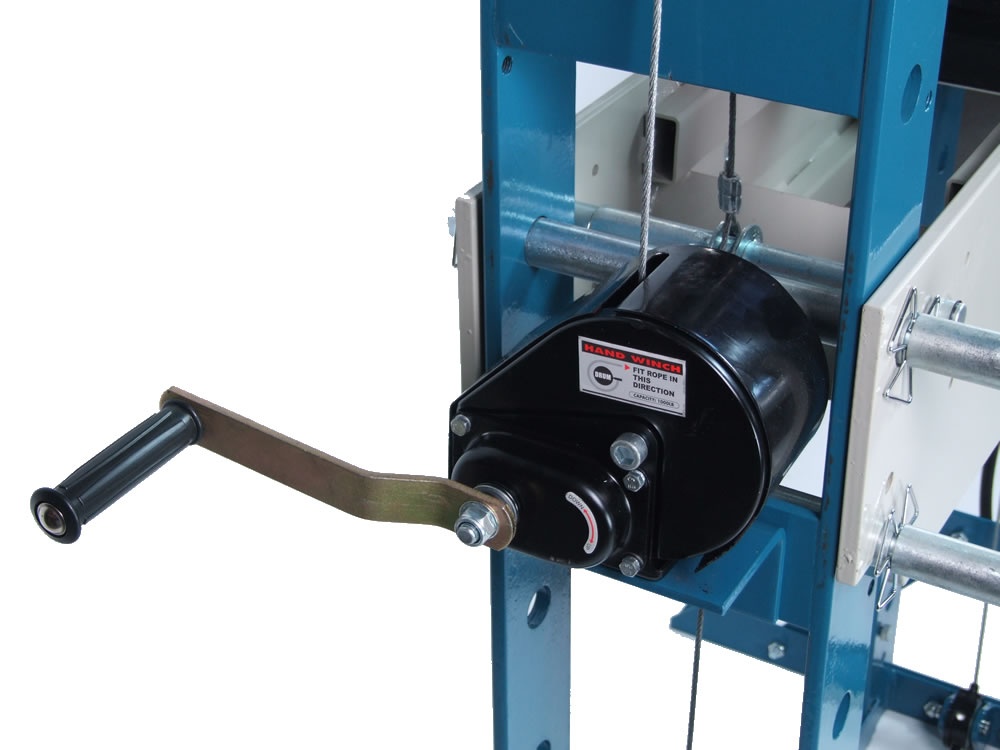

- Winch and pulley system lets you lift and lower the working table to save time (and back strain!) when you have to relocate the table.
- Fully-welded steel main frame for maximum rigidity, so you can use all 50 tons of force regularly without the machine buckling under the pressure.

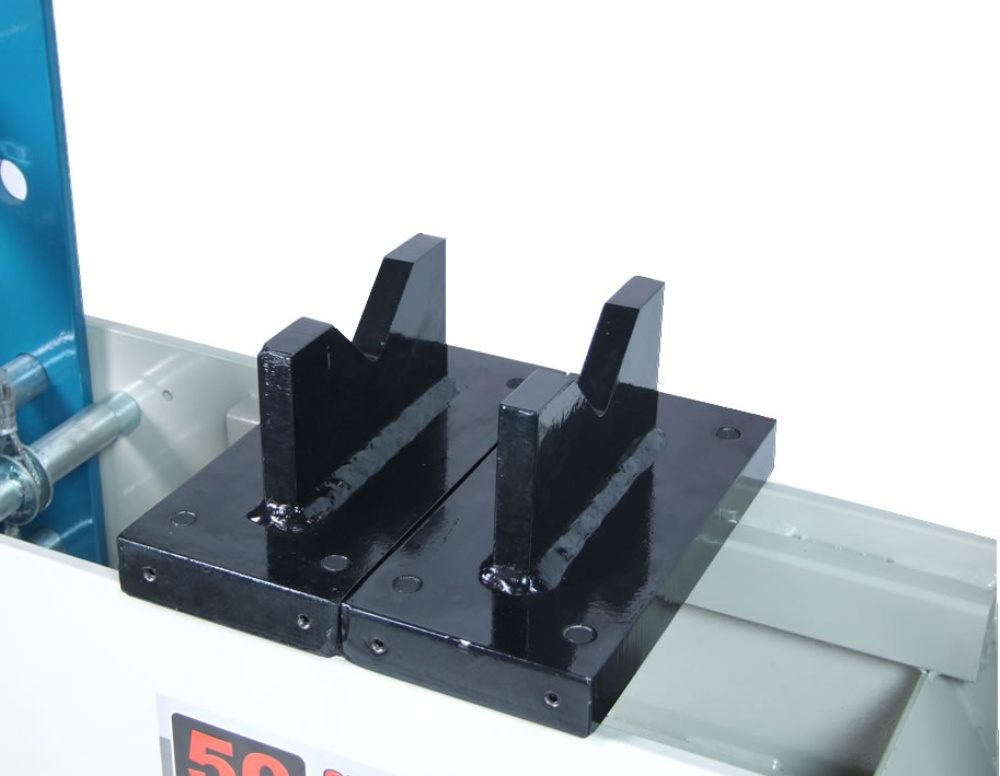

- Comes standard with a set of V-blocks.
- Covered by a 1-year parts warranty and lifetime technical support by phone.
SPECIFICATIONS:
- Item Number HSP-50A
- Piston Head Diameter 2.75"
- Movable Cylinder Yes
- Working Width 28.5"
- Maximum Capacity 50 tons
- Cylinder Stroke 7.8"
- Cylinder Diameter 6"
- Distance From Table To Ram Min. 2.72" - Max. 41.26"
- Power Pneumatic / Manual
- Shipping Weight 803 lbs.
- Shipping Dimensions 84" x 39" x 16"
- Dimensions L x W x H 84" x 39" x 16"
* specifications subject to change without notice.
