Baileigh Industrial Plasma Tube Profiling Machine PTP-1120

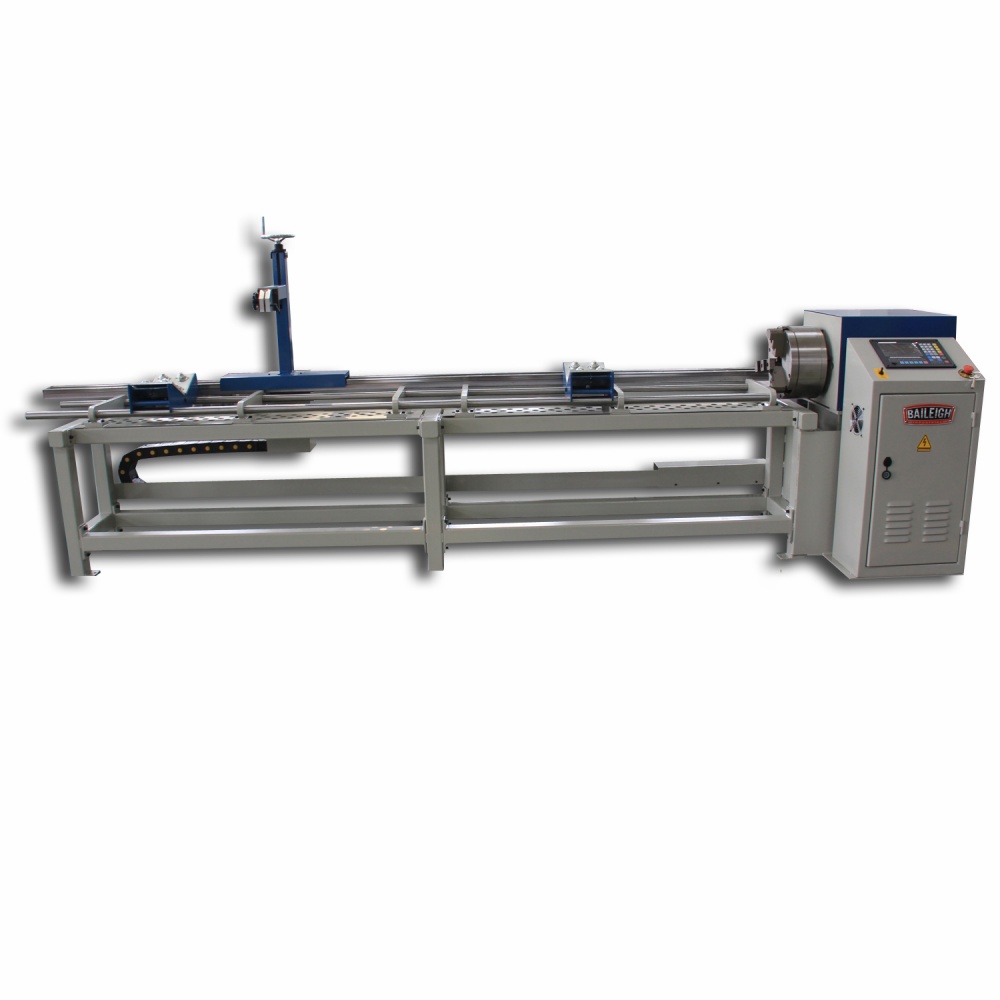

The PTP-1120 plasma tube profiling machine is the economical choice in notching and profiling tube and pipe with plasma. This CNC pipe-cutting solution features a compact footprint of only 2-feet wide by 22-feet long and can rapidly finish 20-foot material. the PTP-1120 also improves pipe fabrication productivity and quality by utilizing easy set-up, programming and cutting.

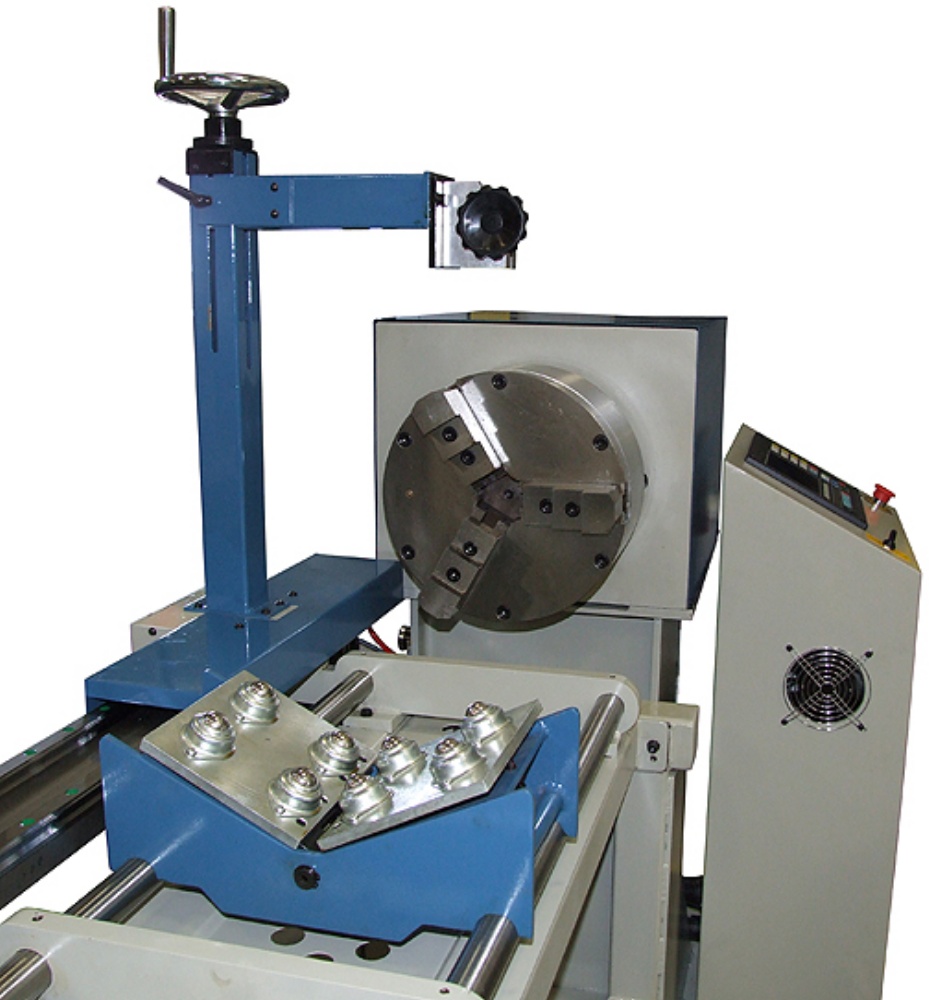

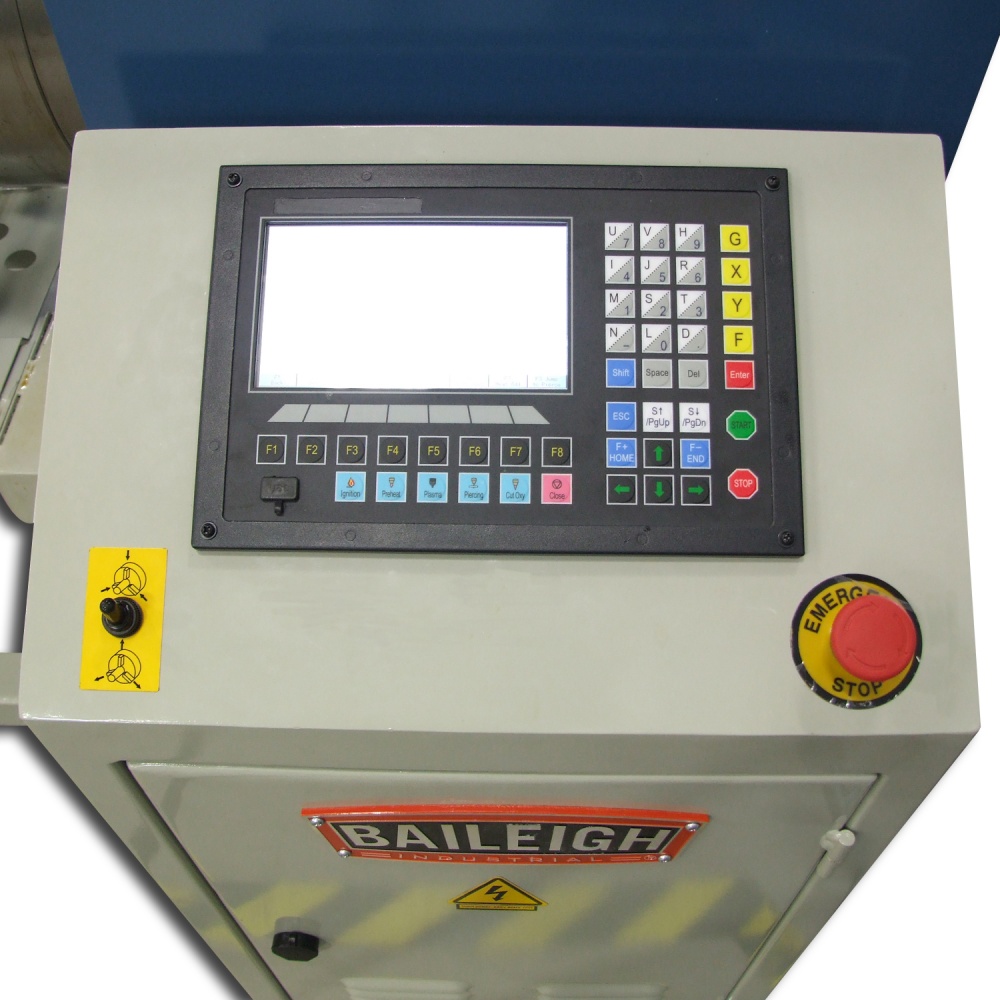

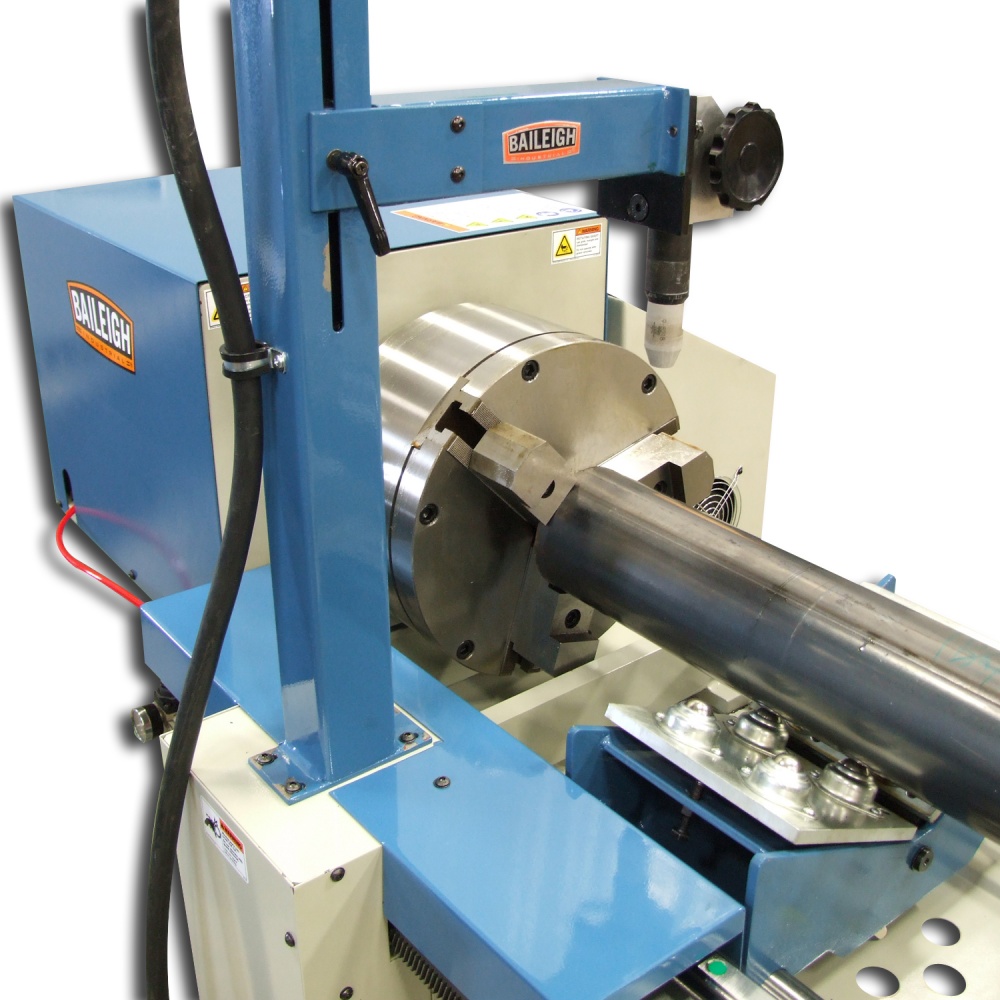

The controller provides effective cutting on X-Y axis and the included software allows the operator to take the design-software-generated G code and take it directly to the controller. The movement of the axis are controlled by stepper motors, providing smooth carriage motion. A pneumatic chuck opens and closes the vice so that material can be easily loaded, positioned for cutting and unloaded.

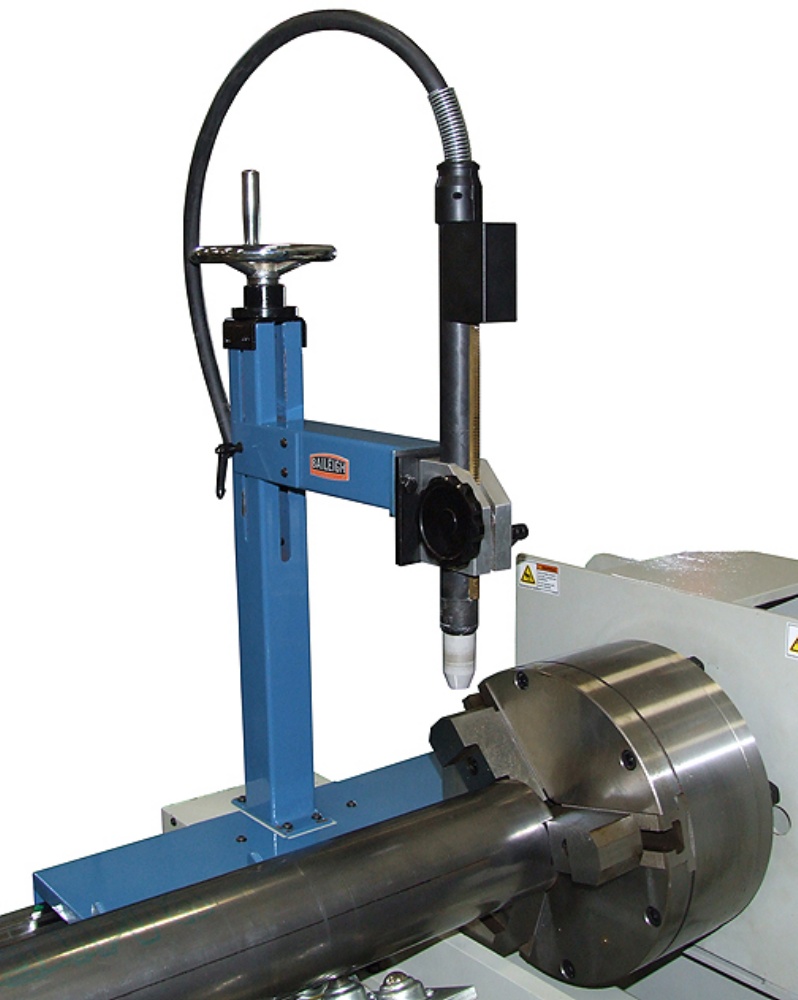

The PTP-1120 uses a variable-angle, manual height control for plasma torches. It is capable of cutting and profiling pipe with an outside diameter range of 2" 11.5". The PTP-1120 is perfect for the shop that needs to quickly and efficiently make a wide range of cuts. These cuts include straight, miter, saddle, center offset, multiple intersection and gusset slots. The unit also cuts round, rectangular and overlapping pipe holes.
SPECIFICATIONS:
- Item Number PTP-1120
- Maximum Load Capacity 100lbs per foot
- Table Size 19.685' (6 Meters)
- Max. Piercing Capacity Depends on Plasma System
- Notching Capacity (OD) 2" - 11.5" (50-300mm)
- Power Y Axis - .5hp , X Axis - 1hp
- Shipping Weight 3500
- Special Notes Plasma System Sold Separately
* specifications subject to change without notice.
