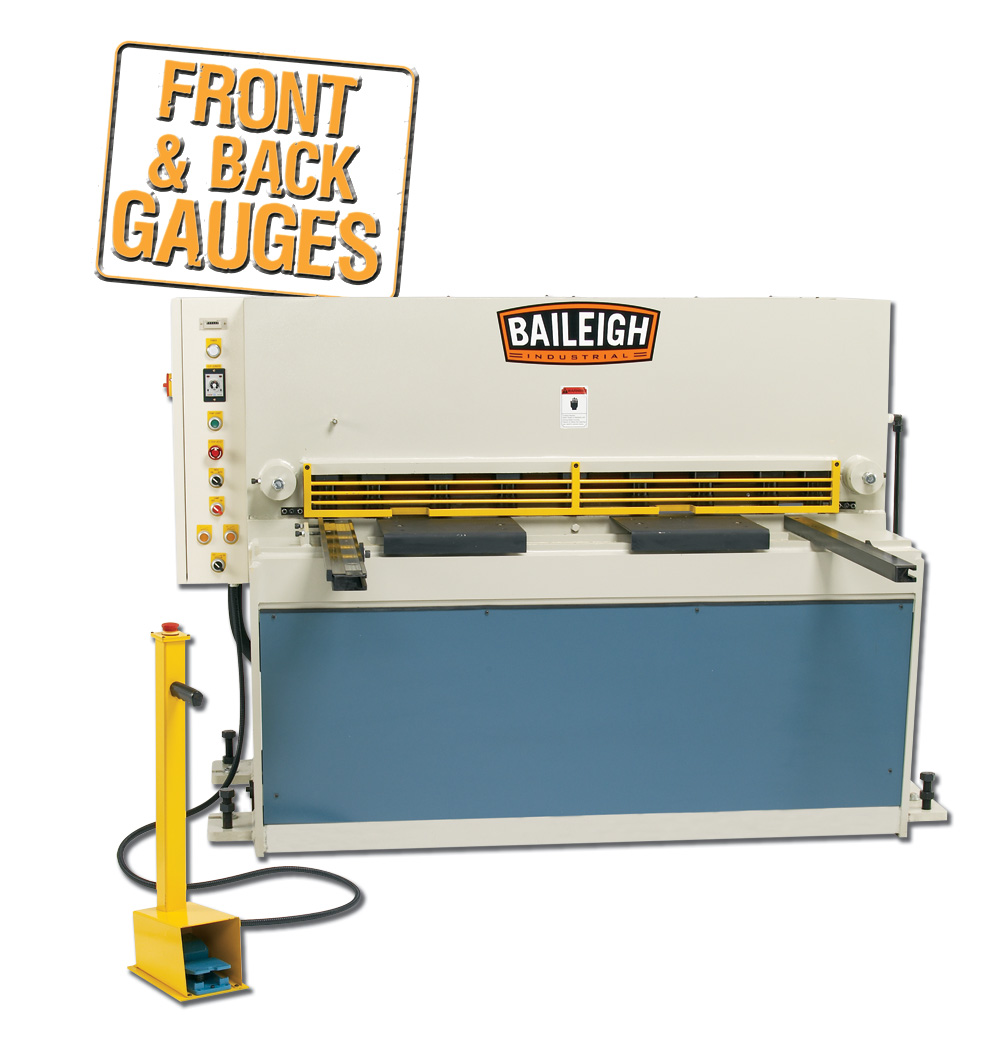

Baileigh Industrial Heavy Duty Hydraulic Sheet Metal Shear SH-5210-HD
The SH-5210-HD heavy duty hydraulic shear is a heavy duty machine built for years of production. It will take what you can throw at it and keep coming back for more. This machine has thick steel plate frame that is fully welded for rigidity. The shearing carriage rides against hardened carriage ways and uses heavy duty bearings to reduce friction and wear. The industrial grade hydraulics system on the SH-5210-HD is powered by a 7.5 hp 220 volt three phase motor.
The centralized control panel offers the selection of jog, single or continuous cutting modes. There is also a dial for adjusting the rake that eliminates curl and twist in cutting as well as a quick adjustment lever for material thickness. The upper blade is two sided while the lower blade is four sided. The blades can be resharpened when needed saving money.
This hydraulic sheet metal cutting shear has rigid, heavy duty load table and side gauges. A light shadow line for shearing position is standard and st the rear of the machine is a manual back gauge for repeatability.
SPECIFICATIONS:
- Item Number SH-5210-HD
- Back Gauge Length 23.62"
- Shear Length 52"
- Motor 7.5 hp
- Thickness (SS) 10 ga. (13 ga.)
- Strokes Per Minute 35 – 47
- Front Gauge Length 39.37"
- Blade Angle 1/2° – 2° Adjustable
- Blade Gap Adjustment Manual, Lever Acuated
- Power 220V / 3-phase
- Shipping Weight 3,960 lbs.
- Minimum Material Thickness 24ga
- Shipping Dimensions 91" x 48" x 63"
* specifications subject to change without notice.
