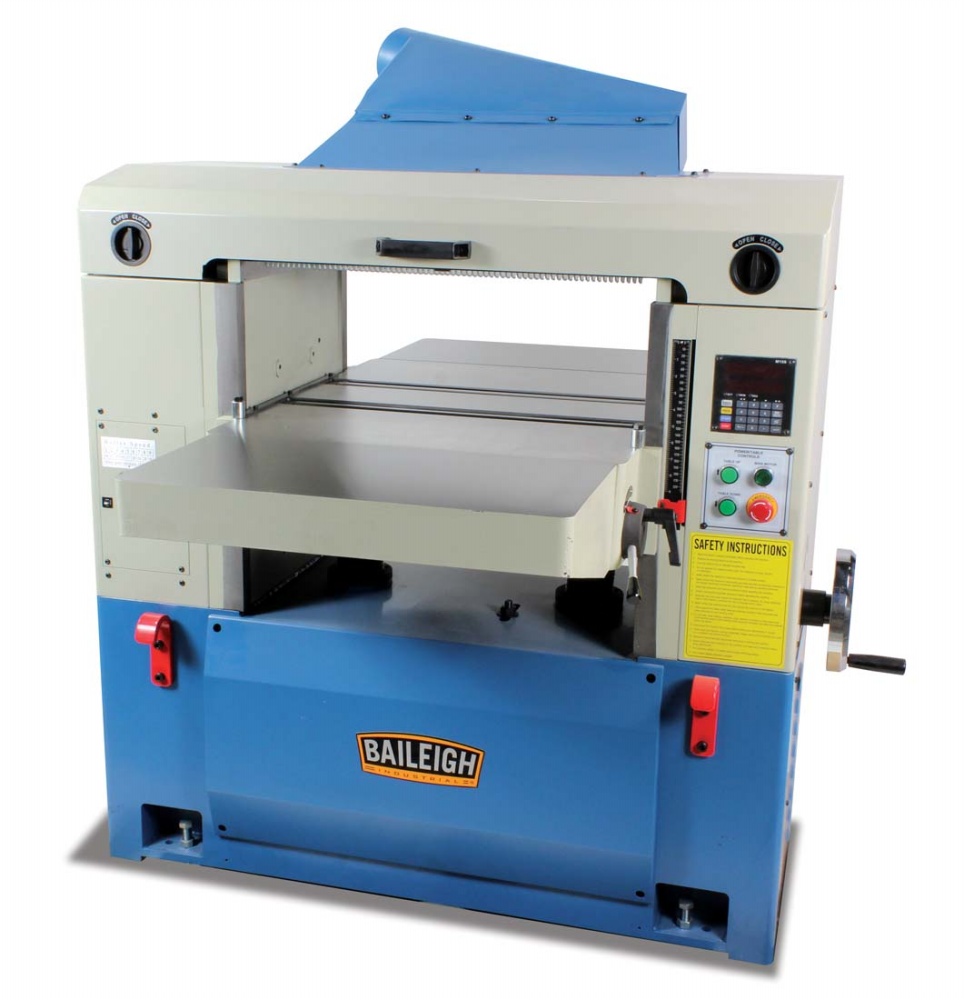

Baileigh 57 in x 25 in Numerically Controlled Planer IP-2509-HD
The IP-2509-HD is the ultimate in numerically controlled planers. This industrial 25” planer has a 10 hp single phase motor makes sure you never run out of power even when planing full 25” boards. Another advantage of the single phase power it that is will run in almost any shop without much problem. Because of the 10 hp motor the IP-2509-HD can take ¼” of material at one time by spinning it spiral head cutter at 5000 rpm. The table of the IP-2509-HD is 25” x 32”, but also has cast iron excretions that make the overall table size a large 25” x 57”.

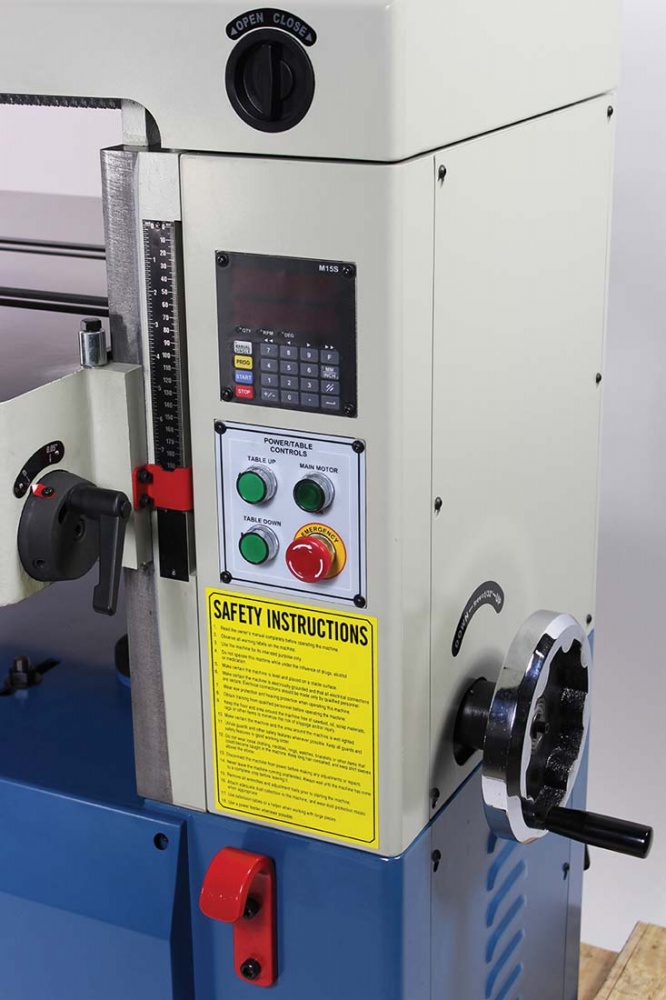

Many special features help make this the best on the market in its size. Oversized bearing housings ensure ultra-smooth, quiet performance and long life. Instead of only two speeds like most of the other planers on the market, the IP-2509-HD variable speed of 20 to 30 feet per minute meaning you will have the exact speed required. Another feature not normally found in this class is the standard PLC control which allows you to simply enter in the desired height and the bed moves automatically to that setting. You’ll never want to go back to turning a hand wheel to find your thickness. The controller on the IP-2509-HD planer also has automatic backlash compensation ensuring exact thicknesses.
Product Details:
- Item Number IP-2509-HD
- Table Size (Length) 57"
- Table Size (Width) 25"
- RPM 5000
- Maximum Depth of Cut (Resaw) 1/4"
- Cutter Head Diameter 3-3/8"
- Max Stock Width 25'
- Number of Knives 5 Row Spiral
- Maximum Stock Height 9"
- Minimum Stock Thickness 1/2"
- Minimum Stock Length 9'
- Feed Speed 20 to 30 FPM
- Table Elevation Digitally Controlled
- Power 220V Single Phase
- Horse Power 10
- Weight (lbs) 1760
