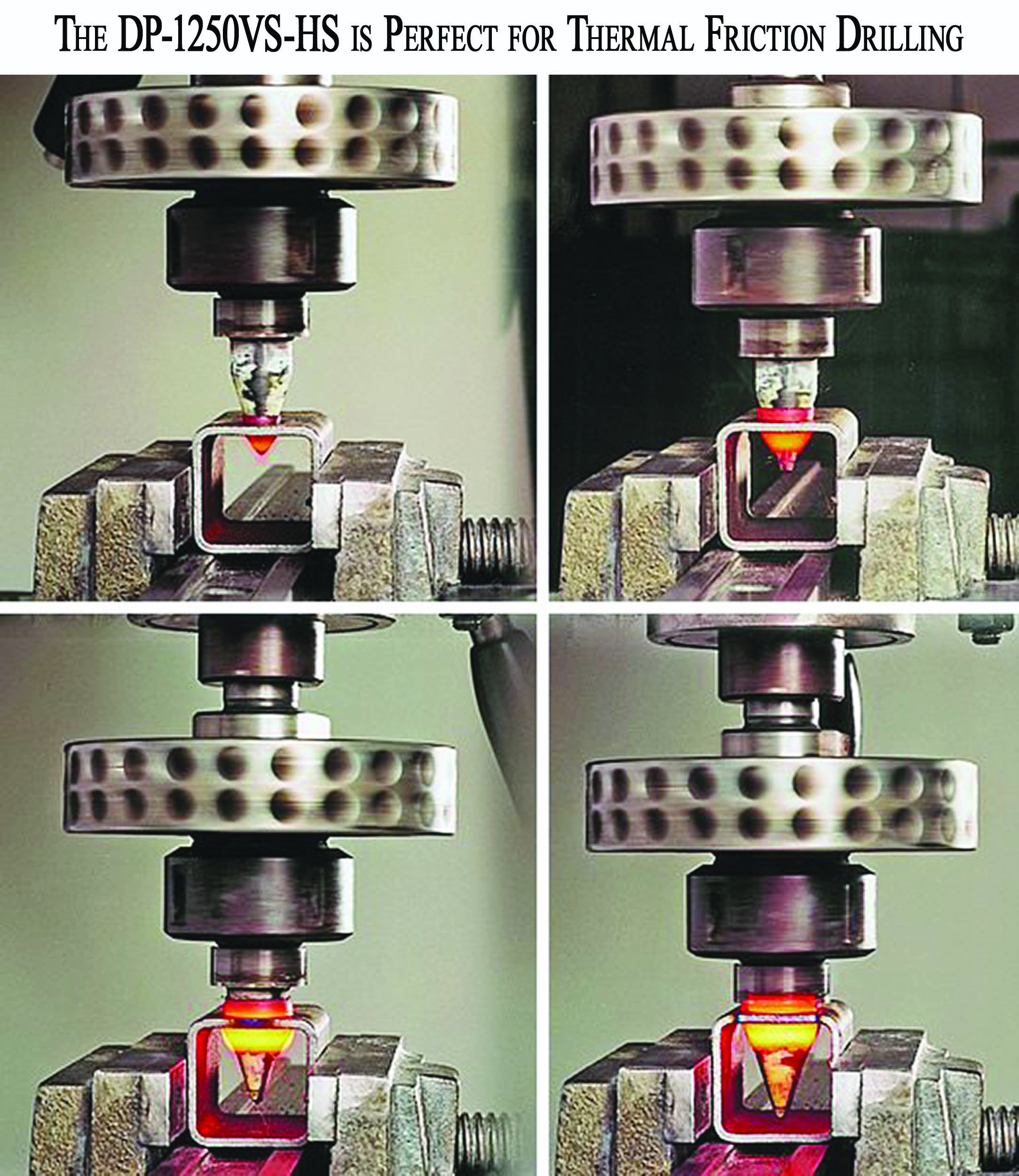

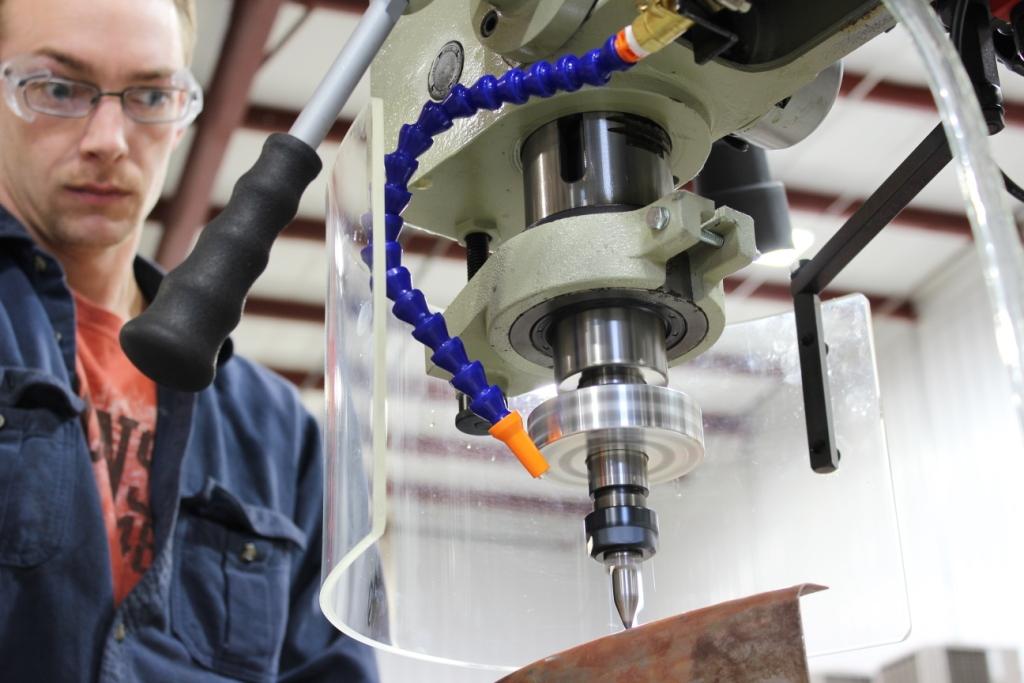

Looking to upgrade your current drill? This variable-speed drill press includes all the features of Baileigh’s DP-1250VS but rotates at speeds above 3000 rpm. Equipped for thermal friction drilling, the drill bit melts through the material and creates "walls” that can then be tapped.
•2 hp motor runs on 220-volt single-phase power.
•Wide 20” swing.
•Handles a maximum capacity of 1.25” mild steel.
•Includes quality auto-reversing tapping feature with a capacity of .75” mild steel.
•Efficient Delta® inverter drives the mighty #4 Morse taper spindle and regulates the amount of power and rpms to the spindle.
•Variable speed range from 100 to 4000 rpm lets you select the optimal setting for your application.
•Inverter lets you set the rpm to your desired speed within the continuous range instead of just a few settings.
•Machined, polished worktable offers large .625” T-slots for your work-holding device.
•4.5” wide column minimizes flex and maintains accuracy.
•Heavy-duty cast iron base has a built-in coolant system to extend tooling life.
•Chuck and automatic tool ejector make it easy to adjust the drill press for a given project.
•Protective spindle shield with limit switch keeps you and your shop safe.
•Comes standard with a halogen work light to help you get the job done under dark conditions.
Specifications
Item Number: DP-1250VS-HS
Motor: 2 hp
Quill Diameter: 2.95"
Spindle Nose to Table: 36.41"
Spindle Nose to Base: 48.22"
Spindle Speed High: 245 - 4000 U / 1 min
Spindle Speed Low: 100 to 1070 rpm
Spindle Taper: MT 4
Table Slot: .625"
Tapping Capacity: 3/4"
Motor Coolant: 1/8 hp
Power: 220V / 1-phase
Shipping Weight: 847 LBS
Swing: 20.8"
Drill Capacity: 1.5"
Spindle Travel: 5.9"
Column Diameter: 4.52"
Base Dimensions L x W: 27" x 19"
Shipping Dimensions: 40" x 25" x 83"
* specifications subject to change without notice.
