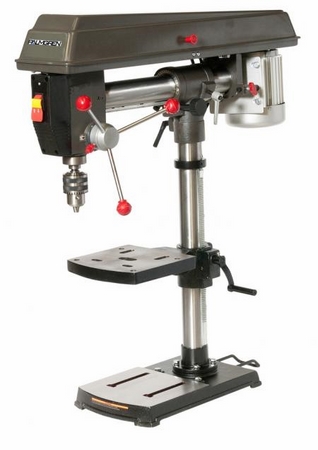

Equipped to run at 4 different speeds, the gear-driven drill press is as versatile as it is tough. For an economical price, you can add this drill—built to Baileigh’s exacting quality standards—to your shop.
•1.5 hp motor requires 110 volts of power and will run in any fabrication or machine shop.
•Maximum capacity of up to 1” mild steel.
•Transmission offers multiple speeds (125, 420, 535, and 1740 rpm) for drilling and tapping an array of different materials.
•Sturdy 4" diameter column reduces flexing to ensure accurate results.
•You can easily adjust the gear head up or down on the column.
•Comes standard with a heavy cast iron base and adjustable table.
•Includes a protective guard around the spindle for your safety.
•Bright halogen work light bends to provide visibility where you need it.
•Baileigh covers this drill press with a 1-year warranty plus lifetime technical support by phone.
Specifications:
- Item Number: DP-1000G
- Table Size: 19.75" x 13.75"
- Motor: 1.5 hp
- Spindle Speed: 125, 420, 535, 1740 rpm
- Spindle Taper: MT 3
- Tapping Capacity: 5/8"
- Power: 110V
- Shipping Weight: 484 lbs.
- Drill Capacity: 1"
- Spindle Travel: 5.3"
- Base Dimensions L x W: 15.5" x 19.5"
- Shipping Dimensions: 66" x 22" x 28"
* specifications subject to change without notice.
